Description
The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows/Ubuntu (Linux) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers.
- Supports SAS 6Gb/s for high-speed data transfers
- Flexible JBOD configuration for customized storage solutions

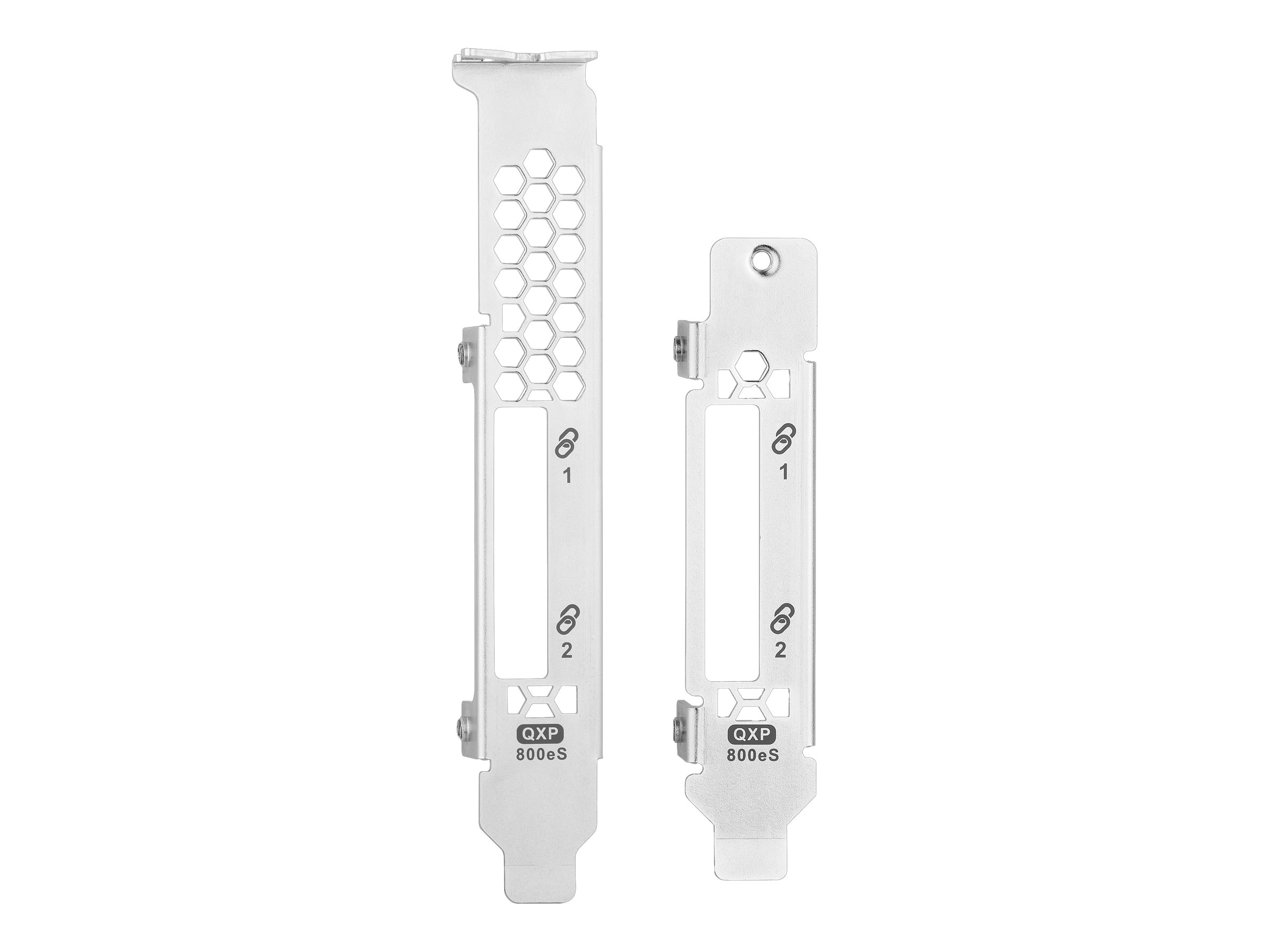

- Low-profile form factor for easy installation in various systems
- 1 m mini SAS cable included for immediate setup
- Compatible with solid state drives, enhancing system performance
- Enhanced connectivity

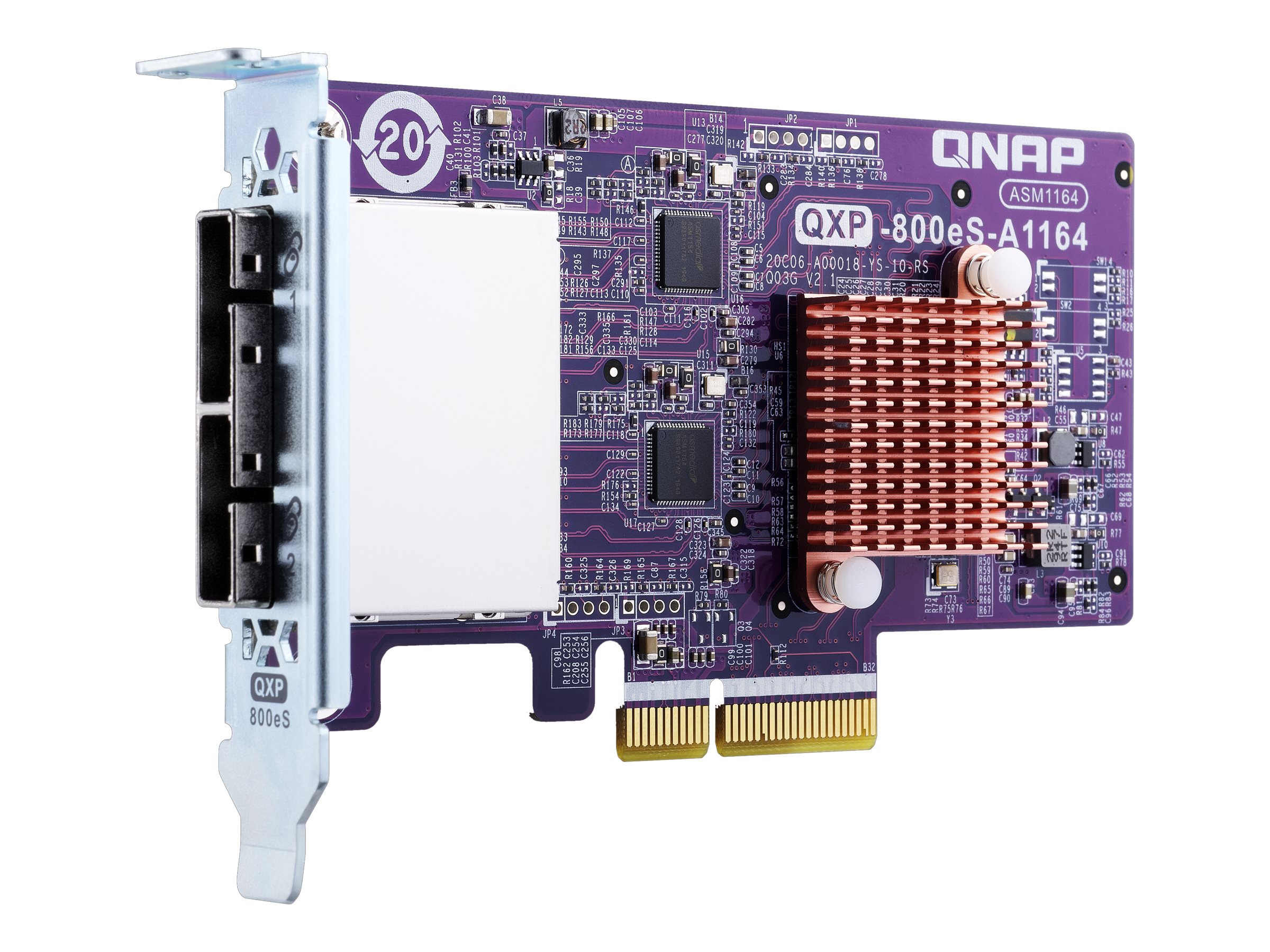

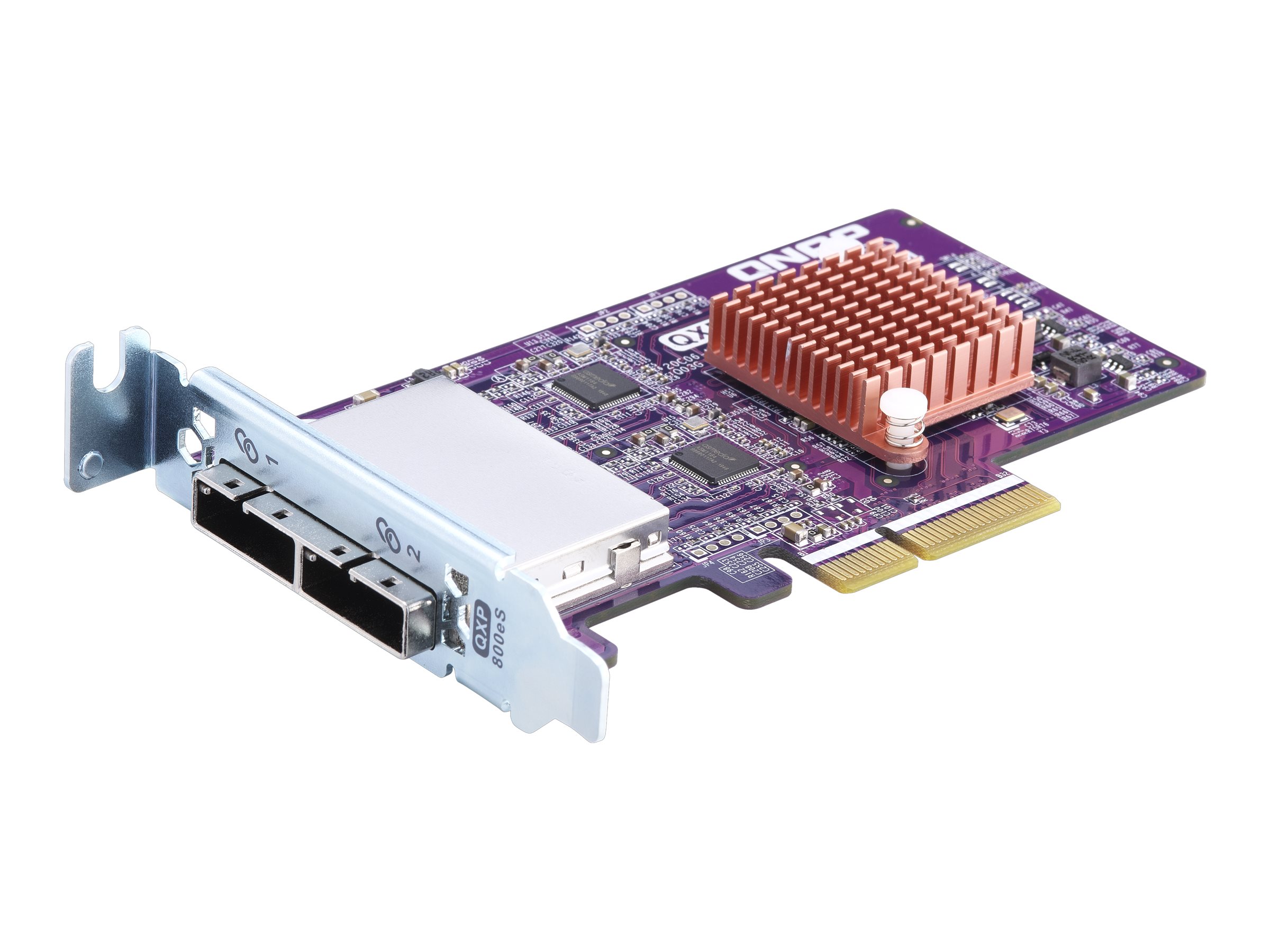

The QXP SATA Expansion Card features a 26 pin 4x Mini SAS (SFF-8088) connector, providing robust connectivity options for your storage needs. This interface supports SAS 6Gb/s, ensuring high-speed data transfer and efficient operation. - Versatile storage solution
Designed to support solid state drives, the QXP SATA Expansion Card offers a flexible storage solution. With its capability to operate in JBOD mode, users can manage their drives according to their specific storage requirements without the constraints of traditional RAID configurations. - High-speed performance

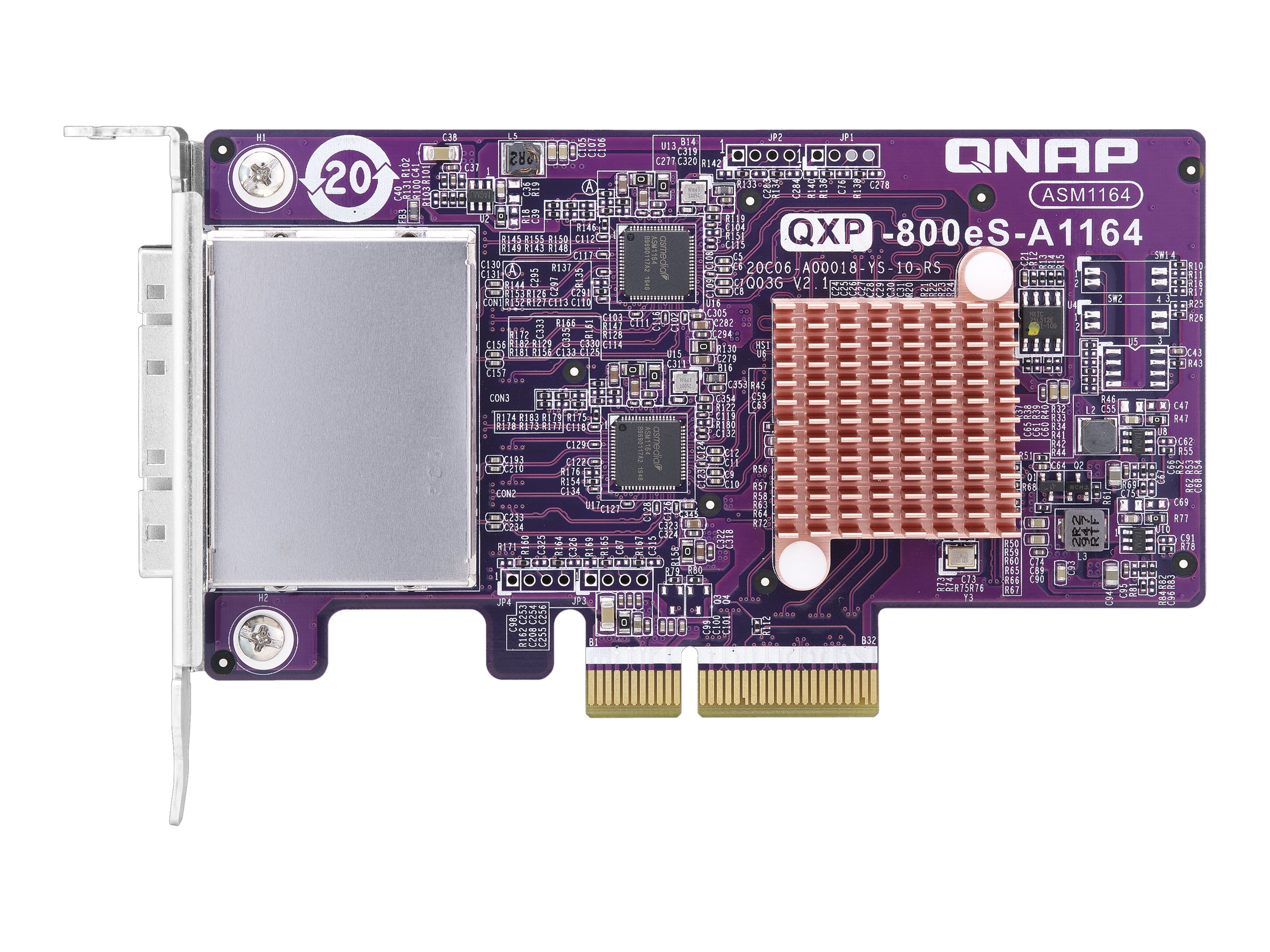

Equipped with an ASMedia ASM1164 processor, this storage controller facilitates data transfer rates of up to 6 Gbit/s. Whether you’re working with SATA 6Gb/s or SAS 6Gb/s interfaces, this card ensures your data moves quickly and reliably.
Main Specifications
Product Description | QNAP QXP SATA Expansion Card – storage controller – SATA 6Gb/s / SAS 6Gb/s – PCIe 3.0 x4 |
Device Type | Storage controller – plug-in card – low profile |
Bus Type | PCIe 3.0 x4 |
Interface | SATA 6Gb/s / SAS 6Gb/s |
Data Transfer Rate | 6 Gbit/s |
Supported Devices | Solid state drive |
Max Storage Devices Qty | 8 |
RAID Level | JBOD |
System Requirements | Windows 8 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2012 R2 or later |
Dimensions (WxDxH) | 1.724 cm x 11.965 cm x 6.89 cm |
Extended Specifications
General
Device Type | Storage controller – plug-in card – low profile |
|---|
Host Bus | PCIe 3.0 x4 |
|---|
Storage Controller
Interface | SATA 6Gb/s / SAS 6Gb/s |
|---|
Data Transfer Rate | 6 Gbit/s |
|---|
Supported Devices | Solid state drive |
|---|
Max Storage Devices Qty | 8 |
|---|
RAID Level | JBOD |
|---|
Processor | ASMedia ASM1164 |
|---|
Expansion / Connectivity
Interfaces | 2 x SAS 6Gb/s – 26 pin 4x Mini SAS |
|---|
Miscellaneous
Cables Included | 1 x mini SAS cable – external – 1 m |
|---|
Software / System Requirements
OS Required | Windows 8 or later, Linux Kernel 3.10 or later, Microsoft Windows Server 2012 R2 or later |
|---|
Dimensions & Weight
Width | 1.724 cm |
|---|
Depth | 11.965 cm |
|---|
Height | 6.89 cm |
|---|
