Description

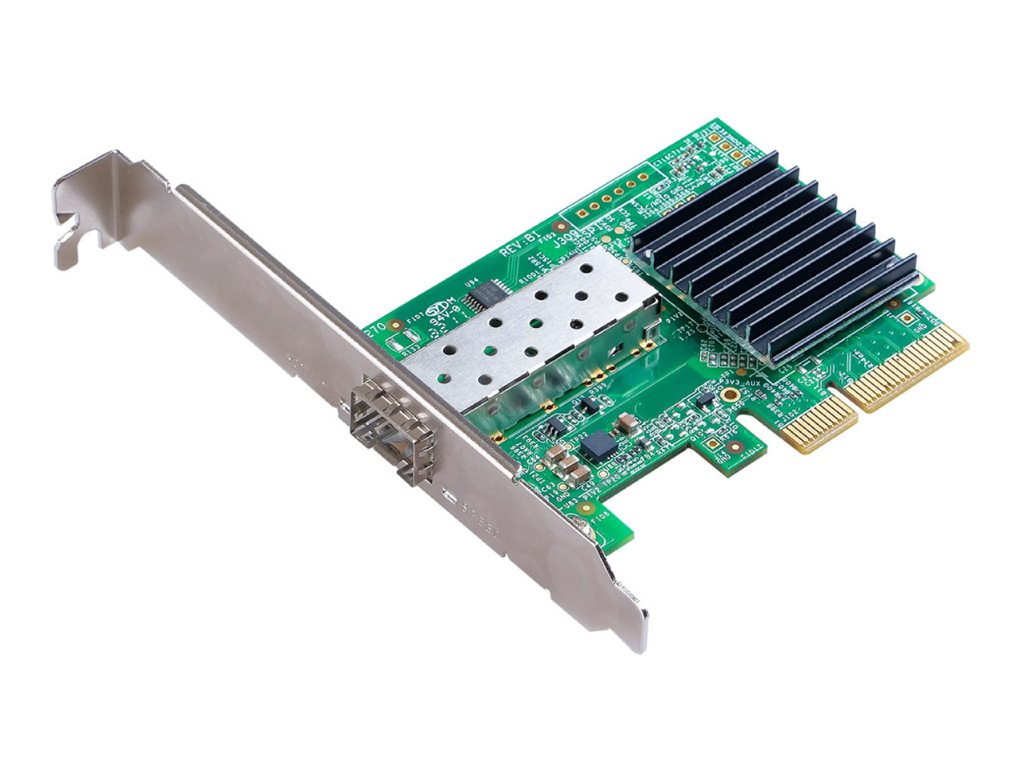

The Edimax EN-9320SFP+ V2 network adapter is designed to meet the demands of high-speed networking. Offering a 10GBase-X SFP+ port, it provides a data transfer rate of up to 10 Gbps, making it suitable for data centers, enterprise use, and power users who require fast and reliable data transmission. This adapter is built on the PCI Express 3.0 x4 interface, ensuring maximum bandwidth and a stable connection. It supports features such as Quality of Service (QoS), VLAN support, and flow control, enhancing network efficiency and traffic management. With its low-profile design, it fits seamlessly into various form factors, offering flexibility in installation. The EN-9320SFP+ V2 is also compliant with FCC standards and supports a wide range of IEEE protocols, ensuring compatibility with existing network infrastructure and facilitating easy integration.
- 10 Gbps data transfer rate for high-speed networking
- Supports Quality of Service (QoS) for traffic prioritization
- PCI Express 3.0 x4 interface for improved bandwidth
- Low-profile design allows for installation in various form factors
- Compliant with multiple IEEE standards for broad compatibility
- Enhanced connectivity
The EN-9320SFP+ V2 network adapter offers a high-speed 10GBase-X interface, ensuring rapid data transfer rates of up to 10 Gbps. This feature enables efficient handling of data-intensive tasks and applications, making it a suitable solution for businesses and power users seeking enhanced network performance. - Robust performance
Equipped with a PCI Express 3.0 x4 interface, the EN-9320SFP+ V2 provides a reliable connection and maximizes the bandwidth. Its support for 16 KB Jumbo Frame and full duplex mode further enhances its performance, allowing for smoother and faster data transmission. - Advanced networking features
This adapter supports a range of networking protocols and features, including Quality of Service (QoS), VLAN support, and flow control. These features ensure a stable and secure networking environment, optimizing traffic prioritization and improving network efficiency.
Main Specifications
Product Description | Edimax EN-9320SFP+ V2 – network adapter – PCIe 3.0 x4 – 10 Gigabit SFP+ |
Device Type | Network adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI Express 3.0 x4 |
PCI Specification Revision | PCIe 3.0 |
Ports | 10 Gigabit SFP+ |
Dimensions (WxDxH) | 1.5 cm x 8.2 cm x 6.2 cm |
Weight | 48 g |
Cabling Type | Ethernet 10GBase-X |
Data Link Protocol | 10GbE |
Data Transfer Rate | 10 Gbps |
Network / Transport Protocol | TCP/IP, UDP/IP |
Compliant Standards | IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q |
System Requirements | Windows 8 / 8.1 / 10 / 11 |
Extended Specifications
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
General
Device Type | Network adapter |
|---|
Dimensions & Weight
Networking
Network / Transport Protocol | TCP/IP, UDP/IP |
|---|
Dimensions & Weight
Networking
Data Transfer Rate | 10 Gbps |
|---|
Dimensions & Weight
Networking
Data Link Protocol | 10 Gigabit Ethernet |
|---|
Miscellaneous
Included Accessories | Low-profile bracket |
|---|
Networking
Connectivity Technology | Wired |
|---|
Miscellaneous
Networking
Cabling Type | Ethernet 10GBase-X |
|---|
General
Form Factor | Plug-in card – low profile |
|---|
Environmental Parameters
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
General
PCI Specification Revision | PCIe 3.0 |
|---|
Interface (Bus) Type | PCI Express 3.0 x4 |
|---|
Networking
Expansion / Connectivity
Interfaces | 1 x 10GBase-X – SFP+ |
|---|
Networking
Status Indicators | Speed/activity |
|---|
Software / System Requirements
OS Required | Windows 8 / 8.1 / 10 / 11 |
|---|
Networking
Features | QoS, 16 KB Jumbo Frame, VLAN support, full duplex mode, flow control |
|---|
Compliant Standards | IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q |
|---|
