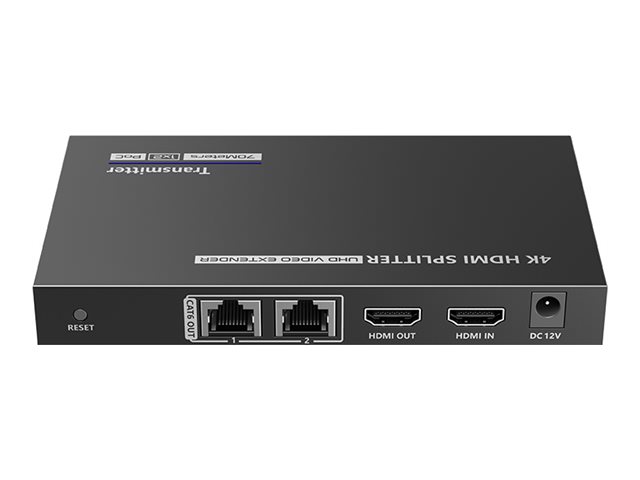

Lenkeng LKV722P, Video/audio/infrared extender, transmitter, over CAT 6/6a/7, 2 ports, up to 70 m
$322.88 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Lenkeng LKV722P is a video/audio/infrared extender that delivers quality transmission capabilities over a distance. Designed for various environments, it features a robust operating temperature range from -20°C to 60°C and an operating humidity range of 0 – 90% RH, making it suitable for industrial and commercial use. With support for 4K video resolution at a V-Sync rate of 30 Hz, the device ensures a clear and crisp image for all connected displays.
This external transmitter utilizes CAT 6/6a/7 cables for a maximum transfer distance of 70 m, allowing versatile installation options. The product is equipped with ESD protection and lightning protection features to safeguard against power surges and electrical discharges. Additionally, the LKV722P supports bi-directional IR and HDMI loop out, providing seamless control and connectivity for various devices. With Power over Cable (PoC) functionality, this extender simplifies installation by reducing the need for multiple power sources.
- Supports 4K video resolution with a 30 Hz V-Sync rate
- Maximum transfer distance of 70 m using CAT 6/6a/7 cables
- Equipped with ESD, lightning, and surge protection for durability
- Features bi-directional IR and HDMI loop out for connectivity
- Power over Cable (PoC) capability simplifies installation
- Robust operating environment
The LKV722P operates efficiently within a temperature range of -20°C to 60°C and a humidity range of 0 – 90% RH, ensuring reliability in diverse conditions. - High-quality video transmission
This extender supports a maximum video resolution of 4K at a V-Sync rate of 30 Hz, offering visually appealing outputs for various applications. - Advanced protection features
Equipped with 4KV ESD protection for contact discharge and 8KV ESD protection for air-gap discharge, along with lightning and surge protection, the device ensures safety and longevity. - Flexible connectivity options
With bi-directional IR and HDMI loop out functionality, the LKV722P enhances user control and allows for seamless integration with other devices. - Efficient power management
The Power over Cable (PoC) functionality allows the device to receive power through Ethernet cables, minimizing the need for additional power supplies.
Main Specifications
Product Description | Lenkeng LKV722P – video/audio/infrared extender |
Device Type | Video/audio/infrared extender (transmitter) |
Ports Qty | 2 |
Form Factor | External |
Transmission Medium | CAT 6/6a/7 |
Max Transfer Distance | 70 m |
Dimensions (WxDxH) | 8.65 cm x 15.15 cm x 1.9 cm |
Weight | 280 g |
Extended Specifications
General
Device Type | Video/audio/infrared extender (transmitter) |
|---|---|
Form Factor | External |
Colour | Black |
Networking
Ports Qty | 2 |
|---|---|
Max Resolution | 4K @ 30 Hz |
Max Transfer Distance | 70 m |
Features | Pulse-Code Modulation (PCM) support, DTS support, DTS-HD support, LPCM support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), lightning protection, surge protection, iron housing, bi-directional IR, IR pass-through, HDR support, HDMI loop out, power over cable (PoC), Visually Lossless Compression |
Expansion / Connectivity
Interfaces | 1 x HDMI (output) – 19 pin HDMI Type A 1 x HDMI (input) – 19 pin HDMI Type A 2 x Ethernet – RJ-45 RS-232 |
|---|
Power
Power Device | External power adapter |
|---|
Dimensions & Weight
Width | 8.65 cm |
|---|---|
Depth | 15.15 cm |
Height | 1.9 cm |
Weight | 280 g |
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|---|
Max Operating Temperature | 60 °C |
Humidity Range Operating | 0 – 90% RH |
