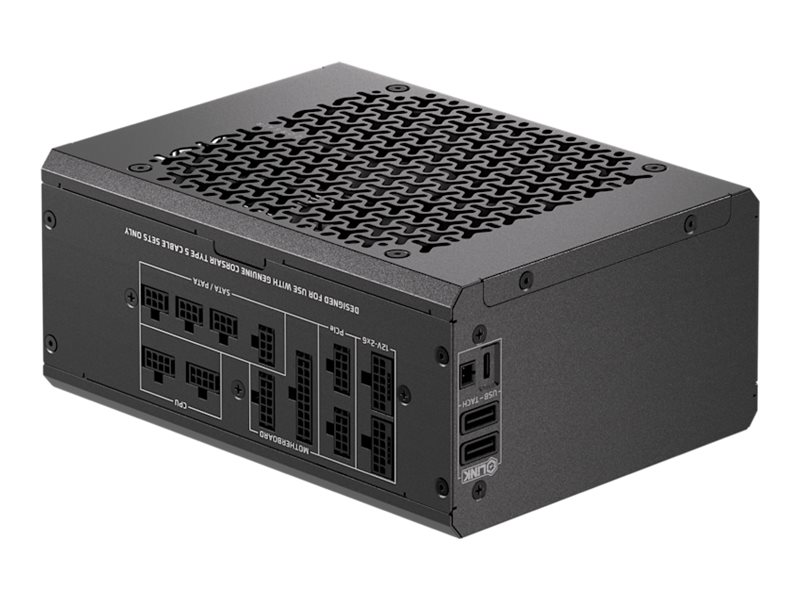

CORSAIR HXi Series SHIFT, Power supply (internal), ATX12V 2.31/ EPS12V, Cybenetics Platinum, AC 100-240 V, 1500 Watt, Australia
$742.32 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The CORSAIR HXi Series SHIFT power supply is designed to deliver reliable and efficient power management for your PC or server. With a fully modular design, this power supply allows users to connect only the cables they need, reducing clutter and improving airflow within the system. Equipped with advanced cooling capabilities, it features a 140 mm fan and Zero RPM fan mode, ensuring quiet operation during low loads. Additionally, the power supply is compliant with Cybenetics Platinum standards, reflecting higher efficiency ratings that can lead to reduced energy costs over time. Featuring robust protection mechanisms, including overheat, overcurrent, overvoltage, overpower, and short-circuit protection, the SHIFT power supply enhances system longevity and reliability. With a MTBF of 100,000 hours, users can trust that this power supply is built to last. Compatibility with PCIe Gen 5.1 and the iCUE LINK System HUB ensures that this power supply meets the needs of modern computing while integrating seamlessly with high-performance components.
- Fully modular design for flexible cable management
- Advanced cooling system with 140 mm fan and Zero RPM mode
- Strong protection features including overheat and overcurrent protection
- 100,000 hours MTBF for long-lasting reliability
- Compatible with PCIe Gen 5.1 and iCUE LINK System HUB
- Versatile cable options
The power supply includes various detachable modular cables such as 8-pin PCI Express power and 24-pin ATX power. This allows for compatibility with a range of components and makes installation straightforward. - Efficient power management
Designed to support a voltage range from AC 100-240 V, the HXi Series SHIFT power supply efficiently handles multiple power output levels including +3.3 V, +5 V, and +12 V, catering to various system requirements. - Effective cooling performance
Incorporating a fluid dynamic bearing cooling fan, the power supply operates quietly while maintaining optimal temperatures. The advanced cooling technology ensures reliable performance under demanding loads. - Robust safety features
Equipped with multiple protection systems such as overvoltage protection and short-circuit protection, this power supply safeguards both the unit itself and connected components from potential damage.
Main Specifications
Product Description | CORSAIR HXi Series SHIFT – power supply – 1500 Watt |
Device Type | Power supply – internal |
Specification Compliance | ATX12V 2.31/ EPS12V |
Cybenetics Certification | Cybenetics Platinum |
Weight | 4.348 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 1500 Watt |
Output Current | +3.3V – 25 A +5V – 25 A +12V – 83.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 12 x 15 pin Serial ATA power 8 x 4 PIN internal power 2 x 8 pin PCI Express power with detachable 2 pin section 2 x 16 pin PCI Express power |
Modular Cable Management | Yes |
Cooling System | 140 mm fan |
Dimensions (WxDxH) | 15 cm x 18 cm x 8.6 cm |
Extended Specifications
Dimensions & Weight
Depth | 18 cm |
|---|
General
Device Type | Power supply – internal |
|---|
Dimensions & Weight
Height | 8.6 cm |
|---|
Power Device
Power Capacity | 1500 Watt |
|---|
Dimensions & Weight
Width | 15 cm |
|---|
Power Device
Modular Cable Management | Yes |
|---|
General
PSU Form Factor | ATX |
|---|
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 47 – 63 Hz |
Miscellaneous
Cooling System | 140 mm fan |
|---|---|
MTBF | 100,000 hours |
General
Specification Compliance | ATX12V 2.31/ EPS12V |
|---|
Power Device
Output Current | +3.3V – 25 A +5V – 25 A +12V – 83.3 A +5VSB – 3 A |
|---|---|
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Cybenetics Certification | Cybenetics Platinum |
Power Output Connectors Details | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 12 x 15 pin Serial ATA power 8 x 4 PIN internal power 2 x 8 pin PCI Express power with detachable 2 pin section 2 x 16 pin PCI Express power |
Miscellaneous
Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section modular cable 61 cm 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm 2 x 16-pin 12VHPWR to 2×8 pin PCI Express power modular cable 65 cm 2 x 16-pin 12VHPWR power modular cable 65 cm 3 x 15 pin Serial ATA power modular cable 80 cm 2 x 4 pin internal power modular cable 75 cm USB-C to 10-1 pin cable 52.5 cm iCUE Link to 90° iCUE LINK cable 20 cm iCUE Link to iCUE LINK cable 60 cm |
|---|---|
Features | Corsair iCUE, over current protection, overheat protection, overpower protection, over voltage protection, short-circuit protection, fluid dynamic bearing cooling fan, fully modular, Modern Standby compatible, Cybenetics A, DSP technology, Zero RPM fan mode, PCIe Gen 5.1 ready, side connections, iCUE LINK System HUB connection |
Dimensions & Weight
Weight | 4.348 kg |
|---|
