Description

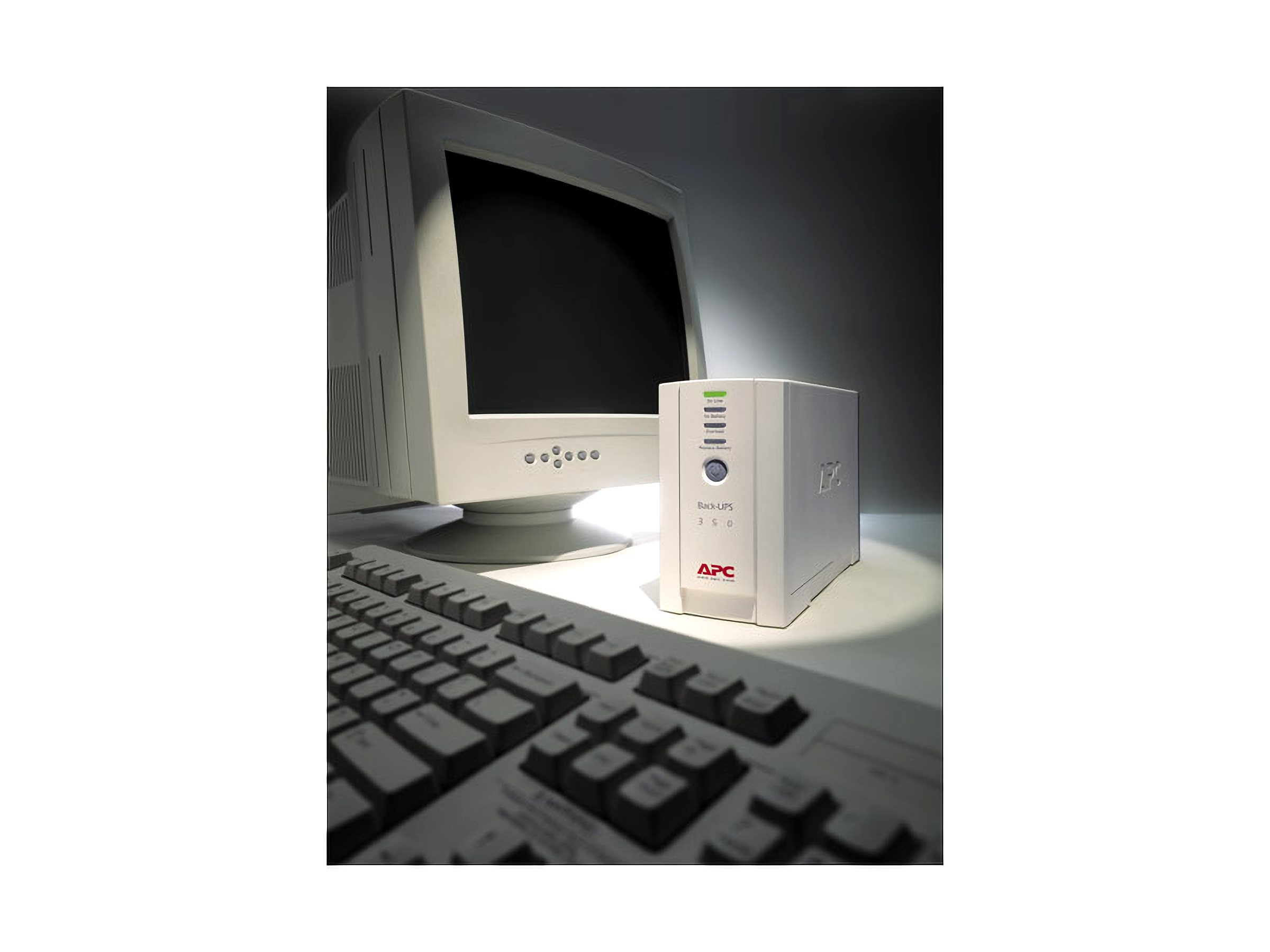

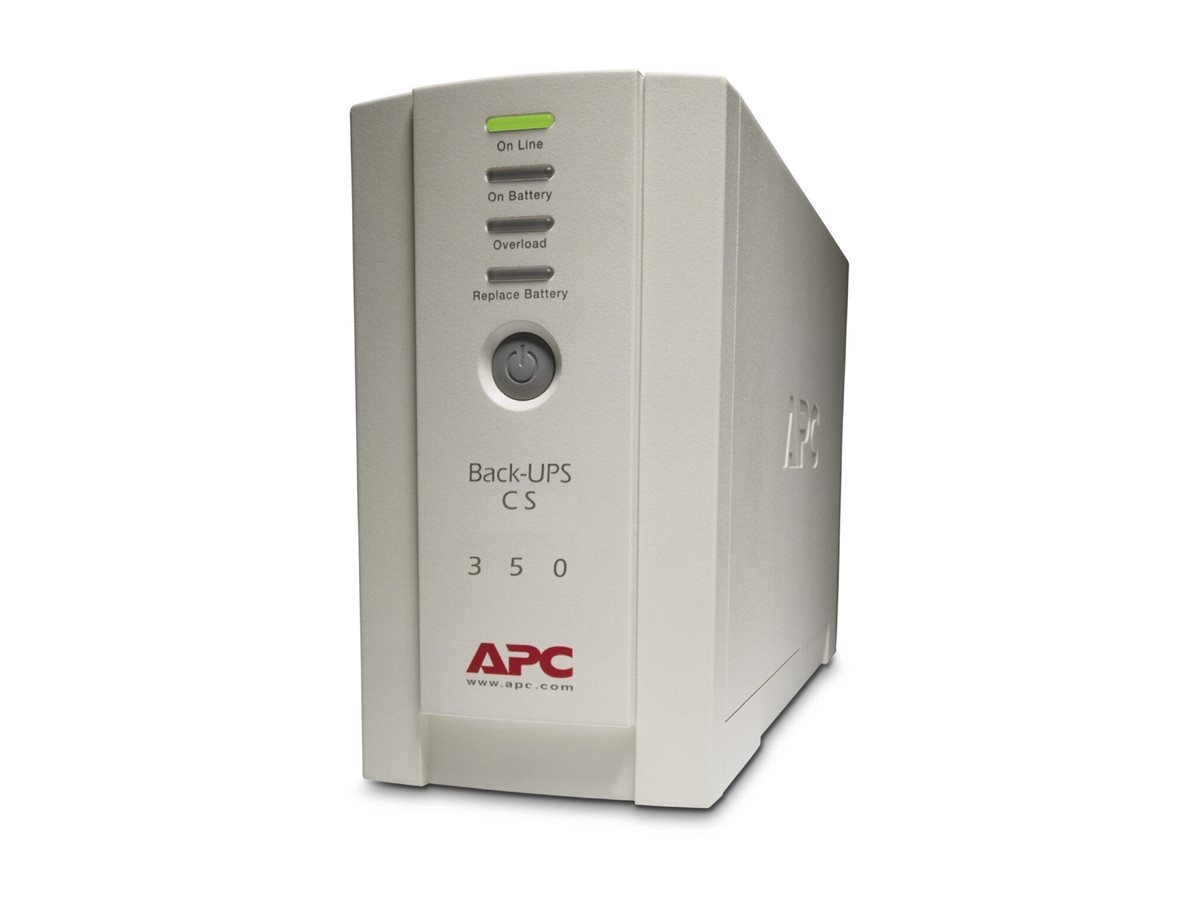

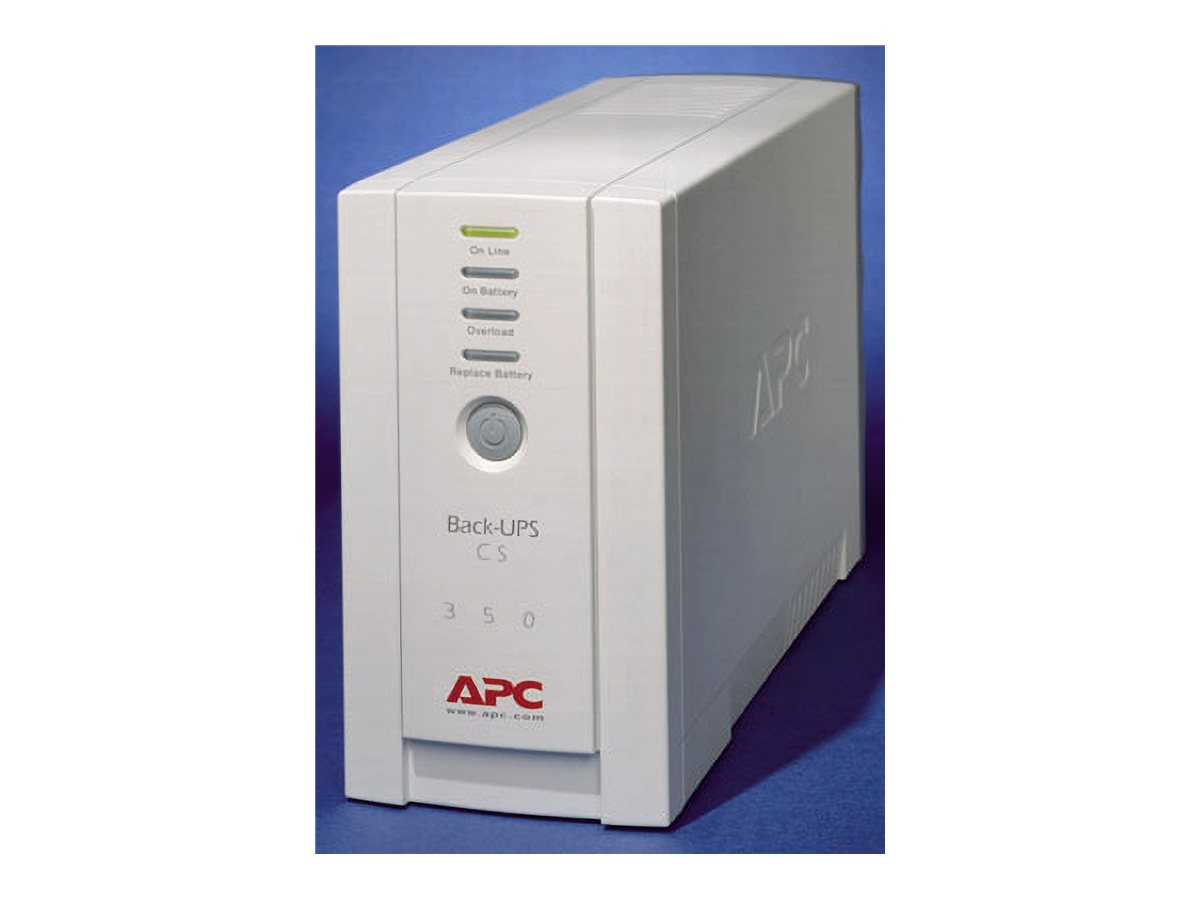

The Back-UPS CS offers best value for protecting your business and office computer systems. It provides battery backup power that allows you to work through short and medium length power outages. It also safeguards your equipment from damaging surges and spikes. Additional features like audible alarms, LED status indicators, user replaceable battery, push-button circuit breakers and transformer-block spaced outlets make the Back-UPS CS the perfect unit to protect your business’ productivity from the constant threat of power outages and lost data.
Main Specifications
Product Description | APC Back-UPS CS 350 – UPS – 210 watt – 350 VA |
Device Type | UPS – external |
Weight | 6.3 kg |
Load Rating | Individual PC |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V |
Power Capacity | 210 watt / 350 VA |

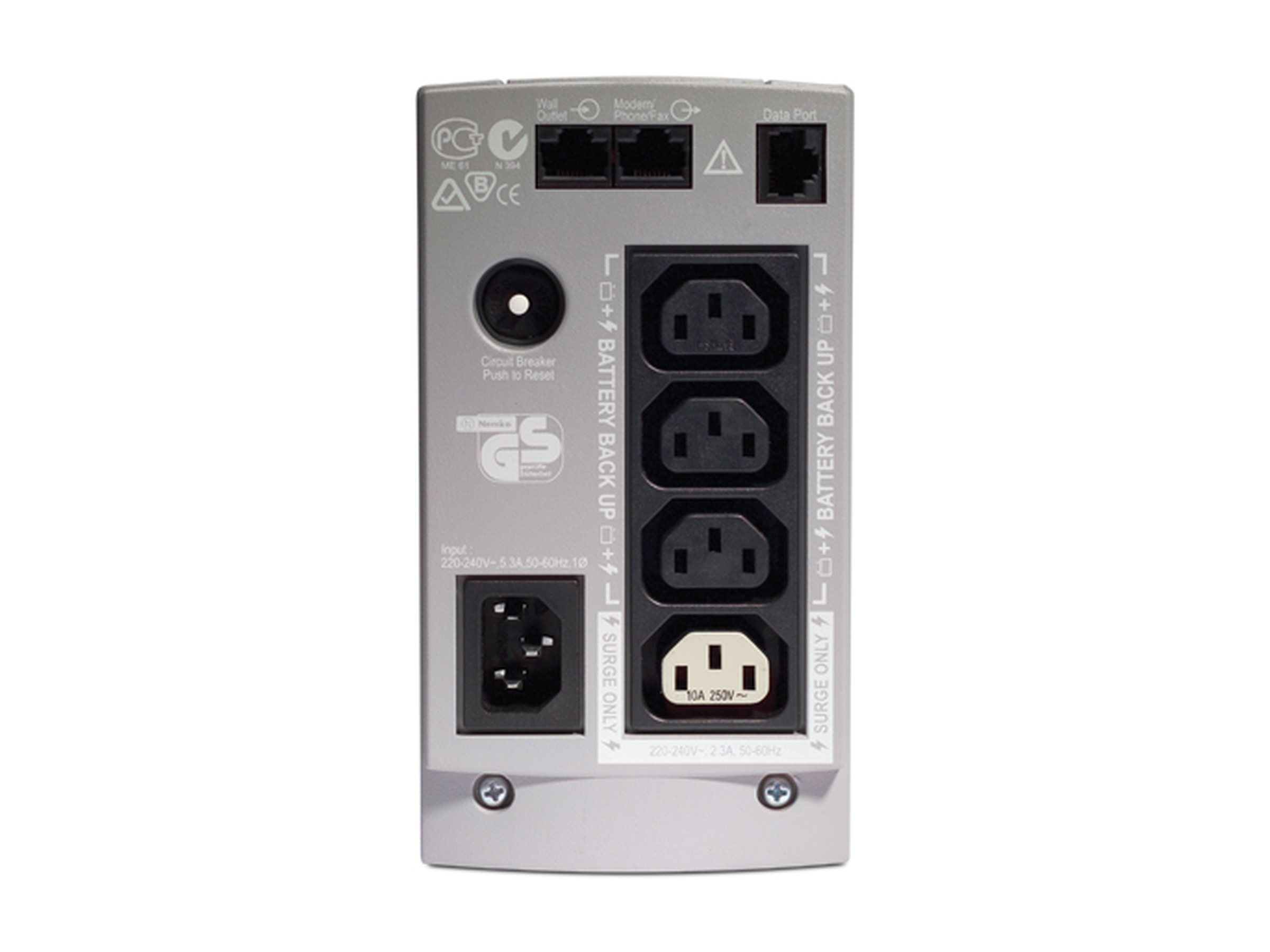

Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 1 x power IEC 60320 C13 (surge)
3 x power IEC 60320 C13 (UPS and surge) |
Battery | Lead Acid |
Battery Form Factor | Plug-in module |
Batteries Qty | 1 |
Run Time (Up To) | 4.7 min at full load |
Networking | RS-232, USB |
Colour | Beige |
Dimensions (WxDxH) | 9.1 cm x 28.4 cm x 16.5 cm |
Documents
Extended Specifications
General
Device Type | UPS – external |
|---|
Battery Enclosure Type | Plug-in module |
|---|
Colour | Beige |
|---|
Power Device
Load Rating | Individual PC |
|---|
Supported Battery Technology | Lead Acid |
|---|
Input Voltage | AC 230 V |
|---|
Input Voltage Range | AC 196 – 280 V |
|---|
Frequency Required | 50/60 Hz |
|---|
Input Connectors | 1 x power IEC 60320 C14 |
|---|
Power Output Connectors Details | 1 x power IEC 60320 C13 (surge)
3 x power IEC 60320 C13 (UPS and surge) |
|---|
Output Voltage | AC 230 V |
|---|
Power Capacity | 210 watt / 350 VA |
|---|
Dataline Surge Protection | Phone line – RJ-45 |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 300 joules |
|---|
Circuit Protection | Circuit breaker |
|---|
Battery
Quantity | 1 |
|---|
Technology | Lead Acid |
|---|
Run Time (Up To) | 4.7 min at full load |
|---|
Recharge Time | 6 hours |
|---|
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x USB / serial RS-232 – RJ-45 |
|---|
Miscellaneous
Cables Included | USB cable – external |
|---|
Features | Audible alarm |
|---|
Compliant Standards | C-Tick, GOST, UL 1449, VDE, EN 50091-2, EN 50091-1 |
|---|
Software / System Requirements
Software Included | APC PowerChute Personal Edition |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Min Storage Temperature | -15 °C |
|---|
Max Storage Temperature | 45 °C |
|---|
Humidity Range Operating | 0 – 95% |
|---|
Humidity Range Storage | 0 – 95% |
|---|
Sound Emission | 40 dBA |
|---|
Dimensions & Weight
Width | 9.1 cm |
|---|
Depth | 28.4 cm |
|---|
Height | 16.5 cm |
|---|
Weight | 6.3 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 24.1 cm |
|---|
Shipping Depth | 36.8 cm |
|---|
Shipping Height | 17.8 cm |
|---|
Shipping Weight | 7.1 kg |
|---|
