Description

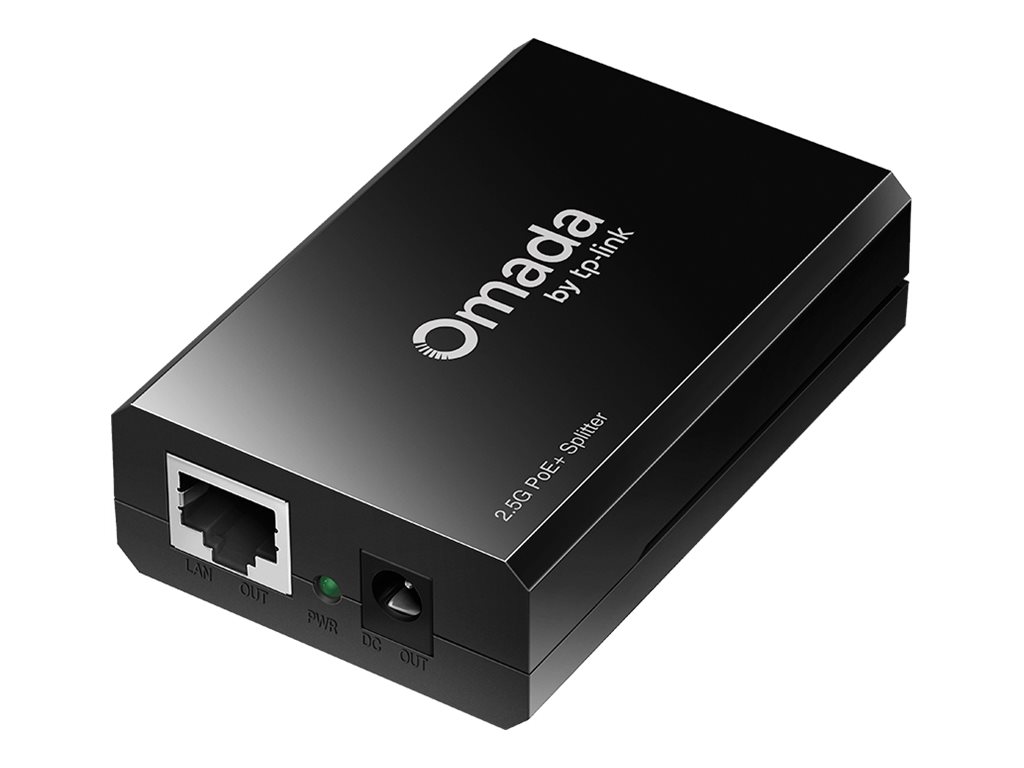

The TP-Link Omada POE260R V1 is designed to simplify your networking experience with reliable power over Ethernet capabilities. This PoE injector allows for easy connectivity with an RJ-45 interface, supporting 1/2.5 Gigabit LAN connections. With a temperature range of -5°C to 45°C and an operating humidity level between 10% and 90% RH, this device is built to perform under various conditions, making it a versatile addition to any network setup. Its Plug-and-Play feature ensures quick installation while the power LED status keeps users informed about device operation.
- Provides power over Ethernet with PoE+ support
- Compliant with multiple IEEE networking standards
- Plug-and-Play for effortless setup
- Wide operational temperature range
- Power LED status indicator for easy monitoring
- Efficient power delivery
The PoE injector delivers power directly through the Ethernet cable, eliminating the need for additional power sources and simplifying installation. - Versatile connectivity
Compatible with RJ-45 connectors, this PoE injector supports various networking standards, ensuring reliable and efficient data transmission. - Robust environmental capabilities
Designed for operation in varied environments, the unit operates efficiently within a temperature range of -5°C to 45°C and supports high humidity levels. - User-friendly design
The Plug-and-Play feature facilitates a straightforward setup process, allowing users to quickly integrate the injector into existing networks.
Main Specifications
Product Description | TP-Link Omada POE260R V1 – PoE injector |
Device Type | PoE injector – external |
Power Over Ethernet (PoE) | PoE+ |
Output Voltage | 5 / 9 / 12 V |
Output connectors | 1 x RJ-45 |
Dimensions (WxDxH) | 8.08 cm x 5.4 cm x 2.4 cm |
Extended Specifications
General
Device Type | PoE injector – external |
|---|
Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
|---|
Power Device
Power Output Connectors Details | 1 x RJ-45 |
|---|
Output Voltage | 5 / 9 / 12 V |
|---|
Expansion / Connectivity
Interfaces | 1/2.5 Gigabit LAN – RJ-45 |
|---|
Miscellaneous
Cables Included | Power cable |
|---|
Features | Power LED status, auto-determine power requirements |
|---|
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, Plug and Play, FCC, RoHS |
|---|
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|
Max Operating Temperature | 45 °C |
|---|
Humidity Range Operating | 10 – 90% RH (non-condensing) |
|---|
Dimensions & Weight
Width | 8.08 cm |
|---|
Depth | 5.4 cm |
|---|
Height | 2.4 cm |
|---|
