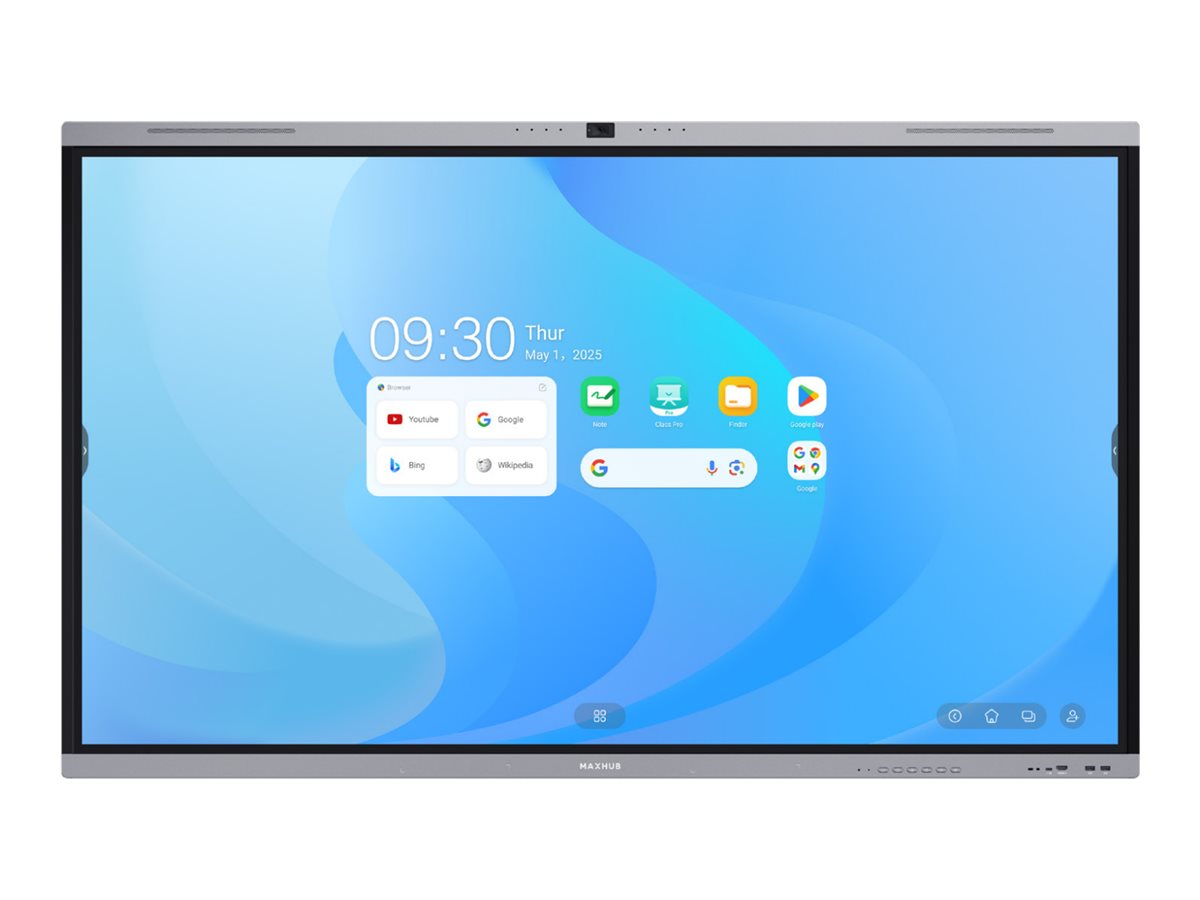

MAXHUB U6540, 65" Diagonal Class U Series LED-backlit LCD display, interactive digital signage, with touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability, 4K UHD (2160p) 3840 x 2160, Direct LED
$4,276.36 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The MAXHUB U6540 is a 65-inch LED-backlit LCD display designed to meet the demands of commercial use and interactive communication. With a resolution of 3840 x 2160, this display provides clarity, vibrant colors, and a refresh rate of 60 Hz for a smooth viewing experience. Its dynamic contrast ratio of 50000:1 and a brightness level of 500 cd/m2 ensure that images are sharp and clear, even in well-lit environments.
Equipped with a powerful 74 watts audio system, the U6540 features a 2.2 channel speaker system alongside an advanced SkyWave Sound System. Enjoy sound quality complemented by a 180° microphone pick-up angle and an 8-array built-in microphone for enhanced audio capture. The extensive connectivity options include multiple HDMI and USB-C ports, Gigabit LAN, and support for Wi-Fi and Bluetooth, allowing for seamless integration with various devices and applications like YouTube and Google Drive. Designed for durability, the U6540 also incorporates low blue light and flicker-free technologies, making it an ideal choice for long-term use in both educational and professional settings.
- 4K UHD resolution for vibrant image quality
- Audio system with 74 watts total power and SkyWave Sound System
- Extensive connectivity options including multiple HDMI and USB-C ports
- Interactive features like MAXHUB Think & Ink Technology
- Durable design with low blue light and flicker-free technologies
- High-resolution display
The U6540 offers a 65-inch screen with 4K UHD resolution, delivering clear and detailed visuals for presentations and digital signage. - Powerful audio performance
Featuring a 2.2 channel speaker system and a SkyWave Sound System, this display ensures high-quality sound with a total output of 74 watts. - Robust connectivity options
With 4 HDMI inputs, USB-C ports, and Gigabit LAN, the U6540 allows for multiple device connections and easy integration into various setups. - Interactive technology
The MAXHUB Think & Ink Technology enhances engagement with touch capabilities and seamless annotation features. - User-friendly design
Incorporating low blue light and flicker-free technology, the U6540 minimizes eye strain, making it suitable for long usage sessions.
Main Specifications
Product Description | MAXHUB U6540 U Series – 65″ LED-backlit LCD display – 4K – for digital signage / interactive communication |
Product Type | LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability |
Diagonal Class | 65″ |
Commercial Use | Yes – interactive digital signage |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
Video Interface | HDMI |
HDMI Ports Qty | 4 ports |
Connectivity | LAN, Wi-Fi, Bluetooth |
PC Interface | DisplayPort, USB-C, VGA (HD-15) |
LCD Backlight Technology | Direct LED |
Image Aspect Ratio | 16:9 |
TV Tuner | No tuner |
Internet Streaming Services | YouTube |
Commercial Features | OPS Slot, MAXHUB Class Pro, MAXHUB Connect, MAXHUB Pivot |
Picture Enhancements | 98% sRGB colour gamut, Colour Accuracy |
Speaker System | 2.2 channel |
Storage Capacity | 256 GB |
USB | Yes |
Included Accessories | Remote control, power cord (3 m), 2 x display bracket, wall mount bracket (WIB9060K), Wi-Fi module (SI07B), 2 x SW13F stylus |
Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 70 Watt |
Power Consumption Stand by | 0.5 Watt |
Dimensions (WxDxH) | 148.84 cm x 9.7 cm x 90.94 cm |
Weight | 30.7 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Product Type | LED-backlit LCD flat panel display |
|---|---|
Power Consumption Operational | 70 Watt |
Diagonal Class | 65″ |
Commercial Use | Yes – interactive digital signage |
Combined With | Touchscreen (multi touch) / 8-microphone array / camera / optional slot-in PC capability |
Series | U Series |
Operating System | Android OS 15, MAXHUB EDU OS V4 |
TV Tuner | No tuner |
TV Tuner Presence | No |
Sensors | Ambient light sensor (ALS), ambient color temperature sensor |
Video Interface | HDMI |
HDMI Ports Qty | 4 ports |
PC Interface | DisplayPort, USB-C, VGA (HD-15) |
Picture Enhancements | 98% sRGB colour gamut, Colour Accuracy |
Width | 148.84 cm |
Depth | 9.7 cm |
Height | 90.94 cm |
Weight | 30.7 kg |
Display
Colour Support | 1070000000 colours |
|---|---|
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | Direct LED |
Coating | Zero parallax, 3 mm glass, 9H hardness, anti-glare, 25% haze, Etched-AG technology |
Image Contrast Ratio | 5000:1 |
Dynamic Contrast Ratio | 50000:1 |
Brightness | 500 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Touchpoints Qty | 50 |
Response Time | 6.5 ms |
Backlight Life | 60,000 hours |
Commercial Features | OPS Slot, MAXHUB Class Pro, MAXHUB Connect, MAXHUB Pivot |
Features | A-Level screen, ARC Support through HDMI, MAXHUB Think & Ink Technology, Low Blue Light Technology, Flicker free technology, 10-bit support, infrared multitouch technology, 1.5 mm object recognition range, 2.5 ms response time, ± 0.5 mm touch accuracy, Palm Rejection, Direct Annotation, Sharp Erase, Erase and Write Simultaneously, Multi-level Object Recognition, Single Pen Dual Color, 50MP camera, 6 TOPS NPU, Google Meet, Google Drive support |
Stands & Mounts
Stand | Optional |
|---|---|
Wall Mount Included | Yes |
Media Player
USB Port | Yes |
|---|---|
Configuration | ARM Cortex-A76 Quad-Core + ARM Cortex-A55 Quad-Core (2.4GHz) – 16 GB – 256 GB – Mali-G610 MP4 |
Remote Control
Type | Remote control |
|---|
Audio System
Speaker System | 2.2 channel |
|---|---|
Output Power / Total | 74 Watt |
Features | 180° microphone pick-up angle, built-in 8-array microphone, 12 m microphone pick-up range, SkyWave Sound System |
Speakers | 2 x main channel speaker – 12 Watt 2 x speaker – 25 Watt |
Network & Internet Multimedia
Functionality | WEB browsing, Internet video playback |
|---|---|
Connectivity | LAN, Wi-Fi, Bluetooth |
LAN Protocol | Gigabit Ethernet |
Wi-Fi Protocol | 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
Bluetooth Version | Bluetooth 5.2 |
Internet Streaming Services | YouTube |
Application Store | Google Play |
Connections
Connector Type | 2 x Gigabit LAN output 4 x HDMI input HDMI output 2 x touch in USB-C with 100W Power Delivery – rear USB-C with 65W Power Delivery – front DisplayPort input Audio line-in Audio line-out RS-232 input S/PDIF output USB 2.0 (for software update only) 2 x USB 3.0 – front 2 x USB 3.0 – rear |
|---|
Miscellaneous
Included Accessories | Power cord (3 m), 2 x display bracket, wall mount bracket (WIB9060K), Wi-Fi module (SI07B), 2 x SW13F stylus |
|---|---|
Cables Included | HDMI cable – 3 m |
Compliant Standards | TUV flicker free, TUV low blue light, Enterprise Device Licensing Agreement (EDLA) certified, IP5X |
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
Power
Power Device | Power supply |
|---|---|
Input Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
Dimensions & Weight (Shipping)
Width (Shipping) | 162.8 cm |
|---|---|
Depth (Shipping) | 18.5 cm |
Height (Shipping) | 102 cm |
Weight (Shipping) | 40.5 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% RH |
