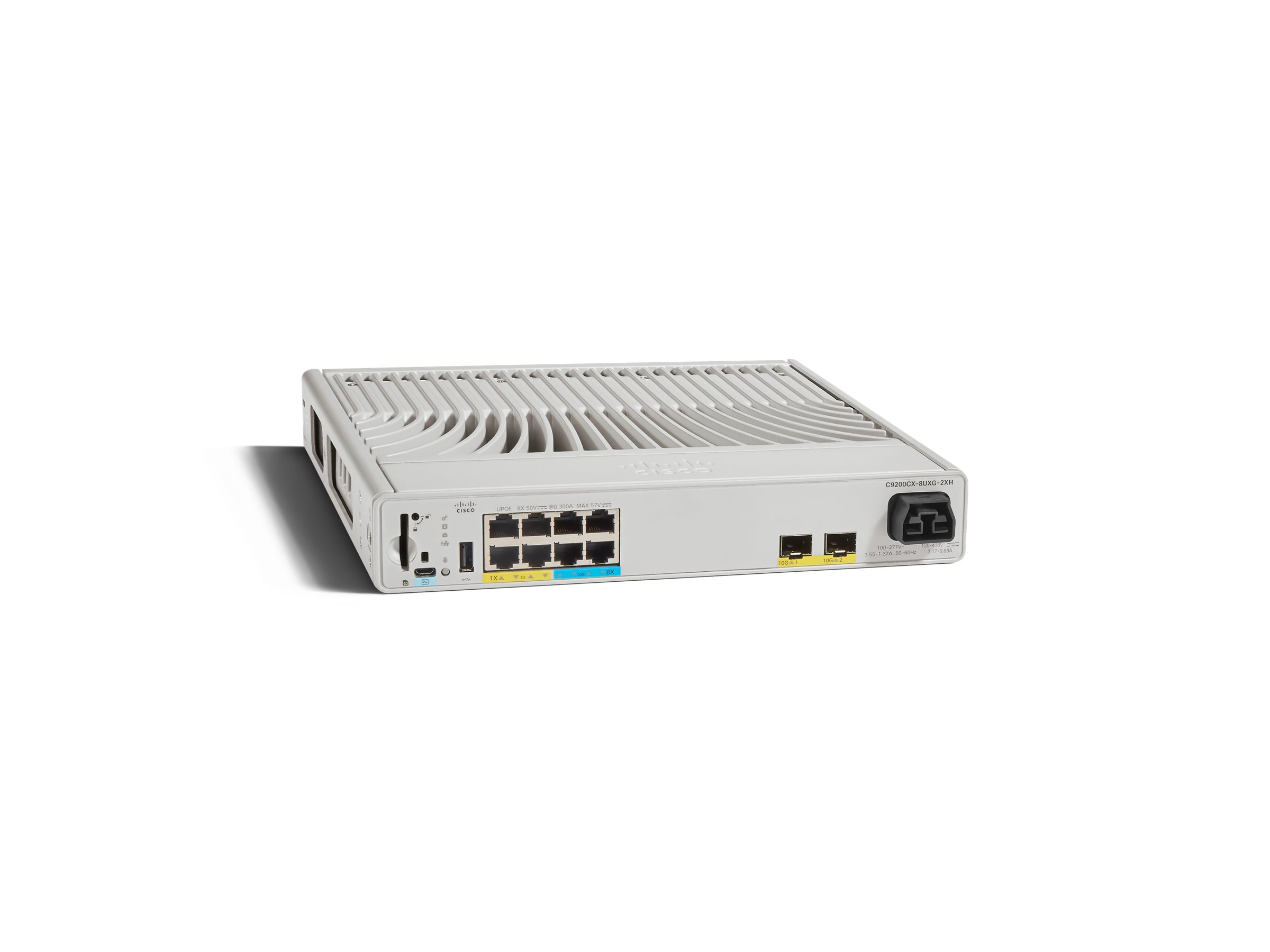

Cisco Catalyst 9200CX, Network Essentials, switch, compact, L3, Managed, 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink), rack-mountable, UPOE (240 W)
$4,325.50 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
- Supports up to 16,000 Flexible NetFlow entries for comprehensive traffic analysis
- Fanless design ensures silent operation, ideal for noise-sensitive environments
- Rack-mountable with a compact form factor, saving valuable space in data centers
- Compliant with a wide range of standards including IEEE 802.1D/Q/ae and more for broad compatibility
- Manageable via CLI, NETCONF, RESTCONF, and SNMP for flexible administration
- CONFIGURATION
4 x 1/2.5/5/10G Ethernet with Universal Power over Ethernet (UPoE), 4 x 10/100/1000M Ethernet with UPoE, 2 x 10G SFP+ uplinks, 240W total PoE budget - IT SIMPLIFIED
Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation - SECURE
Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch - COMPACT
Compact and fanless form factor for versatile deployments out of IT rooms with Catalyst 9200 equivalent features plus flexible power source options (select models) and advanced layer 3 support - MANAGEMENT
Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard
What’s in the Box
- What’s in the Box
- Switch with default primary power supply
- AC power cord
- rack-mount kit
Main Specifications
Product Description | Cisco Catalyst 9200CX – Network Essentials – switch – compact – 8 ports – Managed – rack-mountable |
Device Type | Switch – 8 ports – L3 – Managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | UPOE |
PoE Budget | 240 W |
Performance | Switching capacity: 128 Gbps Forwarding rate: 95.23 Mpps Packet buffer size: 6 MB |
Capacity | Virtual networks: 16 IPv4 routes: 14000 Direct IPv4 routes: 10000 Indirect IPv4 routes: 4000 IPv4 routing entries: 4000 IPv6 routing entries: 2000 Multicast scale: 1000 QoS scale entries: 1000 ACL scale entries: 1600 Flexible NetFlow entries: 16000 VLAN IDs: 4096 PVST instances: 128 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
Features | Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, Cisco UADP 2.0, ZTP, built-in ASIC, NetFlow, EEE, Preboot Execution Environment, Cisco StackWise Technology |
Compliant Standards | IEEE 802.3, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt |
Power | AC 115/230 V (50/60 Hz) |
Dimensions (WxDxH) | 26.9 cm x 24.4 cm x 4.4 cm |
Weight | 3.18 kg |
Documents
Extended Specifications
General
Device Type | Switch – 8 ports – L3 – Managed |
|---|---|
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (UPOE) + 4 x 100/1000/2.5/5/10G (UPOE) + 2 x 10 Gigabit SFP+ (uplink) |
Power Over Ethernet (PoE) | UPOE |
PoE Budget | 240 W |
Performance | Switching capacity: 128 Gbps Forwarding rate: 95.23 Mpps Packet buffer size: 6 MB |
Capacity | Virtual networks: 16 IPv4 routes: 14000 Direct IPv4 routes: 10000 Indirect IPv4 routes: 4000 IPv4 routing entries: 4000 IPv6 routing entries: 2000 Multicast scale: 1000 QoS scale entries: 1000 ACL scale entries: 1600 Flexible NetFlow entries: 16000 VLAN IDs: 4096 PVST instances: 128 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
Encryption Algorithm | 256-bit AES |
Features | Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, Cisco UADP 2.0, ZTP, built-in ASIC, NetFlow, EEE, Preboot Execution Environment, Cisco StackWise Technology |
Compliant Standards | IEEE 802.3, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt |
RAM | 4 GB |
Flash Memory | 8 GB |
Built-in Devices | RFID tag |
Status Indicators | Power |
Expansion / Connectivity
Interfaces | 4 x 10/100/1000 Base-T RJ-45 UPOE – 60 W 4 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE – 60 W 2 x 10GBase-X SFP+ uplink 1 x USB 2.0 1 x console (micro-USB) |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Power
Power Device | Internal power supply |
|---|---|
Power Provided | 315 watt |
Voltage Required | AC 115/230 V (50/60 Hz) |
Miscellaneous
Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
|---|
Software / System Requirements
Software Included | Cisco IOS XE 17.9 Universal |
|---|
Dimensions & Weight
Width | 26.9 cm |
|---|---|
Depth | 24.4 cm |
Height | 4.4 cm |
Weight | 3.18 kg |
Environmental Parameters
Min Operating Temperature | -5 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 – 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
