Description

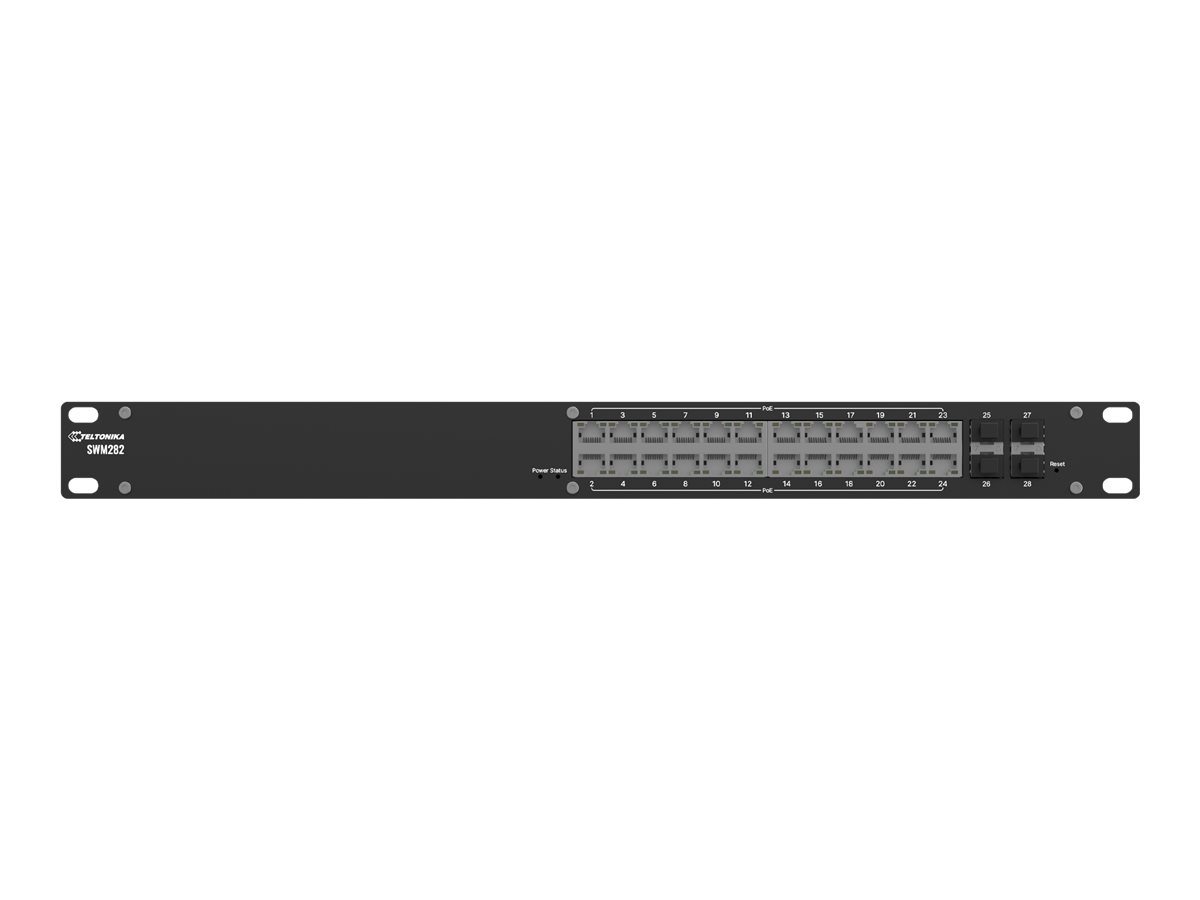

The Teltonika SWM282 is designed to meet the demands of modern networking environments, offering reliable performance and extensive features. With a robust capacity of 512 KB packet buffer and 16 MB of flash memory, it ensures efficient data handling and storage. Operating in a wide temperature range from 0°C to 50°C and a humidity range of 10 to 90%, this switch is built to perform in various conditions without compromising reliability. Equipped with 24 10/100/1000 Base-T (PoE+) ports and 4 Gigabit SFP ports, the SWM282 provides ample connectivity options for multiple devices. The support for Power over Ethernet (PoE) simplifies installation by minimizing the need for additional power supplies. This switch also supports advanced features such as VLAN, traffic shaping, and port mirroring, enhancing network performance and manageability. With its rack-mountable form factor and compliance with multiple industry standards, the Teltonika SWM282 is ready to integrate into any network infrastructure seamlessly.
Main Specifications
Product Description | Teltonika SWM282 – switch – 24 ports – Managed – rack-mountable – with 2 years of RMS Management |
Device Type | Switch – 24 ports – L2+ – Managed – with 2 years of RMS Management |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 300 W |
Performance | Non-blocking bandwidth: 56 Gbps |
Capacity | Packet buffer size: 512 KB |
MAC Address Table Size | 80K entries |
Jumbo Frame Support | 10000 bytes |
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP |
Remote Management Protocol | SNMP 2, SNMP 3 |
Features | QoS, Storm Control, port-based shaping, WFQ, WRR, LLDP support, anodised aluminium housing, auto-uplink (auto MDI/MDI-X), loop protection, forwarding table, STP support, RSTP support, DHCP client, DHCP server, link speed control, port isolation, PoE management, port mirroring, EEE, PAM, VLAN segmentation |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 48.3 cm x 23.4 cm x 4.4 cm |
Weight | 2.291 kg |
Extended Specifications
General
Device Type | Switch – 24 ports – L2+ – Managed – with 2 years of RMS Management |
|---|
Enclosure Type | Rack-mountable |
|---|
Subtype | Gigabit Ethernet |
|---|
Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP |
|---|
Power Over Ethernet (PoE) | PoE+ |
|---|
PoE Budget | 300 W |
|---|
Performance | Non-blocking bandwidth: 56 Gbps |
|---|
Capacity | Packet buffer size: 512 KB |
|---|
MAC Address Table Size | 80K entries |
|---|
Jumbo Frame Support | 10000 bytes |
|---|
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP |
|---|
Remote Management Protocol | SNMP 2, SNMP 3 |
|---|
Authentication Method | RADIUS, TACACS |
|---|
Features | QoS, Storm Control, port-based shaping, WFQ, WRR, LLDP support, anodised aluminium housing, auto-uplink (auto MDI/MDI-X), loop protection, forwarding table, STP support, RSTP support, DHCP client, DHCP server, link speed control, port isolation, PoE management, port mirroring, EEE, PAM, VLAN segmentation |
|---|
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|---|
Processor | 1: 500 MHz |
|---|
RAM | 128 MB DDR3 SDRAM |
|---|
Flash Memory | 16 MB |
|---|
Status Indicators | Power, SFP, network |
|---|
Expansion / Connectivity
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W
4 x LAN SFP |
|---|
Power
Power Device | Internal power supply |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Consumption Stand by | 9 Watt |
|---|
Miscellaneous
Included Accessories | Grounding screw, power cord (C14) |
|---|
Rack Mounting Kit | Optional |
|---|
Compliant Standards | IP30, UKCA, CB, RCM, FCC, IC, RoHS, REACH |
|---|
Software / System Requirements
Dimensions & Weight
Width | 48.3 cm |
|---|
Depth | 23.4 cm |
|---|
Height | 4.4 cm |
|---|
Weight | 2.291 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 51 cm |
|---|
Shipping Depth | 31.8 cm |
|---|
Shipping Height | 7.3 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
