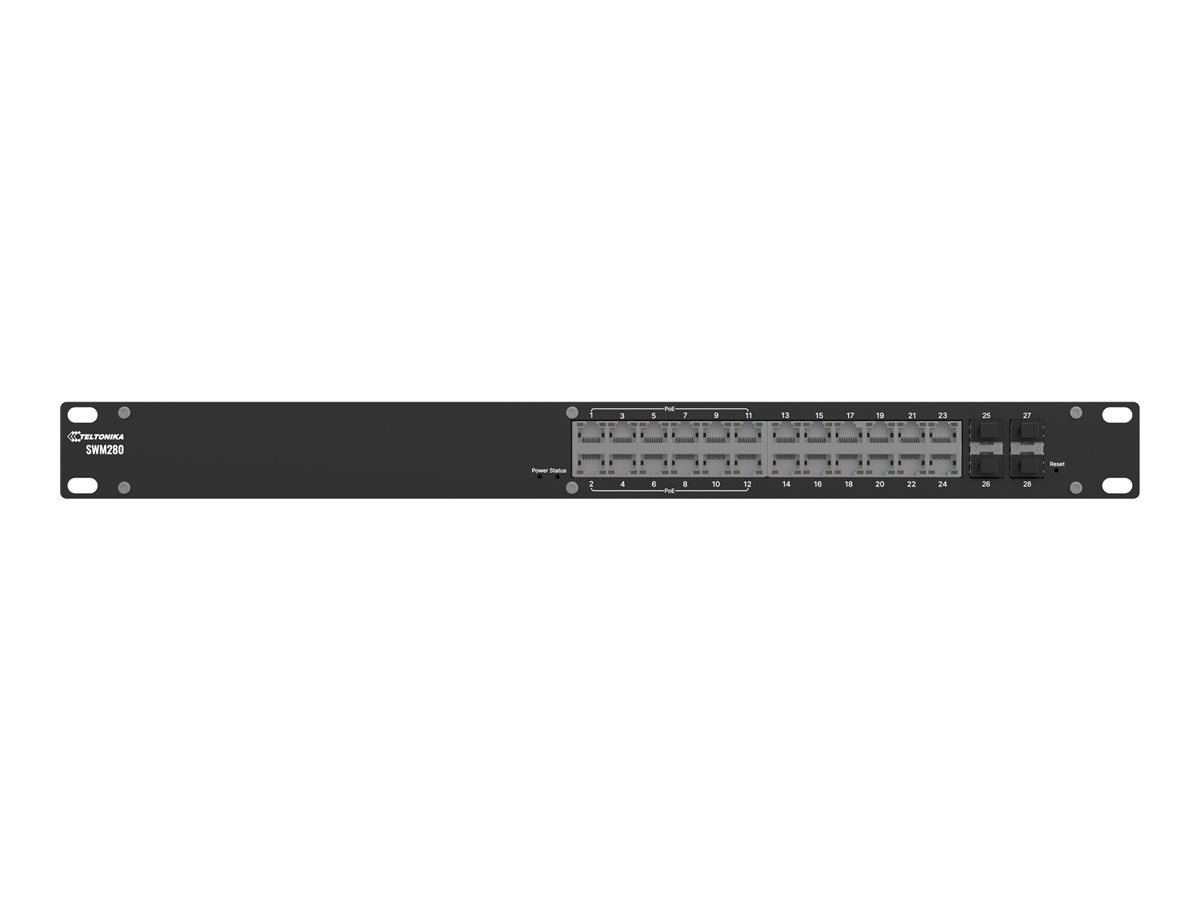

Teltonika SWM280, Switch, L2+, Managed, 24 x 10/100/1000 (12 PoE+) + 4 x Gigabit SFP, rack-mountable, PoE+ (300 W)
$758.56 inc GST
✓ In Stock - 10 available
✓ Free NZ Delivery
10 in stock
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika SWM280 is a reliable hub designed to meet the demands of modern networking environments. With a capacity of 512 KB for packet buffer size, this switch ensures efficient data management and performance. It operates effectively in a temperature range from 0°C to 50°C and supports humidity levels from 10 to 90%, making it suitable for various environmental conditions. Featuring 24 ports including 12 PoE+ capabilities, the SWM280 provides flexibility and power management through its 300 W PoE budget.
This switch supports advanced networking features like VLAN segmentation, MAC address filtering, and dynamic routing protocols, ensuring that it can manage complex network infrastructures seamlessly. Its robust design includes compliance with multiple standards such as RoHS and IP30, making it a durable solution for rack-mounted applications. With remote management protocols and firmware over-the-air support, the SWM280 allows for convenient monitoring and management of network performance from anywhere.
- 24 ports including 12 PoE+ for flexible power distribution
- Wide operating temperature range from 0°C to 50°C
- Supports various networking standards for compatibility
- Advanced features including VLAN support and MAC address filtering
- Remote management capabilities for enhanced monitoring
- Robust design
The SWM280 features an anodized aluminum housing for durability and reliability in demanding environments. - High performance
Expect strong throughput with a non-blocking bandwidth of 56 Gbps and a forwarding rate of 83.33 Mpps. - Extensive connectivity
The switch provides 24 ports and four Gigabit SFP interfaces, enabling efficient data transfer and device connections. - Flexible power management
With a total PoE budget of 300 W, the SWM280 can power a variety of devices, enhancing its versatility in network setups. - Advanced networking capabilities
Features like DHCP server, port mirroring, and loop protection ensure efficient network operations and security.
Main Specifications
Product Description | Teltonika SWM280 – switch – 24 ports – Managed – rack-mountable |
Device Type | Switch – 24 ports – L2+ – Managed |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (12 PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 300 W |
Performance | Non-blocking bandwidth: 56 Gbps Forwarding rate: 83.33 Mpps |
Capacity | Packet buffer size: 512 KB |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 10000 bytes |
Routing Protocol | BGP, EIGRP, OSPFv2, RIP-1, RIP-2, static IP routing |
Remote Management Protocol | IPv4, IPv6, SNMP 2, SNMP 3 |
Features | PROFINET, Auto-MDI/MDIX support, dynamic routing, MRP, loop protection, RSTP support, STP support, VLAN support, DHCP server, DHCP client, PoE management, port isolation, port mirroring, DHCPv6 client, PAM, 802.1x authentication, MAC address filtering, FOTA, Teltonika RMS, anodised aluminium housing, reset button, EtherNet/IP enabled, LLDP, CoS, port priority, DSCP prioritisation, ToS, SP, WFQ, WRR, rate limit, Storm Control, traceroute, VLAN segmentation |
Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x |
Power | AC 100-240 V (50/60 Hz) |
Dimensions (WxDxH) | 48.3 cm x 23.4 cm x 4.4 cm |
Weight | 1.842 kg |
Extended Specifications
General
Device Type | Switch – 24 ports – L2+ – Managed |
|---|---|
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (12 PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 300 W |
Performance | Non-blocking bandwidth: 56 Gbps Forwarding rate: 83.33 Mpps |
Capacity | Packet buffer size: 512 KB |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 10000 bytes |
Routing Protocol | BGP, EIGRP, OSPFv2, RIP-1, RIP-2, static IP routing |
Remote Management Protocol | IPv4, IPv6, SNMP 2, SNMP 3 |
Authentication Method | RADIUS, TACACS+ |
Features | PROFINET, Auto-MDI/MDIX support, dynamic routing, MRP, loop protection, RSTP support, STP support, VLAN support, DHCP server, DHCP client, PoE management, port isolation, port mirroring, DHCPv6 client, PAM, 802.1x authentication, MAC address filtering, FOTA, Teltonika RMS, anodised aluminium housing, reset button, EtherNet/IP enabled, LLDP, CoS, port priority, DSCP prioritisation, ToS, SP, WFQ, WRR, rate limit, Storm Control, traceroute, VLAN segmentation |
Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x |
Processor | 1 x Realtek Semiconductor MIPS 4Kec: 500 MHz |
RAM | 128 MB DDR3 SDRAM |
Flash Memory | 16 MB |
Status Indicators | Power, status, SFP |
Expansion / Connectivity
Interfaces | 12 x 10/100/1000 Base-T (PoE+) RJ-45 30 W 12 x 10/100/1000 Base-T RJ-45 4 x 1000Base-X SFP |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Stand by | 7.5 Watt |
Miscellaneous
Compliant Standards | IP30, UKCA, CB, RCM, FCC, IC, RoHS, REACH |
|---|
Software / System Requirements
Software Included | SwmOS |
|---|
Dimensions & Weight
Width | 48.3 cm |
|---|---|
Depth | 23.4 cm |
Height | 4.4 cm |
Weight | 1.842 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
