Description

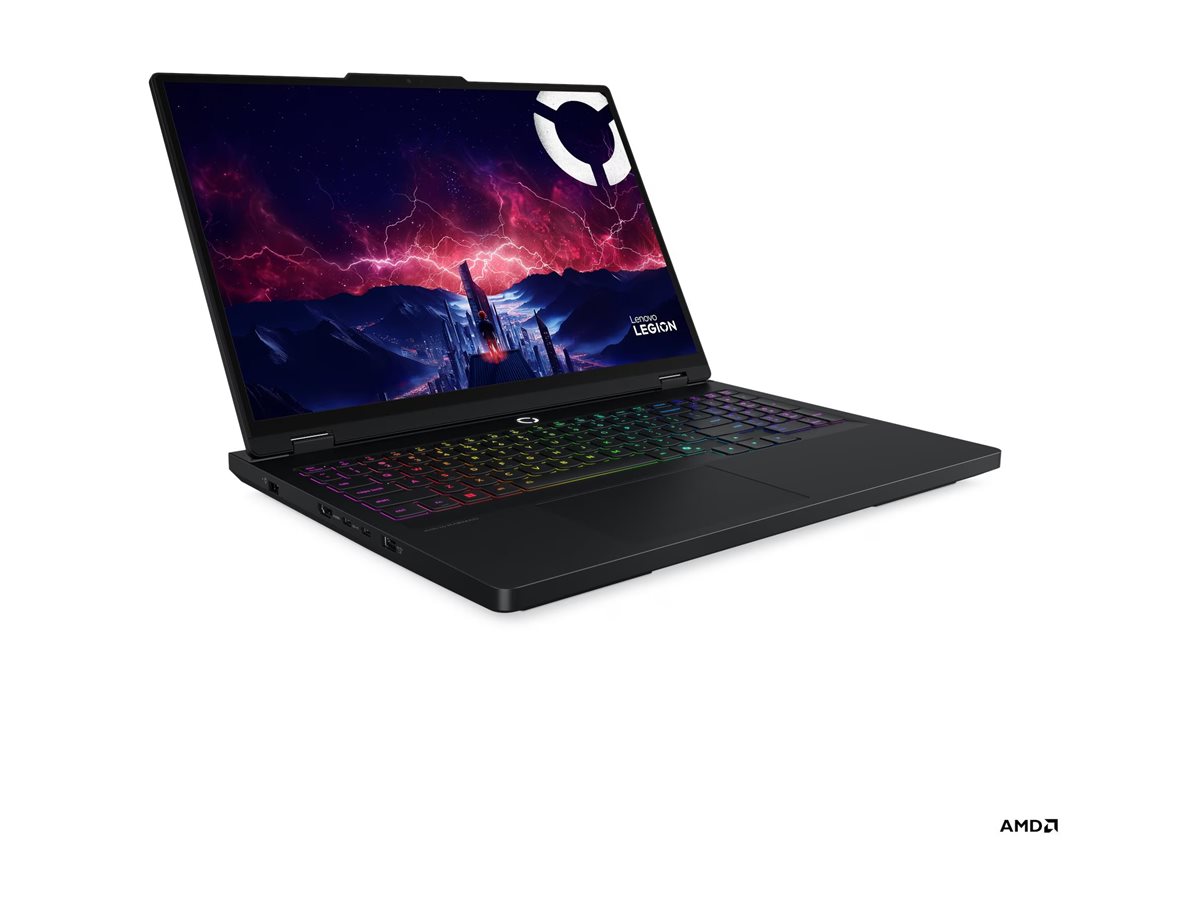

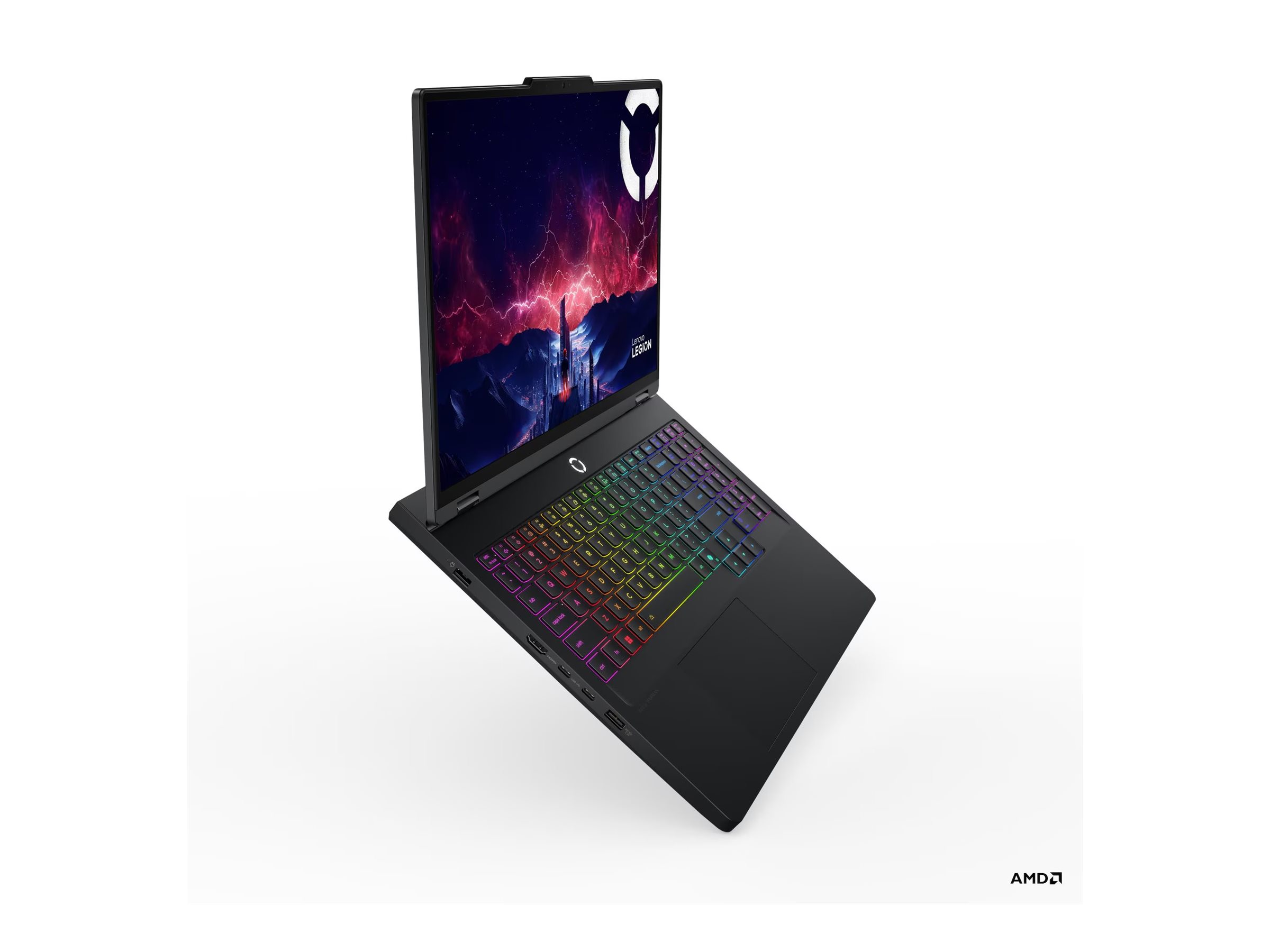

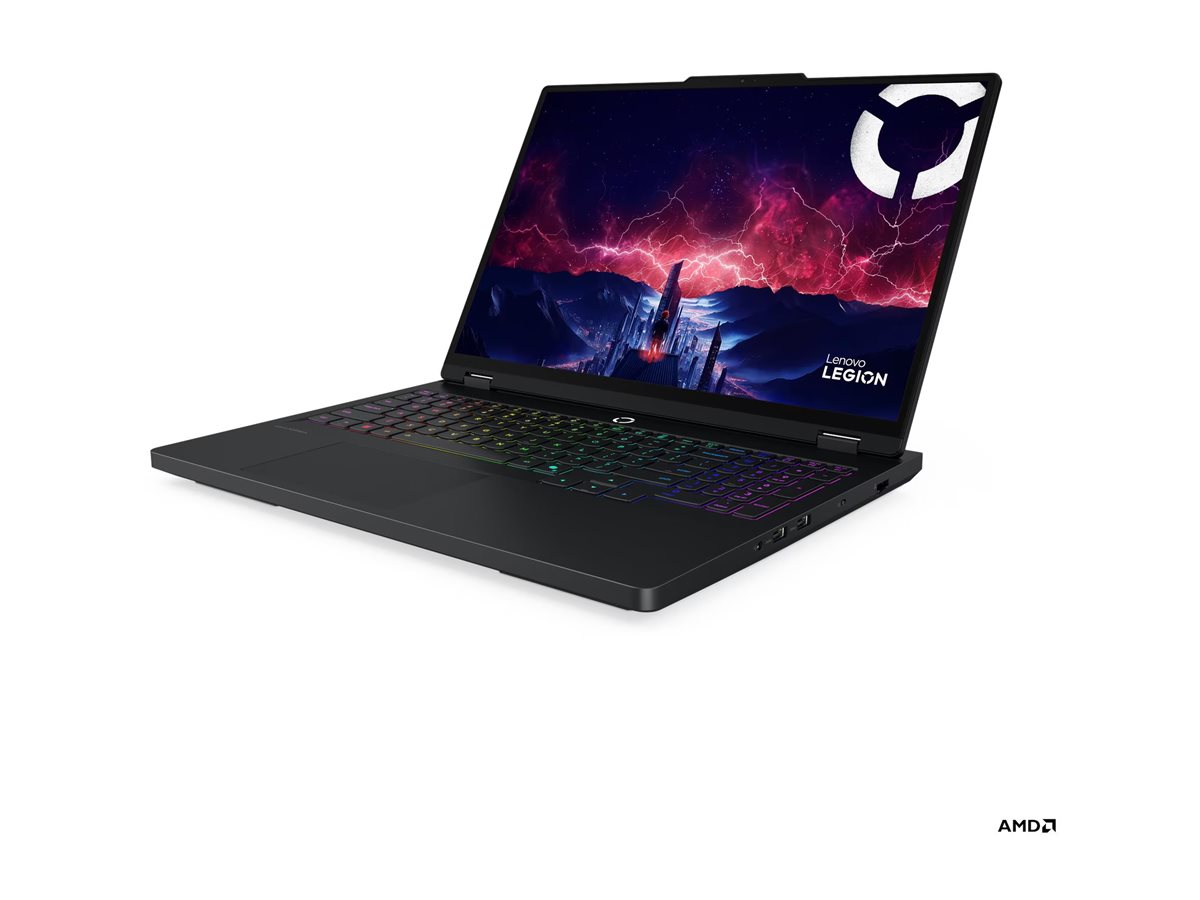

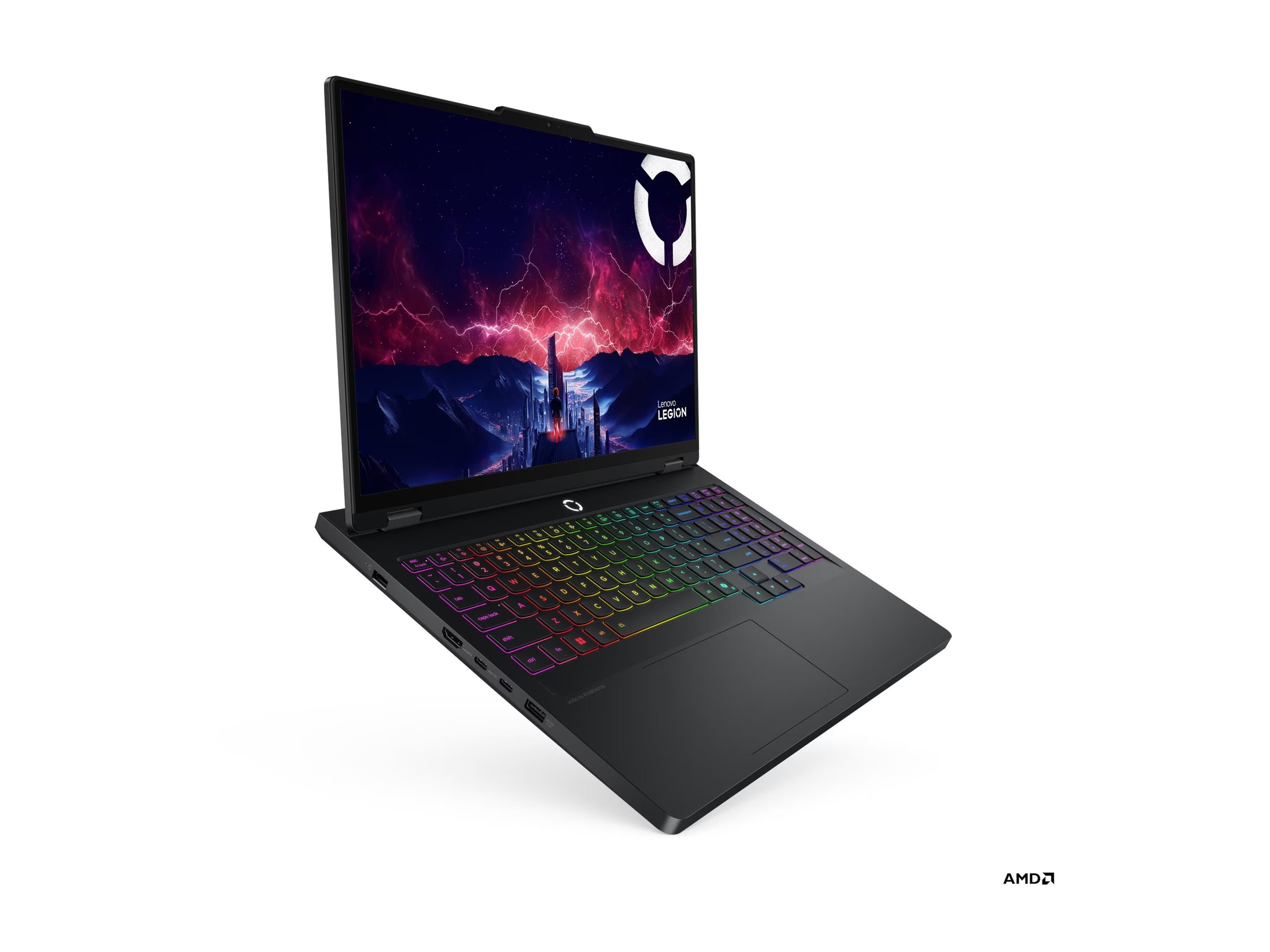

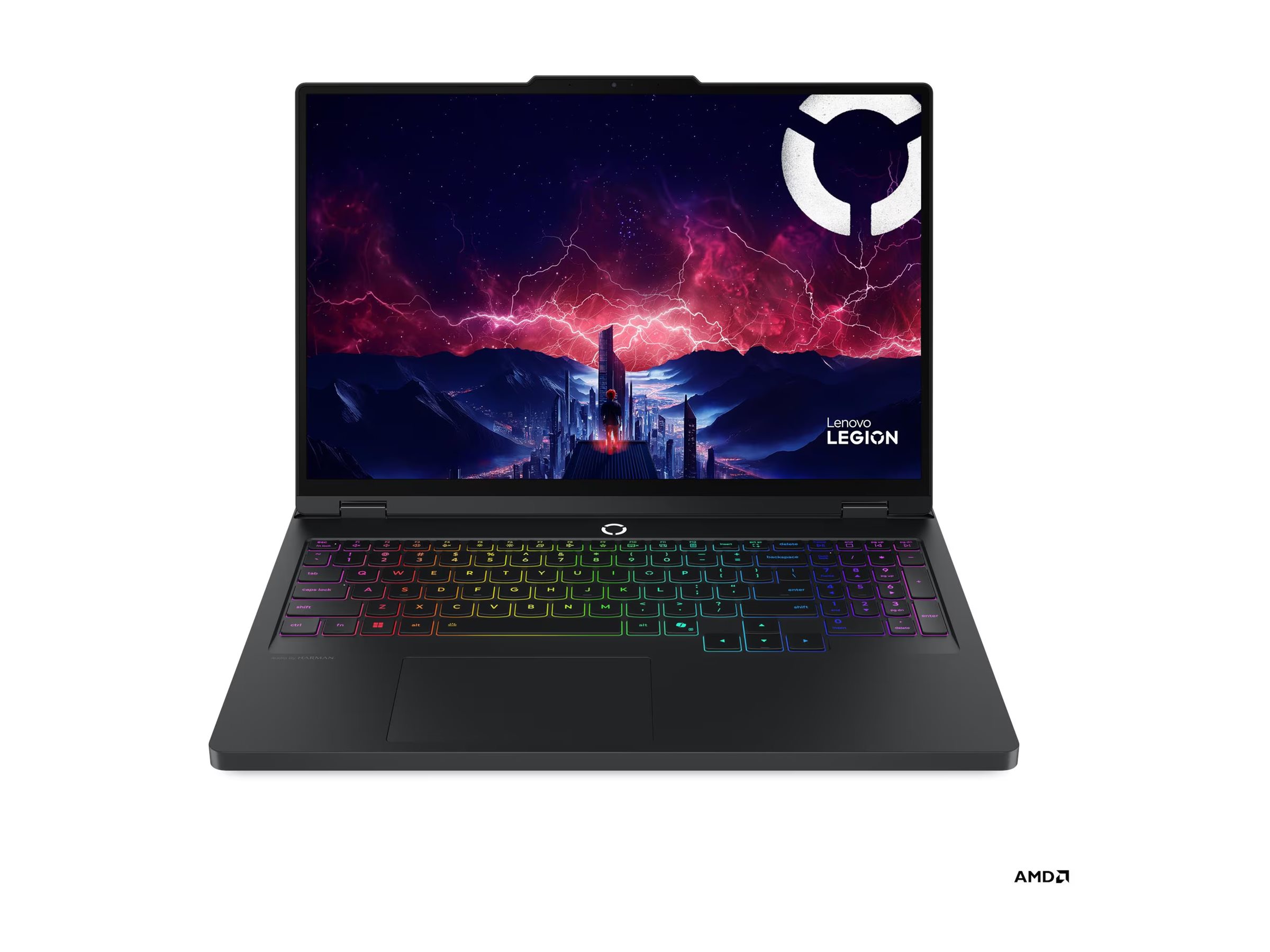

The Lenovo Legion Pro 5 16ADR10 is designed for gamers and professionals seeking performance in a compact package. With a 16-inch OLED display boasting a native resolution of 2560 x 1600, it offers vivid colors and deep contrasts for an immersive viewing experience. The display features NVIDIA G-SYNC compatibility, a 165 Hz V-Sync rate, and support for Dolby Vision, ensuring smooth visuals and exceptional image clarity during gameplay or movie watching. Equipped with Harman audio technology and Nahimic audio, this notebook delivers sound quality that enhances media consumption or gaming sessions. The cooling system and optimized gaming performance technologies work together to keep the system running smoothly under pressure, making it suitable for demanding applications.
Powered by the AMD Ryzen 7 processor, clocked at 3.6 GHz with a max turbo speed of up to 5.1 GHz, and supported by 32 GB of DDR5 SDRAM, the Lenovo Legion Pro 5 ensures quick responsiveness and multitasking capabilities. Graphics are handled by an NVIDIA GeForce RTX 5060, delivering visual performance for gaming and creative tasks. The device comes with a variety of connectivity options including USB-C ports with power delivery, HDMI, and a combination headphone/microphone jack, keeping users connected to their devices. Built within a durable aluminum and polycarbonate ABS case, this notebook combines style with function, making it a solid choice for users who demand performance and aesthetics.
- 16-inch OLED display with 2560 x 1600 native resolution
- Powerful AMD Ryzen 7 processor with 8 cores for performance
- High-definition Harman audio technology for sound quality
- NVIDIA G-SYNC compatibility for smooth gaming experiences
- Versatile connectivity options including USB power delivery ports
- Display Quality
The 16-inch OLED display features a native resolution of 2560 x 1600 and supports a 165 Hz V-Sync rate, ensuring stunning visuals and fluid gameplay. - Performance Processor
Equipped with an AMD Ryzen 7 processor, clocked at 3.6 GHz, the notebook provides processing power for demanding tasks and gaming. - Audio Technology
Harman audio technology combined with Nahimic audio enhances sound quality for a more immersive experience during gaming or media playback. - Graphics Capabilities
The NVIDIA GeForce RTX 5060 graphics processor delivers visuals, making it ideal for gaming and creative applications. - Connectivity Options
The device includes multiple USB-C ports with power delivery, an HDMI port, and a headphone/microphone combo for versatile connections.
Main Specifications
Product Description | Lenovo Legion Pro 5 16ADR10 – 16″ – AMD Ryzen 7 – 8745HX – 24 GB RAM – 1 TB SSD – English |
Product Type | Notebook |
Operating System | Win 11 Home – English |
Processor | AMD Ryzen 7 8745HX / 3.6 GHz, up to 5.1 GHz / 32 MB Cache |
Memory | 24 GB DDR5 (1 x 24 GB) |
Storage | 1 TB SSD – NVMe |
Display | 16″ OLED 2560 x 1600 / WQXGA @ 165 Hz |
Graphics | NVIDIA GeForce RTX 5060 / AMD Radeon 610M – up to 572 TOPS |
Video Memory | 8 GB GDDR7 SDRAM |
Gaming | Yes |
Keyboard | English |
Keyboard Backlight | Yes (RGB) |
Numeric Keypad | Yes |
Integrated Webcam | Yes |
Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
Colour | Eclipse black |
Dimensions (WxDxH) | 36.438 cm x 26.806 cm x 2.595 cm |
Weight | 2.3 kg |
Manufacturer Selling Program | Lenovo TopSeller |
Environmental Standards | EPEAT Gold |
Documents
Extended Specifications
General
Product Type | Notebook |
|---|
Operating System | Windows 11 Home – English |
|---|
Processor / Chipset
CPU | AMD Ryzen 7 8745HX / 3.6 GHz |
|---|
Max Turbo Speed | 5.1 GHz |
|---|
Number of Cores | 8-core |
|---|
Cache | L3 – 32 MB |
|---|
Features | Integrated memory controller |
|---|
Memory
RAM | 24 GB (1 x 24 GB) |
|---|
Max RAM Supported | 32 GB |
|---|
Technology | DDR5 SDRAM |
|---|
Speed | 5200 MT/s |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots Qty | 2 |
|---|
Empty Slots | 1 |
|---|
Storage
Main Storage | 1 TB SSD M.2 2242 PCIe 4.0 x4 – NVM Express (NVMe) |
|---|
Display
Type | 16″ OLED |
|---|
Resolution | 2560 x 1600 (WQXGA) |
|---|
V-Sync Rate at Max Res. | 165 Hz |
|---|
Widescreen | Yes |
|---|
Image Aspect Ratio | 16:10 |
|---|
Image Brightness | 500 cd/m² |
|---|
Colour Gamut | 100% DCI-P3 |
|---|
Features | Glossy, NVIDIA G-SYNC compatible, Low Blue Light technology, Dolby Vision, FreeSync Premium Technology, High Gaming Performance Technology, X-Rite factory colour calibration |
|---|
Audio & Video
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
|---|
Graphics Processor | NVIDIA GeForce RTX 5060 / AMD Radeon 610M – up to 572 TOPS |
|---|
Video Memory | 8 GB GDDR7 SDRAM |
|---|
Gaming | Yes |
|---|
Camera | Yes |
|---|
Resolution | 5 Megapixel |
|---|
Camera Features | Fixed focus, e-camera shutter |
|---|
Sound | Stereo speakers, dual array microphone |
|---|
Codec | Realtek ALC3306 |
|---|
Compliant Standards | High Definition Audio |
|---|
Audio Features | Output: Harman audio technology, Nahimic audio |
|---|
Input
Type | Keyboard, touchpad |
|---|
Keyboard Backlight | Yes (RGB) |
|---|
Keyboard Layout | English |
|---|
Numeric Keypad | Yes |
|---|

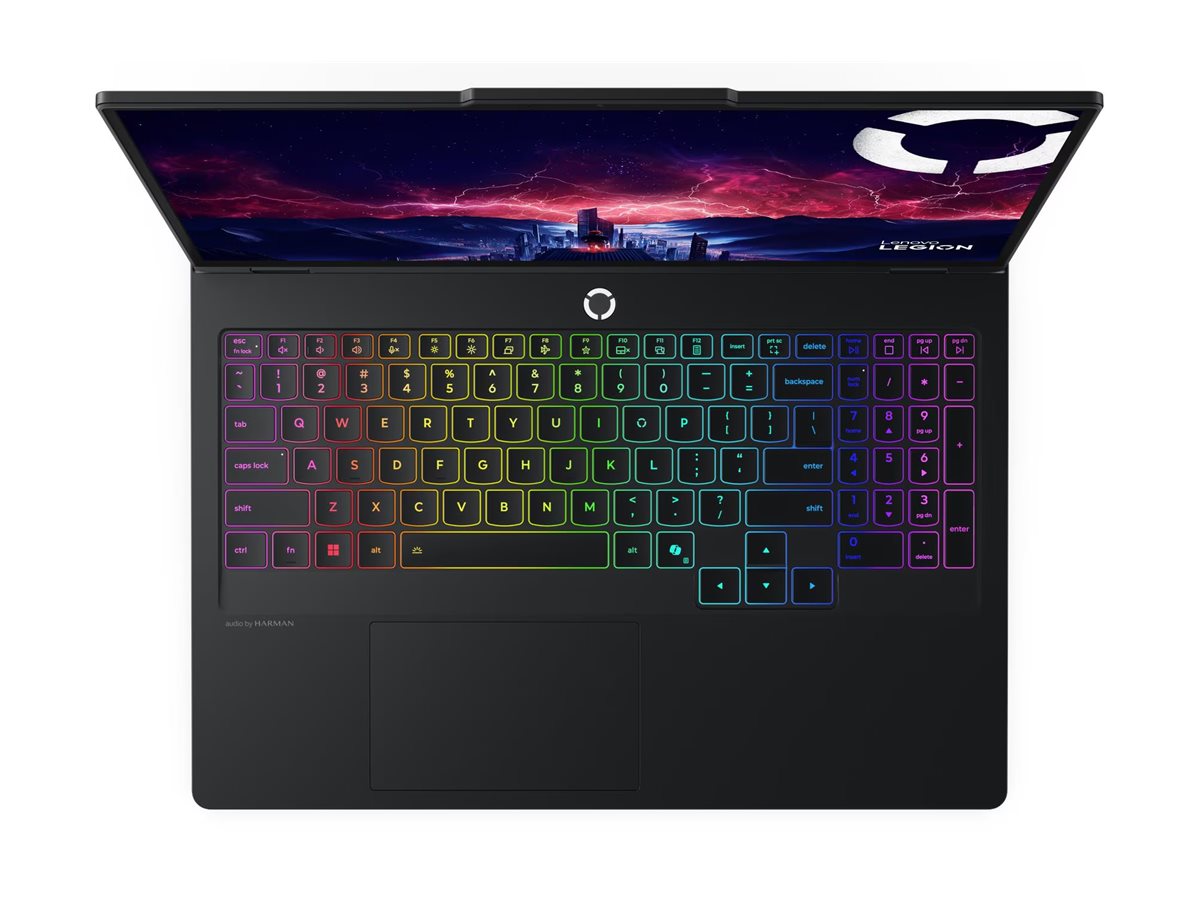

Features | Buttonless touchpad, precision multi-touch touchpad, 24 RGB zones |
|---|
Communications
Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
|---|
Features | Dual stream (2×2) |
|---|
Battery
Technology | Lithium polymer |
|---|
Capacity | 80 Wh |
|---|
AC Adapter
Input | AC 100-240 V (50/60 Hz) |
|---|
Output | 245 watt |
|---|
Connections & Expansion
Slots | 2 x M.2 (PCI Express 4.0 x4) (1 available) |
|---|
Interfaces Details | 2 x USB 3.2 Gen 1
USB 3.2 Gen 2 (Always On)
USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode)
USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode) (100W power delivery)
HDMI (8K support)
Headphone/microphone combo jack (mini-phone 3.5 mm)
LAN (RJ-45) |
|---|
Software
Software Included | Microsoft Office (Trial), Lenovo AI Now |
|---|
Miscellaneous
Colour | Eclipse black |
|---|

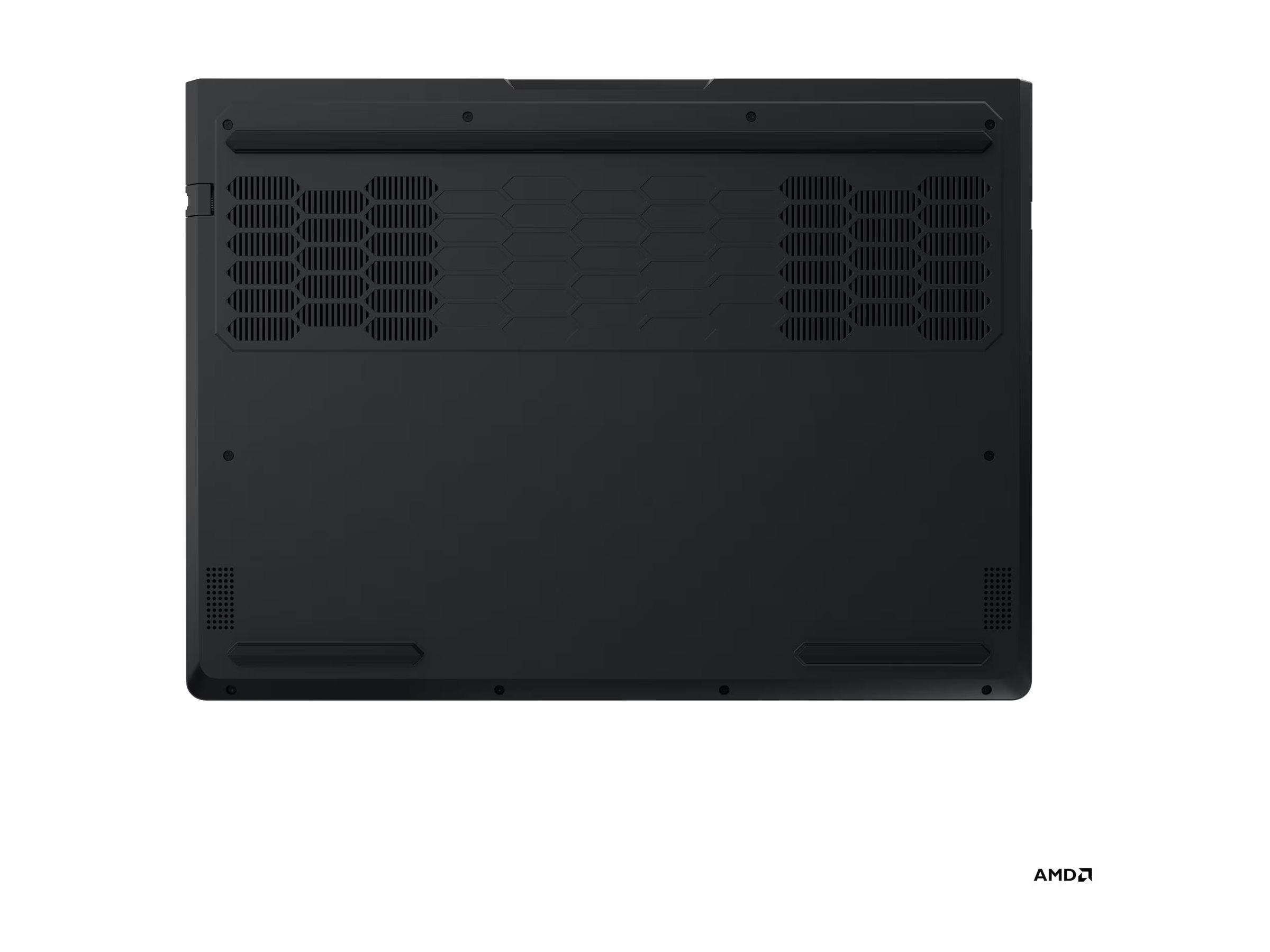

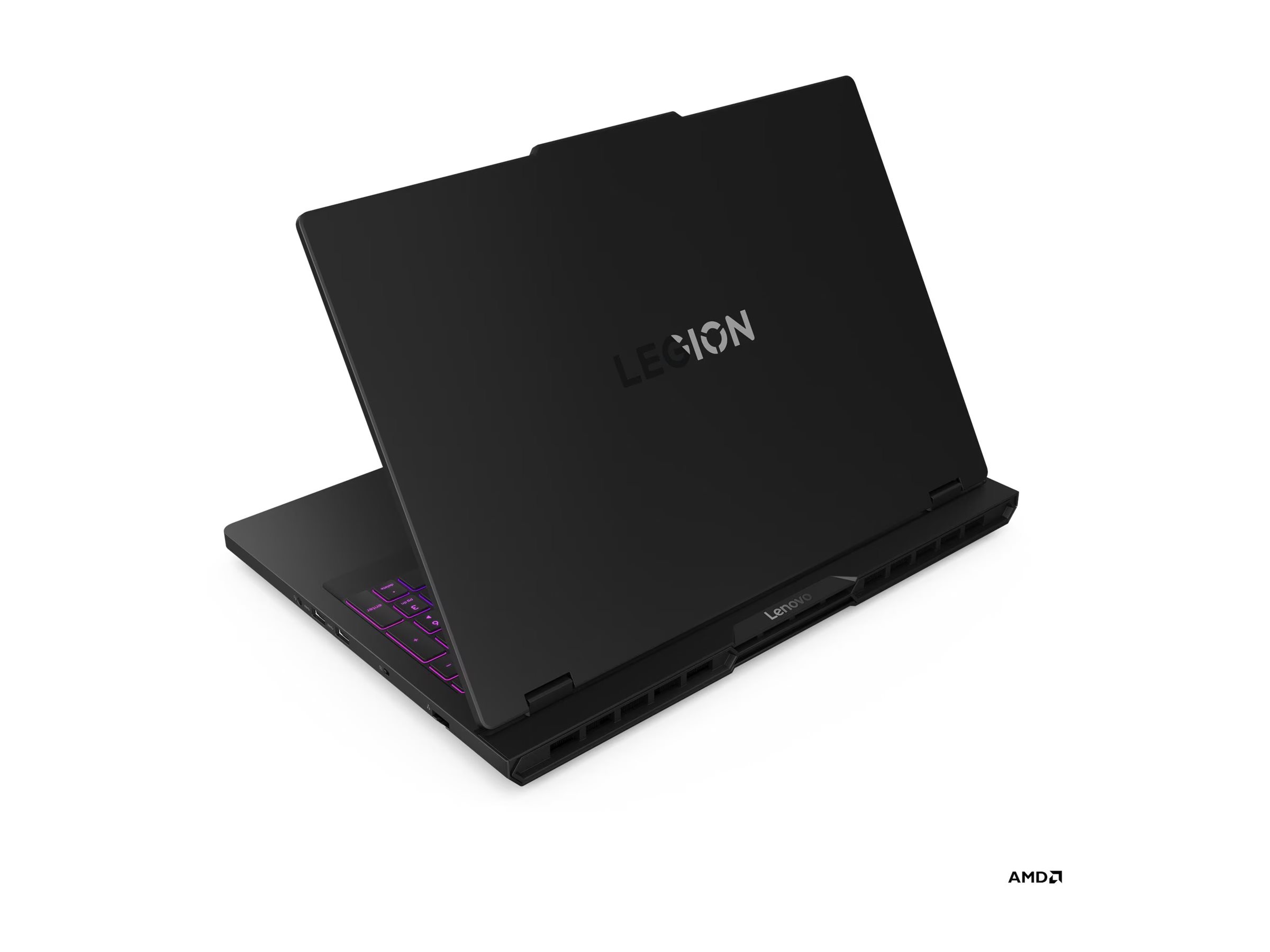

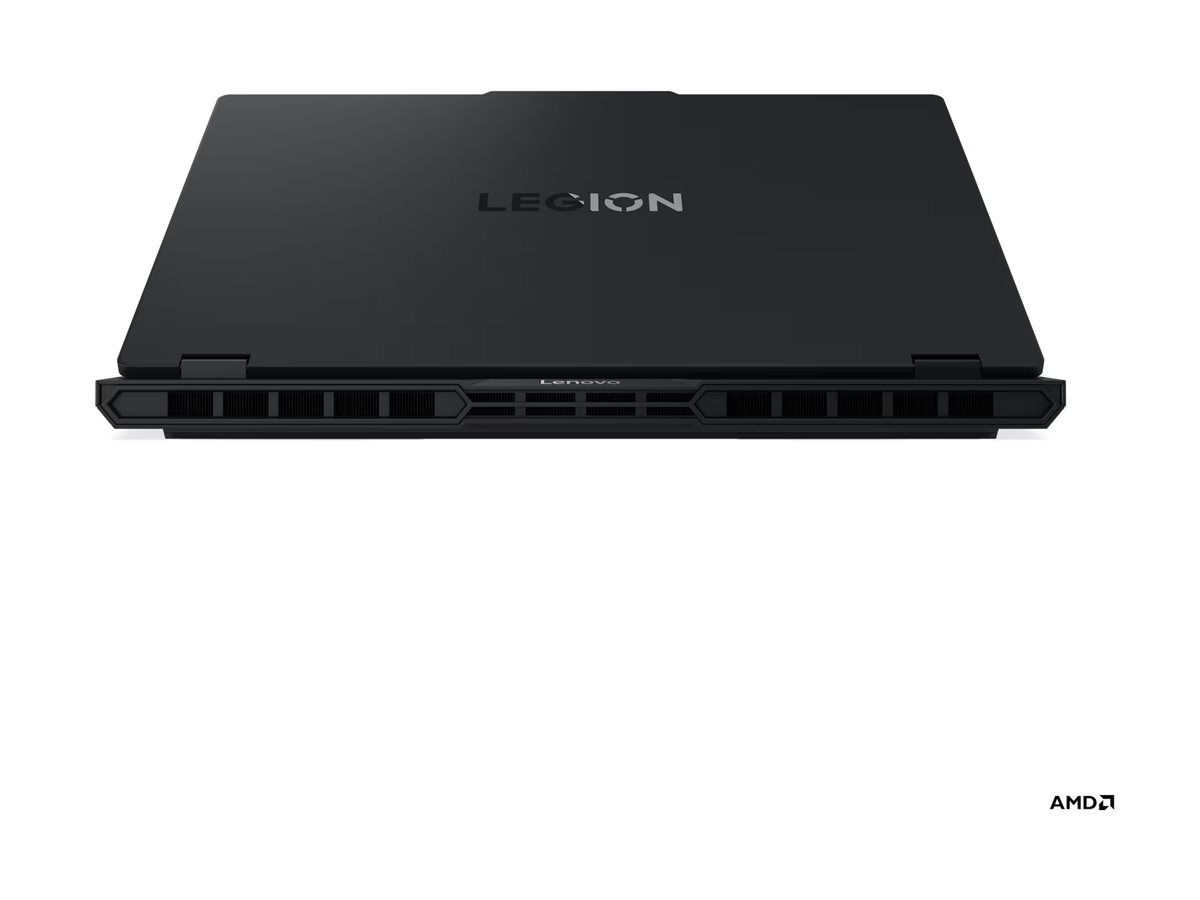

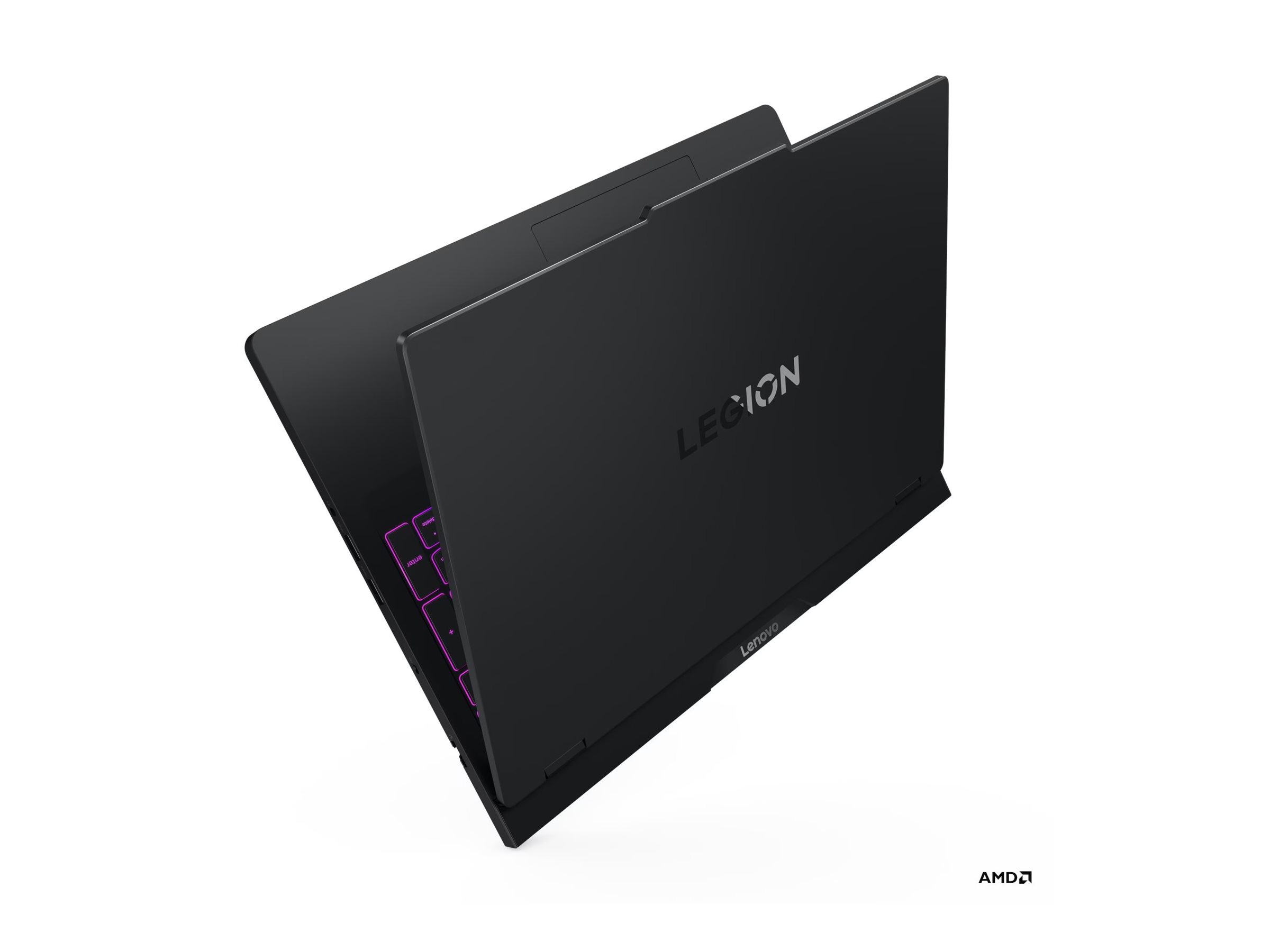

Case Material | Aluminium (top), polycarbonate ABS (bottom) |
|---|
Surface Finish | Anodising sandblasting |
|---|
Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Features | LA3 AI Chip |
|---|
Included Accessories | Power adapter |
|---|
Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland High Gaming Performance |
|---|
Localization | Language: English / region: Australia, New Zealand |
|---|
Manufacturer Selling Program | Lenovo TopSeller |
|---|
Dimensions & Weight
Dimensions (WxDxH) | 36.438 cm x 26.806 cm x 2.595 cm |
|---|
Weight | 2.3 kg |
|---|
Sustainability Information
EPEAT Compliant | EPEAT Gold |
|---|
