JBL Commercial Series VMA160, Mixer amplifier, powered, 5-channel, 60 Watt, rack-mountable
$1,248.31 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.
- 5 inputs with 1 output of 60, 120, or 240-watts of power
- Independent bass and treble controls for each output channel
- 100V and 70V output, or 4O/8
- Paging chime, and priority muting
- Works with JBL CSR-V wall controllers
- Balanced mic/line inputs; RCA (.775V) inputs
- Rack mounting hardware included
Main Specifications
Product Description | JBL Commercial Series VMA160 mixer amplifier – 5-channel |
Type | Mixer amplifier – powered – 5-channel – rack-mountable |
Frequency Response | 20 Hz – 20 kHz |
Mic Phantom Power | 27 V |
Output Power / Total | 60 Watt |
Dimensions (WxDxH) | 43.2 cm – 41.5 cm – 8.8 cm |
Weight | 8.8 kg |
Documents
Extended Specifications
General
Type | Mixer amplifier |
|---|
Mixer
Rack Mount | Rack-mountable |
|---|---|
Channels Qty (total) | 5-channel |
Frequency Response | 20 Hz – 20 kHz |
Powered | Powered |
Mic Phantom Power | 27 V |
Control Types | Knobs |
Features | Built-in digital player, 70V/100V or 4/8 Ohm operation, bass & treble control, built-in LCD display, Bluetooth interface |
Channel Description
Input Level Switch | Mic/line |
|---|
Equalizer Bus
Bands Qty | 2 |
|---|
Mixer Amplifier
Output Power / Total | 60 Watt |
|---|
Connections

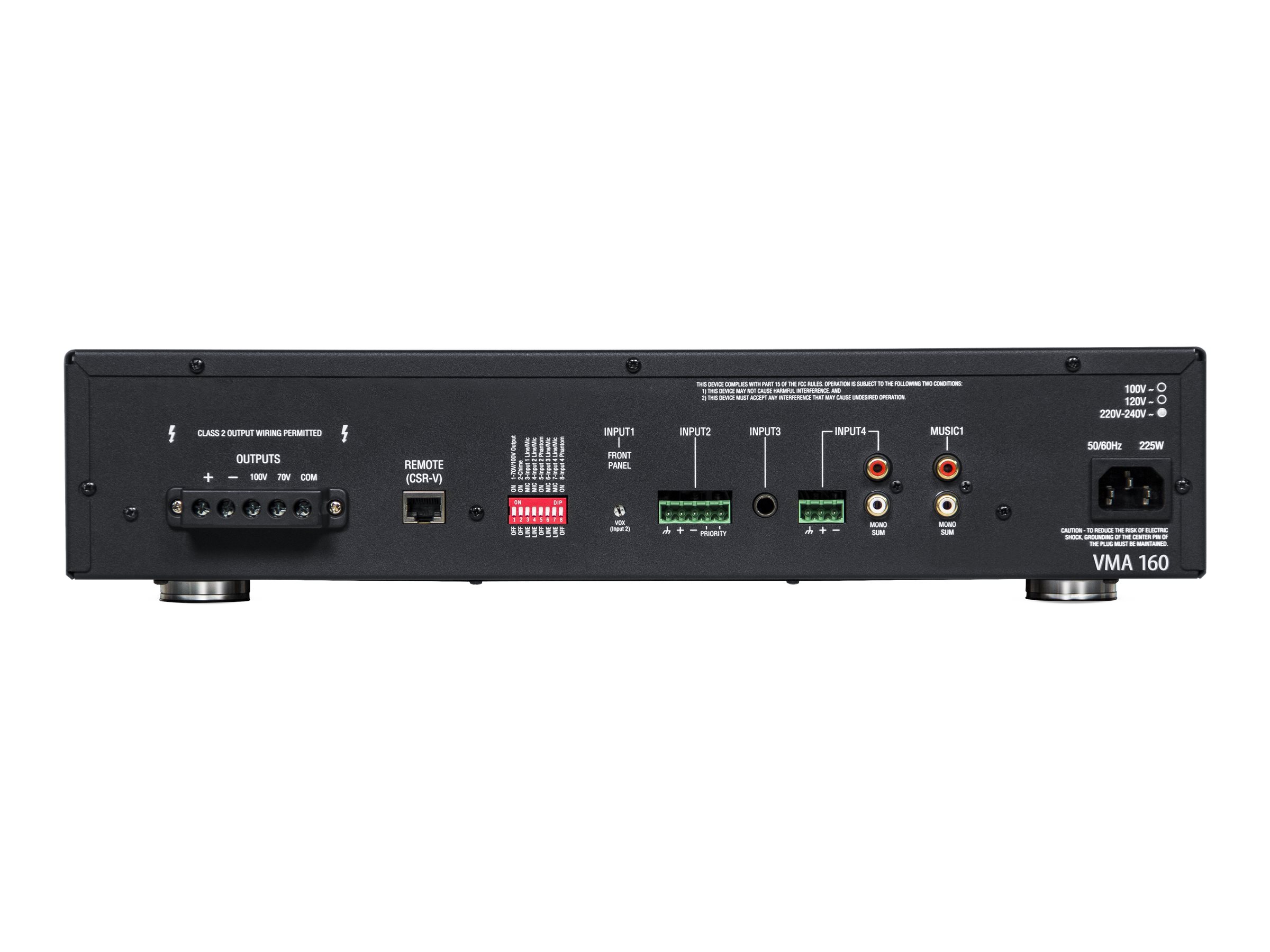

Connector Type | 1 x USB (4 PIN USB Type A) – front 1 x audio line-in (phone 6.3 mm) – front 2 x balanced audio input (terminal block) – rear 1 x audio line-in (phone 6.35 mm) – rear 2 x audio line-in (RCA x 2) – rear 1 x speakers output (screw-type) – rear 1 x remote control (RJ-45) – rear |
|---|
Power
Power Consumption | 225 Watt |
|---|
Dimensions & Weight
Width | 43.2 cm |
|---|---|
Depth | 41.5 cm |
Height | 8.8 cm |
Weight | 8.8 kg |
Dimensions & Weight (Shipping)
Shipping Weight | 11.2 kg |
|---|
Additional information
