Description

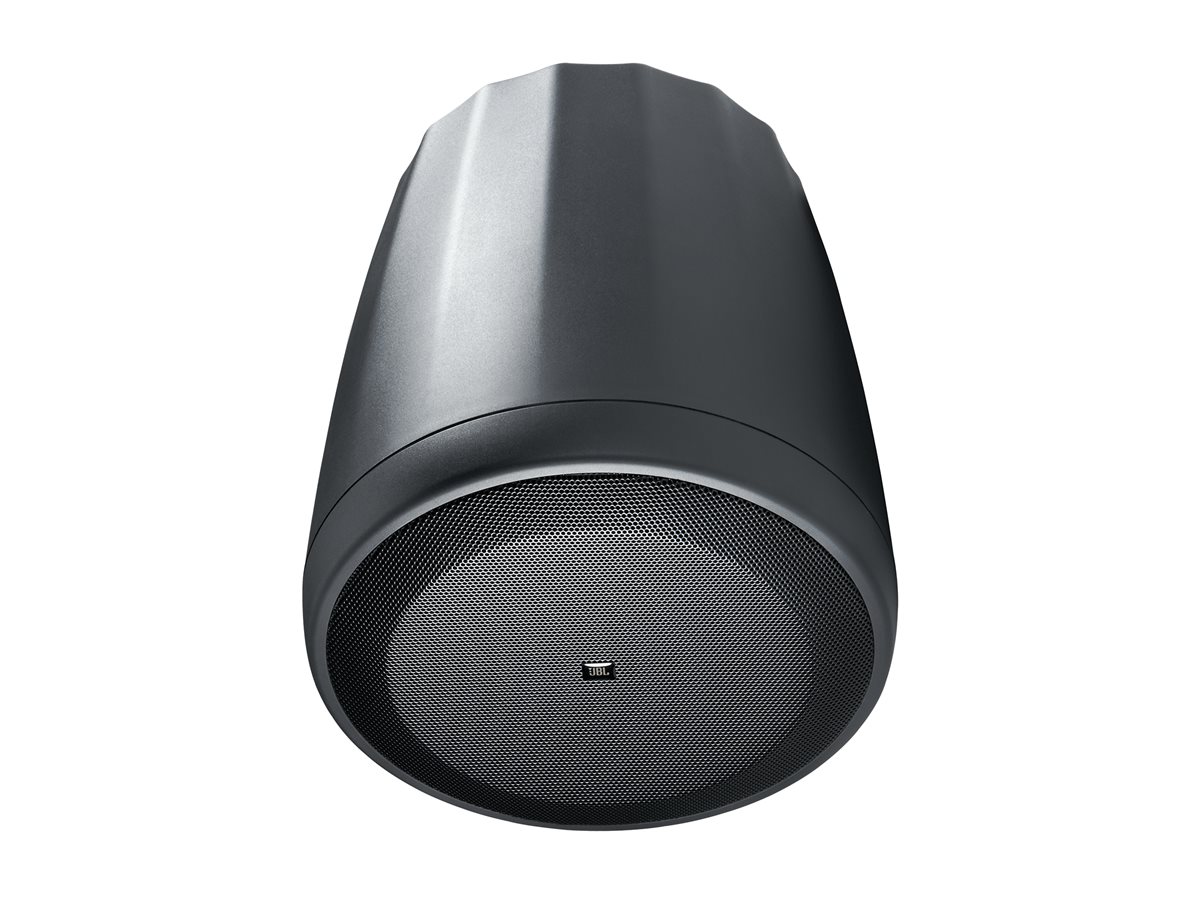

The JBL Professional Control 65P/T speaker is engineered to deliver robust performance for diverse audio needs, making it an ideal solution for commercial settings. With a 2-way passive design featuring a 5.25-inch woofer driver and a 3/4-inch tweeter driver, this speaker ensures a rich sound experience with frequencies ranging from 55 Hz to 20,000 Hz. Its construction includes high-impact polystyrene and powder-coated steel, providing durability and flexibility for various installations. The speaker is equipped with a splash-resistant body and complies with essential standards such as TUV and IP44, ensuring reliability in different environments. The JBL Control 65P/T offers connectivity with wired options, featuring 2-pin Euroblock connectors. Its integrated 70V/100V transformer allows operation in commercial audio applications, while the Radiation Boundary Integrator (RBI) technology enhances sound dispersion, covering a wide 120° conical area. With a maximum output level of 105 dB and peak power handling of 300 watts, this speaker provides clear audio, whether used in paging systems or background music setups.
- Durable high-impact and splash-resistant design
- Integrated 70V/100V transformer for versatile connectivity
- Wide frequency response from 55 Hz to 20,000 Hz
- Easy installation with 2-pin Euroblock connectors
- 120° conical coverage for optimal sound dispersion
- Robust construction
Constructed with high-impact polystyrene and powder-coated steel, this speaker provides durability suited for various commercial environments. - Advanced audio performance
Featuring a 5.25-inch woofer and a 3/4-inch tweeter, the speaker delivers clear and dynamic sound across a frequency range of 55 Hz to 20,000 Hz. - Splash-resistant design
The design complies with IP44 standards, making it suitable for use in areas where water exposure is possible. - Efficient sound coverage
With a 120° conical coverage pattern, the speaker evenly distributes sound, ensuring that audio is clearly heard by larger audiences. - Versatile installation options
The integration of a 70V/100V transformer facilitates setup in various audio systems, providing flexibility for different installation requirements.
Main Specifications
Product Description | JBL Professional Control 65P/T – speaker |
Product Type | Control 60 Series – speaker |
Protection | Splash-resistant |
Speaker Type | 2-way – passive |
Continuous Power | 75 Watt |
Peak Power | 300 Watt |
Nominal Impedance | 8 Ohm |
Integrated Transformer | 70V/100V operation |
Colour | Black |
Dimensions (WxDxH) | 25.9 cm |
Dimensions – Diameter | 23.4 cm |
Weight | 3.7 kg |
Extended Specifications
General
Product Type | Speaker |
|---|
Features | Radiation Boundary Integrator (RBI) |
|---|
Protection | Splash-resistant |
|---|
Enclosure Colour | Black |
|---|
Enclosure Material | High-impact polystyrene, powder-coated steel |
|---|
Design Features | Paintable |
|---|
Speaker System
Series | Control 60 Series |
|---|
Speaker Type | 2-way – passive |
|---|
Continuous Power | 75 Watt |
|---|
Continuous Power Details | 150 W (program) |
|---|
Peak Power | 300 Watt |
|---|
Frequency Response (+/-3dB) | 78 – 18000 Hz |
|---|
Frequency Response (-10dB) | 55 – 20000 Hz |
|---|
Nominal Impedance | 8 Ohm |
|---|
Max Output Level (Max SPL) | 105 dB |
|---|
Sensitivity | 86 dB (1W@1m) |
|---|
Integrated Transformer | 70V/100V operation |
|---|
Coverage | 120° conical |
|---|
Recommended Placing | Pendant |
|---|
Detachable Grilles | Yes |
|---|
Speaker System Details
Driver Details | Speaker: woofer driver – 5.25″ – polypropylene coated paper – vented fibreglass resin voice coil-former
Speaker: tweeter driver – 3/4″ – neodymium magnet – textile – Ferrofluid Cooled Dome |
|---|
Connections

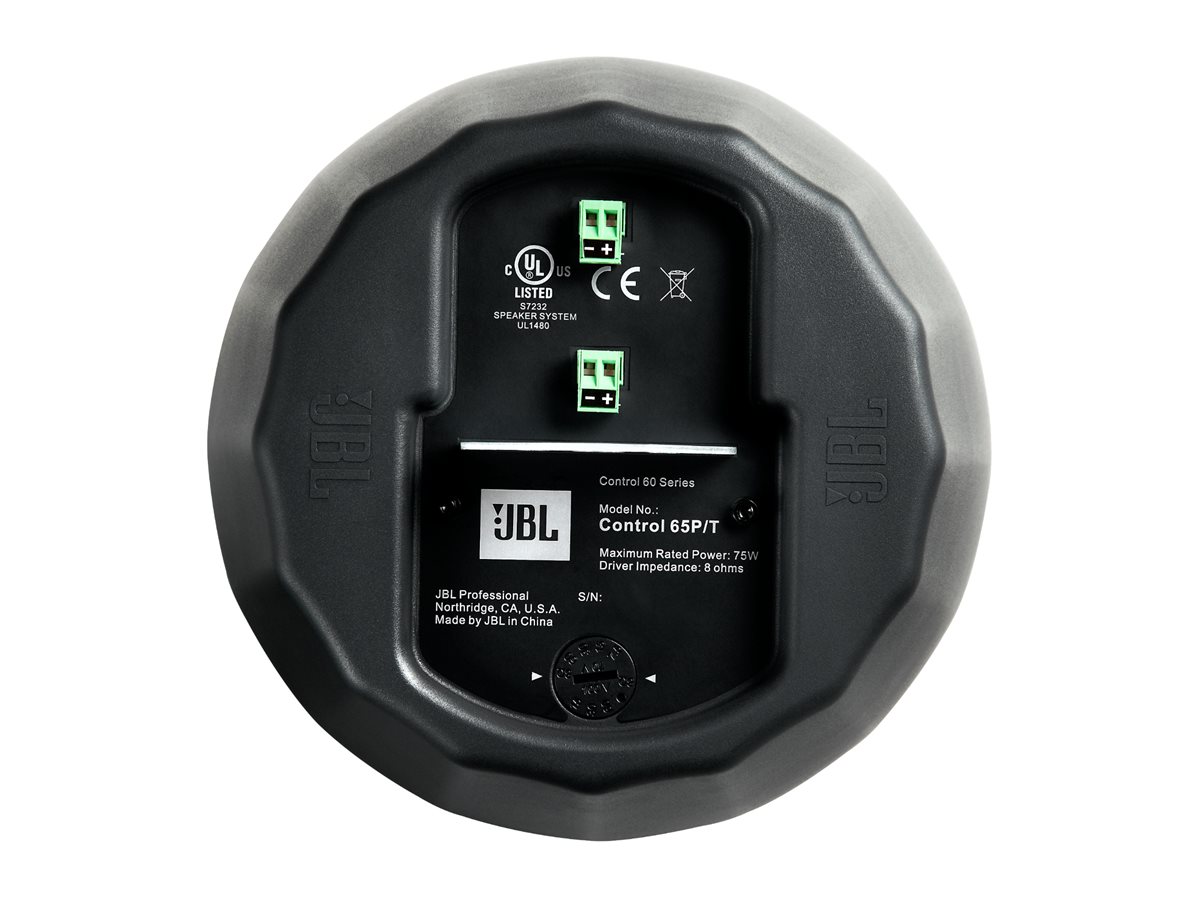

Connector Type | 2 x speaker input (2-pin Euroblock) |
|---|
Miscellaneous
Compliant Standards | IP44, IEC 529, UL 1480, UL 1876, IEC 60849, EN 60849, UL 1598, UL 2239, TUV, CSA Class 3426-01, CSA Class 3426-81 |
|---|
Dimensions & Weight
Diameter | 23.4 cm |
|---|
Height | 25.9 cm |
|---|
Weight | 3.7 kg |
|---|
Dimensions & Weight (Shipping)
