Description

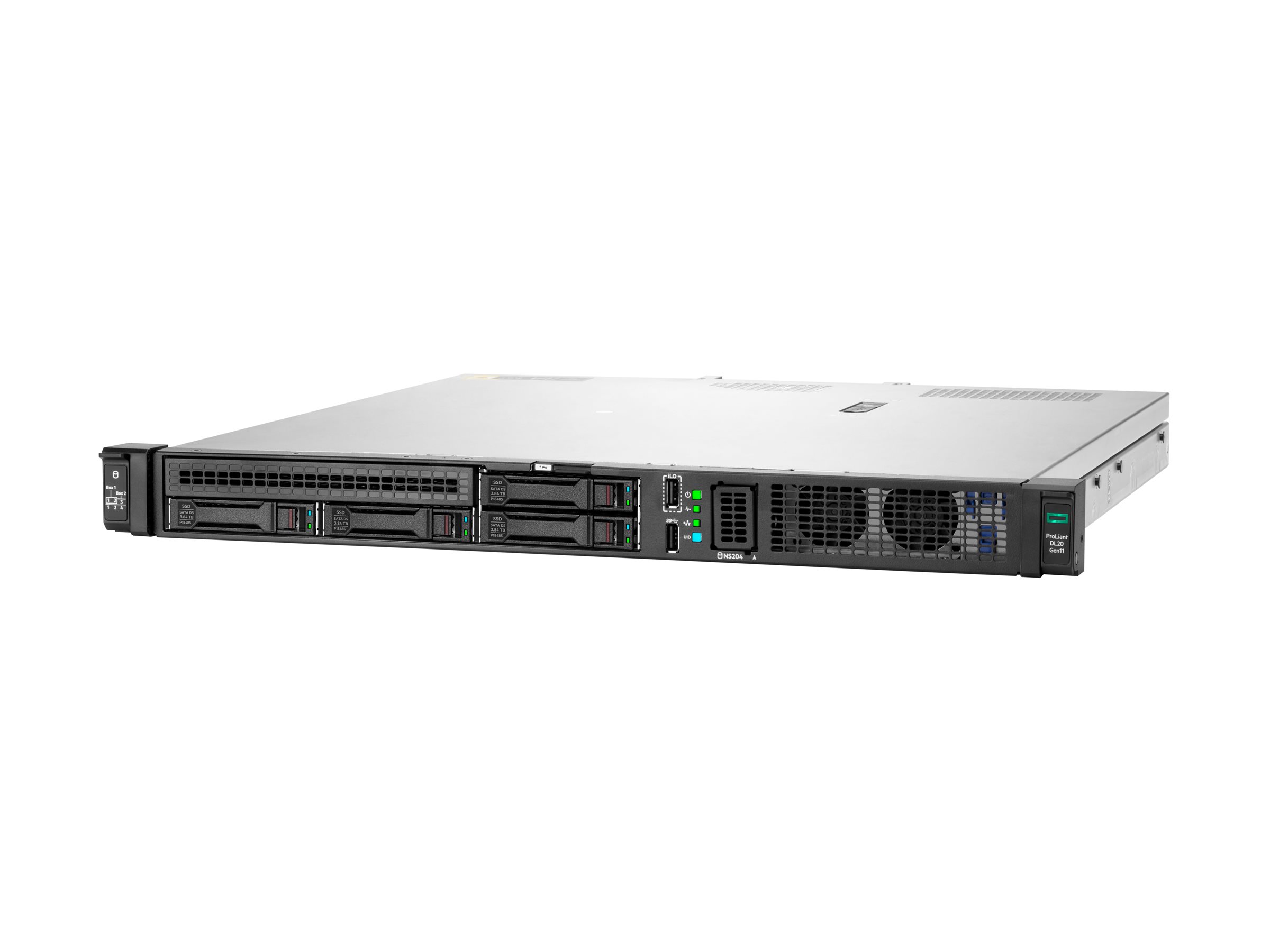

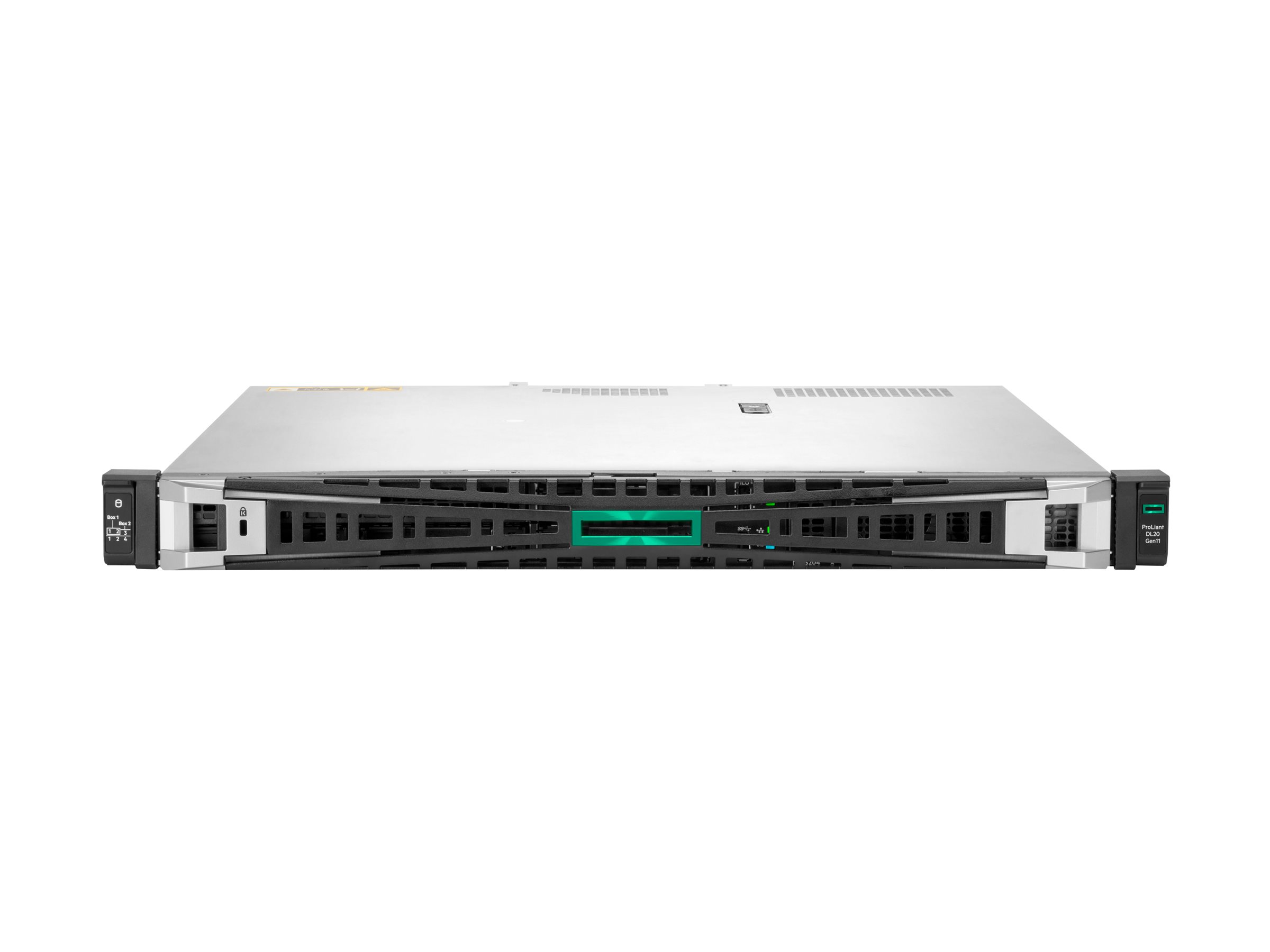

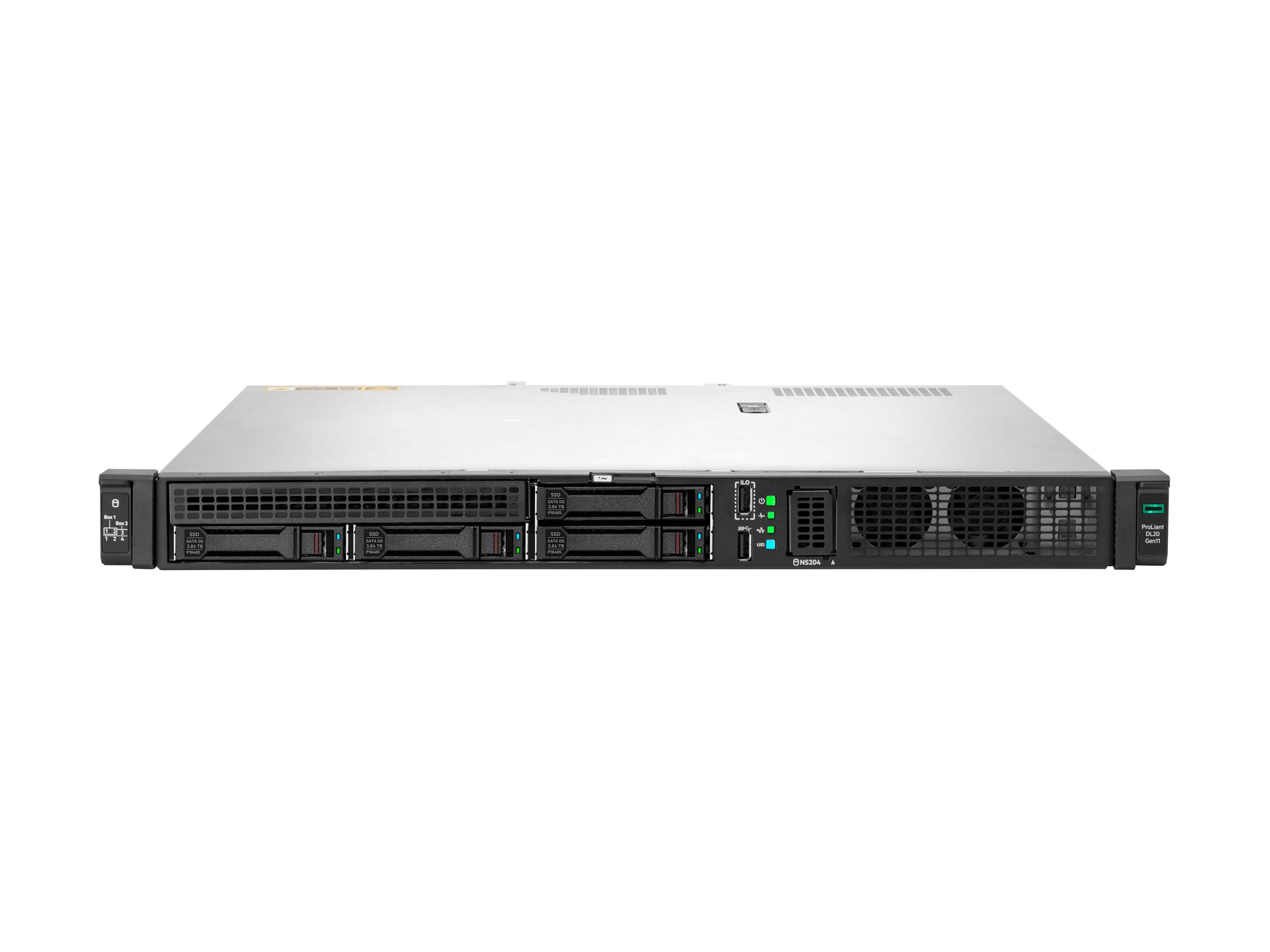

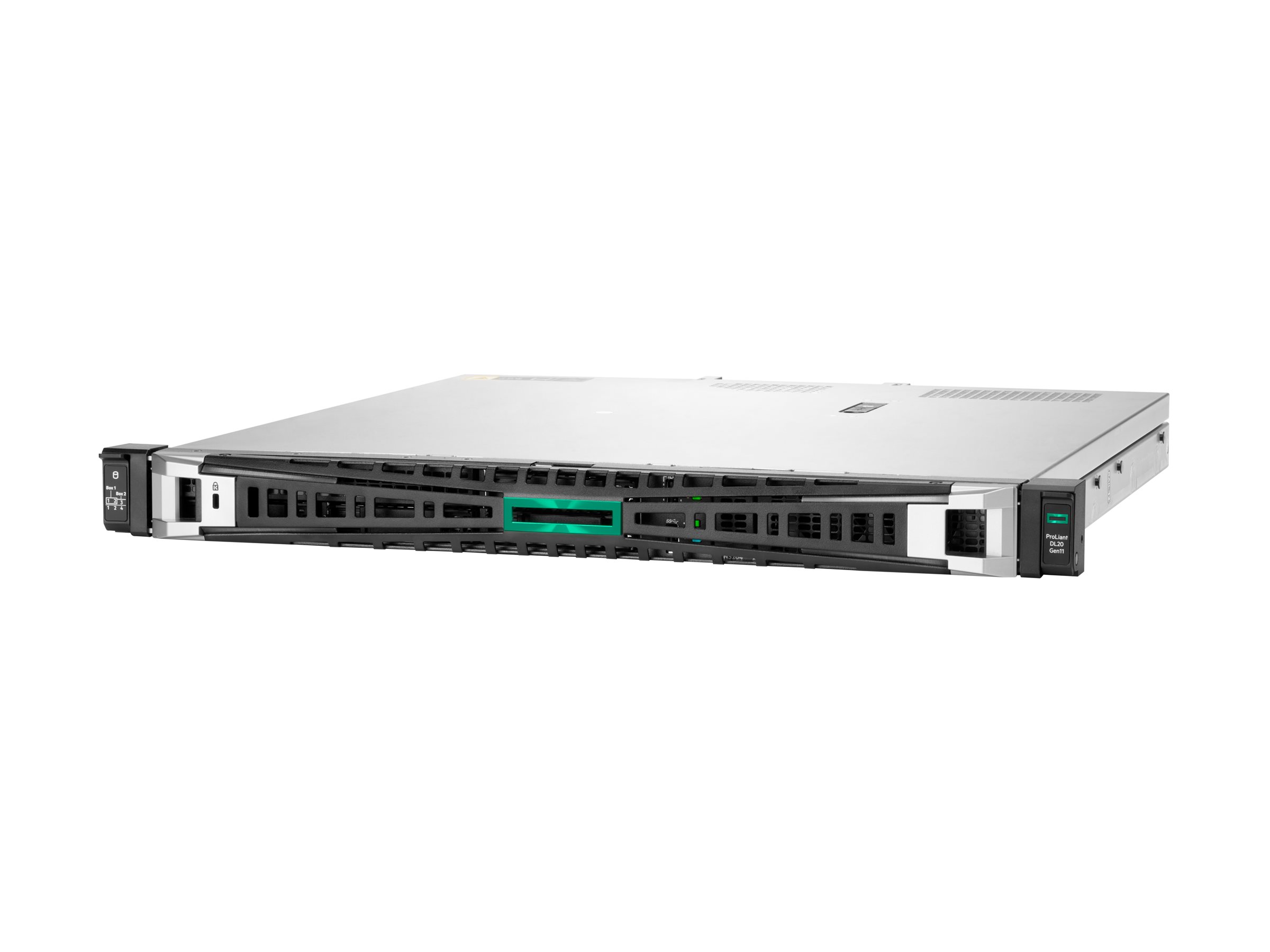

The HPE ProLiant DL20 Gen11 server is designed to meet the demands of modern businesses, offering a blend of performance, security, and connectivity. Powered by an Intel Xeon E-2436 processor and equipped with 32 GB of DDR5 memory, it delivers the speed and efficiency needed for complex server tasks. Its robust security features, including a TPM security chip and remote management capabilities, ensure your data is protected. With flexible storage options and comprehensive connectivity, including Gigabit Ethernet and a variety of ports, this server is a versatile solution for any business looking to enhance its IT infrastructure.
- 6-core Intel Xeon E-2436 processor with speeds up to 5 GHz for high efficiency
- 32 GB of DDR5 SDRAM, expandable to support memory-intensive applications
- 4 Gigabit Ethernet ports for high-speed network connectivity
- Hot-swap 2.5″ SSDs for flexible, secure storage solutions
- Trusted Platform Module (TPM) security chip for enhanced data protection
- Efficient Performance
Equipped with a 6-core Intel Xeon E-2436 processor and a clock speed of 2.9 GHz that can turbo up to 5 GHz, the HPE ProLiant DL20 Gen11 delivers reliable and efficient performance for demanding server operations. Its upgradability ensures it can adapt to future workloads. - Advanced Connectivity
This server boasts a comprehensive set of connectivity options including 4 Gigabit Ethernet ports powered by a Broadcom BCM5719 controller, ensuring high-speed network connections. Additionally, it features a variety of ports including USB 3.2 Gen 1, DisplayPort, and VGA, catering to diverse connectivity needs. - Robust Security
With an embedded Trusted Platform Module (TPM) security chip, the HPE ProLiant DL20 Gen11 offers a secure foundation for your data, protecting against unauthorized access and ensuring data integrity. Integrated Lights-Out 6 remote management further enhances security and management capabilities. - Flexible Storage Solutions
Featuring hot-swap 2.5″ SSDs and support for up to 4 hot-swap bays, the server provides flexible storage options that can be tailored to meet the needs of any business, ensuring data is stored efficiently and securely. - High-Capacity Memory
With 32 GB of DDR5 SDRAM installed and the capability to expand, this server supports memory-intensive applications, ensuring smooth operation and improved data processing speeds for all your business needs.
What’s in the Box
- HPE ProLiant DL20 Gen11
- 3 high performance fans
Main Specifications
Product Description | HPE ProLiant DL20 Gen11 – rack-mountable Xeon 6325P 3.5 GHz – 32 GB – SSD 2 x 480 GB |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon 6325P / 3.5 GHz (up to 5.2 GHz, (Quad-Core) |
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 55W TDP |
Cache Memory | 12 MB L3 Cache |
Cache Per Processor | 12 MB |
RAM | 32 GB (installed) / 128 GB (max) – DDR5 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
Server Storage Bays | Hot-swap 3.5″ |
Hard Drive | 2 x SSD 480 GB – SATA 6Gb/s |
Optical Storage | No optical drive |
Graphics Controller | Matrox G200 |
Video Memory | 16 MB |
Networking | 1GbE |
Power Redundancy | Yes |
OS Provided | No operating system |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
Dimensions (WxDxH) | 43.46 cm x 37.84 cm x 4.32 cm |
Weight | 9 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Hot-Swap Bays Qty | 2 |
|---|
Processor / Chipset
CPU | Intel Xeon 6325P |
|---|
Clock Speed | 3.5 GHz |
|---|
Max Turbo Speed | 5.2 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 55W TDP |
|---|
Chipset Type | Intel C262 |
|---|
Cache Memory
Installed Size | L3 Cache – 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 32 GB (installed) / 128 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 4400 MT/s |
|---|
Rated Memory Speed | 4800 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 3 (empty) |
|---|
Features | HPE Standard Memory, unbuffered |
|---|
Configuration Features | 1 x 32 GB |
|---|
Hard Drive
Type | SSD |
|---|
Capacity | 2 x 480 GB |
|---|
Manufacturer | HPE |
|---|
Interface Type | SATA 6Gb/s |
|---|
Features | HPE Multi Vendor, Read Intensive |
|---|
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Storage Controller Name | Intel VROC SATA Software RAID |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Matrox G200 |
|---|
Video Memory | 16 MB |
|---|
Video Interfaces | DisplayPort, VGA |
|---|
Networking
Ethernet Ports | 4 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5719 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | IPMI 2.0, SNMP 3 |
|---|
Features | ACPI support, PXE support, Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Bays | 4 (total) / 2 (free) x hot-swap 2.5″ SFF
1 (total) / 1 (free) x external |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x16 mode)
1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
|---|

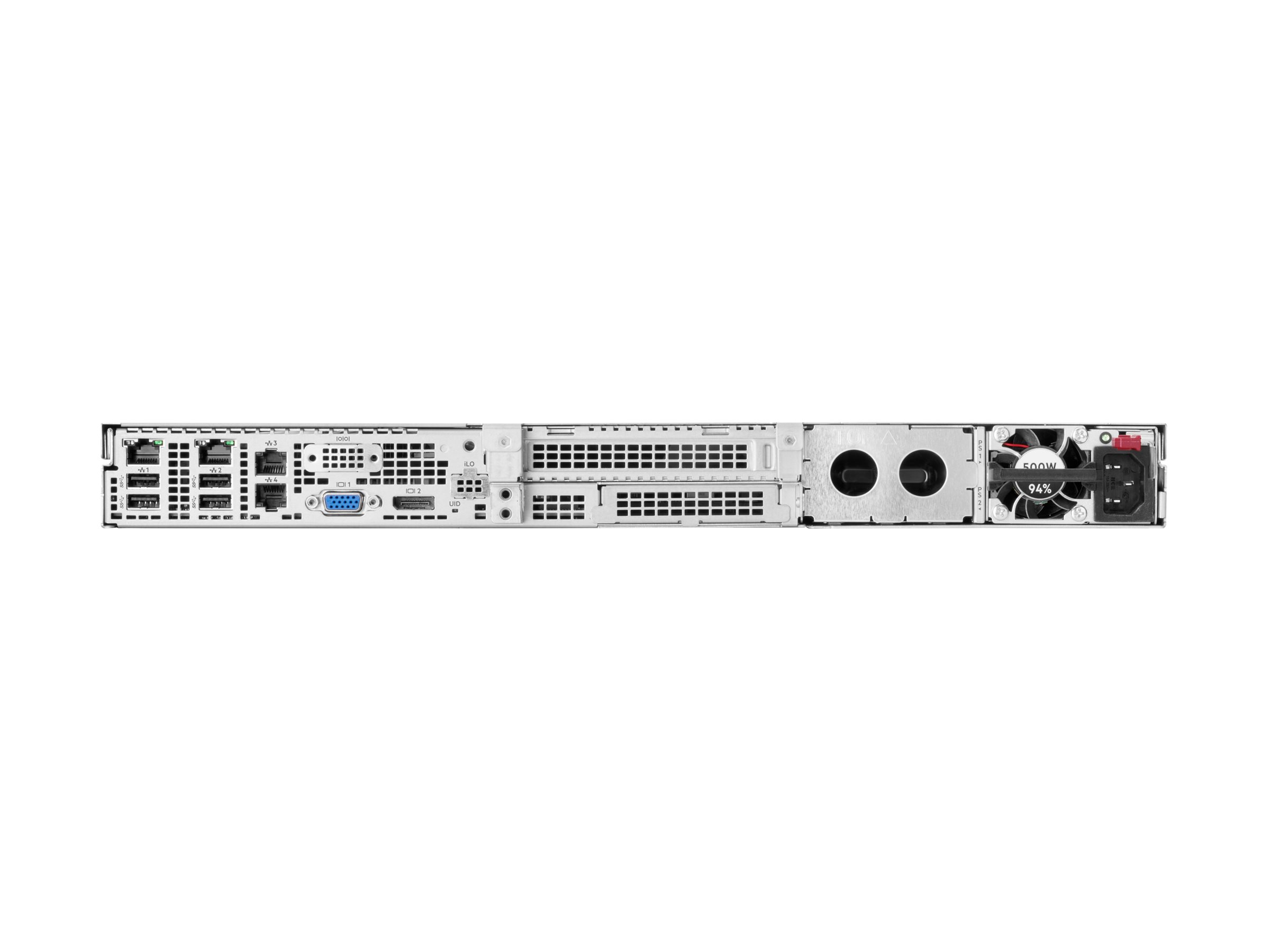

Interfaces | 1 x HPE iLO – Type A (1 in front) (service port)
5 x USB 3.2 Gen 1×1 – Type A (1 front, 4 rear)
2 x USB 3.2 Gen 2×2 (2 internal)
1 x DisplayPort
1 x VGA
4 x LAN (Gigabit Ethernet) – RJ-45 |
|---|
Miscellaneous
Included Accessories | 3 high performance fans |
|---|
Compliant Standards | AES, Triple DES, ACPI 6.3, SMBIOS 3.2, Redfish API, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, UEFI 2.9, PCI DSS, FIPS 140-2, IPv6 Ready, WEEE 2002/95/EC |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Installed Qty | 1 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-120/200-240 V |
|---|
Power Provided | 500 Watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 8.0 update 2 |
|---|
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 43.46 cm |
|---|
Depth | 37.84 cm |
|---|
Height | 4.32 cm |
|---|
Weight | 9 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
