Description

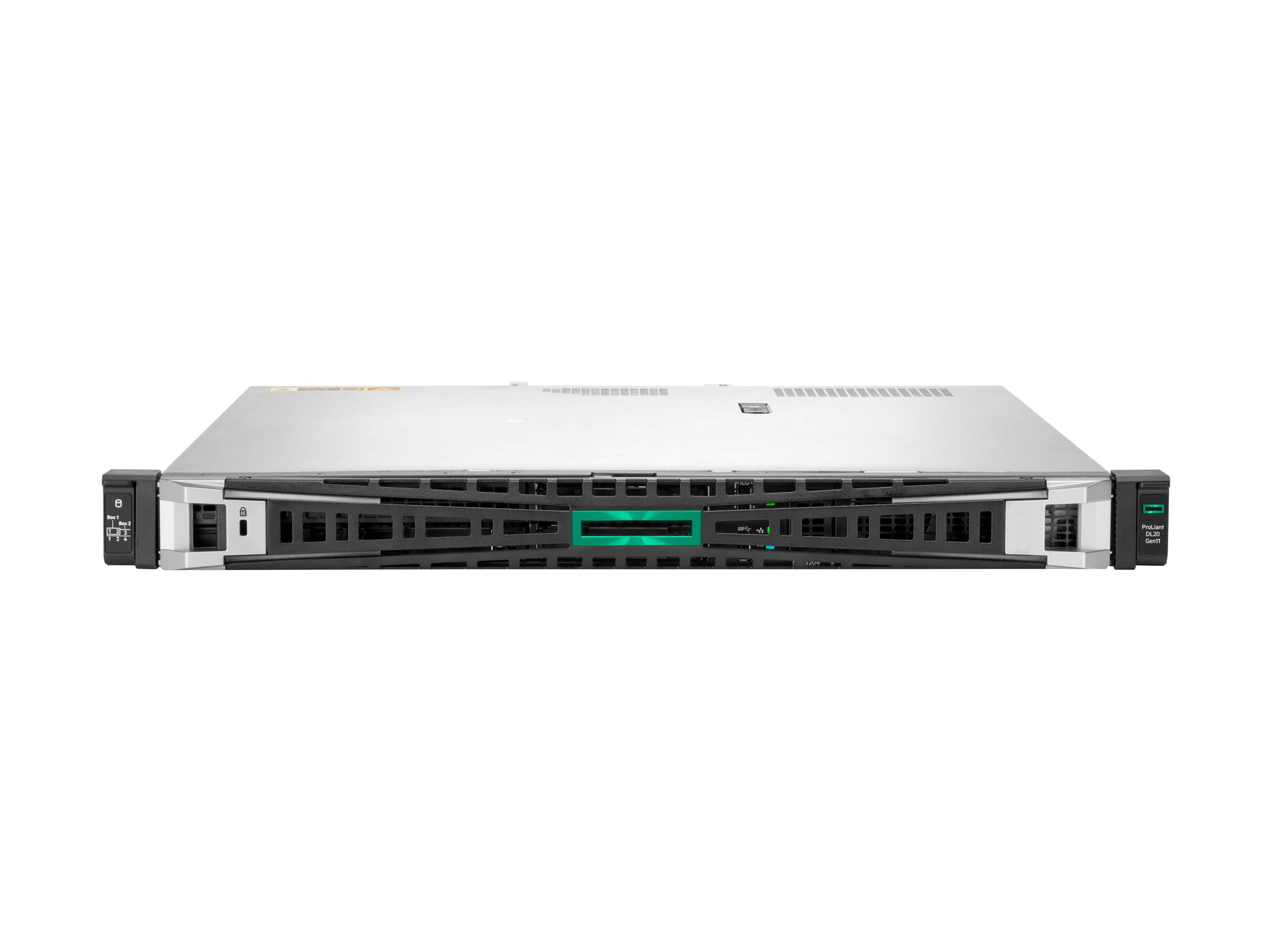

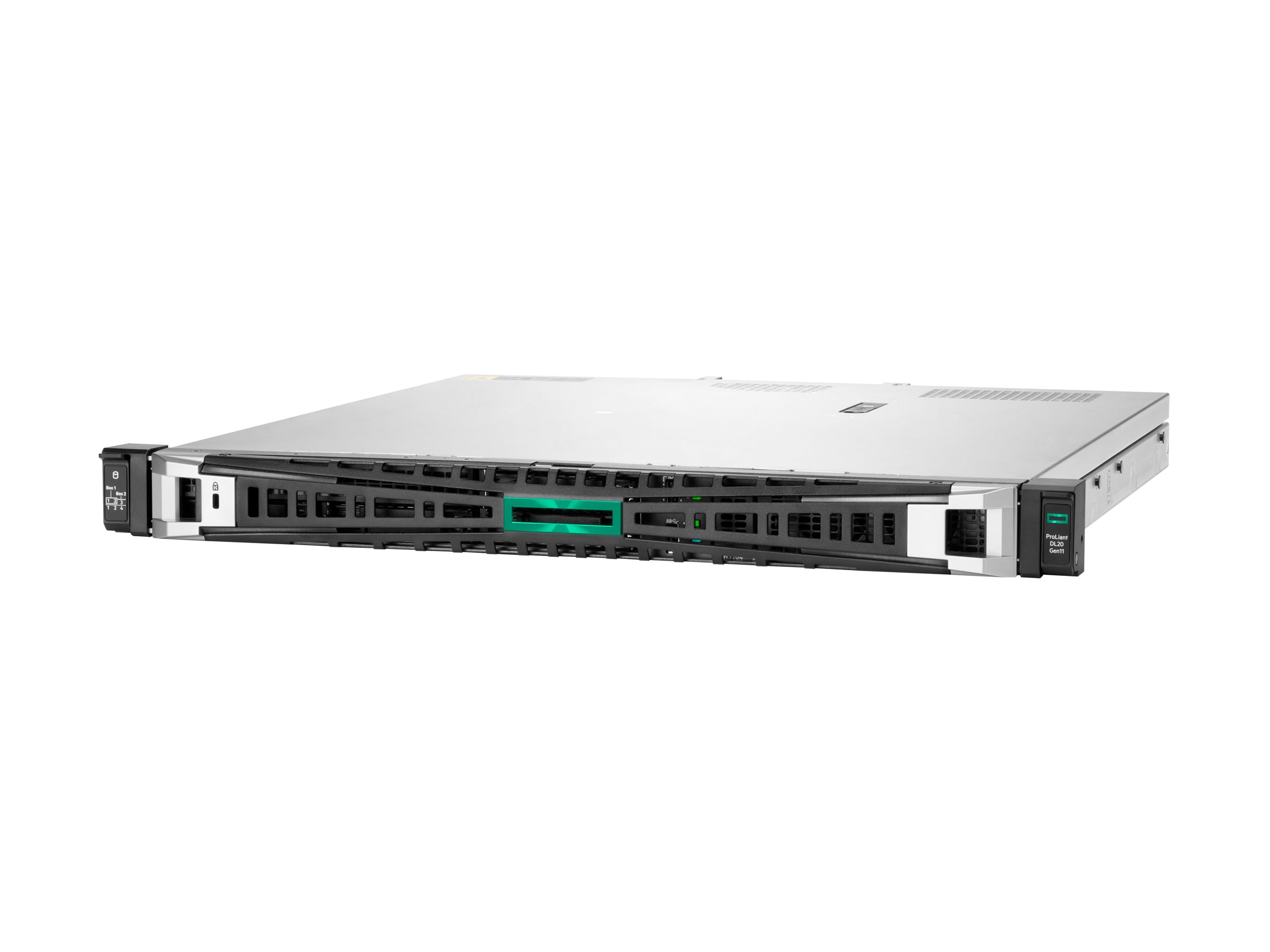

The HPE ProLiant DL20 Gen11 server is designed to meet the demands of modern businesses, offering a blend of performance, security, and connectivity. Powered by an Intel Xeon E-2436 processor and equipped with 32 GB of DDR5 memory, it delivers the speed and efficiency needed for complex server tasks. Its robust security features, including a TPM security chip and remote management capabilities, ensure your data is protected. With flexible storage options and comprehensive connectivity, including Gigabit Ethernet and a variety of ports, this server is a versatile solution for any business looking to enhance its IT infrastructure.
- 6-core Intel Xeon E-2436 processor with speeds up to 5 GHz for high efficiency
- 32 GB of DDR5 SDRAM, expandable to support memory-intensive applications
- 4 Gigabit Ethernet ports for high-speed network connectivity
- Hot-swap 2.5″ SSDs for flexible, secure storage solutions
- Trusted Platform Module (TPM) security chip for enhanced data protection
- Efficient Performance
Equipped with a 6-core Intel Xeon E-2436 processor and a clock speed of 2.9 GHz that can turbo up to 5 GHz, the HPE ProLiant DL20 Gen11 delivers reliable and efficient performance for demanding server operations. Its upgradability ensures it can adapt to future workloads. - Advanced Connectivity

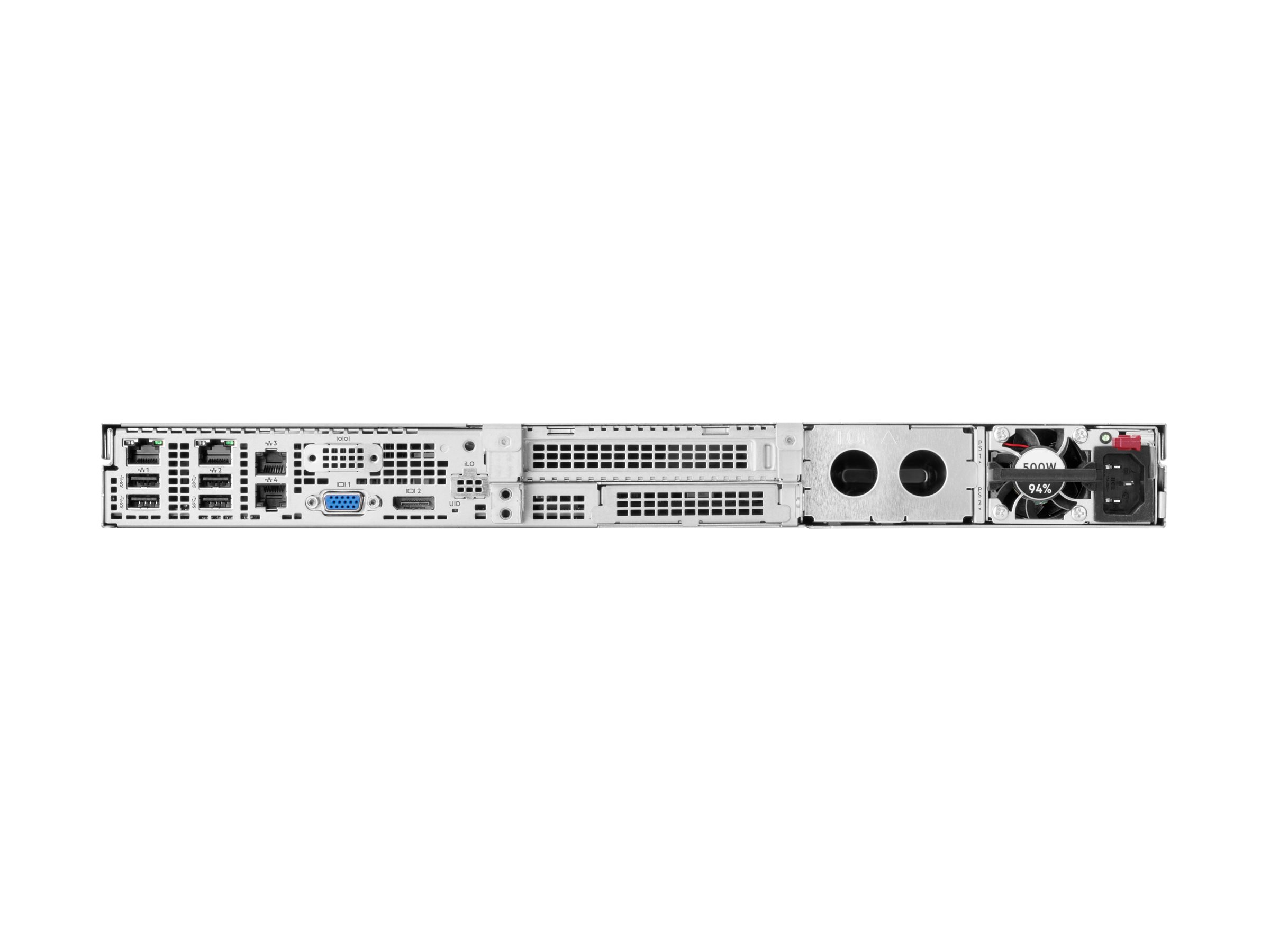

This server boasts a comprehensive set of connectivity options including 4 Gigabit Ethernet ports powered by a Broadcom BCM5719 controller, ensuring high-speed network connections. Additionally, it features a variety of ports including USB 3.2 Gen 1, DisplayPort, and VGA, catering to diverse connectivity needs. - Robust Security
With an embedded Trusted Platform Module (TPM) security chip, the HPE ProLiant DL20 Gen11 offers a secure foundation for your data, protecting against unauthorized access and ensuring data integrity. Integrated Lights-Out 6 remote management further enhances security and management capabilities. - Flexible Storage Solutions

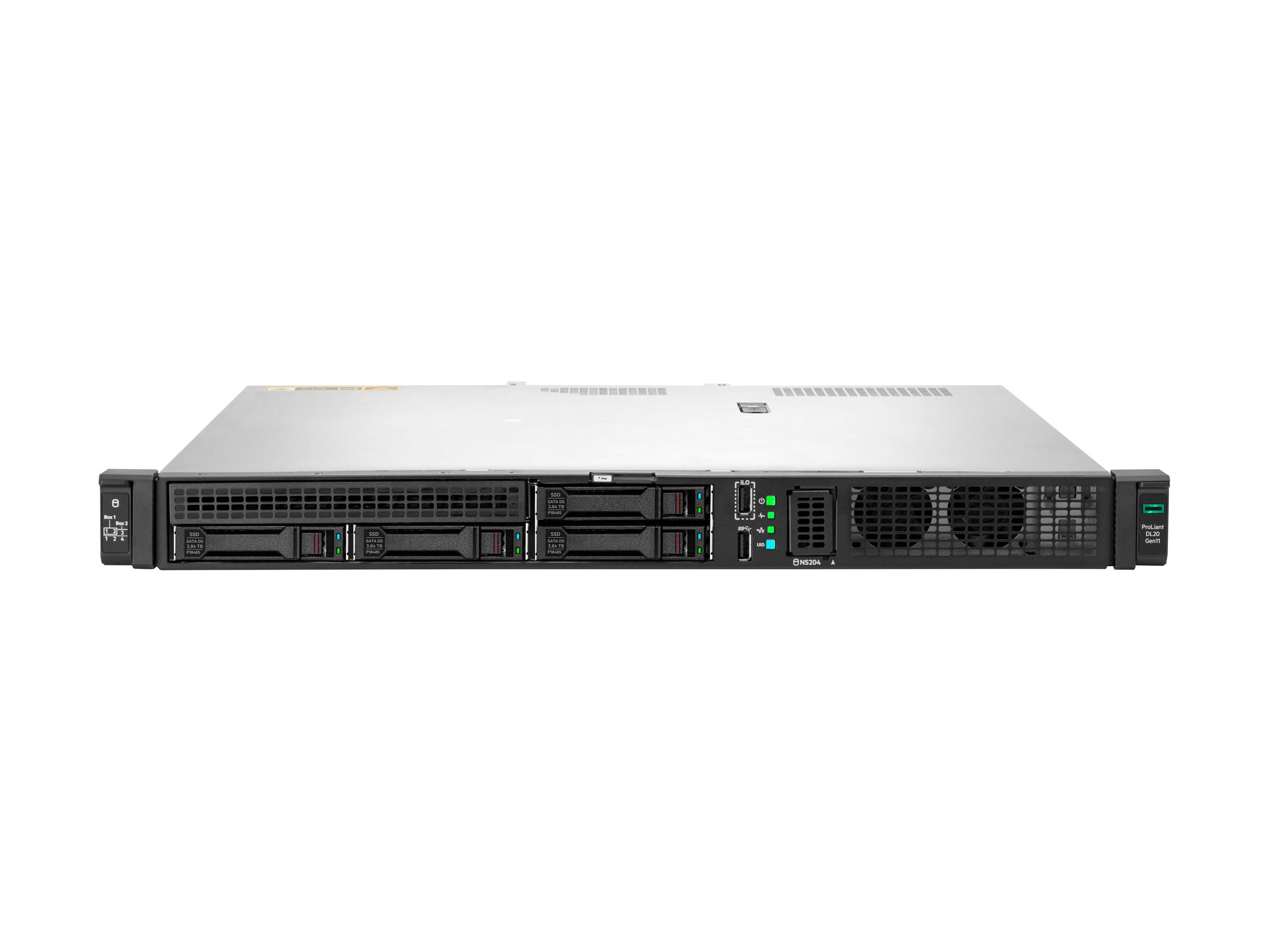

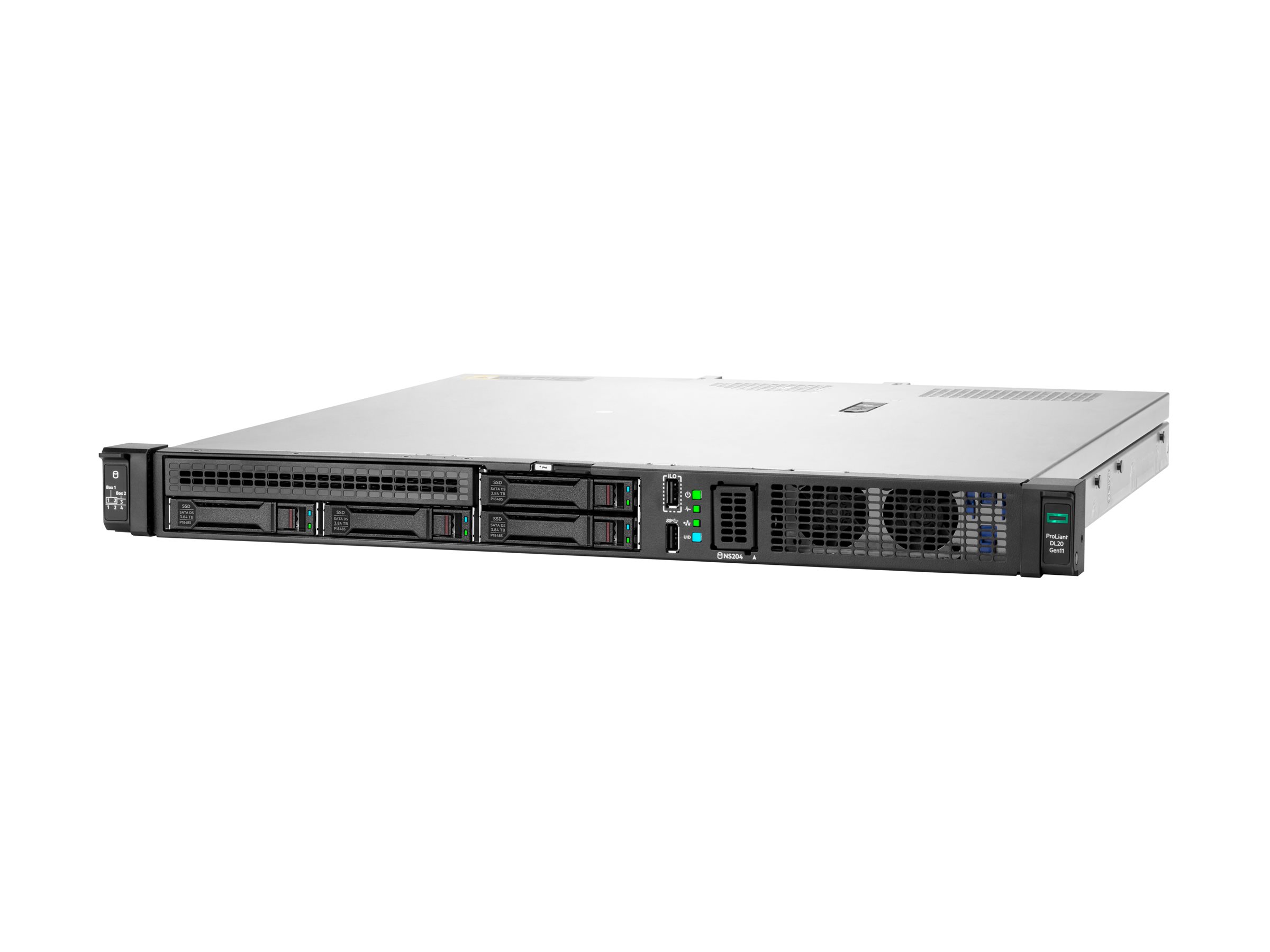

Featuring hot-swap 2.5″ SSDs and support for up to 4 hot-swap bays, the server provides flexible storage options that can be tailored to meet the needs of any business, ensuring data is stored efficiently and securely. - High-Capacity Memory
With 32 GB of DDR5 SDRAM installed and the capability to expand, this server supports memory-intensive applications, ensuring smooth operation and improved data processing speeds for all your business needs.
What’s in the Box
- HPE ProLiant DL20 Gen11
- 3 performance single rotor non-hot plug and non-redundant fans
Main Specifications
Product Description | HPE ProLiant DL20 Gen11 – rack-mountable Xeon 6315P 2.8 GHz – 16 GB – HDD 2 x 2 TB |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon 6315P / 2.8 GHz (up to 5.2 GHz, (Quad-Core) |
Processor Main Features | Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 16 GB (installed) / 128 GB (max) – DDR5 SDRAM – ECC |
Storage Controller | SATA (Intel VROC SATA Software RAID) |
Server Storage Bays | Hot-swap 3.5″ |
Hard Drive | 2 x HDD 2 TB |
Optical Storage | No optical drive |
Graphics Controller | Matrox G200 |
Video Memory | 16 MB |
Networking | 1GbE |
Power | (50/60 Hz) |
Power Redundancy | Yes |
OS Provided | No operating system |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE Compute Ops Management (subscription included) |
Dimensions (WxDxH) | 43.46 cm x 38.22 cm x 4.32 cm |
Weight | 9 kg |
Manufacturer Selling Program | HPE Smart Choice |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Hot-Swap Bays Qty | 2 |
|---|
Processor / Chipset
CPU | Intel Xeon 6315P |
|---|
Clock Speed | 2.8 GHz |
|---|
Max Turbo Speed | 5.2 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
|---|
Chipset Type | Intel C262 |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 128 GB (max) |
|---|
Technology | DDR5 SDRAM – ECC |
|---|
Effective Memory Speed | 4400 MT/s |
|---|
Rated Memory Speed | 4400 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 3 (empty) |
|---|
Features | HPE Standard Memory, unbuffered |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Storage Controller
Type | SATA |
|---|
Storage Controller Name | Intel VROC SATA Software RAID |
|---|
RAID Level | RAID 0, RAID 1, RAID 10, RAID 5 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Matrox G200 |
|---|
Video Memory | 16 MB |
|---|
Video Interfaces | DisplayPort, VGA |
|---|
Networking
Ethernet Ports | 4 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5720 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | IPMI 2.0, SNMP 3 |
|---|
Features | ACPI support, PXE support, Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Bays | 2 (total) / 0 (free) x hot-swap 3.5″ LFF
1 (total) / 1 (free) x external |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – half-length, full-height (x16 mode)
1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
|---|
Interfaces | 1 x HPE iLO – Type A (1 in front) (service port)
5 x USB 3.2 Gen 1×1 – Type A (1 front, 4 rear)
2 x USB 3.2 Gen 2×1 (2 internal)
1 x DisplayPort (1 rear)
1 x VGA (1 rear)
3 x LAN (Gigabit Ethernet) – RJ-45 (3 rear)
1 x LAN (Gigabit Ethernet) / HPE iLO – RJ-45 (1 rear) |
|---|
Miscellaneous
Included Accessories | 3 performance single rotor non-hot plug and non-redundant fans |
|---|
Compliant Standards | ACPI 6.3, PCIe 5.0, SMBIOS 3.2, UEFI 2.9, Class 3, Redfish API, AES, Triple DES, TLS v1.2, DMTF, Active Directory v1.0, ASHRAE Class A4, ASHRAE Class A3, ErP Lot 9, FIPS 140-2, WEEE 2002/95/EC, PCI DSS, IPv6 Ready |
|---|
Manufacturer Selling Program | HPE Smart Choice |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 1 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
|---|
Power Provided | 290 Watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE Compute Ops Management (subscription included) |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 43.46 cm |
|---|
Depth | 38.22 cm |
|---|
Height | 4.32 cm |
|---|
Weight | 9 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
