Description

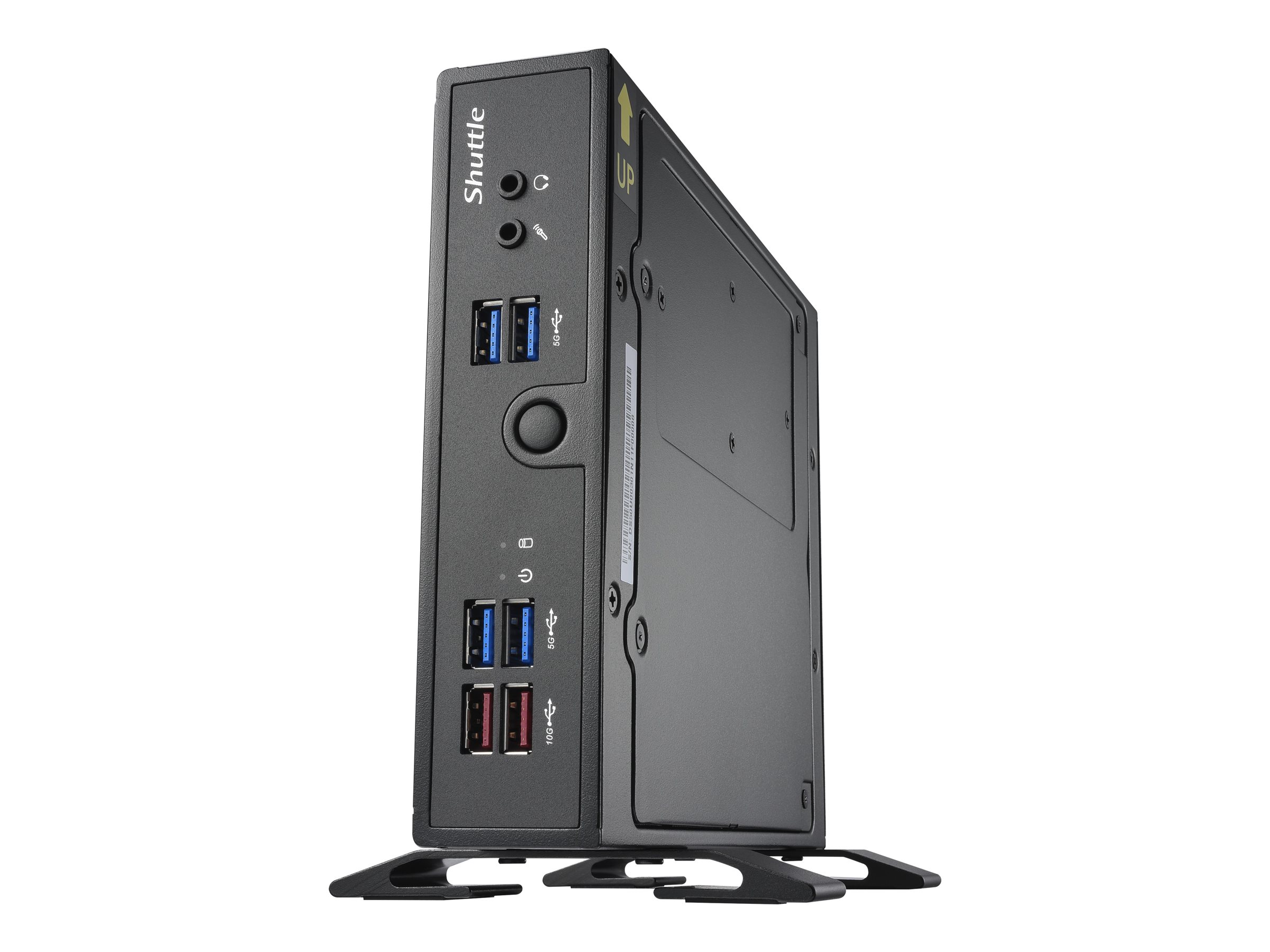

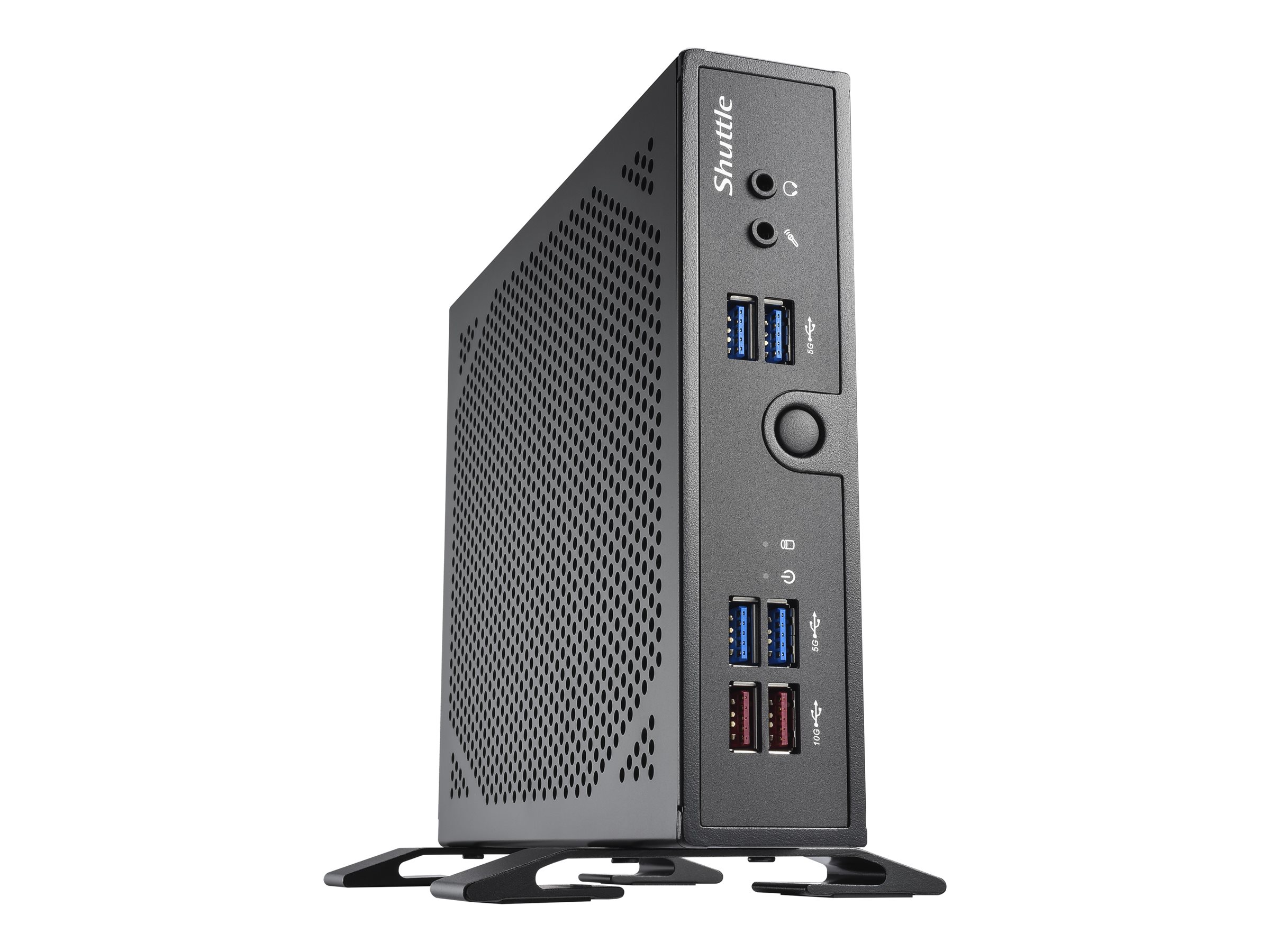

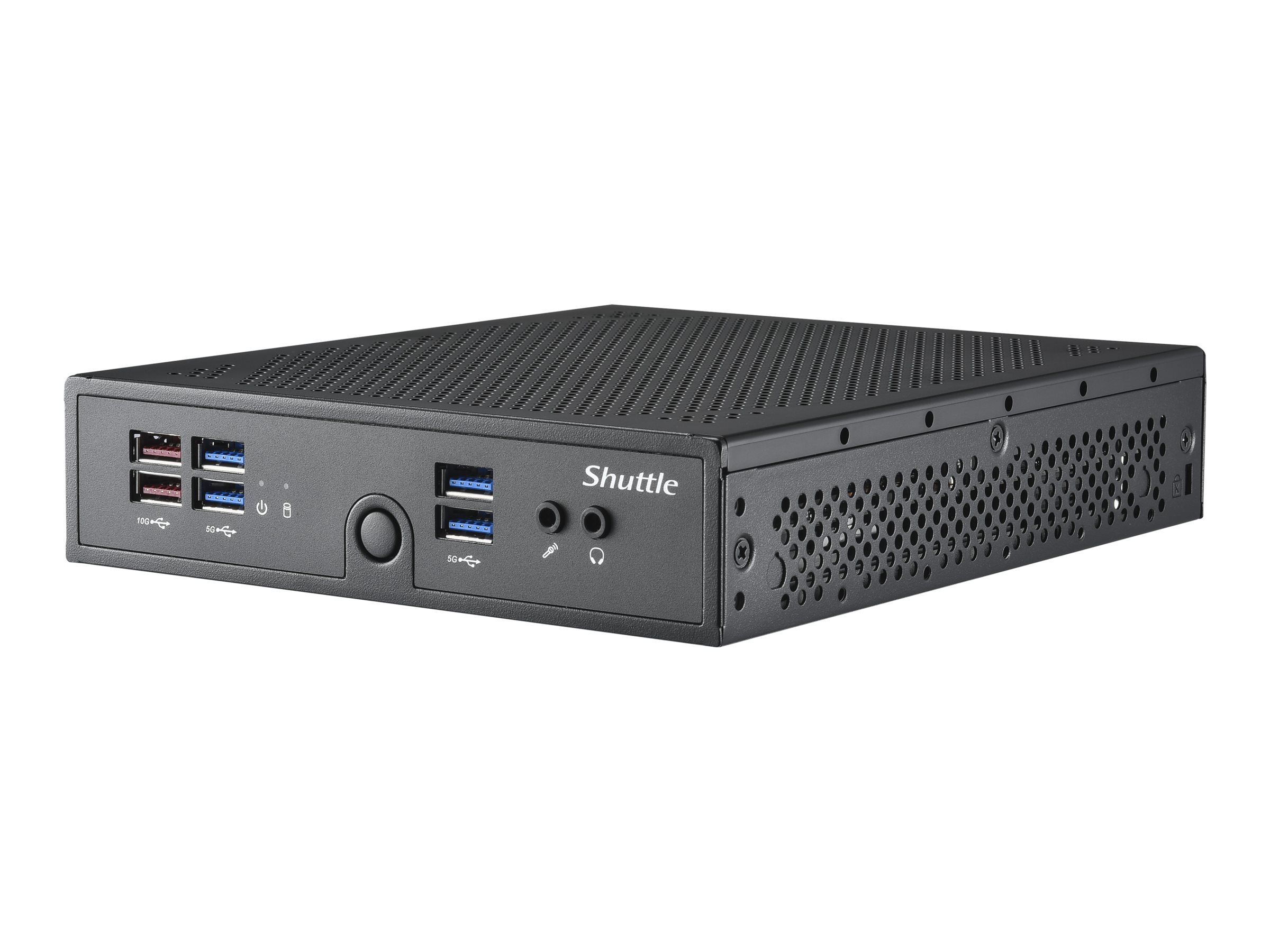

The Shuttle XPC slim DS50U5 redefines efficiency and compactness in the realm of desktops and servers. Designed with an ultra small form factor, it fits perfectly in any workspace, minimizing physical footprint without compromising on performance. At its core, an Intel Core i5 processor with 10 cores offers a balanced combination of power and energy efficiency, capable of reaching up to 4.6 GHz with Intel Smart Cache technology.
This PC barebone system is not only powerful but also versatile, featuring a wide array of connectivity options including HDMI, DisplayPort, VGA, and multiple USB ports, catering to all your peripheral needs. Dual Ethernet ports provide reliable, high-speed network connections, supporting both 2.5 Gigabit and Gigabit Ethernet. With ENERGY STAR certification, the DS50U5 is an eco-friendly choice, reducing energy consumption and costs.
Moreover, the DS50U5 is built with expansion in mind. It includes M.2 slots for SSDs and wireless modules, alongside an internal 2.5″ bay for additional storage. This flexibility allows users to customize their setup as needed, making the DS50U5 a smart choice for professionals and enthusiasts seeking a compact, powerful, and versatile desktop solution.
- Ultra small form factor for space efficiency
- Dual Ethernet ports for enhanced network connectivity
- Supports up to 3 monitors for multi-display setups
- ENERGY STAR certified for energy efficiency
- Flexible expansion options with M.2 and 2.5″ bays
- Compact and secure
The Shuttle XPC slim DS50U5 stands out with its ultra small form factor, making it an ideal choice for space-constrained environments. Equipped with a firmware Trusted Platform Module (TPM 2.0) security chip, it ensures data security and integrity, providing peace of mind for sensitive applications. - High connectivity
This model boasts a wide range of connectivity options, including HDMI, DisplayPort, VGA, USB 3.2 Gen 1 and Gen 2, and dual Ethernet ports supporting up to 2.5 Gigabit Ethernet. Whether for professional or personal use, the DS50U5 ensures that all your devices can be connected seamlessly. - Energy efficient
ENERGY STAR certification confirms the Shuttle XPC slim DS50U5’s commitment to energy efficiency. This not only helps reduce operational costs but also supports environmental sustainability efforts. - Flexible expansion
With support for both 2280 M.2 Key M and 2230 M.2 Key E slots, along with an internal 2.5″ bay, the DS50U5 offers ample room for storage and wireless module expansions. This flexibility allows for customized configurations to meet specific needs or preferences.
What’s in the Box
- Shuttle XPC slim DS50U5
- Vertical stand, VESA mounting kit, screw set
- Power adapter
Main Specifications
Product Description | Shuttle XPC slim DS50U5 – Slim-PC Core i5 1335U 1.3 GHz – 0 GB – no HDD |
Type | PC barebone – Slim-PC |
Processor | 1 x Intel Core i5 (13th Gen) 1335U / 1.3 GHz (up to 4.6 GHz, (10-core) |
Processor Main Features | Intel Smart Cache |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 0 GB (installed) / 64 GB (max) – DDR5 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics |
Networking | 1GbE, 2.5GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Colour | Black |
Dimensions (WxDxH) | 20 cm x 16.5 cm x 3.95 cm |
Weight | 1.6 kg |
Environmental Standards | ENERGY STAR Qualified |
Extended Specifications
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Compliant Standards | C-Tick, BSMI, CB, FCC, RoHS, ETL, EMI, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 90 watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Sustainability Information
Dimensions & Weight
Width | 20 cm |
|---|
Depth | 16.5 cm |
|---|
Height | 3.95 cm |
|---|
Weight | 1.6 kg |
|---|
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
General
Type | PC barebone |
|---|
Product Form Factor | Slim-PC |
|---|
Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core i5 (13th Gen) 1335U |
|---|
Clock Speed | 1.3 GHz (P-core) / 0.9 GHz (E-core) |
|---|
Max Turbo Speed | 4.6 GHz (P-core) / 3.4 GHz (E-core) |
|---|
Number of Cores | 10-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Processor Main Features | Intel Smart Cache |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 64 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 5200 MHz |
|---|
Rated Memory Speed | 5200 MHz |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) / 2 (empty) |
|---|
Features | Unbuffered, dual channel memory architecture |
|---|
Hard Drive
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Channel Qty | 1 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics |
|---|
Max Monitors Supported | 3 |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
|---|
Ethernet Controller | Intel I219-V / I226-V |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
|---|
Features | Wake on LAN (WoL), PXE support, Teaming support |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ |
|---|
Slots | 1 (total) / 1 (free) x M.2 Card – 2280 (2280 M.2 Key M slot)
1 (total) / 1 (free) x M.2 Card – 2230 (2230 M.2 Key E slot) |
|---|

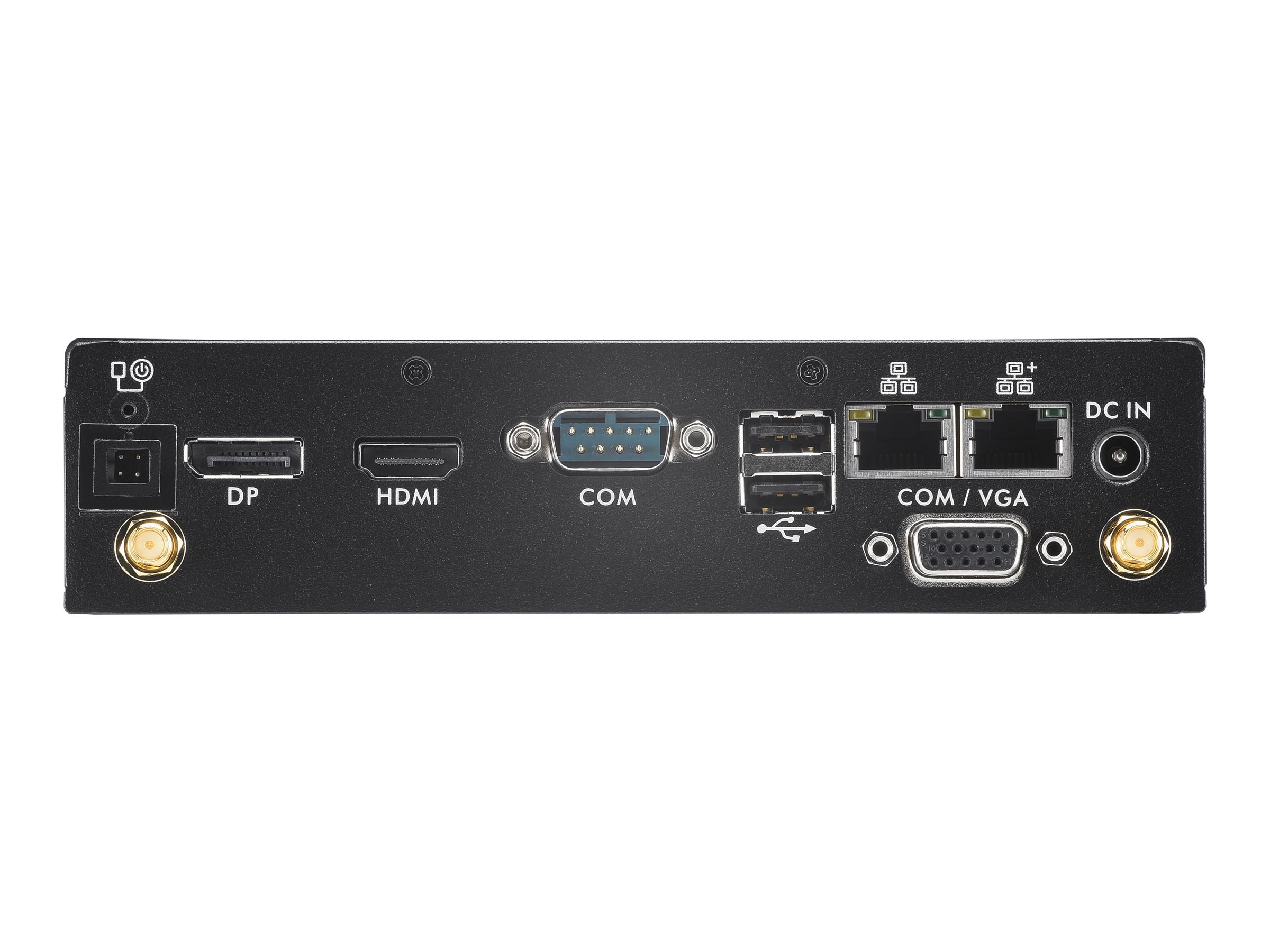

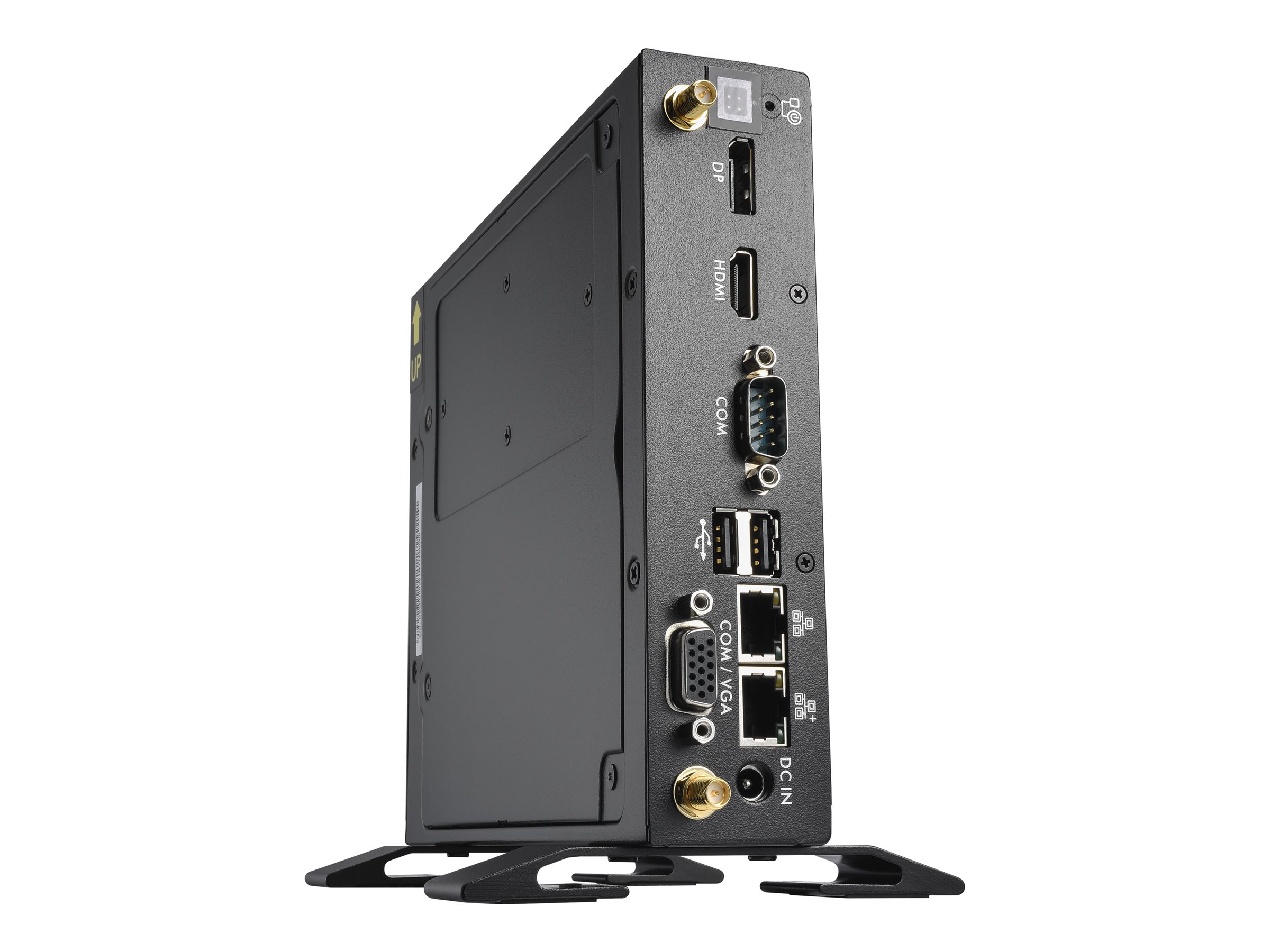

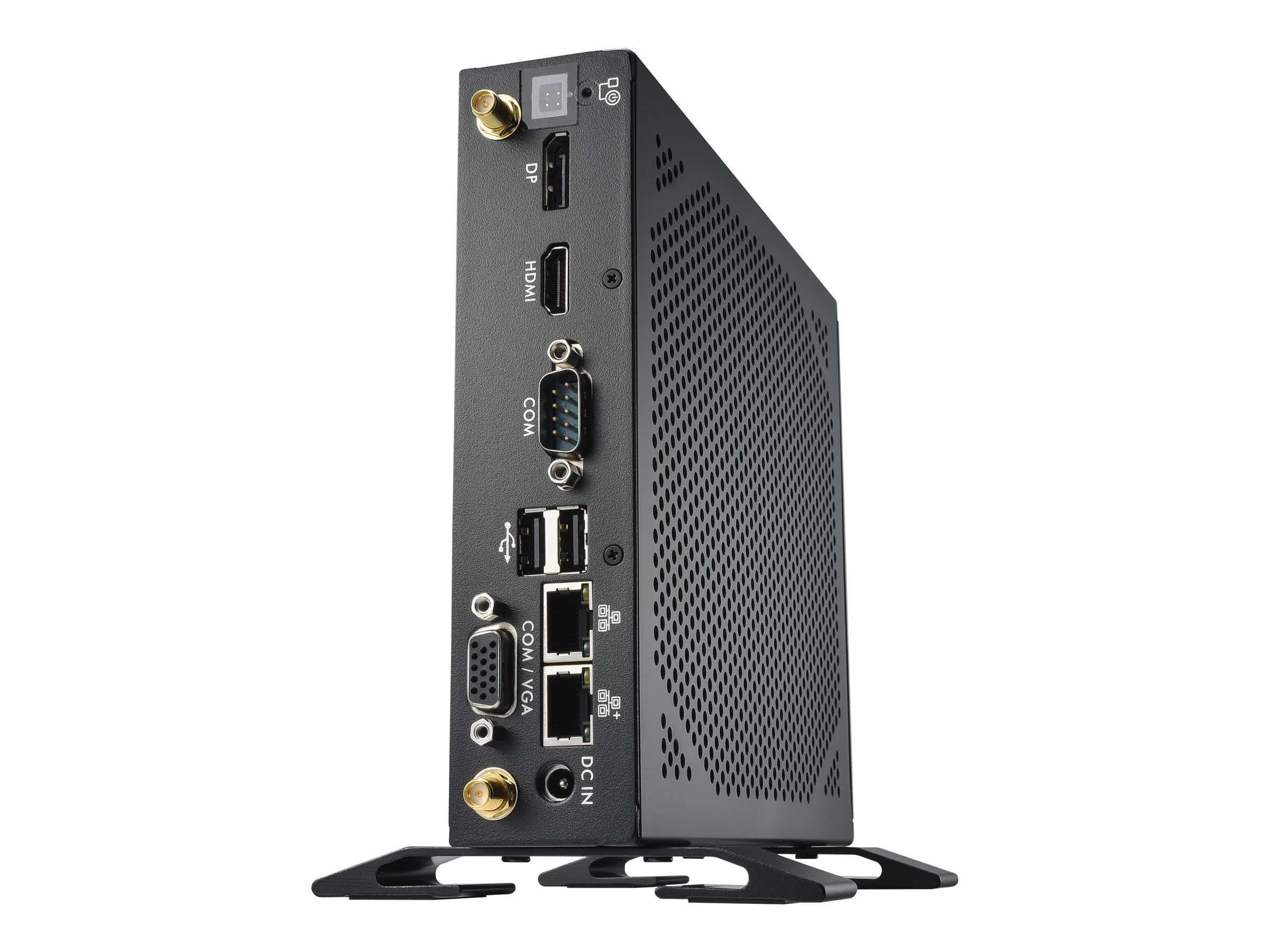

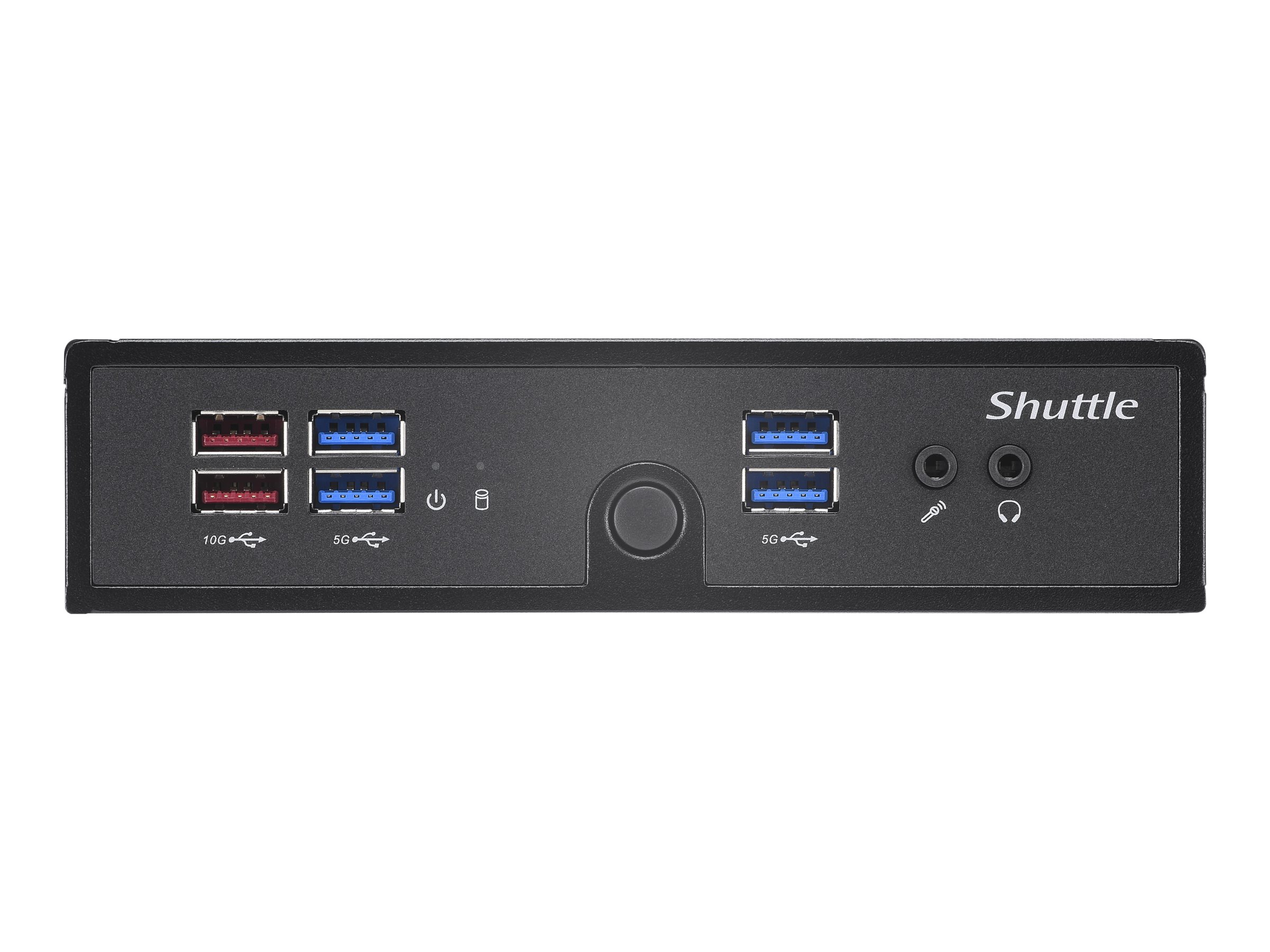

Interfaces | 1 x microphone (1 front)
1 x headphones (1 front)
1 x HDMI (1 rear)
1 x DisplayPort (1 rear)
1 x VGA (1 rear)
2 x USB 2.0 (2 rear)
4 x USB 3.2 Gen 1 (4 in front)
2 x USB 3.2 Gen 2 (2 front)
1 x LAN (Gigabit Ethernet) (1 rear)
1 x LAN (2.5Gigabit Ethernet) (1 rear)
1 x serial (1 rear) (RS232 / RS422 / RS485)
2 x aerial (2 rear) |
|---|
Miscellaneous
Included Accessories | VESA mounting kit, screw set, vertical stand |
|---|
