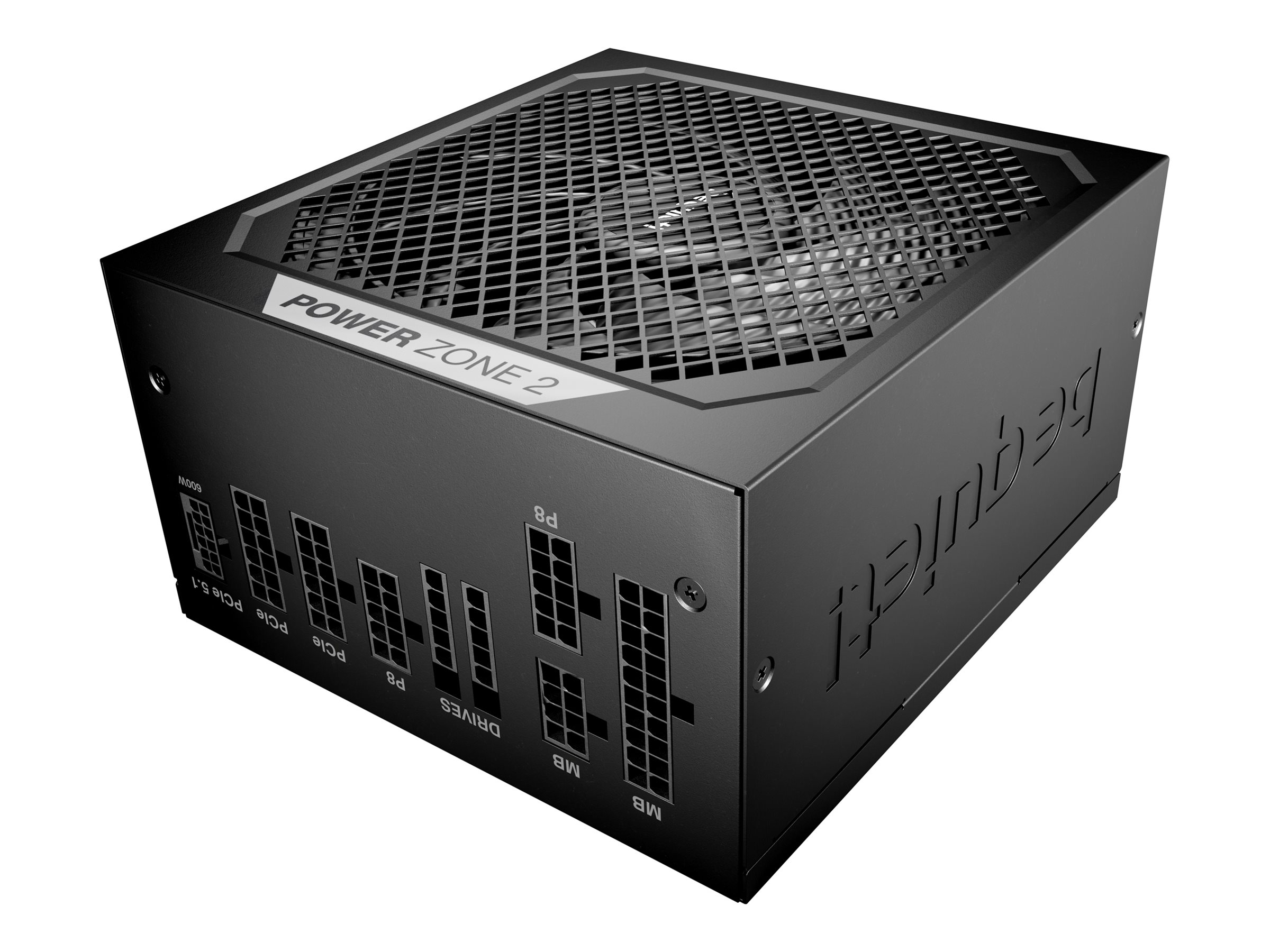

be quiet! Power Zone 2 Z2-1000W, Power supply (internal), ATX12V 3.1/ EPS12V 2.92, 80 PLUS Platinum, Cybenetics Platinum, AC 100-240 V, 1000 Watt, active PFC, Australia, black
$349.43 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The be quiet! Power Zone 2 Z2-1000W power supply combines efficiency and reliability, suitable for demanding computing environments. With a power output of 1000 W, it supports modern hardware setups while ensuring stable performance. The unit operates quietly, emitting just 6.5 dB of sound, making it suitable for noise-sensitive environments. Featuring a modular design, it allows for organized cable management, optimizing airflow and aesthetics in any build. The semi-passive Zero RPM mode enhances efficiency further, remaining silent during low loads.
Compliant with various international standards including ENERGY STAR and TUV, this power supply delivers performance while aligning with environmentally friendly practices. The ATX12V 3.1 standard ensures compatibility with most systems, while advanced protections against overheating, overcurrent, and short-circuits safeguard both the power supply and connected devices. With a mean time between failures (MTBF) of 100,000 hours, users can expect durable operation.
- 1000 W of power output for demanding systems
- 80 PLUS Platinum certification for high efficiency
- Modular cable management for clean and organized builds
- Quiet operation with only 6.5 dB sound emission
- Comprehensive protection features for safe usage
- Efficiency
The be quiet! Power Zone 2 Z2-1000W achieves up to 94% efficiency at 50% load and 92.6% efficiency at full load, ensuring minimal energy loss and reduced heat generation. - Advanced Protection
Includes multiple protective features such as overheat, overcurrent, overvoltage, and short-circuit protection, providing a safe operating environment for connected components. - Cooling System
A 140 mm fan ensures efficient cooling with low noise, complemented by the semi-passive Zero RPM mode that operates silently under light loads. - Modular Design
The modular cable management allows users to connect only the cables needed for their setup, improving airflow and reducing clutter inside the case. - Durability
With a mean time between failures (MTBF) of 100,000 hours, this power supply provides reliable performance for extensive use.
Main Specifications
Product Description | be quiet! Power Zone 2 Z2-1000W – power supply – 1000 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
80 PLUS Certification | 80 PLUS Platinum |
Cybenetics Certification | Cybenetics Platinum |
Weight | 2.82 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 1000 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V1 – 83.3 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 3 x 8 pin PCI Express power with detachable 2 pin section 1 x 12 pin PCI Express power 7 x 15 pin Serial ATA power 1 x 4 pin Parallel ATA power 3 x 8 pin PCI Express power with detachable 2 pin section |
Modular Cable Management | Yes |
Cooling System | 140 mm fan |
Included Accessories | Cable ties, thumbscrews |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
Environmental Standards | ENERGY STAR |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 3 x 8 pin PCI Express power with detachable 2 pin section 1 x 12 pin PCI Express power 7 x 15 pin Serial ATA power 1 x 4 pin Parallel ATA power 3 x 8 pin PCI Express power with detachable 2 pin section |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 1000 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V1 – 83.3 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 66.9% at 2% Load (230 VAC), 89.8% at 10% Load (230 VAC), 93% at 20% Load (230 VAC), 94% at 50% Load (230 VAC), 92.6% at 100% Load (230 VAC) |
Power Factor (PF) | 0.98 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Cybenetics Certification | Cybenetics Platinum |
Miscellaneous
Included Accessories | Cable ties, thumbscrews |
|---|---|
MTBF | 100,000 hours |
Cooling System | 140 mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, undervoltage protection, Surge & Inrush Protection (SIP), semi-passive Zero RPM mode, Cybenetics A+, single 12V rail |
Compliant Standards | CB, cTUVus, CU, FCC, TUV, UKCA, Energy Star 8.0 |
Sustainability Information
ENERGY STAR | Yes |
|---|
Environmental Parameters
Max Operating Temperature | 40 °C |
|---|---|
Sound Emission | 6.5 dB |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 16 cm |
Height | 8.6 cm |
Weight | 2.82 kg |
Dimensions & Weight (Shipping)
Shipping Width | 24.8 cm |
|---|---|
Shipping Depth | 32.8 cm |
Shipping Height | 10.2 cm |
Shipping Weight | 3.28 kg |
