Description
The HPE ProLiant MicroServer Gen11 is designed to meet the needs of small to medium-sized businesses by offering a balance of performance, security, and connectivity. At its core, a quad-core Intel Xeon processor with Intel Smart Cache and Turbo Boost Technology ensures efficient handling of workloads, while 16 GB of DDR5 SDRAM, expandable and featuring ECC, provides the memory capacity and reliability needed for critical tasks. Storage flexibility is assured with four internal bays for 3.5″ SATA drives and Intel VROC support for various RAID configurations, safeguarding data integrity. Connectivity is robust, featuring USB 3.2 ports, Gigabit Ethernet, and both VGA and DisplayPort outputs, facilitating easy integration into any setup. Security and management are streamlined with a TPM security chip and Integrated Lights-Out 6 remote management, making the HPE ProLiant MicroServer Gen11 a smart choice for businesses looking to upgrade their IT infrastructure.
- Quad-core Intel Xeon processor with Intel Turbo Boost Technology for efficient performance
- 16 GB DDR5 ECC memory, expandable for advanced multitasking
- Supports RAID 0, 1, 10, and 5 for flexible and secure storage configurations
- Multiple USB 3.2 and Gigabit Ethernet ports for extensive connectivity options
- Integrated Lights-Out 6 remote management for easy server administration
- Robust performance
Equipped with a quad-core Intel Xeon processor, featuring Intel Smart Cache and Turbo Boost Technology, this server delivers reliable and efficient performance for demanding workloads. - Advanced memory capabilities
With 16 GB of DDR5 SDRAM and the ability to upgrade, coupled with ECC (Error-Correcting Code) to prevent data corruption, it ensures smooth operation and system stability. - Flexible storage options
Offers four internal bays supporting 3.5″ SATA drives, complemented by Intel VROC SATA Software RAID support for RAID 0, 1, 10, and 5, providing versatile storage configurations and data protection. - Comprehensive connectivity
Features multiple USB 3.2 ports, Gigabit Ethernet ports, and both VGA and DisplayPort 1.1a outputs, ensuring wide compatibility and easy integration into existing networks and systems. - Enhanced security and management
Integrated with a Trusted Platform Module (TPM) security chip, and remote management capabilities through Integrated Lights-Out 6, offering advanced security features and simplified server management.
What’s in the Box
- HPE ProLiant MicroServer Gen11
- Non-redundant system fan
- Power adapter
Main Specifications
Product Description | HPE ProLiant MicroServer Gen11 – ultra micro tower Xeon 6315P 2.8 GHz – 16 GB – SSD 2 x 480 GB |
Type | Server – ultra micro tower |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon 6315P / 2.8 GHz (up to 5.2 GHz, (Quad-Core) |
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache, 4 Threads |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 16 GB (installed) / 128 GB (max) – DDR5 SDRAM – ECC |
Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Hybrid RAID) |
Server Storage Bays | Non-hot-swap 3.5″ |
Hard Drive | 2 x SSD 480 GB – SATA |
Optical Storage | No optical drive |
Networking | 1GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Dimensions (WxDxH) | 26.1 cm x 24.9 cm x 15.4 cm |
Weight | 6.25 kg |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Ultra micro tower |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Internal Bays Qty | 4 |
|---|
Processor / Chipset
CPU | Intel Xeon 6315P |
|---|
Clock Speed | 2.8 GHz |
|---|
Max Turbo Speed | 5.2 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache, 4 Threads |
|---|
Chipset Type | Intel C262 |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 128 GB (max) |
|---|
Technology | DDR5 SDRAM – ECC |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 3 (empty) |
|---|
Features | HPE Standard Memory, unbuffered |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Type | SSD |
|---|
Capacity | 2 x 480 GB |
|---|
Interface Type | SATA |
|---|
Storage Controller
Type | SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Storage Controller Name | Intel VROC SATA Hybrid RAID |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
|---|
Optical Storage
Monitor
Graphics Controller
Video Interfaces | DisplayPort, VGA |
|---|
Networking
Ethernet Ports | 4 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5719 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | ACPI support, PXE support, Wake on LAN (WoL) |
|---|
Expansion / Connectivity

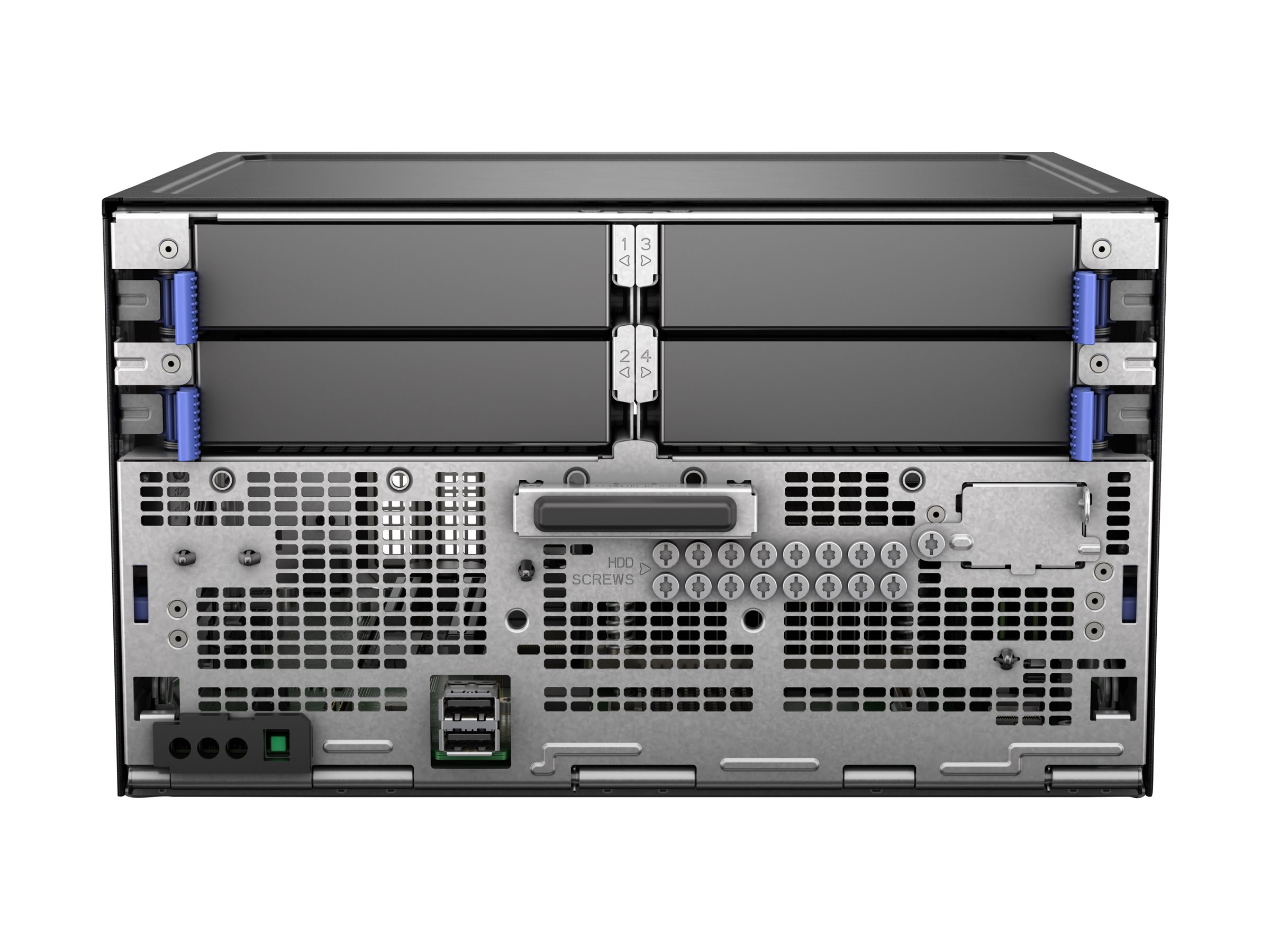

Bays | 4 (total) / 2 (free) x internal 3.5″ LFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – low-profile
1 (total) / 1 (free) x PCIe 4.0 x8 – low-profile (x4 mode) |
|---|

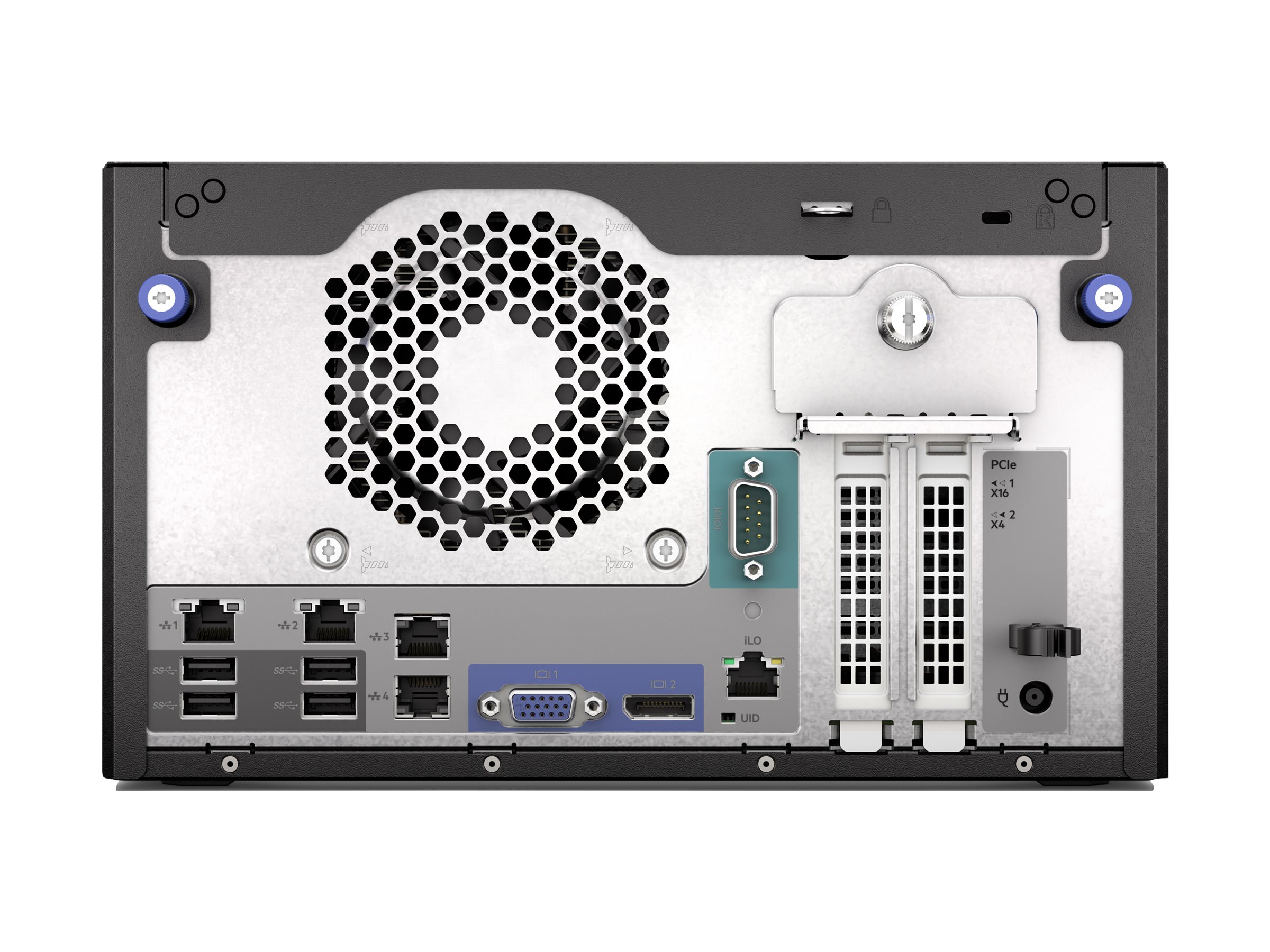

Interfaces | 1 x VGA (1 rear)
1 x DisplayPort 1.1a (1 rear)
4 x USB 3.2 Gen 1 – Type A (4 rear)
2 x USB 3.2 Gen 2 (2 in front)
4 x LAN (Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | Non-redundant system fan |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock eye |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | FCC Class B certified, CISPR 32, EN 55032, EN55024, FCC CFR47 Part 15, ICES-003, CNS 13438, GB 9254, K32, K24, EN 61000-3-2, EN 61000-3-3, ACPI 6.3, EMC Class B, SMBIOS 3.2, Redfish API, UEFI 2.9, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4 |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 180 Watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
OS Certified | Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 9.2, VMware vSphere 8.0 update 2, Ubuntu 20.04, Ubuntu 22.04 |
|---|
Dimensions & Weight
Width | 26.1 cm |
|---|
Depth | 24.9 cm |
|---|
Height | 15.4 cm |
|---|
Weight | 6.25 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
