Description

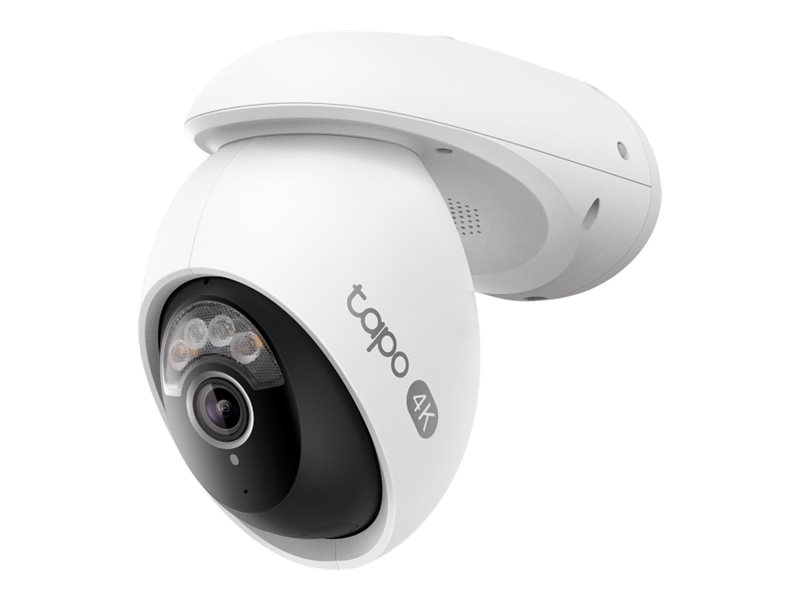

Enhance security with the TP-Link Tapo C560WS V1, a network surveillance camera designed for outdoor use. This camera features 4K digital video resolution at 3840 x 2160, delivering clear and detailed footage. It is equipped with infrared technology, allowing for visibility up to 30 m in low-light conditions. The camera’s wide angular field of view, measuring 105 degrees diagonally, ensures comprehensive coverage of any area. Compatibility with Google Assistant and Alexa allows for easy integration into smart home systems. The Tapo app enables control over the camera, featuring live view and activity zone customization. Built to withstand various weather conditions with an IP66 rating, this camera offers reliable performance for security and peace of mind.
- 4K digital video resolution for clear image quality
- Wide angular field of view for comprehensive coverage
- Built for outdoor use with weatherproof design
- Compatibility with smart home devices like Google Assistant and Alexa
- Tapo app for easy control and customization
- High-resolution imaging
With 8,000,000 pixels and progressive scan CMOS sensor technology, the Tapo C560WS V1 captures detailed images, making it easier to identify faces and objects. - Robust night vision
Equipped with infrared LEDs and Starlight Technology, this camera can monitor areas in complete darkness, providing reliable performance even at minimum illumination levels. - Advanced motion detection
This camera offers intelligent motion detection features including person and vehicle detection, ensuring alerts are generated only when necessary for efficient monitoring. - Dynamic audio features
With two-way audio capability, built-in speaker and microphone, communication through the camera is effortless, allowing for interaction with visitors or monitoring surroundings. - Versatile installation options
The camera can be mounted on walls, ceilings, or poles, providing flexibility in placement to capture the desired field of view.
What’s in the Box
- Tapo C560WS V1
- Power adapter – 3 m
- Power adapter, mounting bracket, anchors, waterproof seal, mounting template sticker, waterproof cable attachments, mounting screws
Main Specifications
Camera Mount Type | Wall mount, ceiling mount, pole mount |
Dimensions (WxDxH) | 7.47 cm x 14.74 cm x 15.74 cm |
Weight | 453 g |
Connectivity Technology | Wireless, wired |
Camera | Colour – Day&Night |
Max Resolution | 3840 x 2160 |
Frame Rate (max) | 25 frames per second |
Motion Detection | Yes |
Video Modes | 4K |
Optical Sensor Type | Progressive Scan CMOS – 1/2.7″ – 8 MP |
Minimum Illumination | 850 lux – IR – F1.6 |
Focal Length Control | Fixed focal |
Focal Length | 4 mm |
Lens Iris | F/1.6 |
Panning Range (degree) | 360 |
Tilting Range (degree) | 98 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, 2.4GHz radio, Ethernet 10Base-T/100Base-TX |
Platform | Tapo Care |
Intelligent Assistant | Alexa, Google Assistant |
Cables Included | 1 – power adapter – 3 m |
Voltage | AC 100-240 V |
Features | Smart AI Detection, Person Detection, Vehicle Detection, Pet Detection, built-in 2 spotlights, sound and light alarm, Starlight Technology, customised activity zone, Privacy mode, IR-cut filter, auto-switching, reset button, Live View Control, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise-cancellation microphone, built-in siren (99 dB), line-crossing detection, video tampering detection, Snapshot notification |
Environmental Parameters (operating) | -30 °C – 60 °C; 10 – 90% RH (non-condensing) relative humidity |
Product Description | Tapo C560WS V1 – network surveillance camera |
Device Type | Network surveillance camera – pan / tilt – outdoor – weatherproof |
Audio | Yes: built-in speaker, two-way audio capability, built-in microphone |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: built-in speaker, two-way audio capability, built-in microphone |
|---|
Camera Mount Type | Wall mount, ceiling mount, pole mount |
|---|
Connectivity Technology | Wireless, wired |
|---|
Width | 7.47 cm |
|---|
Depth | 14.74 cm |
|---|
Height | 15.74 cm |
|---|
Weight | 453 g |
|---|
Camera
Type | Colour – Day&Night – pan / tilt – outdoor – weatherproof |
|---|
Digital Video Format | H.264 |
|---|
Max Digital Video Resolution | 3840 x 2160 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 4K |
|---|
Minimum Illumination | 850 lux – IR – F1.6 |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 30 m |
|---|
Digital Video Capture Resolution | 3840 x 2160 |
|---|
Frame Rate (max) | 25 frames per second |
|---|
Features | Smart AI Detection, Person Detection, Vehicle Detection, Pet Detection, built-in 2 spotlights, sound and light alarm, Starlight Technology, customised activity zone, Privacy mode, IR-cut filter, auto-switching, reset button, Live View Control, 3D digital noise reduction (DNR), Wide Dynamic Range (WDR), noise-cancellation microphone, built-in siren (99 dB), line-crossing detection, video tampering detection, Snapshot notification |
|---|
Image Sensor
Type | 8 MP Progressive Scan CMOS 1/2.7″ |
|---|
Lens Construction
Type | Fixed focal |
|---|
Focal Length | 4 mm |
|---|
Lens Iris | F/1.6 |
|---|
Horizontal Field of View (degree) | 88 |
|---|
Vertical Field of View (degree) | 45 |
|---|
Diagonal Field of View (degree) | 105 |
|---|
Panning
Tilting
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, 2.4GHz radio, Ethernet 10Base-T/100Base-TX |
|---|
Network Protocols | TCP/IP, UDP/IP, DHCP, ICMP, DNS, NTP, HTTPS, RTSP, ONVIF |
|---|
Expansion / Connectivity
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | 128-bit AES, TLS, SSL, WPA, WPA2-PSK, WPA3 |
|---|
Miscellaneous
Included Accessories | Anchors, mounting bracket, mounting screws, mounting template sticker, waterproof cable attachments, waterproof seal |
|---|
Cables Included | 1 x power adapter – 3 m |
|---|
Compliant Standards | RoHS, FCC, RCM, IP66 |
|---|
Power
Power Device | Power adapter – external AC 100-240 V (50/60 Hz) 2.5 Watt |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Platform | Tapo Care |
|---|
Compatible Application | Tapo app |
|---|
Intelligent Assistant | Alexa, Google Assistant |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
Relative Humidity (operating) | 10 – 90% RH (non-condensing) |
|---|
