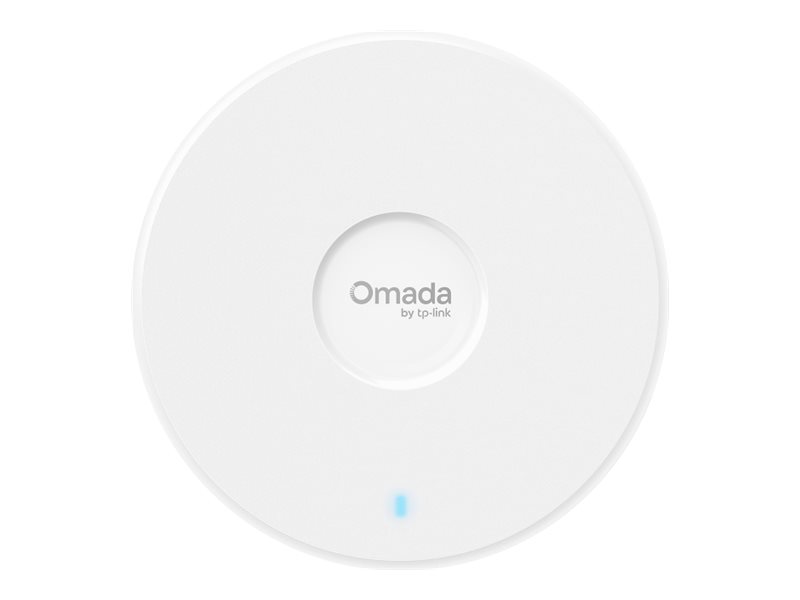

TP-Link Omada EAP720 V1, Radio access point, 2.5GbE, 1GbE, Wi-Fi 7, Wi-Fi 7, Bluetooth, 2.4 GHz, 5 GHz, cloud-managed ceiling mountable
$303.20 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The TP-Link Omada EAP720 V1 is designed to meet the growing demands for reliable and high-speed wireless connectivity in various environments. With a maximum data transfer rate of 3.6 Gbps, this wireless access point provides seamless connectivity for up to 250 concurrent clients. The device supports 802.11ax (Wi-Fi 6) and 802.11be (Wi-Fi 7) standards, ensuring compatibility with a wide array of devices while enhancing network efficiency.
Equipped with five internal antennas, the EAP720 V1 ensures robust coverage in spaces of up to 140 sq.m. Its features, such as VLAN support, MAC address filtering, and seamless roaming, enhance both security and user experience. Furthermore, the device operates in a range of environmental conditions, maintaining performance in temperatures from 0°C to 40°C and humidity levels of 10 – 90% (non-condensing). Experience high-performance Wi-Fi tailored for modern connectivity needs.
- Provides a maximum data transfer rate of 3.6 Gbps
- Supports up to 250 concurrent clients for high-density environments
- Equipped with five internal antennas for improved coverage
- Features VLAN support and MAC address filtering for enhanced security
- Enables seamless roaming for uninterrupted connectivity
- Data transfer rate
Delivers a maximum data rate of 573 Mbps at 2.4 GHz and 2402 Mbps at 5 GHz, ensuring fast and reliable connectivity for all devices. - Coverage
Covers an area of up to 140 sq.m, making it suitable for both small and expansive environments, providing stable connections throughout. - Security features
Incorporates multiple encryption algorithms and authentication methods to secure various network environments, safeguarding sensitive data. - Management options
Cloud management capabilities allow for remote monitoring and control, giving users flexibility in managing their network settings. - Environmentally adaptive
Operates efficiently between 0°C and 40°C while maintaining performance in varying humidity levels, suitable for diverse installation locations.
What’s in the Box
- TP-Link Omada EAP720 V1
- External power adapter
- Wall/ceiling/junction box mounting kit
Main Specifications
Product Description | TP-Link Omada EAP720 V1 – radio access point – Wi-Fi 7, Bluetooth – cloud-managed |
Device Type | Radio access point |
Form Factor | Ceiling mountable |
Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), IEEE 802.11b, IEEE 802.11g, Bluetooth 5.2 |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 573 Mbps Maximum data rate (5 GHz): 2402 Mbps |
Capacity | Concurrent clients: 250+ BSSIDs per radio: 8 BSSIDs: 16 |
Included Accessories | Wall/ceiling/junction box mounting kit |
Power Over Ethernet (PoE) Supported | PoE+ |
Dimensions (WxDxH) | 16 cm x 16 cm x 3.67 cm |
Weight | 410 g |
Extended Specifications
General
Device Type | Radio access point |
|---|---|
Width | 16 cm |
Depth | 16 cm |
Height | 3.67 cm |
Weight | 410 g |
Networking
Form Factor | Ceiling mountable |
|---|---|
Connectivity Technology | Wireless |
Data Transfer Rate | 3.6 Gbps |
Line Coding Format | 4096 QAM, OFDMA, 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK |
Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), IEEE 802.11b, IEEE 802.11g, Bluetooth 5.2 |
Network / Transport Protocol | HTTP, HTTPs, DHCP, IPv4, IPv6 |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, SSH, NTP |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz |
Max Coverage Area | Up to 140 sq.m |
Performance | Maximum data rate (2.4 GHz): 573 Mbps Maximum data rate (5 GHz): 2402 Mbps |
Capacity | Concurrent clients: 250+ BSSIDs per radio: 8 BSSIDs: 16 |
Wi-Fi Rating | BE3600 |
Status Indicators | Power, error, firmware, uplink |
Features | Multi-Link Operation (MLO), Multi-RUs, Mesh networking, seamless roaming, reset button, Guest Network, rogue AP detection, 2×2 MU-MIMO 2.4Ghz, 2×2 MU-MIMO 5GHz, packet aggregation A-MPDU, packet aggregation A-MSDU, BSS Coloring, Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), preamble puncturing, Space Time Blocking Code (STBC), Transmit Beam-forming (TxBF) ready, surge protection, Adaptive Rate Control (ARC), Airtime Fairness, Auto Channel Select (ACS), band steering, load balance network mode, rate limit, URL filtering, DiffServ Code Point (DSCP) support, Multicast to Unicast Conversion, Quality of Service (QoS), Unscheduled Automatic Power Save Delivery (U-APSD), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, MAC address filtering, MAC-based Access Control (MAC), Captive Portal, system log, schedule reboot, WLAN scheduling, backup/restore, email alert notification, firmware upgradable, LED control, VLAN support, LLDP, mDNS |
Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-MSCHAPv2, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PEAPv1 |
Authentication Method | Radio Service Set ID (SSID), RADIUS |
Compliant Standards | IEEE 802.3at, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11v, IEEE 802.11r, IEEE 802.1x, Wi-Fi CERTIFIED 7 |
Aerial
Antenna | Internal |
|---|---|
Antenna Qty | 5 |
Expansion / Connectivity
Interfaces | 1 x 10/100/1000/2500Base-T (PoE+) – RJ-45 |
|---|
Miscellaneous
Included Accessories | Wall/ceiling/junction box mounting kit |
|---|---|
MTBF | 408,000 years |
Compliant Standards | FCC |
Power
Power Over Ethernet (PoE) Supported | PoE+ |
|---|---|
Power Device | External power adapter |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
