Description
Are you looking for a budget friendly server that can fit almost anywhere? The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio. With a mini tower design, place it flat or vertically or wall mounted, depending on customer environment. The latest Intel Xeon 6300-series, Intel Xeon E and Intel Pentium processors supported to deliver compute performance, increased memory capacity, as well as security and remote management into the server with HPE iLO silicon root of trust. The affordable starting price makes the HPE ProLiant MicroServer Gen11 a good value that has the networking and performance capacity to grow with your business as your needs and budget change over time.
- HPE ProLiant MicroServer Gen11 is a powerful yet affordable server for your daily business workloads.
- HPE ProLiant MicroServer Gen11 features fast setup with a unique form factor that is compact and ideal for small spaces.
- HPE ProLiant MicroServer Gen11 features iLO Silicon root of trust with server management to provide enhanced security, proven reliability and superb usability.
- Proven, yet Reimagined for the Data-Driven Edge
HPE ProLiant MicroServer Gen11 is a powerful yet affordable server for your daily business workloads.
With four 4400 MT/s HPE DDR5 UDIMMs, it offers 16, 32 GB. and up to 128 GB memory capacity support.
Two PCIe expansion slots with the PCIe 5.0 support provide reliable scalability.
Optional wall mount kit provides deployment flexibility. - Small, Quiet and Uniquely Designed Servers Bring the User Experience to a New Level
HPE ProLiant MicroServer Gen11 features fast setup with a unique form factor that is compact and ideal for small spaces.
Embrace remote server management with HPE iLO6. - Mini in Size yet still Powerful and Secure
HPE ProLiant MicroServer Gen11 features iLO Silicon root of trust with server management to provide enhanced security, proven reliability and superb usability.
The latest Intel Xeon 6300-series, Xeon E-2400 and Pentium Gold processors provide impressive performance.
Offer enterprise-grade security with TPM 2.0 embedded.
What’s in the Box
- HPE ProLiant MicroServer Gen11
- Non-redundant system fan
- Power adapter
Main Specifications
Product Description | HPE ProLiant MicroServer Gen11 – ultra micro tower Xeon E-2414 2.6 GHz – 16 GB – HDD 2 x 1 TB |
Type | Server – ultra micro tower |
Server Scalability | 1-way |
Processor | 1 x Intel Xeon E-2414 / 2.6 GHz (up to 4.5 GHz, (Quad-Core) |
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 16 GB (installed) / 128 GB (max) – DDR5 SDRAM – ECC |
Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
Server Storage Bays | Non-hot-swap 3.5″ |
Hard Drive | 2 x HDD 1 TB – SATA 6Gb/s – 7200 rpm |
Optical Storage | No optical drive |
Networking | 1GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Dimensions (WxDxH) | 26.1 cm x 24.9 cm x 15.4 cm |
Weight | 8.52 kg |
Manufacturer Selling Program | HPE Smart Choice |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Ultra micro tower |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Server Scalability | 1-way |
|---|
Internal Bays Qty | 4 |
|---|
Processor / Chipset
CPU | Intel Xeon E-2414 |
|---|
Clock Speed | 2.6 GHz |
|---|
Max Turbo Speed | 4.5 GHz |
|---|
Number of Cores | Quad-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
|---|
Chipset Type | Intel C262 |
|---|
Cache Memory
Installed Size | 12 MB |
|---|
Cache Per Processor | 12 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 128 GB (max) |
|---|
Technology | DDR5 SDRAM – ECC |
|---|
Effective Memory Speed | 2400 MHz |
|---|
Rated Memory Speed | 2400 MHz |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 3 (empty) |
|---|
Features | HPE Standard Memory, unbuffered |
|---|
Configuration Features | 1 x 16 GB |
|---|
Hard Drive
Type | HDD |
|---|
Capacity | 2 x 1 TB |
|---|
Interface Type | SATA 6Gb/s |
|---|
Spindle Speed | 7200 rpm |
|---|
Features | Business critical, HPE Multi Vendor |
|---|
Storage Controller
Type | SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Storage Controller Name | Intel VROC SATA Software RAID |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
|---|
Optical Storage
Monitor
Graphics Controller
Video Interfaces | DisplayPort, VGA |
|---|
Networking
Ethernet Ports | 4 x Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM5719 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | ACPI support, PXE support, Wake on LAN (WoL) |
|---|
Expansion / Connectivity

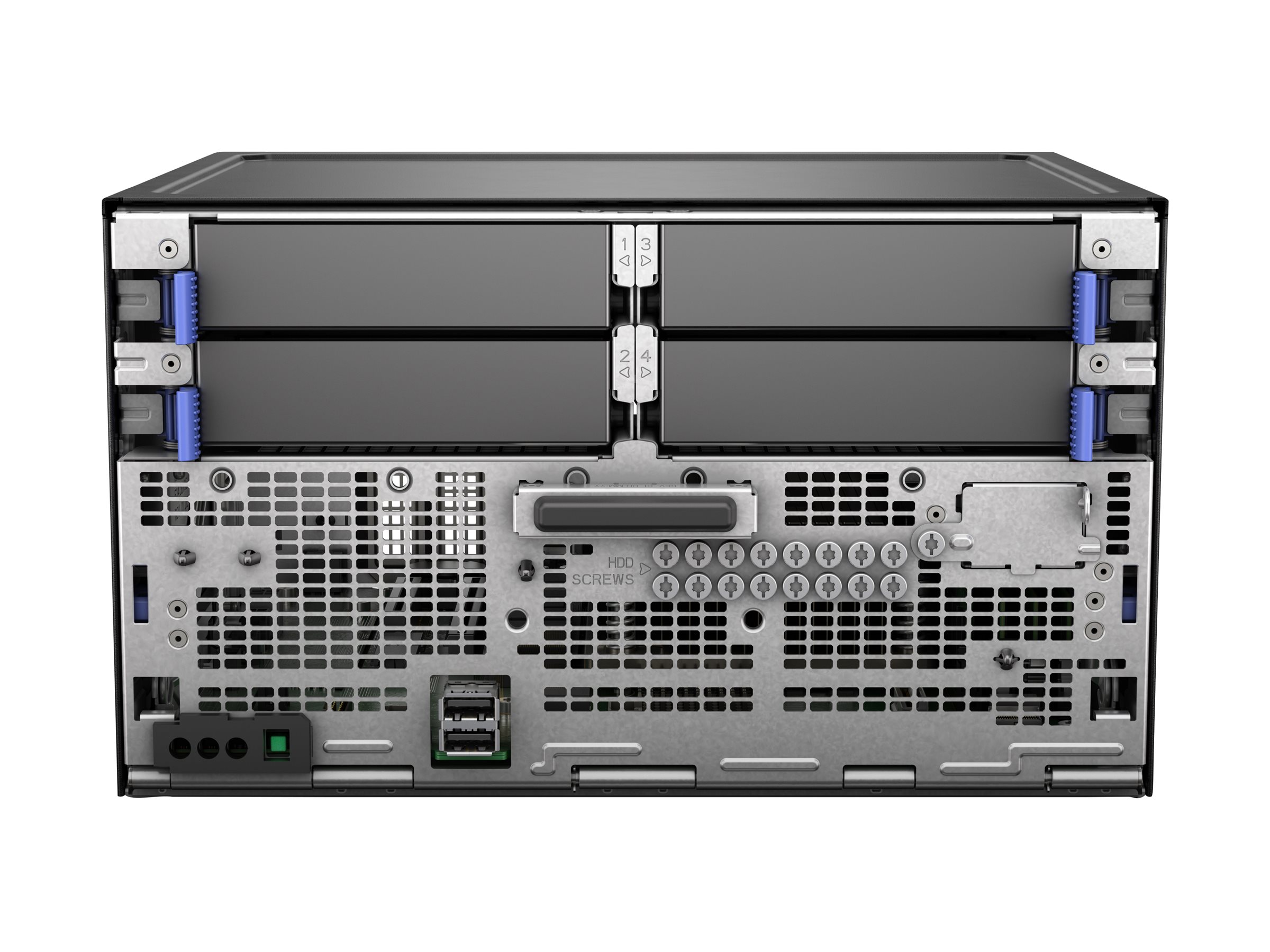

Bays | 4 (total) / 4 (free) x internal 3.5″ LFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 – low-profile
1 (total) / 1 (free) x PCIe 4.0 x8 – low-profile (x4 mode) |
|---|

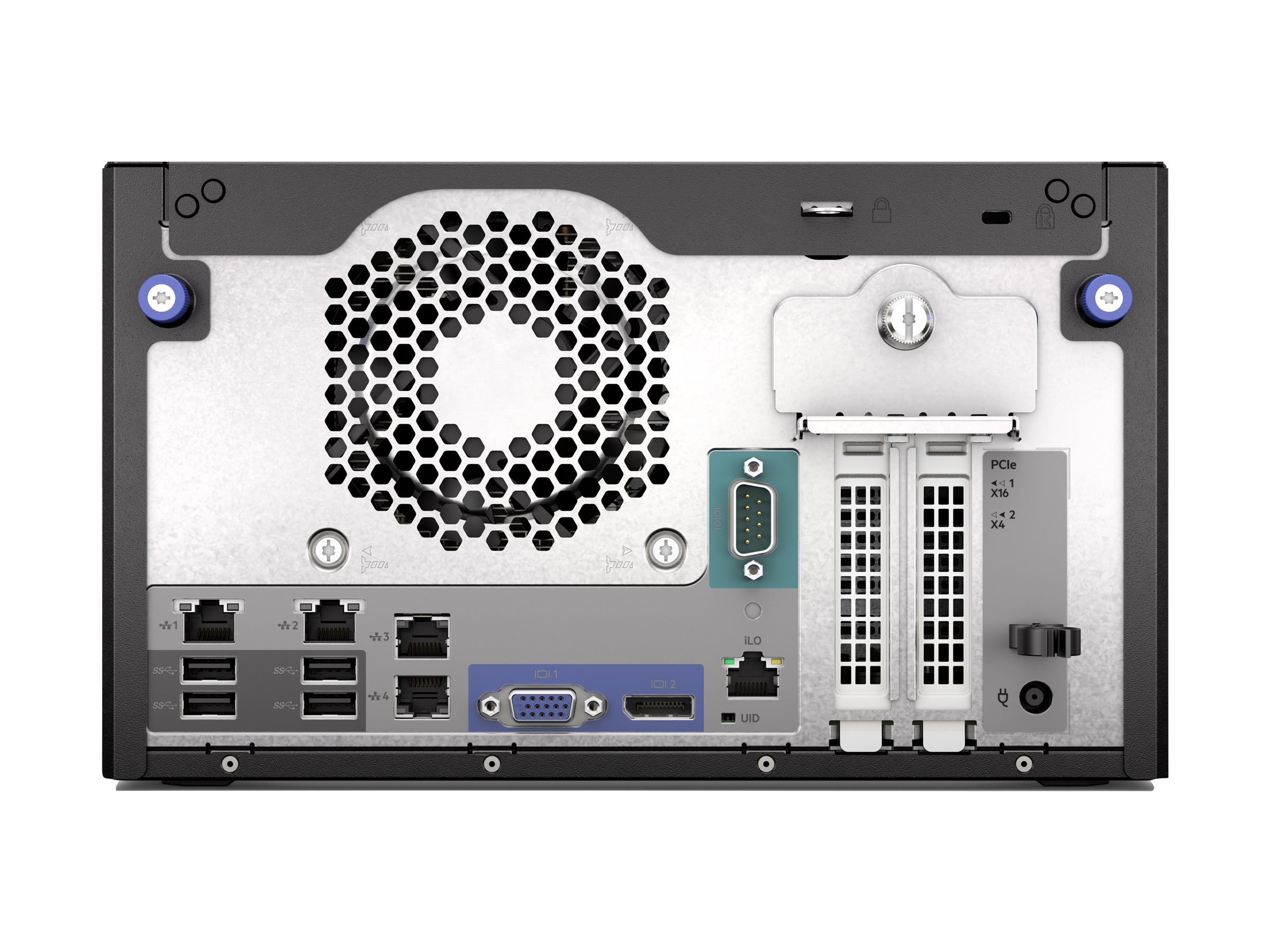

Interfaces | 1 x VGA (1 rear)
1 x DisplayPort 1.1a (1 rear)
4 x USB 3.2 Gen 1 – Type A (4 rear)
2 x USB 3.2 Gen 2 (2 in front)
4 x LAN (Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | Non-redundant system fan |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock eye |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | FCC Class B certified, CISPR 32, EN 55032, EN55024, FCC CFR47 Part 15, ICES-003, CNS 13438, GB 9254, K32, K24, EN 61000-3-2, EN 61000-3-3, ACPI 6.3, EMC Class B, SMBIOS 3.2, Redfish API, UEFI 2.9, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4 |
|---|
Manufacturer Selling Program | HPE Smart Choice |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 180 watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
OS Certified | Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 9.2, VMware vSphere 8.0 update 2, Ubuntu 20.04, Ubuntu 22.04 |
|---|
Dimensions & Weight
Width | 26.1 cm |
|---|
Depth | 24.9 cm |
|---|
Height | 15.4 cm |
|---|
Weight | 8.52 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% (non-condensing) |
|---|
