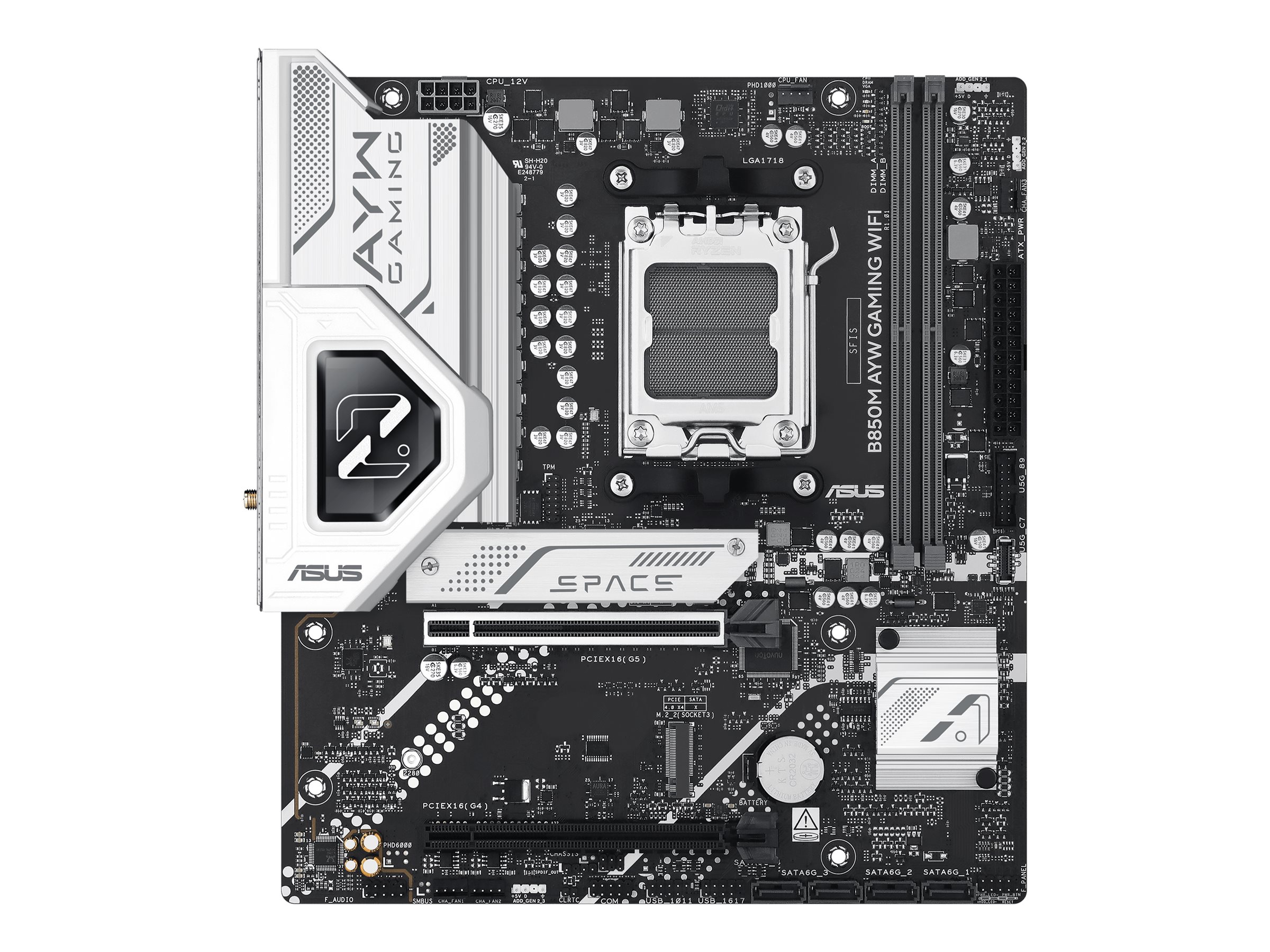

ASUS B850M AYW GAMING WIFI, Motherboard, micro ATX, Socket AM5, AMD B850 Chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$315.24 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The ASUS B850M AYW GAMING WIFI motherboard offers a platform designed for gamers and high-performance users. With support for Ryzen 7000/8000/9000 Series processors, this micro ATX motherboard ensures compatibility with current hardware trends. The motherboard features an 8-channel high definition audio output for an immersive sound experience, making it suitable for gaming and multimedia applications. Equipped with multiple USB ports, including USB 3.2 Gen 2 and USB-C 3.2 Gen 1, this board provides versatile connections for peripherals, enhancing user convenience.
For storage solutions, the B850M AYW GAMING WIFI includes four SATA-600 ports configured for RAID, as well as two M.2 sockets for fast data transfer speeds. With support for DDR5 SDRAM and RAM speeds up to 8400 MT/s, this motherboard ensures memory performance that meets the demands of modern software. Featuring advanced hardware protection, ASUS’s Enhanced Memory Profile (AEMP), and Q-DIMM technology, this motherboard is engineered for stability and longevity, allowing users to push their systems without compromising reliability.
- Supports Ryzen 7000/8000/9000 Series processors
- 8-channel high definition audio output
- Multiple USB ports including USB-C for enhanced connectivity
- Supports DDR5 SDRAM and RAM speeds up to 8400 MT/s
- Advanced hardware protection features for system longevity
- Versatile connectivity options
The motherboard includes a range of interfaces including 4 x SATA-600 for storage, multiple USB 3.2 ports for peripherals, and dedicated audio inputs and outputs for sound devices. - Excellent audio quality
Featuring an 8-channel high definition audio output, the motherboard delivers a sound experience, making gaming and media listening enjoyable. - User-friendly setup
The ASUS UEFI BIOS provides an intuitive interface for easy configuration of system settings and BIOS updates, ensuring a smooth experience. - Robust thermal management
Equipped with an M.2 heatsink and VRM heatsink design, this motherboard ensures effective cooling for critical components, allowing sustained performance. - Advanced security features
With ASUS SafeSlot and Overvoltage Protection, users can enjoy peace of mind knowing that their components are protected from electrical damage.
Main Specifications
Product Description | ASUS B850M AYW GAMING WIFI – motherboard – micro ATX – Socket AM5 – AMD B850 |
Product Type | Motherboard – micro ATX |
Chipset Type | AMD B850 |
Processor Socket | 1 x Socket AM5 |
Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
Max RAM Size | 128 GB |
RAM Supported | 2 DIMM slots – DDR5, on-die ECC, non-ECC, ECC, unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire Ports | 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
Extended Specifications
General
Product Type | Motherboard – micro ATX |
|---|---|
Chipset Type | AMD B850 |
Processor Socket | Socket AM5 |
Max Processors Qty | 1 |
Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
Supported RAM
Max Size | 128 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 8000 MT/s (O.C.), 8200 MT/s (O.C.), 8400 MT/s (O.C.) |
Supported RAM Integrity Check | On-die ECC, non-ECC, ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, AMD EXPO technology |
Audio
Type | HD Audio (8-channel) |
|---|---|
Compliant Standards | High Definition Audio |
LAN
Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
|---|
Expansion / Connectivity
Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 PCIe 4.0 x16 (x1 mode) 2 x M.2 socket (2280 M.2 slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
RAID Features | AMD RAID Xpert2 Technology |
Interfaces | 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 2 x aerial 2 x USB 3.2 Gen 2 4 x USB 2.0 2 x USB 3.2 Gen 1 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack 1 x microphone – mini-jack |
Internal Interfaces | 1 x USB-C 3.2 Gen 1 – header 2 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x serial – header 1 x audio – header 1 x SPDIF out – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Hardware Features | ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Dashboard, M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, M.2 heatsink, pre-mounted I/O shield, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, 8+2+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) |
Miscellaneous
Included Accessories | ASUS Wi-Fi moving aerial, M.2 screw package, 1 x M.2 rubber package |
|---|---|
Cables Included | 2 x Serial ATA cable |
Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
Width | 24.4 cm |
Depth | 22.1 cm |
