Description
HP EliteDesk Series desktops provide businesses with powerful, expandable, highly secure, and reliable PCs designed for power users.

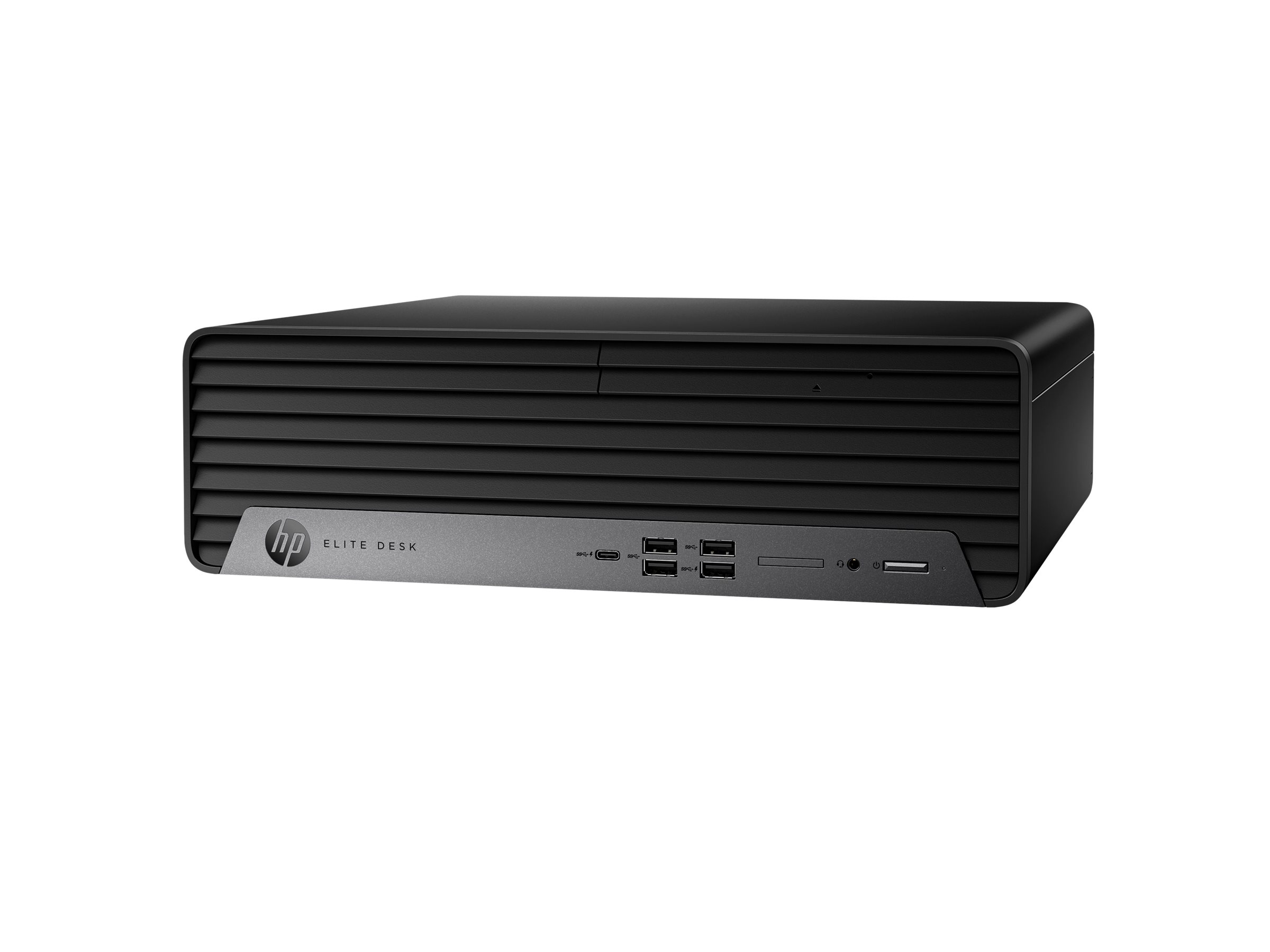

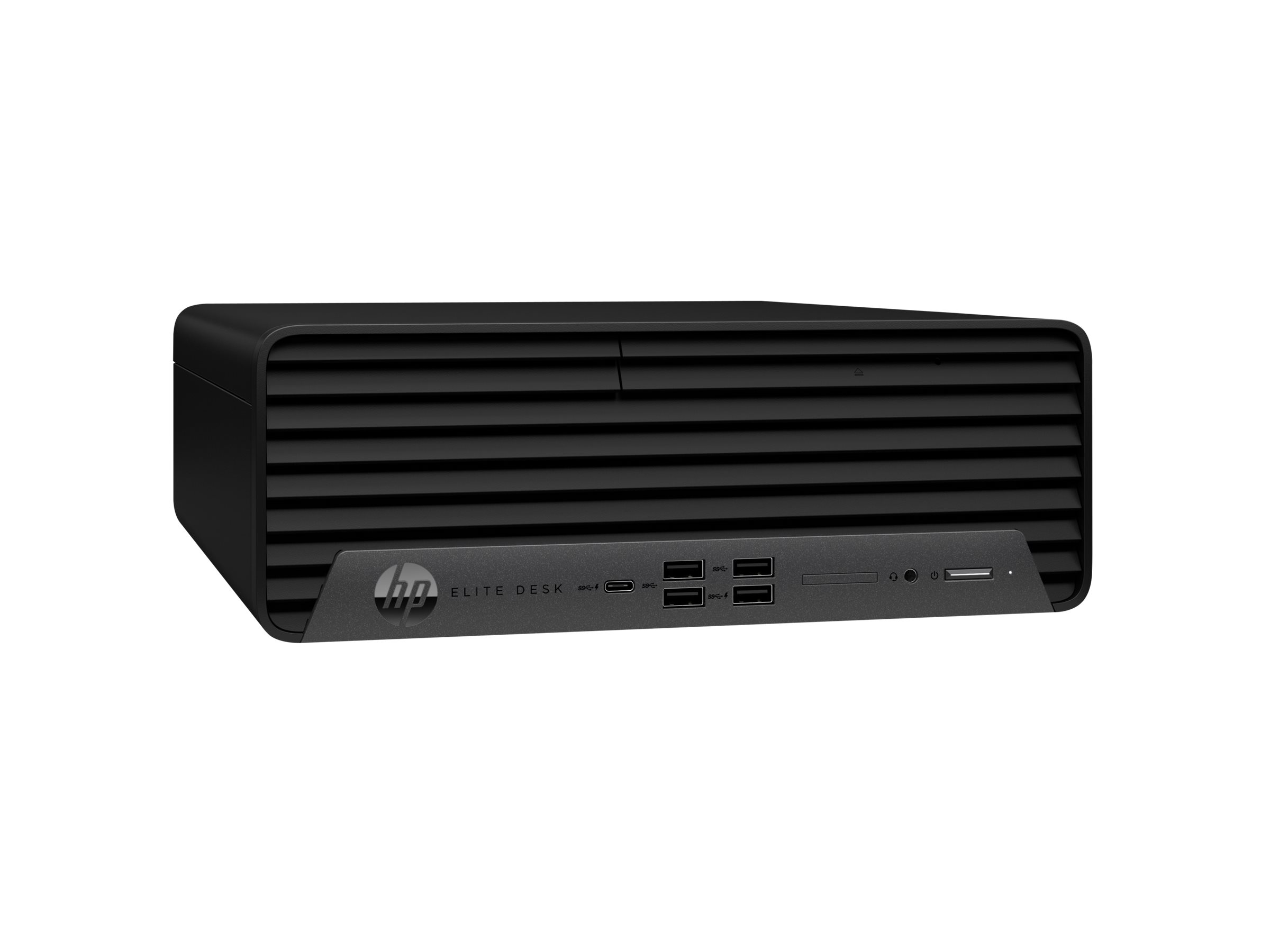

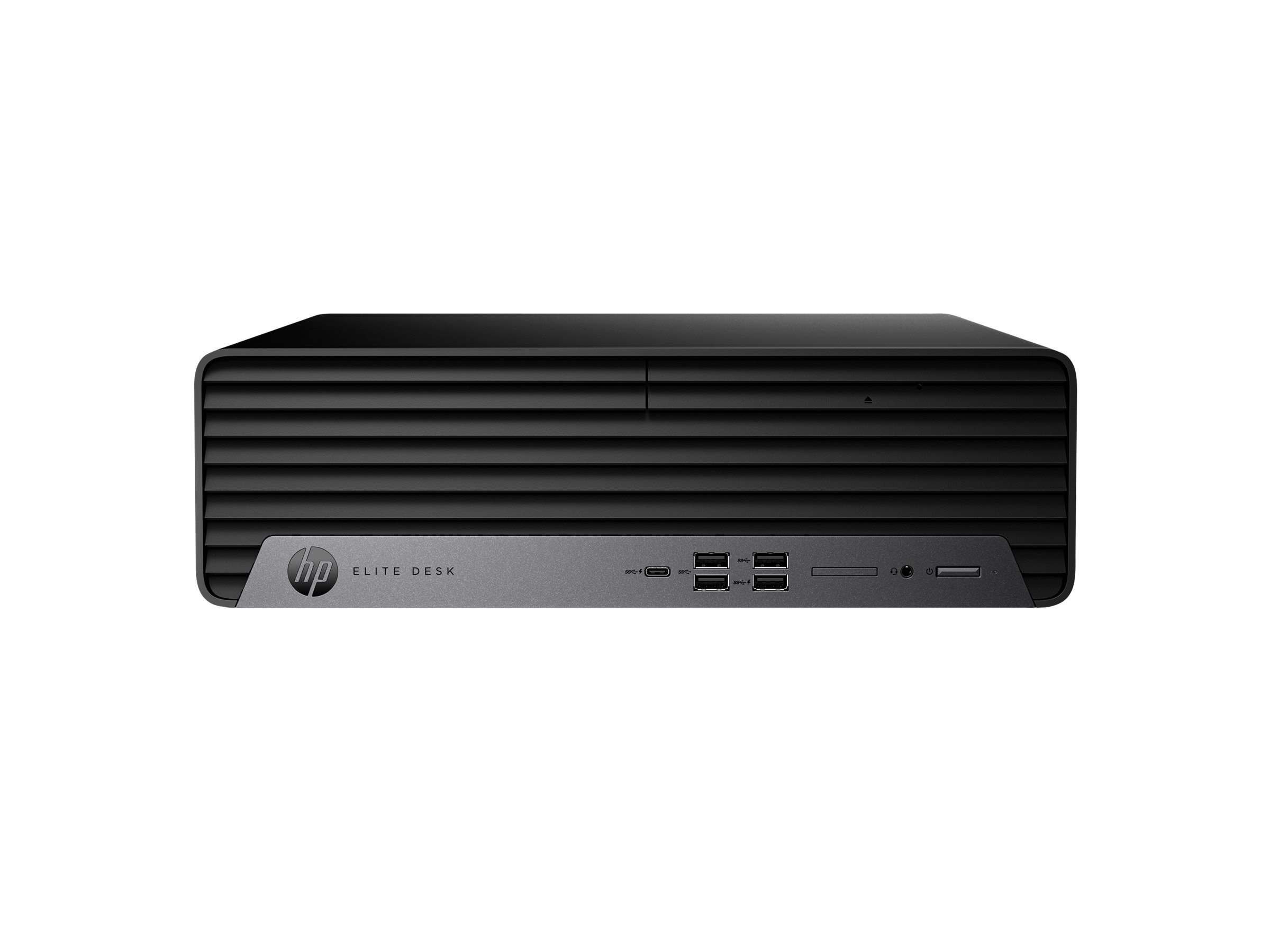

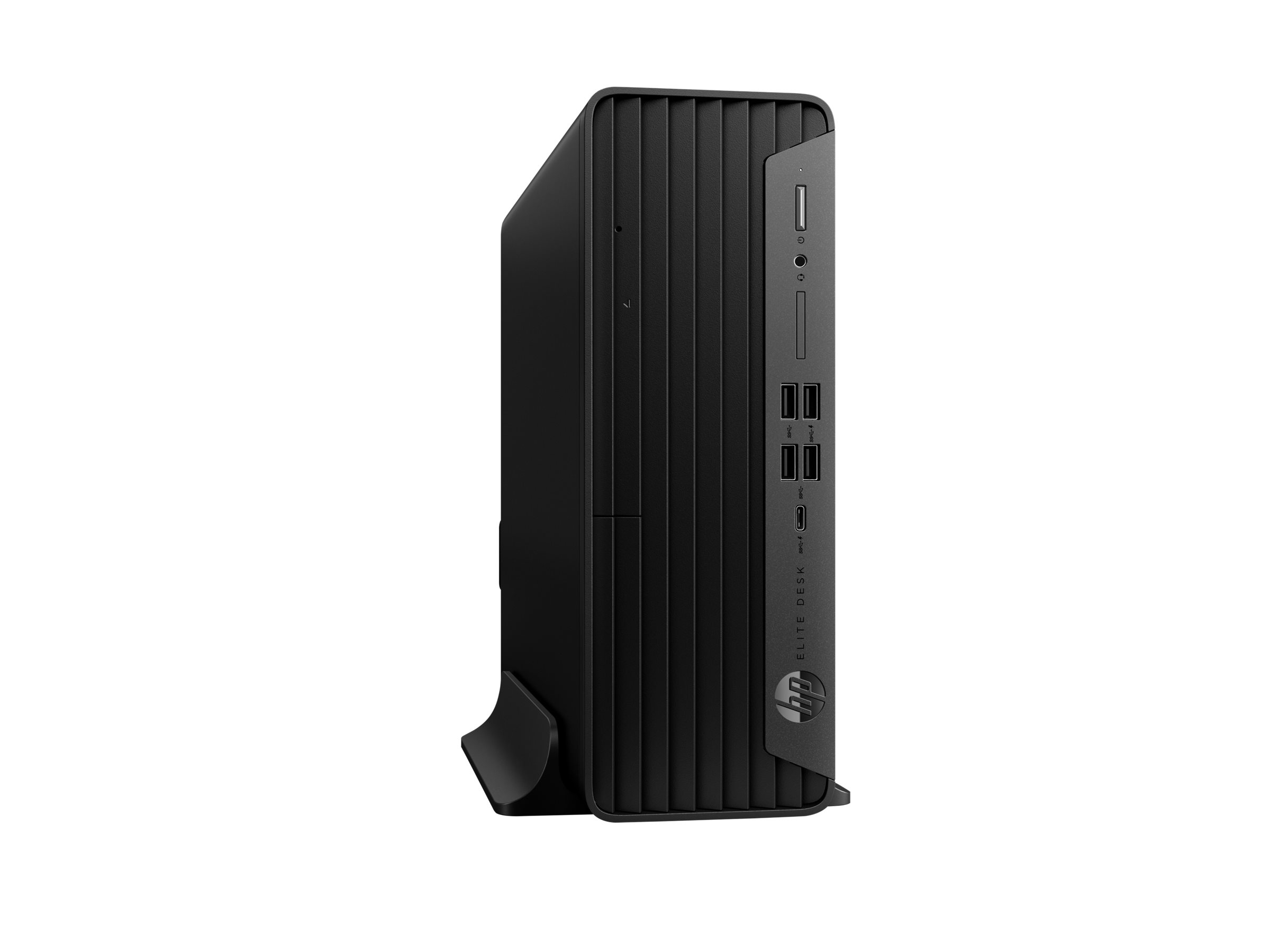

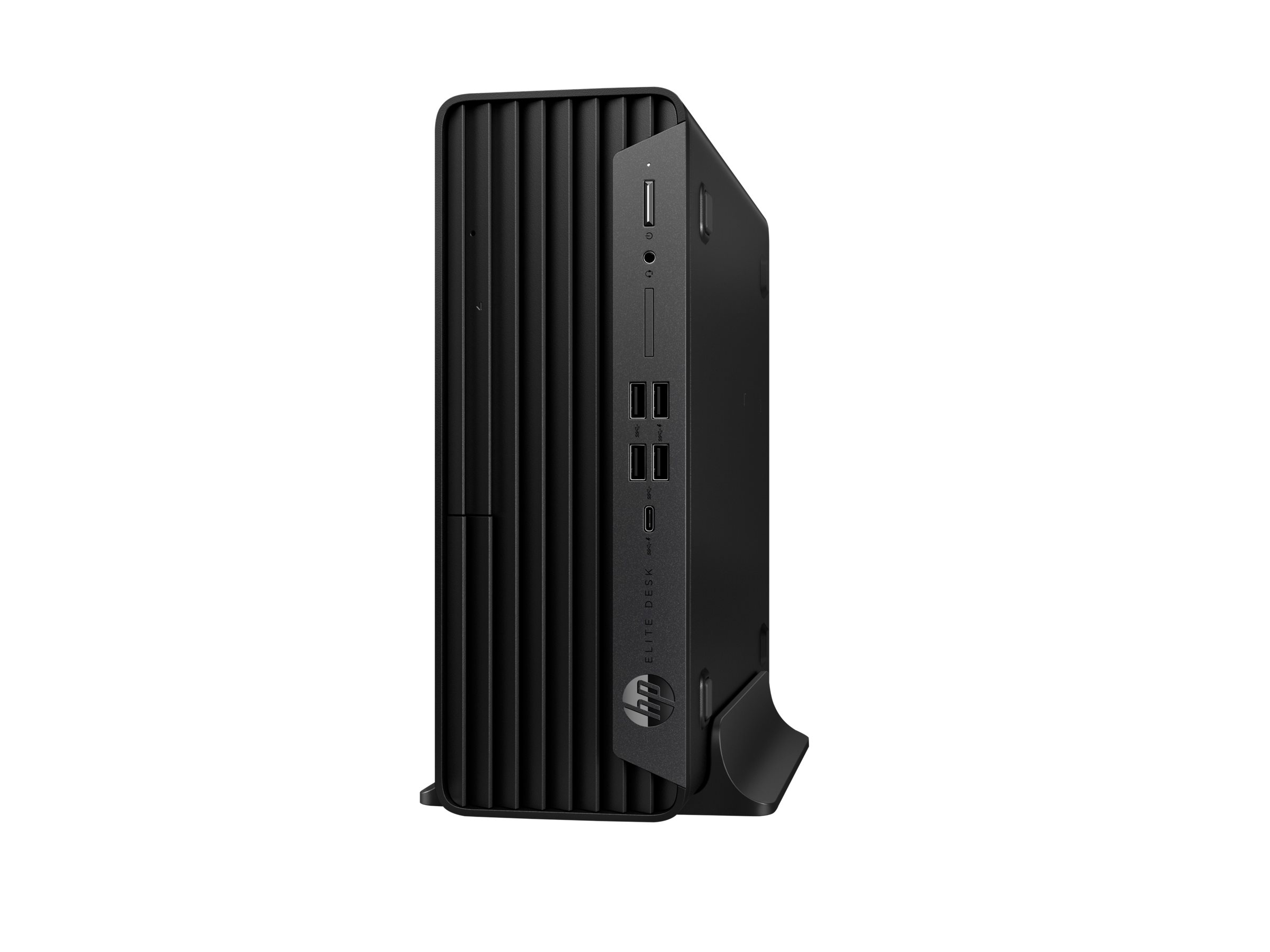

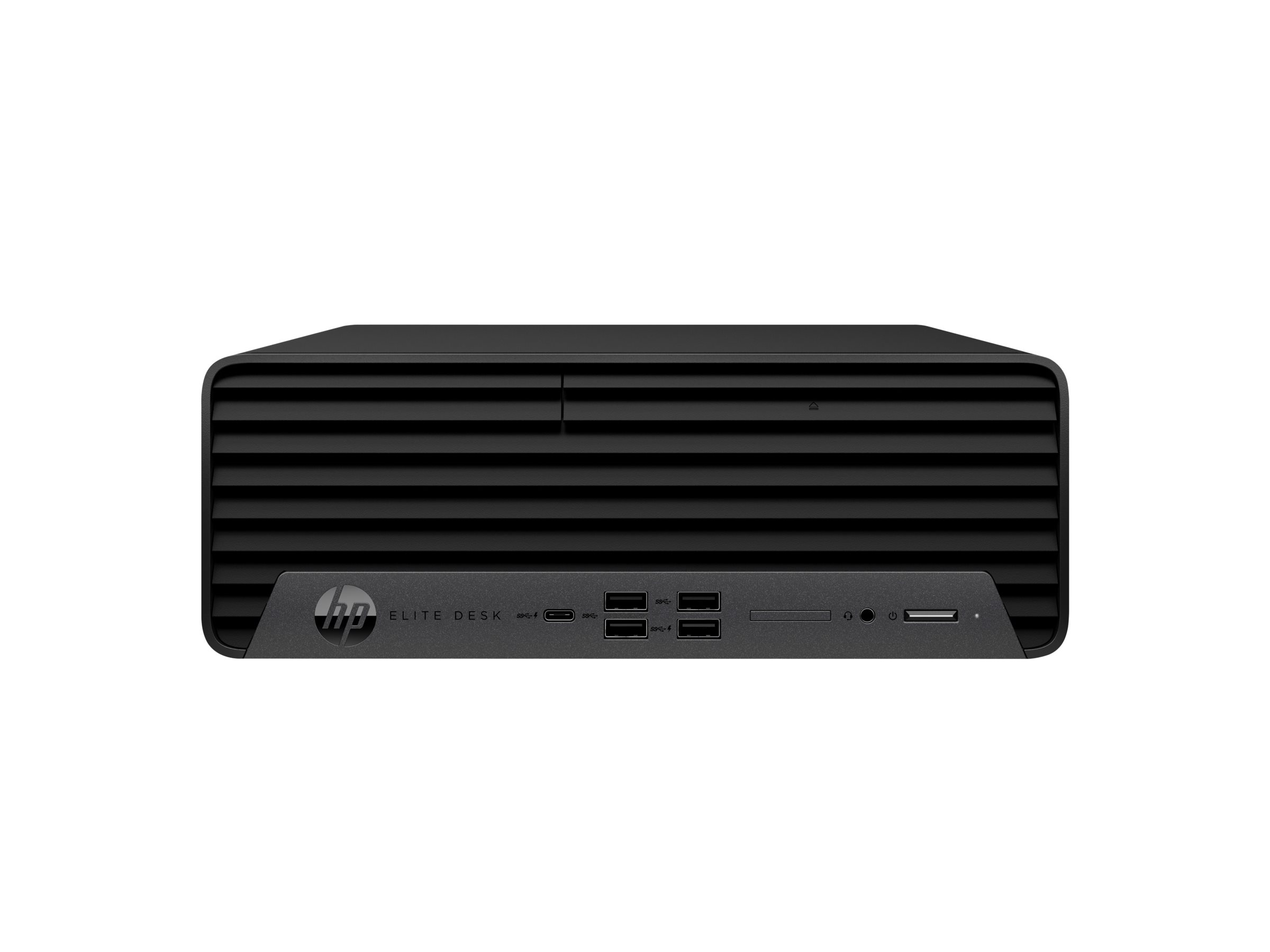

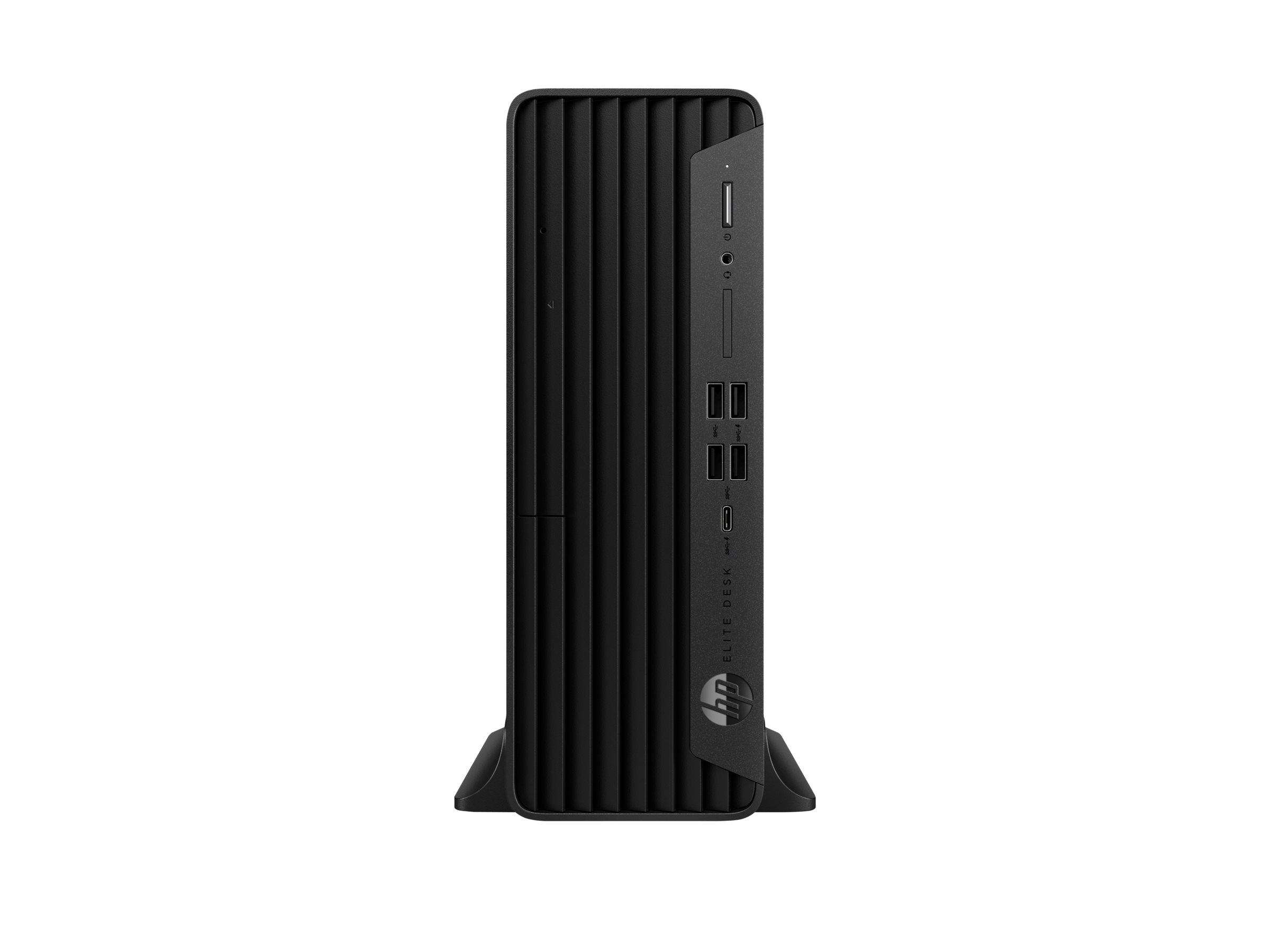

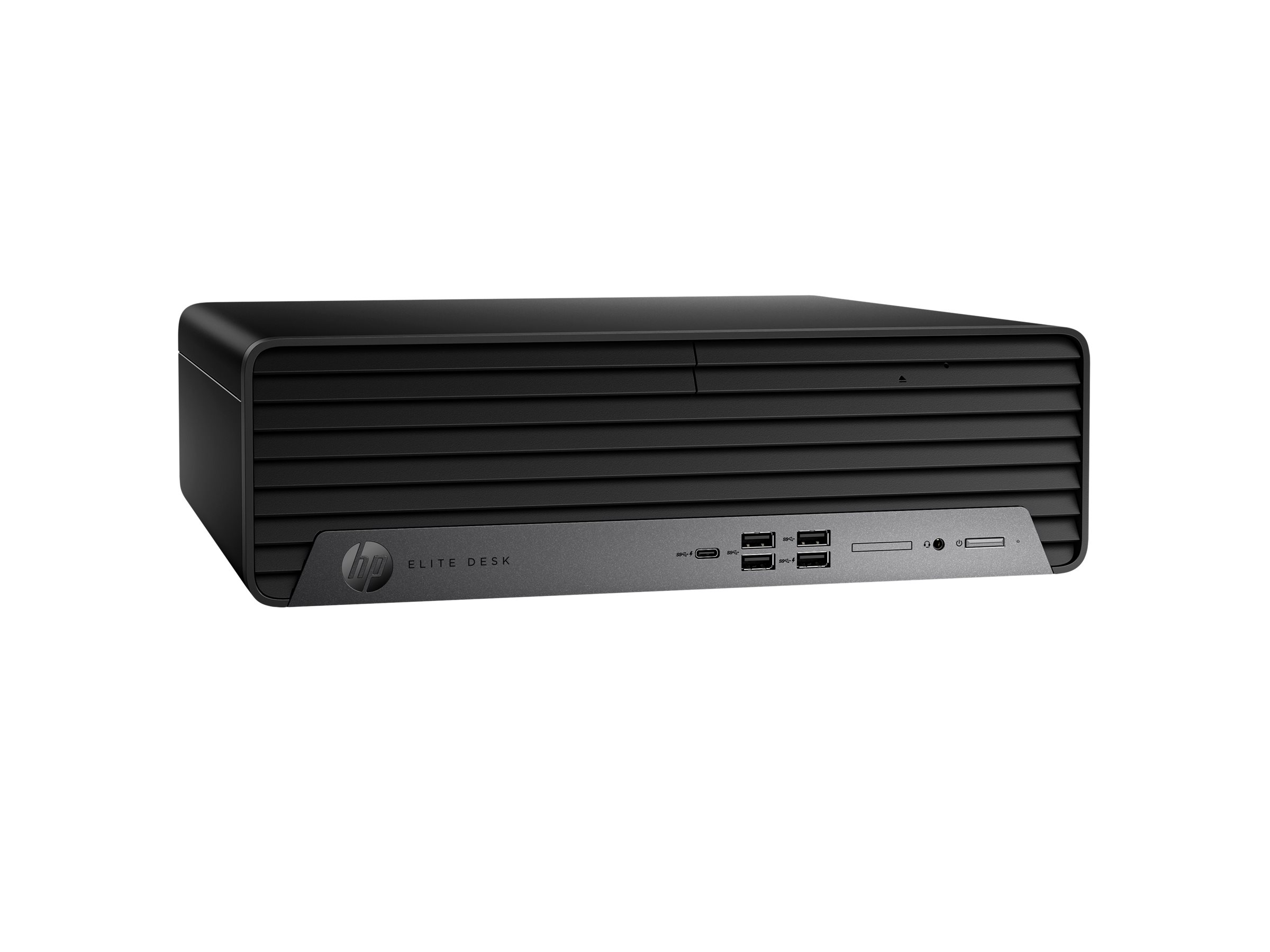

The HP Elite 800 SFF Desktop PC delivers uncompromising performance, expandability, and reliability in a space-saving design. Equipped with the latest Intel processor, speedy storage, and memory, this is the right PC for big jobs performed in smaller workspaces.
- Expansion for the future. Future proof your fleet with multiple drives and configurable ports that provide expandability.
- Powerful Intel processor. Blaze through your to-do list with the latest Intel processor, speedy storage, and agile memory.
- Protected by HP Wolf Security. HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense.
- Help protect our shared future. At least 50 percent of all plastic used in this PC is post-consumer recycled plastic.
- HP recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot. - Powerful Intel processor
Help speed up demanding business applications with the latest generation Intel Core processors. - HP Sure Sense
Malware is evolving rapidly beyond traditional antivirus capabilities. Protect your PC against never-before-seen attacks with HP Sure Sense, which combines behavioral analysis with advanced AI techniques to provide exceptional protection. - Protect critical security processes
Keep your critical applications and processes running even if malware tries to shut them down with the self-healing protection of HP Sure Run. - Quick and secure recovery to the latest image
Users can quickly and securely restore their machines to the latest image and IT can schedule reimaging for the entire fleet using only a network connection with optional HP Sure Recover. - Browse confidently
Help protect your PC from websites and read only Microsoft Office and PDF attachments with embedded malware, ransomware, or viruses with hardware-enforced security from HP Sure Click.
Documents
Extended Specifications
General
Type | Personal computer |
|---|
Bundled Services | HP 3 years Next Business Day Onsite Desktop Support Bundling |
|---|
Product Form Factor | SFF |
|---|
Built-in Devices | Speaker |
|---|
Sensors | HP Tamper Lock |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Jack black |
|---|
Processor / Chipset
CPU | Intel Core i5 (14th Gen) i5-14500 |
|---|
Clock Speed | 2.6 GHz (P-core) / 1.9 GHz (E-core) |
|---|
Max Turbo Speed | 5 GHz (P-core) / 3.7 GHz (E-core) |
|---|
Number of Cores | 14-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
L2 cache | 11.5 MB |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology |
|---|
Chipset Type | Intel Q670 |
|---|
Cache Memory
Installed Size | L3 Cache – 24 MB |
|---|
Cache Per Processor | 24 MB |
|---|
RAM
Installed Size | 16 GB (installed) / 128 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 4800 MT/s |
|---|
Rated Memory Speed | 4800 MT/s |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 2 (empty) |
|---|
Features | Unbuffered |
|---|
Configuration Features | 2 x 8 GB |
|---|
Hard Drive
Type | SSD – M.2 2280 |
|---|
Capacity | 1 x 512 GB |
|---|
Interface Type | PCI Express |
|---|
Features | NVM Express (NVMe) |
|---|
Storage Controller
Type | 1 x SATA/NVMe |
|---|
Controller Interface Type | SATA-600 / NVMe |
|---|
Channel Qty | 4 |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
|---|
Video Interfaces | HDMI, DisplayPort |
|---|
HDCP Compatible | Yes |
|---|
Audio Output
Sound Output Mode | Stereo |
|---|
Max Sampling Rate | 192 kHz |
|---|
Compliant Standards | High Definition Audio |
|---|
Input Device
Keyboard
Keyboard Name | HP 320K |
|---|
Interface | USB |
|---|
Mouse
Networking
Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
|---|
Ethernet Controller | Intel I219-LM, I225-T1 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
|---|
Remote Management Protocol | SNMP 2 |
|---|
Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
|---|
Expansion / Connectivity
Bays | 2 (total) / 2 (free) x internal 3.5″
1 (total) / 1 (free) x external 5.25″ Slim Line |
|---|
Slots | 1 (total) / 1 (free) x M.2 Card – 2230 (for wireless module)
2 (total) / 1 (free) x M.2 Card – 2280 (for internal storage)
2 (total) / 2 (free) x PCIe 3.0 x1
1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode)
1 (total) / 1 (free) x PCIe 4.0 x16 |
|---|
Interfaces | 1 x USB-C 3.2 Gen 2×2 (1 in front) (charging)
4 x USB 3.2 Gen 2 (4 in front) (one of them is charging)
1 x headphones/microphone (1 front) (CTIA and OMTP headset support)
1 x audio line-out/line-in
2 x DisplayPort 1.4a
3 x USB 2.0 (3 rear) (two of them with wake functionality)
3 x USB 3.2 Gen 1 (3 rear)
1 x LAN (Gigabit Ethernet) – RJ-45
1 x HDMI |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1 |
|---|
Manufacturer Selling Program | HP Smart Buy |
|---|
Power
Device Type | Power supply |
|---|
Voltage Required | AC 90-264 V (50/60 Hz) |
|---|
Power Provided | 260 watt |
|---|
Efficiency | 92% |
|---|
Power Factor Correction | Yes (active) |
|---|
Operating System / Software
OS Provided | Windows 11 Pro |
|---|
Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalogue (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP Sure Recover Gen5, HP Sure Run Gen5, HP Services Scan, HP Sure Start Gen7, HP Driver Packs (free download) |
|---|
Sustainability Information
TCO Certified | TCO Certified Desktops 9 |
|---|
Carbon Footprint | 320 kg carbon emissions |
|---|
Manufacturing (kg CO2e) | 171 |
|---|
Logistics (kg CO2e) | 1 |
|---|
Use (kg CO2e) | 143 |
|---|
EOL (kg CO2e) | 2 |
|---|
Total Carbon w/o Use Phase (kg CO2e) | 177 |
|---|
Dimensions & Weight
Width | 33.8 cm |
|---|
Depth | 30.8 cm |
|---|
Height | 10 cm |
|---|
Weight | 5.4 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 39.9 cm |
|---|
Shipping Depth | 49.9 cm |
|---|
Shipping Height | 22.8 cm |
|---|
Shipping Weight | 7.92 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 10 – 90% RH (non-condensing) |
|---|
