Description

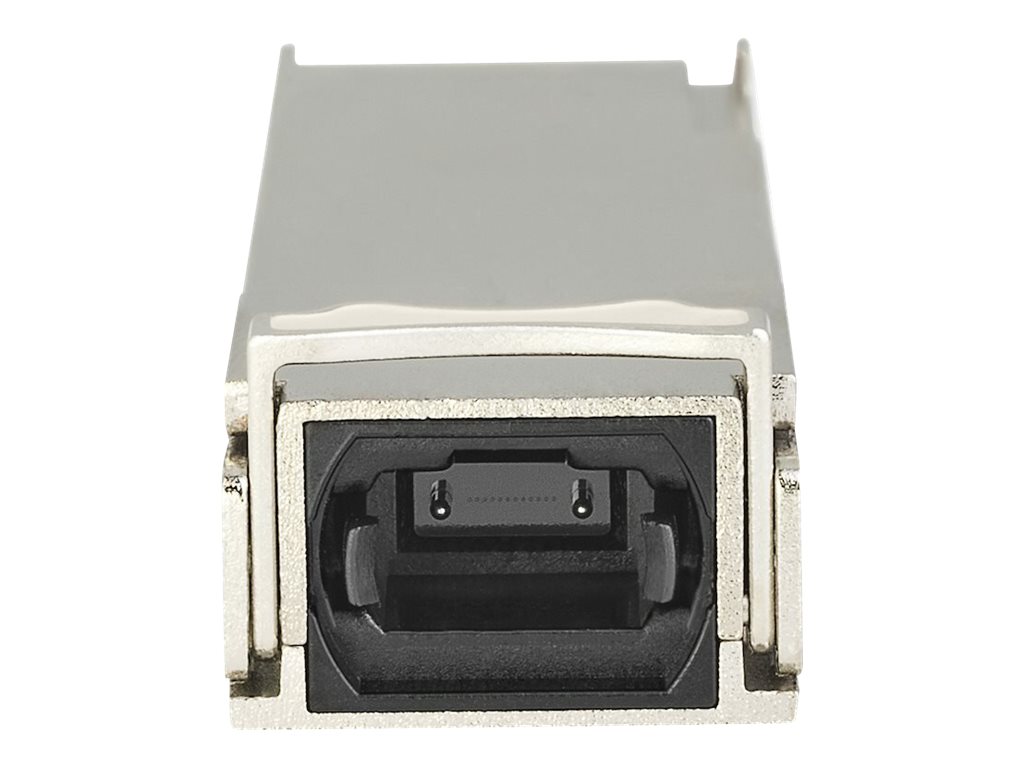

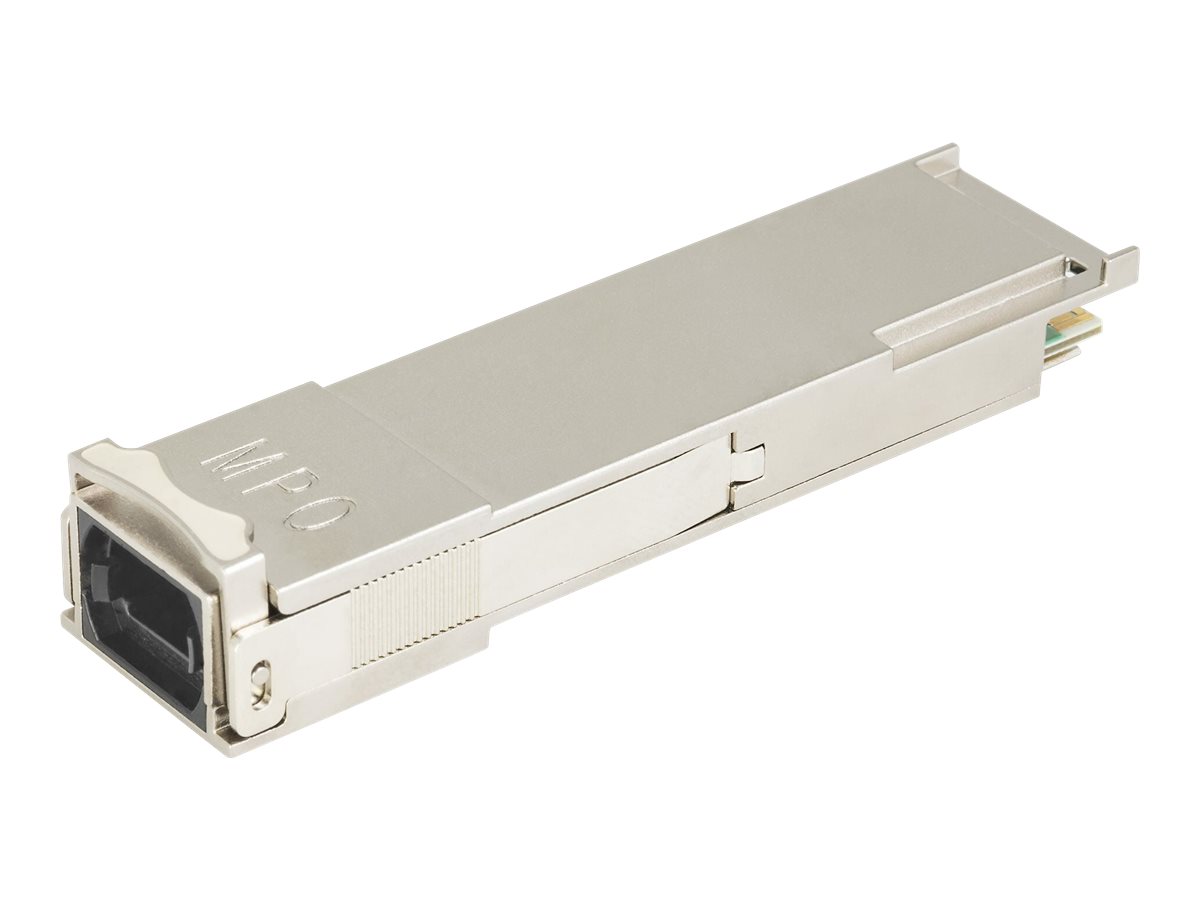

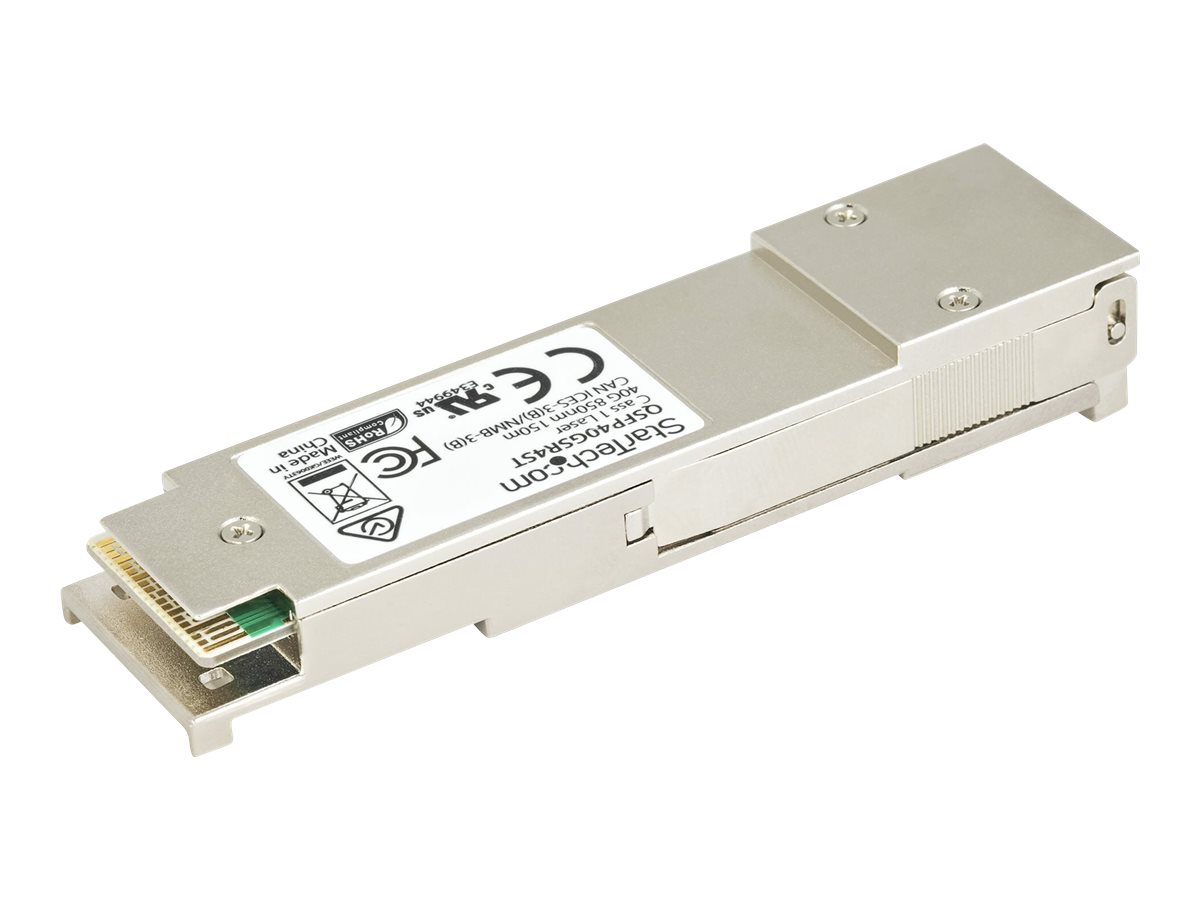

The QSFP40GSR4ST is a Cisco QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Main Specifications
Product Description | Startech Cisco QSFP-40G-SR4 Compatible QSFP+ Module 40GBASE-SR4, 40GbE Multimode Fiber MMF Optic Transceiver, 40GE Gigabit Ethernet MPO Connector, 150m, 850nm, DDM, Cisco Firepower – Lifetime Warranty (QSFP40GSR4ST) – QSFP+ transceiver module – 40GbE |
Device Type | QSFP+ transceiver module – MPO multi-mode |
Form Factor | Plug-in module |
Cabling Type | 40GBASE-SR4 |
Data Transfer Rate | 40 Gbps |
Optical Wave Length | 850 nm |
Data Link Protocol | 40GbE |
Max Transfer Distance | 150 m |
OEM Manufacturer Equivalent Part Number | Cisco QSFP-40G-SR4 |
Dimensions (WxDxH) | 1.84 cm x 7.2 cm x 0.85 cm |
Weight | 40 g |
Extended Specifications
General
Device Type | QSFP+ transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Colour | Silver |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 40GBASE-SR4 |
|---|
Data Link Protocol | 40GbE |
|---|
Data Transfer Rate | 40 Gbps |
|---|
Optical Wave Length | 850 nm |
|---|
Max Transfer Distance | 150 m |
|---|
Features | Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
|---|
Compliant Standards | IEEE 802.3ba |
|---|
Expansion / Connectivity
Interfaces | 1 x Ethernet 40GBASE-SR4 – MPO multi-mode female |
|---|
Miscellaneous
Compliant Standards | UL, FCC, RoHS, MSA |
|---|
OEM Manufacturer Equivalent Part Number | Cisco QSFP-40G-SR4 |
|---|
Dimensions & Weight
Width | 1.84 cm |
|---|
Depth | 7.2 cm |
|---|
Height | 0.85 cm |
|---|
Weight | 40 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Humidity Range Operating | 5 – 95% |
|---|
