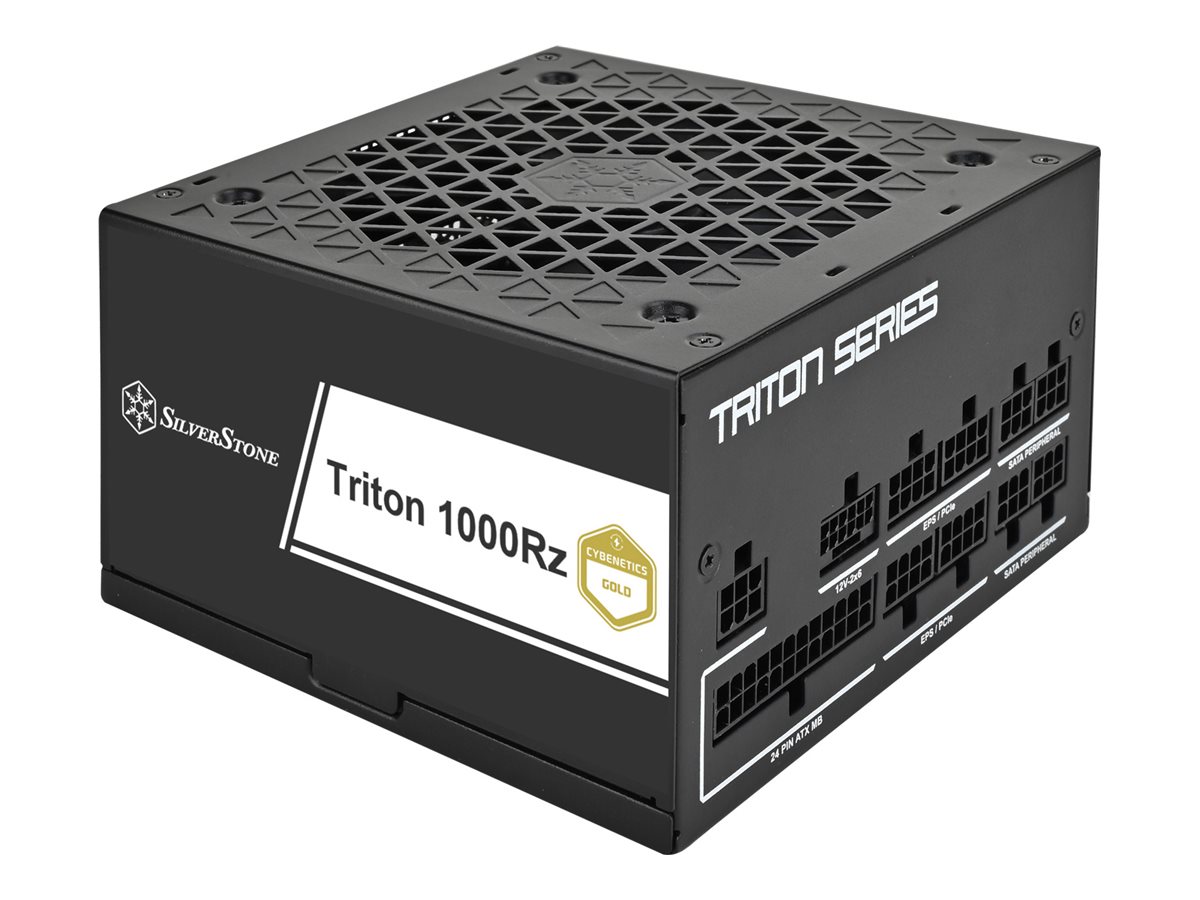

SilverStone Triton 1000Rz, Power supply (internal), ATX12V 3.1/ EPS12V, Cybenetics Gold, AC 90-264 V, 1000 Watt, active PFC, black
$212.86 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The SilverStone Triton 1000Rz is an internal power supply designed to deliver reliable performance with an output of 1000 W. Its active Power Factor Correction ensures efficient energy use while maintaining a maximum sound emission of only 18 dBA, suitable for quiet operation. Built with comprehensive protection features such as overheat, overcurrent, overvoltage, overpower, and short-circuit protection, this power supply promotes longevity and reliability, with an MTBF of 100,000 hours.
With a modular cable management system, the SilverStone Triton 1000Rz allows for organized interior builds, optimizing airflow while minimizing clutter. This unit complies with ATX12V 3.1/EPS12V specifications and features a cooling system with a 120 mm fan. The SilverStone Triton 1000Rz is designed for users who seek a dependable and efficient power solution for their computing needs.
- Provides 1000 W of power
- Features active Power Factor Correction for energy efficiency
- Includes comprehensive protection features
- MTBF of 100,000 hours ensures reliability
- Modular cable management system for organized setups
- Reliable protection features
Includes overheat protection, overcurrent protection, overvoltage protection, overpower protection, and short-circuit protection to enhance safety and longevity. - Efficient cooling system
Equipped with a 120 mm fan to ensure airflow and keep operating temperatures within safe limits. - Environmentally friendly design
Lead-free construction aligns with modern environmental standards, making it a responsible choice for users. - Flexible connection options
Offers a variety of connectors including 24 pin ATX, 8 pin EPS12V, and PCI Express, providing versatility for various setups. - High efficiency rating
Achieves an efficiency rating of 87%-89%, ensuring that a significant amount of power is effectively utilized, minimizing waste.
Main Specifications
Product Description | SilverStone Triton 1000Rz – power supply – 1000 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V |
Cybenetics Certification | Cybenetics Gold |
Weight | 2.7 kg |
Input Voltage | AC 90-264 V |
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
Power Capacity | 1000 Watt |
Output Current | +3.3V – 20 A / 0 A +5V – 20 A / 0 A +12V1 – 83.3 A / 0 A +5VSB – 3 A / 0 A -12V – 0.3 A / 0 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 (12+4) pin PCI Express 5.1 12V 2×6 4 x 8 pin PCI Express power with detachable 2 pin section 8 x SATA connector 4 x 4 PIN internal power |
Modular Cable Management | Yes |
Cooling System | 120 mm fan |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
General
Colour | Black |
|---|
Dimensions & Weight
Weight | 2.7 kg |
|---|---|
Height | 8.6 cm |
Depth | 14 cm |
Width | 15 cm |
Power Device
Power Capacity | 1000 Watt |
|---|---|
Modular Cable Management | Yes |
General
PSU Form Factor | ATX |
|---|
Power Device
Frequency Required | 47 – 63 Hz |
|---|---|
Input Voltage | AC 90-264 V |
Environmental Parameters
Sound Emission | 18 dBA |
|---|
Power Device
Power Factor (PF) | 0.9 |
|---|
Miscellaneous
Cooling System | 120 mm fan |
|---|
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|
Miscellaneous
MTBF | 100,000 hours |
|---|
Power Device
Efficiency | 87%-89% |
|---|---|
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
General
Specification Compliance | ATX12V 3.1/ EPS12V |
|---|
Power Device
Cybenetics Certification | Cybenetics Gold |
|---|---|
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 (12+4) pin PCI Express 5.1 12V 2×6 4 x 8 pin PCI Express power with detachable 2 pin section 8 x SATA connector 4 x 4 PIN internal power |
Output Current | +3.3V – 20 A / 0 A +5V – 20 A / 0 A +12V1 – 83.3 A / 0 A +5VSB – 3 A / 0 A -12V – 0.3 A / 0 A |
Miscellaneous
Features | Lead free, overpower protection, over current protection, short-circuit protection, overheat protection, over voltage protection |
|---|
