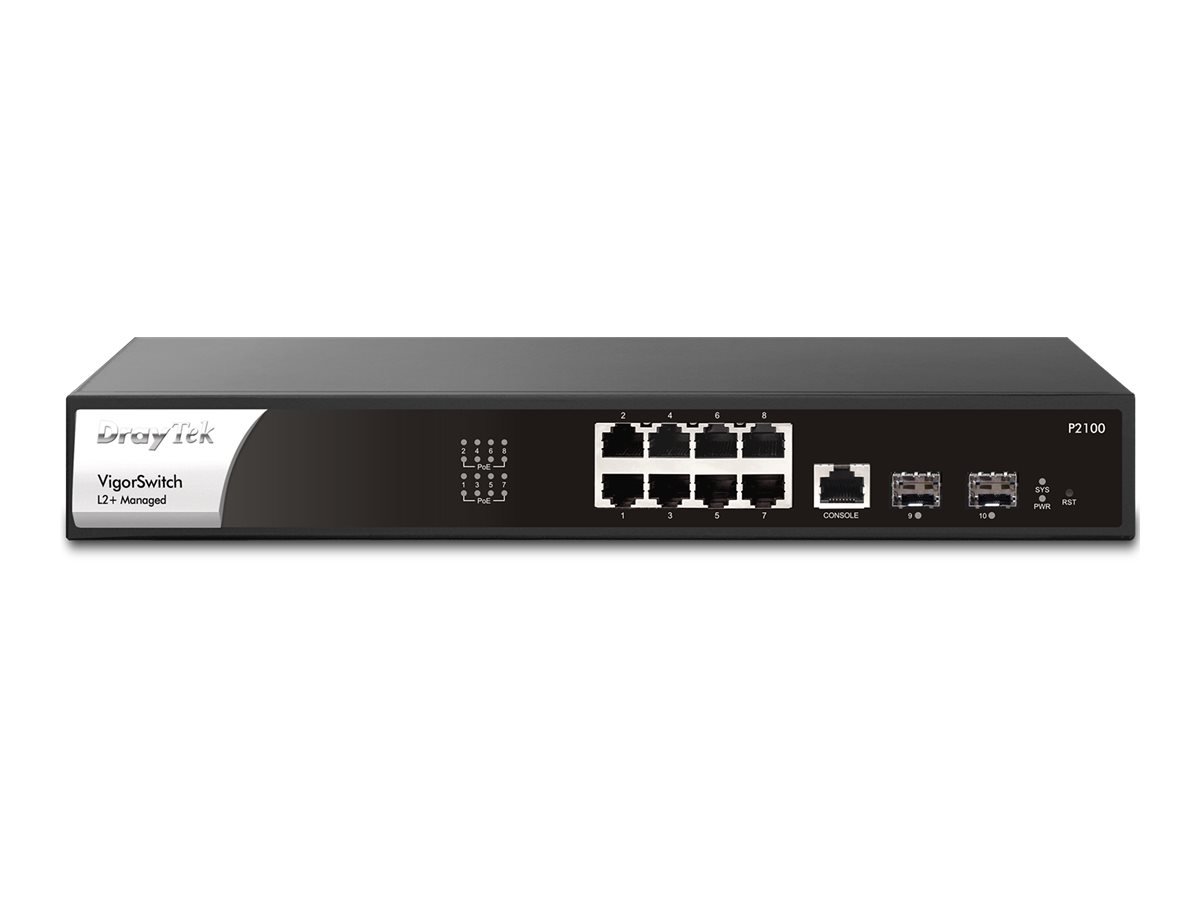

Draytek VigorSwitch P2100, Switch, L2+, Managed, 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP, desktop, rack-mountable, PoE+ (140 W)

Description

DrayTek VigorSwitch P2100 is a compact Layer 2+ Managed Gigabit PoE switch well-suited for smart home and branch/remote sites. It has 2x GbE SFP ports, 8x Gigabit Ethernet PoE/PoE+ ports with power budget of 140 watts, and 1x console port. Featuring Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch P2100 improves local network sustainability and efficiency regardless of the gateway. Furthermore, with IP Conflict Detection & Prevention, ONVIF Surveillance, ping watchdog and a lot more, this is the balanced switch that brings advanced features into small environments.

• PoE (Power over Ethernet)
• PoE device check
• Auto surveillance & Voice VLAN
• ONVIF-friendly
• Wire-speed VLAN routing
• IP Conflict Prevention
• Access Control
• QoS (Quality of Service)
• IPv6 Ready
• Web-based GUI
• Multiple Admin accounts
• Central switch management
• Energy-efficient Ethernet

• PoE (Power over Ethernet)
  Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
• PoE device check
  Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle.
• Auto surveillance & Voice VLAN
  Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
• ONVIF-friendly
  Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
• Wire-speed VLAN routing
  Improve overall network performance by using VigorSwitch P2100 to route the inter-VLAN traffic directly and offload the router.
• IP Conflict Prevention
  Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.
• Access Control
  VigorSwitch P2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
• QoS (Quality of Service)
  Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
• IPv6 Ready
  VigorSwitch P2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
• Web-based GUI
  Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
• Multiple Admin accounts
  Multiple Admin accounts with two levels of administrator privilege.
• Central switch management
  Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
• Energy-efficient Ethernet
  Compliant with IEEE 802.3az to reduce power consumption.
