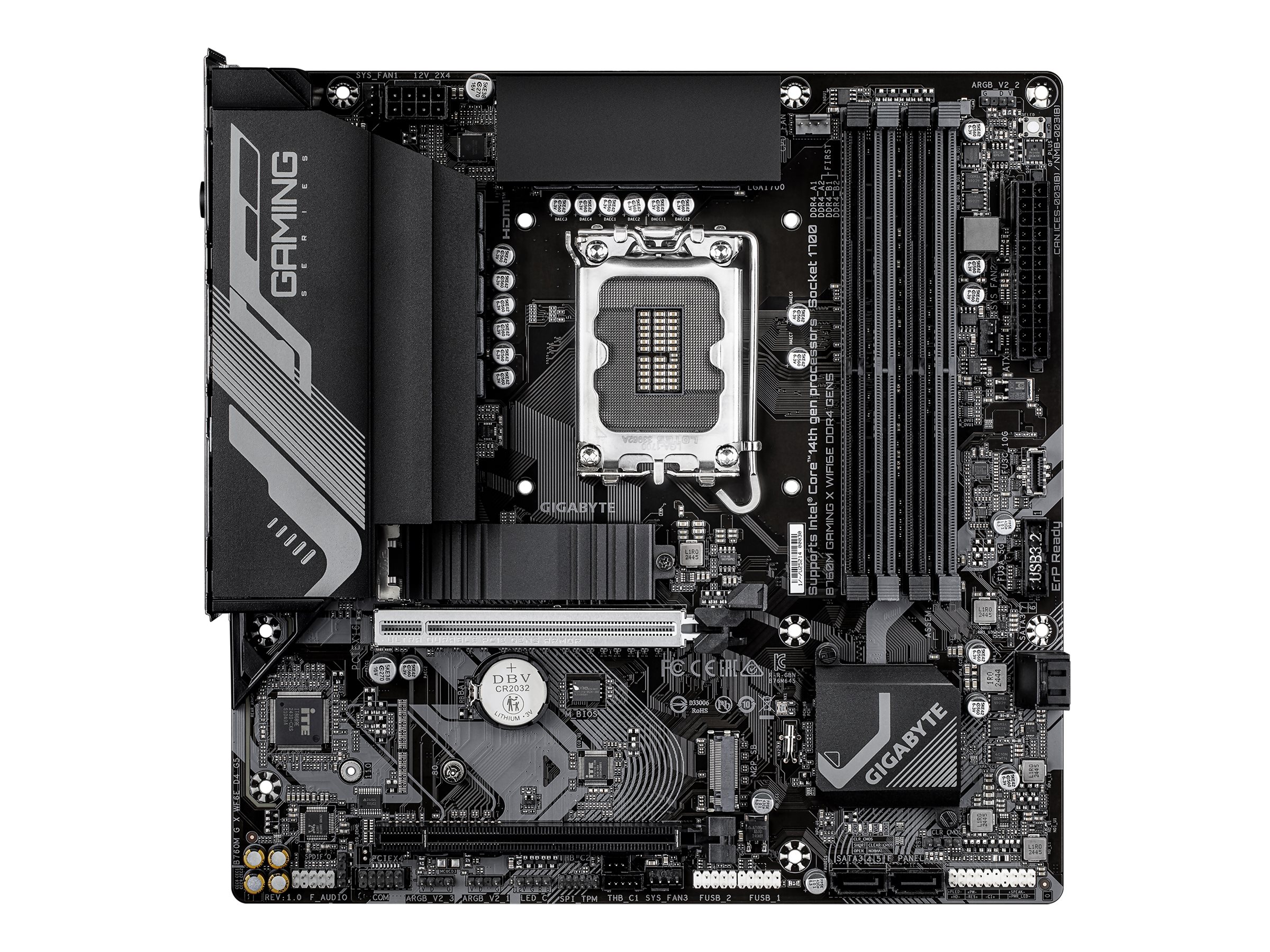

Gigabyte B760M GAMING X WIFI6E DDR4 GEN5, Motherboard, micro ATX, LGA1700 Socket, B760 Chipset, USB-C 3.2 Gen2, USB 3.2 Gen 1, 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$241.94 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The GIGABYTE B760M GAMING X WIFI6E DDR4 GEN5 motherboard offers performance and connectivity features for a gaming experience. Equipped with four expansion slots, including a PCIe 5.0 x16 slot and multiple M.2 sockets, this motherboard supports a variety of storage options and graphics cards to meet gaming demands. The board supports Intel’s 12th, 13th, and 14th Generation processors through the LGA1700 socket, ensuring compatibility with current technology.
Experience enhanced audio quality with high definition audio output, providing an immersive sound experience during gameplay. The B760M GAMING X also boasts networking capabilities with 2.5 Gigabit Ethernet and Wi-Fi 6E support for a fast and stable Internet connection for online gaming. With features like RGB FUSION for customizable lighting and durable construction equipped with thermal guards, the B760M GAMING X is designed to deliver performance in any gaming setup.
- Supports Intel 12th, 13th, and 14th Generation processors
- Four expansion slots for extensive upgrade potential
- High definition audio output for immersive sound quality
- 2.5 Gigabit Ethernet and Wi-Fi 6E for fast connectivity
- Customizable RGB lighting with RGB FUSION
- Robust expansion capability
The motherboard features four expansion slots, including a PCIe 5.0 x16 slot and multiple M.2 sockets, allowing for versatile upgrades and a variety of storage configurations. - Enhanced audio experience
Offering high definition audio with an advanced sound card that supports 8-channel audio output, ensuring high-quality sound during gaming sessions and multimedia playback. - Advanced networking options
Equipped with 2.5 Gigabit Ethernet and Wi-Fi 6E technology, this motherboard ensures fast and stable network connectivity for seamless online gaming. - Customizable visual aesthetics
Featuring RGB FUSION technology, users can customize the motherboard’s lighting to match their gaming setup, enhancing the overall look of the PC. - Durable design for reliability
Built with high-end audio capacitors and a thermal armor, the motherboard is designed for longevity and resilience, enabling optimal performance during intense gaming sessions.
What’s in the Box
- Gigabyte B760M GAMING X WIFI6E DDR4 GEN5
- Software
Main Specifications
Product Description | Gigabyte B760M GAMING X WIFI6E DDR4 GEN5 – motherboard – micro ATX – LGA1700 Socket – B760 |
Product Type | Motherboard – micro ATX |
Chipset Type | Intel B760 |
Processor Socket | 1 x LGA1700 Socket |
Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size | 128 GB |
RAM Supported | 4 DIMM slots – DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
USB / FireWire Ports | 3 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
Extended Specifications
General
Product Type | Motherboard – micro ATX |
|---|---|
Chipset Type | Intel B760 |
Processor Socket | LGA1700 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM
Max Size | 128 GB |
|---|---|
Technology | DDR4 |
Bus Clock | 2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
Audio
Type | HD Audio (8-channel) |
|---|---|
Compliant Standards | High Definition Audio |
LAN
Network Controller | Intel AX210 |
|---|---|
Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
Interfaces | 1 x DisplayPort 1 x HDMI 5 x USB 2.0 2 x aerial 2 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in – mini-jack 1 x microphone – mini-jack 1 x audio line-out – mini-jack |
Internal Interfaces | 4 x USB 2.0 – header 2 x USB 3.2 Gen 1 – header 1 x USB-C 3.2 Gen 2 – header 1 x audio – header 1 x serial – header 1 x SPI – header 1 x SPDIF out – header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features
BIOS Type | AMI |
|---|---|
BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
Hardware Monitoring | Fan control, system voltage, water cooling flow rate, fan fail warning, temperature detection, fan speed detection |
Hardware Features | 8+1+1 Phase Power Design, Q-Flash Plus, VRM Thermal Armor Advanced, M.2 Thermal Guard, GIGABYTE Smart Fan 6, WIFI EZ-Plug, RGB FUSION, PCIe EZ Latch, Ultra Durable, DIY Friendly Design, High-end Audio Capacitors, 6 Layer PCB |
Miscellaneous
Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
|---|---|
Width | 24.4 cm |
Depth | 24.4 cm |
Additional information
| Case/Motherboard Form Factor | |
|---|---|
| Compatible Socket | |
| Manufacturer |
