Description

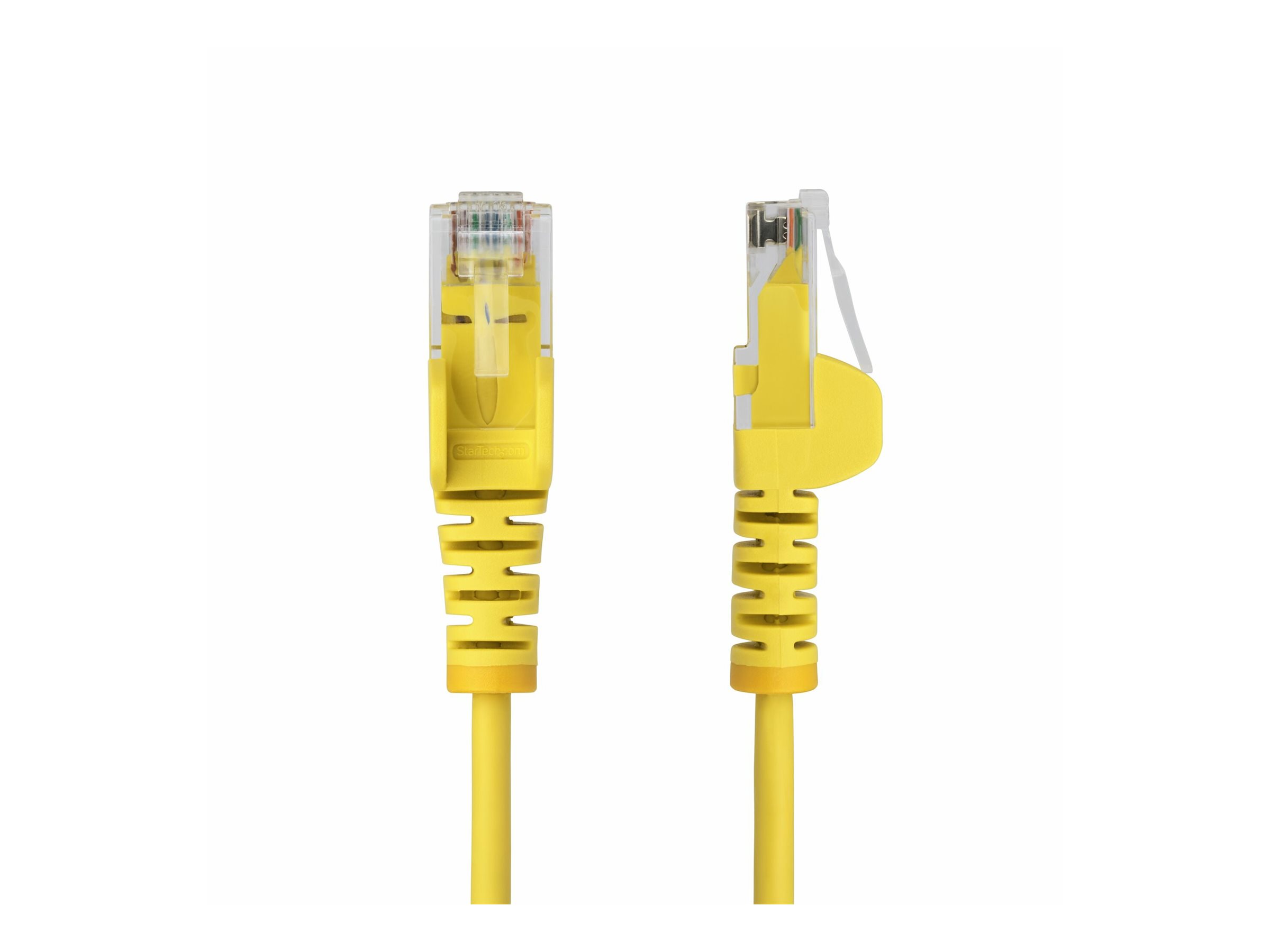

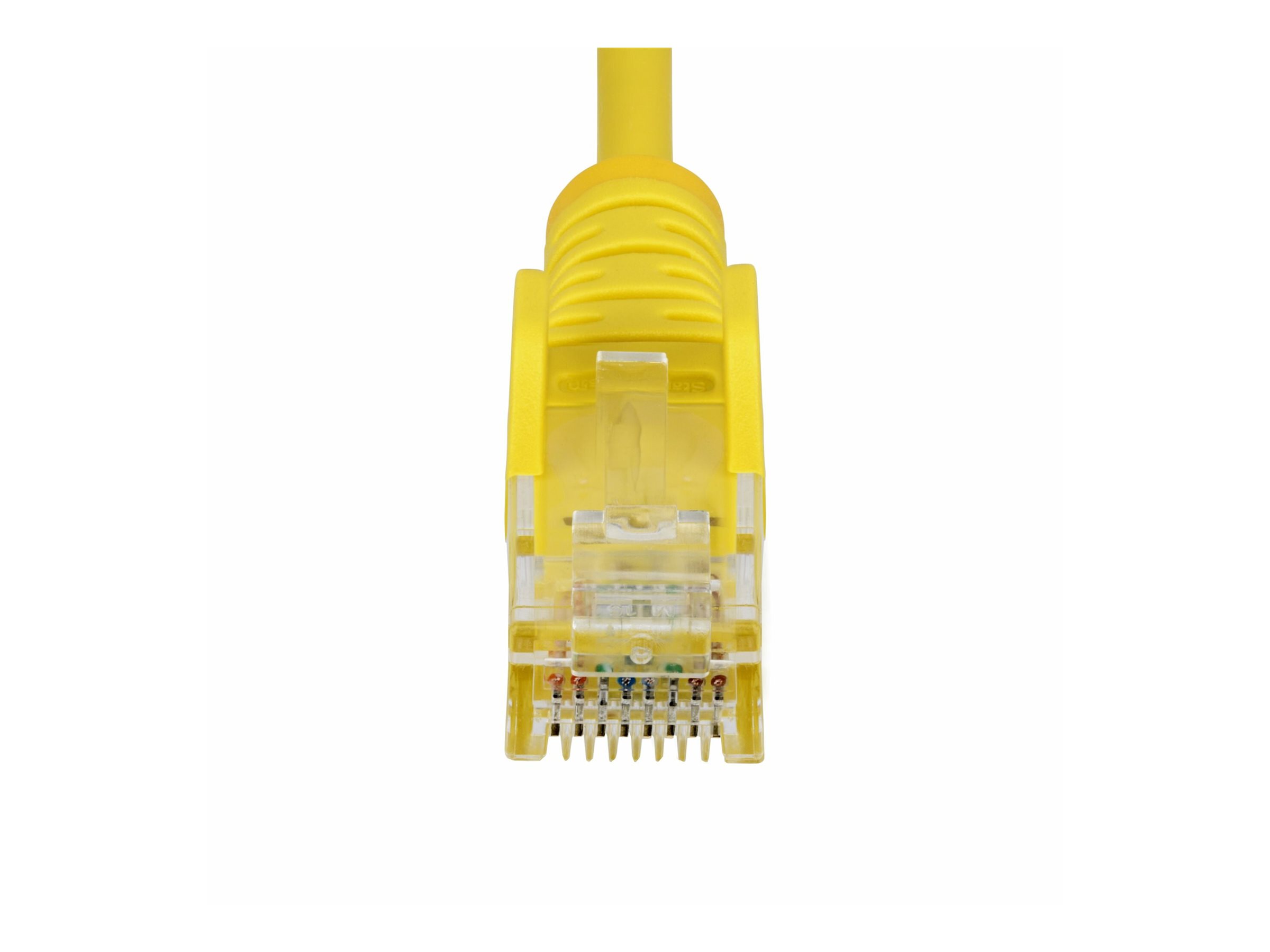

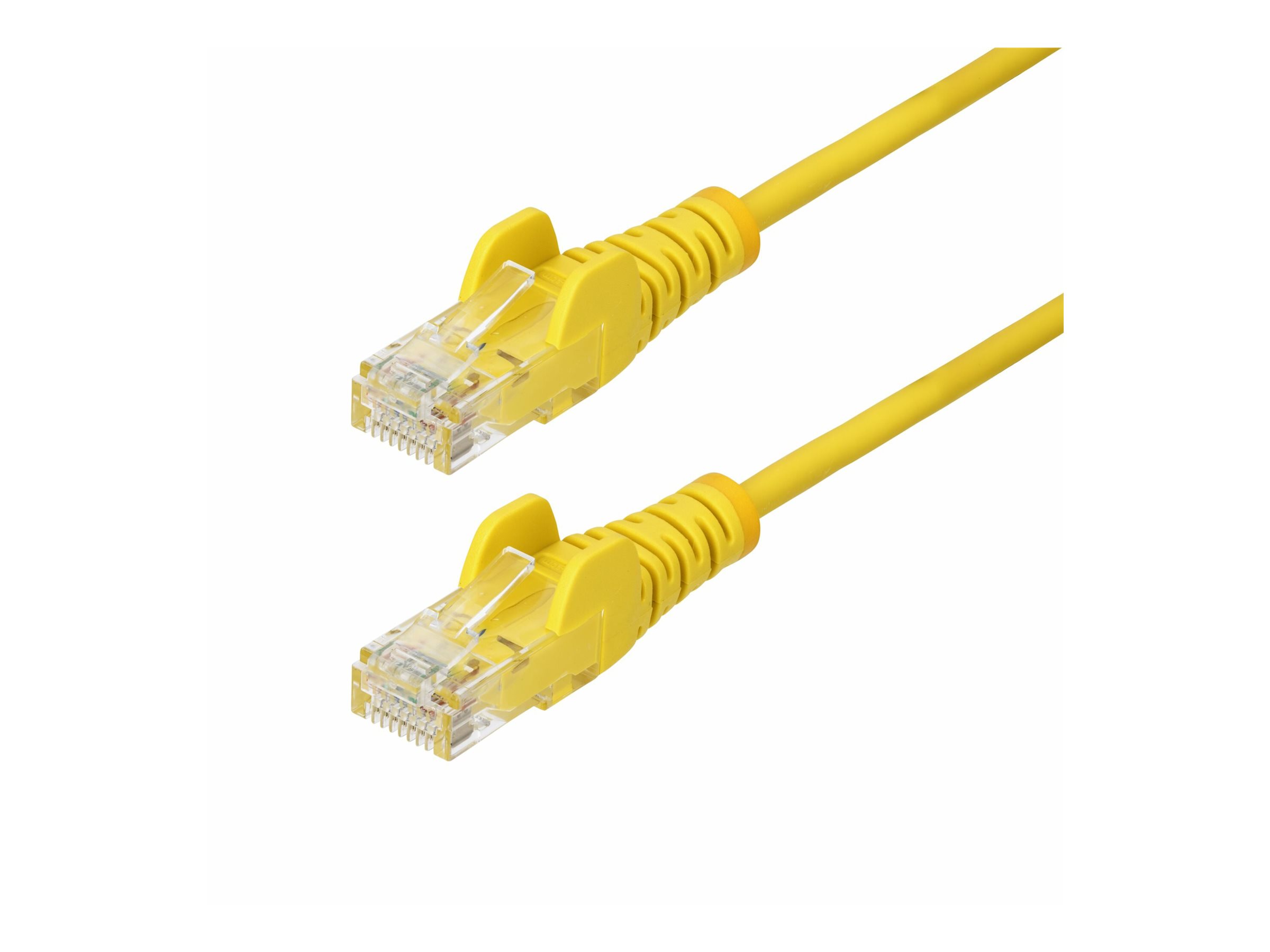

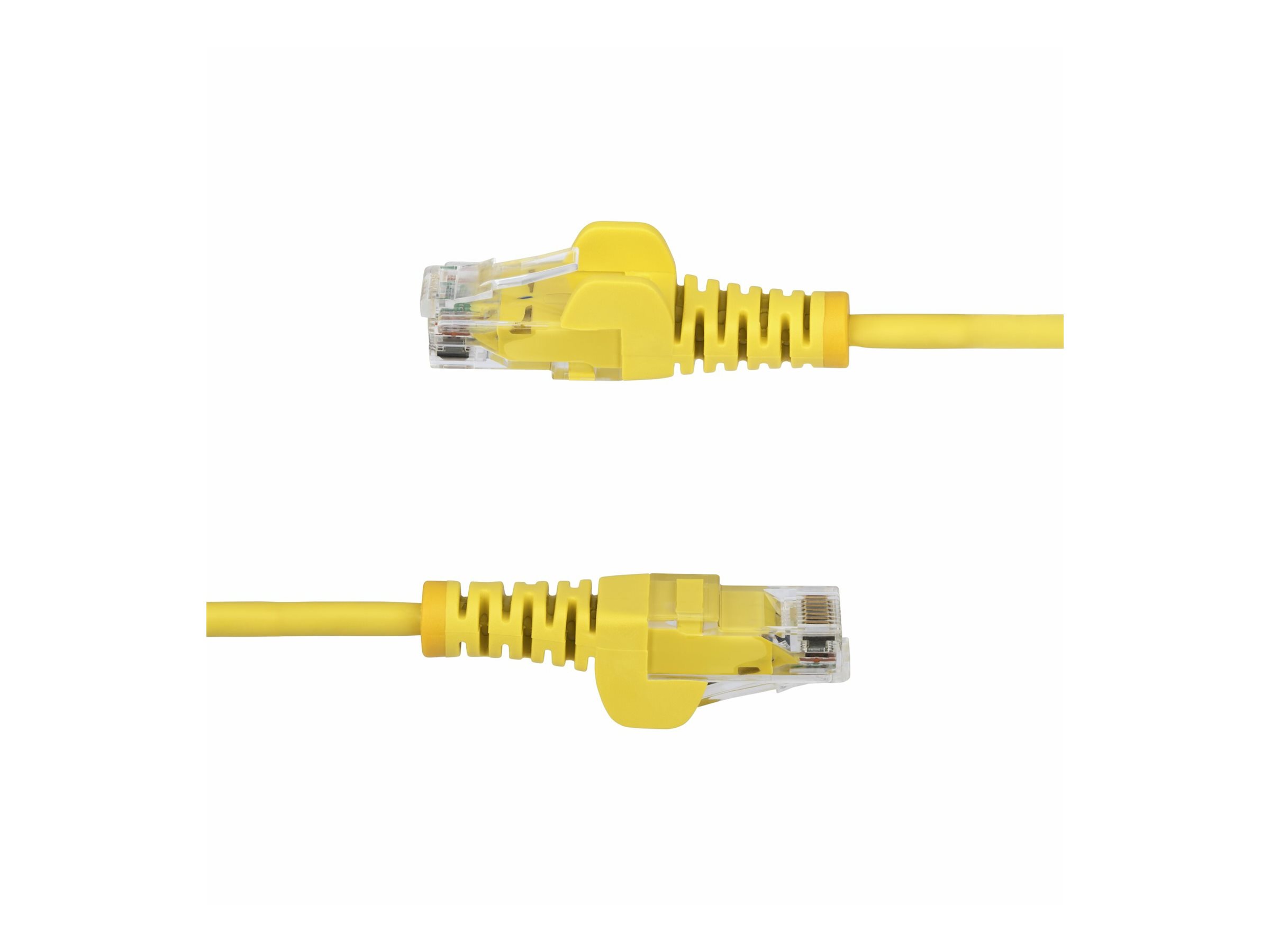

The 2.5 m Yellow Slim CAT6 Ethernet Cable from StarTech.com is designed to deliver reliable network connectivity with performance. This patch cable adheres to the IEEE 802.3bt standards, ensuring compatibility with a range of devices while supporting data transfer speeds of up to 1 Gbps. Built with pure bare copper conductors and a low smoke zero halogen jacket, this cable minimizes the risk of fire and is environmentally friendly, meeting RoHS compliance. A strain relief feature enhances durability, while the gold plated RJ-45 connectors provide secure and stable connections.
This cable is efficient and safe to use in various settings with its flame-retardant construction. It supports 100 W PoE++ technology, allowing for power delivery along with data transmission. Designed for performance, it minimizes Near-End Crosstalk (NEXT) and reduces Return Loss (RL), ensuring a clearer signal. With a tested frequency of up to 250 MHz and a proper gauge of 28, this cable is a solution for home and office networking needs.
- Supports data transfer speeds up to 1 Gbps
- Flame retardant and low smoke zero halogen jacket ensures safety
- 100 W PoE++ support for power and data transmission
- Minimized Near-End Crosstalk (NEXT) for clear signals
- Tested to 250 MHz for reliable performance
- Durable construction
The cable features pure bare copper conductors and a strain relief design to withstand bending and pulling without compromising performance. - High compatibility
Compliant with ANSI/TIA-568-C.2 standards and supports IEEE 802.3bt Type 4 for versatile application in various networking devices. - Efficient signal quality
Designed to minimize Return Loss and Near-End Crosstalk, ensuring data transmission quality across long distances. - Safe and eco-friendly
This cable meets RoHS regulations and features a low smoke zero halogen jacket to provide a safer option for various installation environments. - Versatile use
Ideal for both home and professional setups, supporting connectivity in a range of applications.
Main Specifications
Product Description | Startech 2.5m Yellow Slim CAT6 Ethernet Cable, Snagless, 28AWG, LSZH – patch cable – 2.5 m – yellow |
Type | Patch cable – CAT 5/5e/6 – IEEE 802.3bt |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Halogen-free, snagless, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 1 Gbps, 100W PoE++ support |
Cable Length | 2.5 m |
Diameter | 3.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Yellow |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 5/5e/6 – IEEE 802.3bt |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
American Wire Gauge (AWG) | 28 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Halogen-free, snagless, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 1 Gbps, 100W PoE++ support |
|---|
Cable Length | 2.5 m |
|---|
Diameter | 3.6 mm |
|---|
Colour | Yellow |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, IEEE 802.3bt Type 4 – up to 250 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 20 cm |
|---|
Shipping Depth | 22 cm |
|---|
Shipping Height | 1 cm |
|---|
Shipping Weight | 54 g |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
