Description

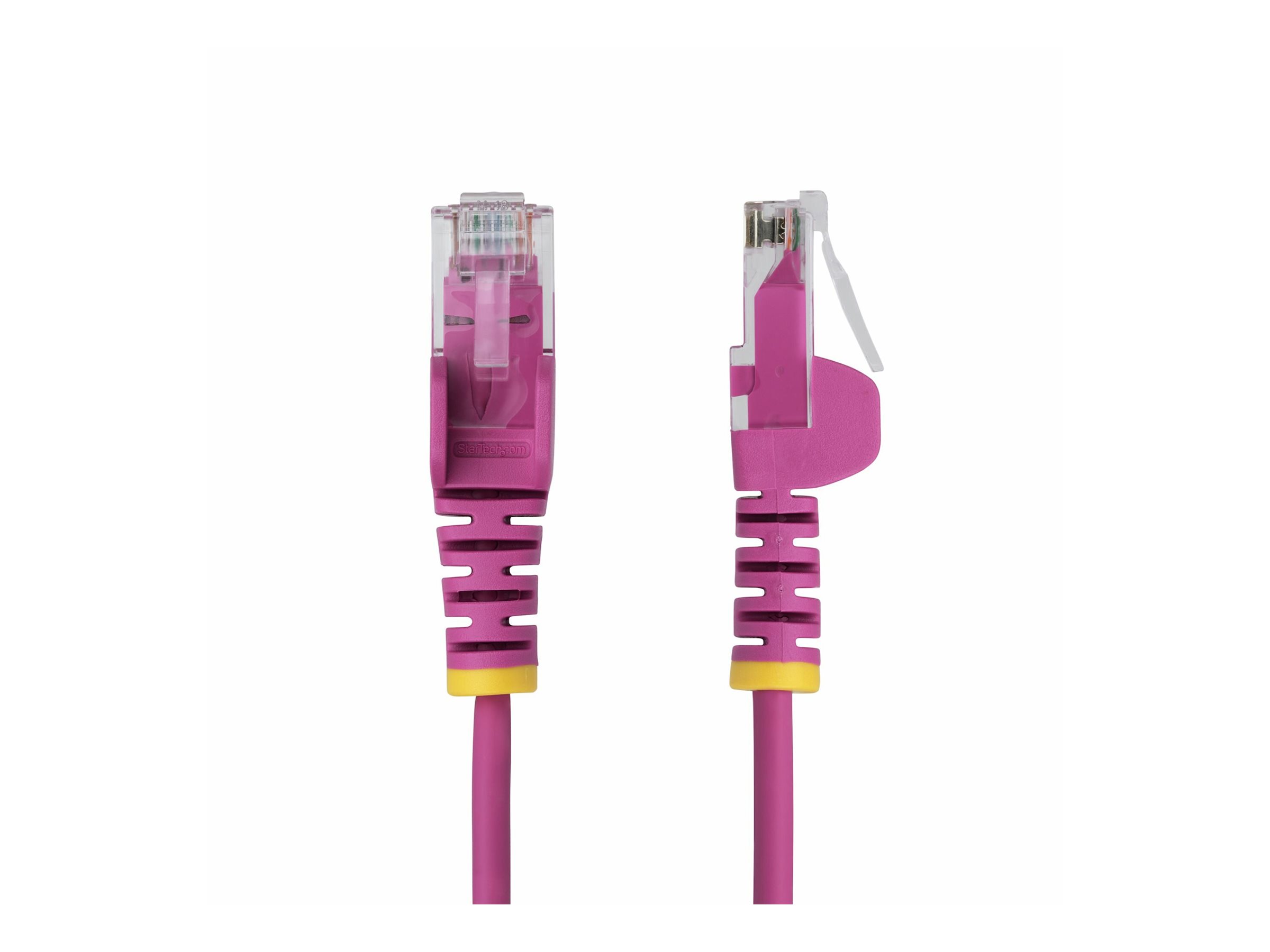

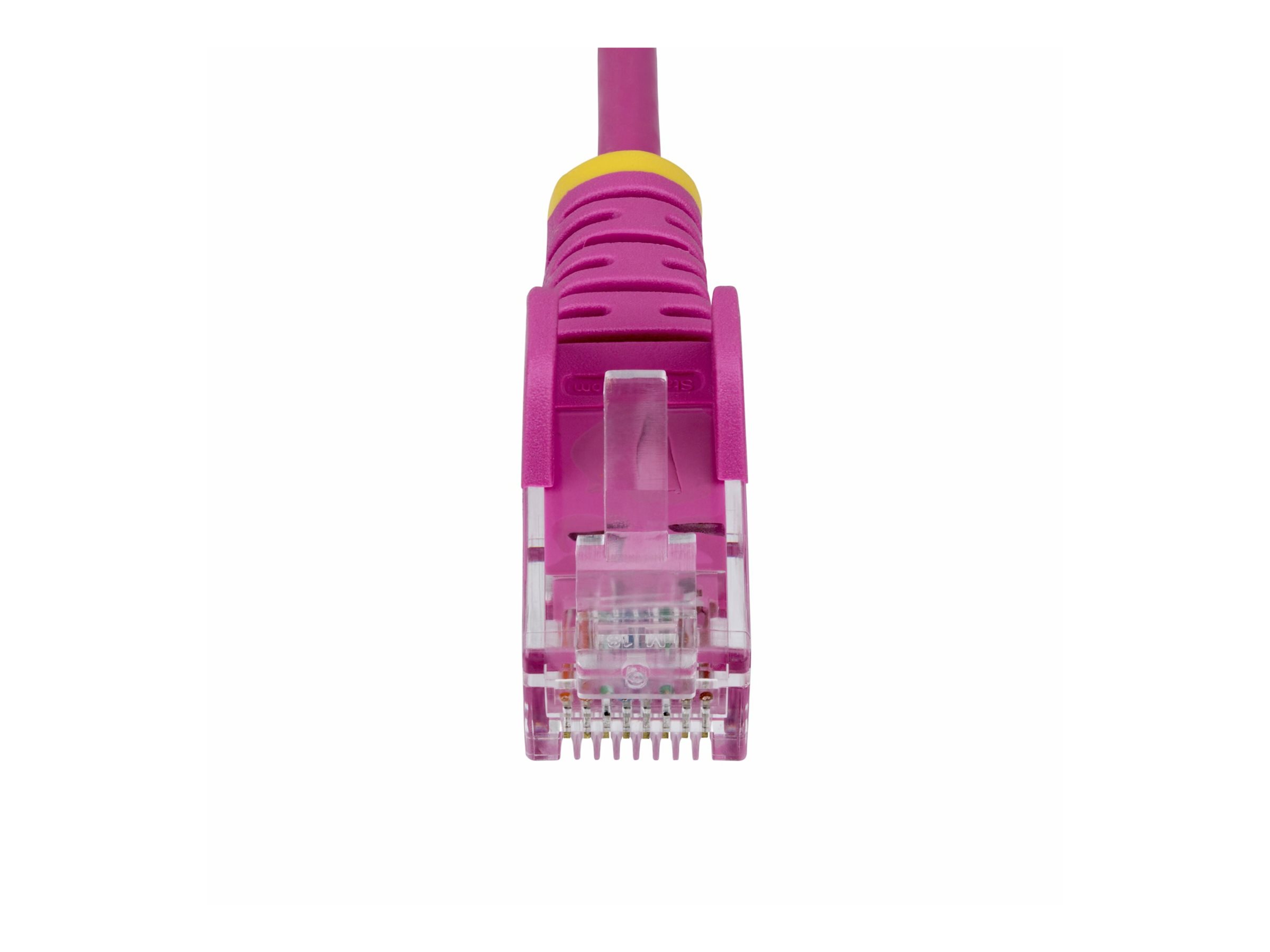

The 2.5m Pink Slim CAT6 Ethernet Cable from StarTech.com is designed to deliver reliable performance for all networking needs. This patch cable adheres to IEEE 802.3bt standards, ensuring compatibility and effectiveness for a variety of applications. It supports speeds of up to 1 Gbps and features 100W PoE++ support, making it suitable for powering devices while maintaining robust data transmission. Constructed with pure bare copper conductors, the cable minimizes Near-End Crosstalk (NEXT) and reduces Return Loss (RL), which enhances overall signal quality. With features like flame-retardant and strain relief, it provides both safety and durability. The low smoke zero halogen (LSZH) jacket ensures a safer environment in case of fire, while the snagless design allows for easy installation without any interference.
- Supports speeds up to 1 Gbps
- Features 100W PoE++ support
- Minimizes Near-End Crosstalk (NEXT)
- Constructed with pure bare copper conductors
- Low smoke zero halogen (LSZH) jacket
- Reliable performance
This cable supports up to 1 Gbps, providing fast data transfer for various applications, including seamless Internet connectivity. - Enhanced durability
Constructed with pure bare copper conductors, this Ethernet cable reduces Return Loss (RL) and mitigates Near-End Crosstalk (NEXT) for improved signal integrity. - Environmentally friendly design
The low smoke zero halogen (LSZH) jacket material makes this cable safer to use in case of fire by minimizing harmful emissions. - Effective power delivery
With support for 100W PoE++, this cable can power devices such as IP cameras and VoIP phones while facilitating data transmission. - User-friendly features
The snagless design prevents cable damage during installation, while features like strain relief and flame-retardant add to the safety and longevity of the cable.
Main Specifications
Product Description | Startech 2.5m Pink Slim CAT6 Ethernet Cable, Snagless, 28AWG, LSZH – patch cable – 2.5 m – pink |
Type | Patch cable – CAT 5/5e/6 – IEEE 802.3bt |
Technology | Unshielded twisted pair (UTP) |
Wiring Scheme | T568B |
Wires per Cable | 8 wires |
Features | Halogen-free, snagless, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 1 Gbps, 100W PoE++ support |
Cable Length | 2.5 m |
Diameter | 3.6 mm |
Connector | RJ-45 – male |
Connector (Second End) | RJ-45 – male |
Colour | Pink |
Extended Specifications
General
Network Cable Type | Patch cable – CAT 5/5e/6 – IEEE 802.3bt |
|---|
Technology | Unshielded twisted pair (UTP) |
|---|
Wiring Scheme | T568B |
|---|
Jacket Material | Low Smoke Zero Halogen (LSZH) |
|---|
American Wire Gauge (AWG) | 28 |
|---|
Wires per Cable | 8 wires |
|---|
Pairs per Cable | 4 pairs |
|---|
Plated Connector | Gold |
|---|
Features | Halogen-free, snagless, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 1 Gbps, 100W PoE++ support |
|---|
Cable Length | 2.5 m |
|---|
Diameter | 3.6 mm |
|---|
Colour | Pink |
|---|
Connectivity
Connector | RJ-45 – male |
|---|
Connector (Second End) | RJ-45 – male |
|---|
Miscellaneous
Compliant Standards | RoHS, ANSI/TIA-568-C.2, IEEE 802.3bt Type 4 – up to 250 MHz |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 20 cm |
|---|
Shipping Depth | 22 cm |
|---|
Shipping Height | 1 cm |
|---|
Shipping Weight | 54 g |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 60 °C |
|---|
