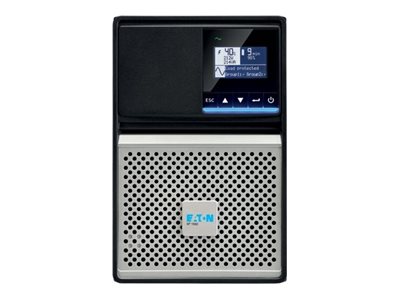

Eaton 5P Gen2 1550i, UPS, AC 200-240 V, 1350 Watt, 1550 VA, 1-phase, 9 Ah, RS-232, USB, output connectors: 5, Australia, New Zealand
$1,707.00 inc GST
✓ In Stock - 3 available
✓ Free NZ Delivery
3 in stock
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The Eaton 5P Gen2 1550i provides reliable protection for critical devices with its robust UPS capabilities. Equipped with a maintenance-free, hot-swappable lead acid battery, it ensures uptime for up to 16 minutes, ideal for short power interruptions. The unit operates within a temperature range of 0°C to 40°C and maintains a low sound emission of 35 dB for a quieter environment. Its efficient design, with an input voltage range of AC 160 – 294 V and a power capacity of 1550 VA, ensures all connected devices receive stable power. With an efficiency rating of 97% and a fast transfer time of 6 ms, this UPS minimizes downtime while offering advanced battery management features and an easy-to-read LCD display that helps monitor power usage effectively.
- Provides backup power for critical devices
- Maintenance-free and hot-swappable lead acid battery
- Low sound emission for quieter operation
- High efficiency with a rating of 97%
- Fast transfer time of 6 ms
- Efficient Power Management
The Eaton 5P Gen2 is designed for high efficiency, operating at a rating of 97%. This means less energy waste and cost savings over time. The advanced battery management system ensures optimal battery life and performance. - Robust Connectivity Options
Offering multiple connection types including 4-pin USB Type-B and management ports, it provides flexibility for various setup configurations while ensuring seamless remote management. - Environmentally Friendly Design
Compliant with several standards like RoHS and WEEE, this UPS is designed with environmentally responsible materials and practices while maintaining excellent performance. - Safe and Reliable Operation
With features like discharge protection and a programmable outlet bank, users can have peace of mind that their connected devices are protected against damages from electrical issues.
Main Specifications
Product Description | Eaton 5P Gen2 1550i – UPS – 1350 Watt – 1550 VA |
Device Type | UPS – external |
Weight | 15.1 kg |
Input Wiring | 1-phase |
Input Voltage | AC 200-240 V |
Output Voltage | AC 230 V + 6% / – 10% |
Power Capacity | 1350 Watt / 1550 VA |
Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 3 x power IEC 60320 C13 2 x power AS/NZS 3112 |
Battery | Lead Acid – 9 Ah |
Batteries Qty | 3 |
Run Time (Up To) | 16 min |
Networking | RS-232, USB |
Dimensions (WxDxH) | 15 cm x 44.5 cm x 23.3 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Power Device
UPS Technology | Line interactive |
|---|---|
Input Voltage | AC 200-240 V |
Input Voltage Range | AC 160 – 294 V |
Input Voltage Range (Adjustable) | AC 150 – 294 V |
Frequency Provided | 50/60 Hz |
Input Wiring | 1-phase |
Frequency Required | 47 – 70 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 3 x power IEC 60320 C13 2 x power AS/NZS 3112 |
Output Voltage | AC 230 V + 6% / – 10% – 50/60 Hz |
Max Electric Current | 10 A |
Power Capacity | 1350 Watt / 1550 VA |
Output Waveform | Sinewave |
Efficiency | 97% |
Battery
Quantity | 3 |
|---|---|
Technology | Lead Acid |
Voltage Provided | DC 12 V |
Capacity | 9 Ah |
Transfer Time | 6 ms |
Features | Sealed, maintenance free, valve-regulated, hot-swappable |
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x RPO/ROO – mini terminal block 1 x management (USB) – 4 pin USB Type B 1 x management (RS-232) |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Communication slot |
Miscellaneous
Cables Included | 2 x connection cable – external Communication cable – external |
|---|---|
Features | LCD display, Advance Battery Management (ABM), energy metre, discharge protection, programmable outlet bank, LED indicator |
Compliant Standards | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040-2, IEC/EN 62040-3, FCC Part 15 B, CISPR 32 Class B, CB, TUV, cTUVus, UKCA, UKR, CM, RoHS, REACH, WEEE, EN IEC 61000-3-2, IEC/EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IP20 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 90% (non-condensing) |
Sound Emission | 35 dB |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 44.5 cm |
Height | 23.3 cm |
Weight | 15.1 kg |
