Description

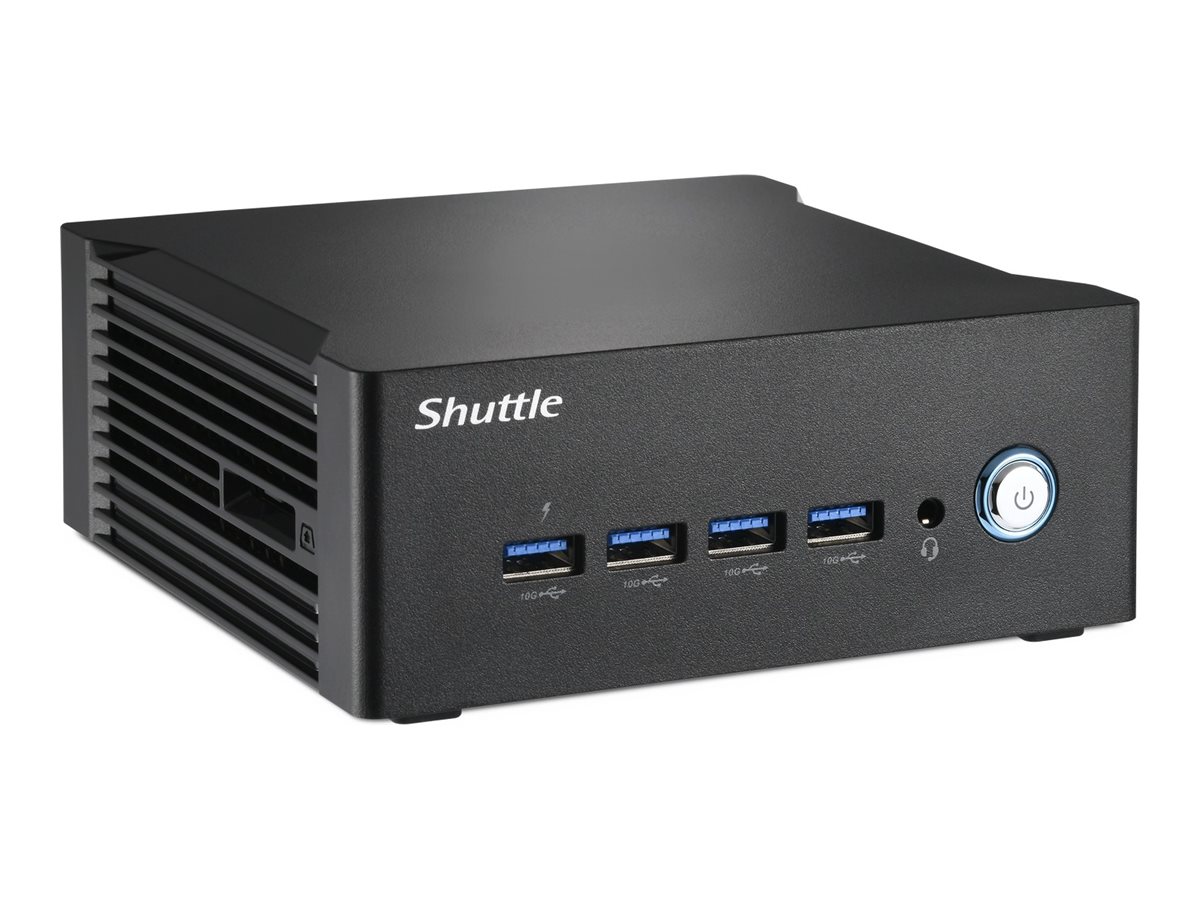

The Shuttle XPC nano NA10H7 is a versatile mini PC that combines power and compactness effectively. This device is perfect for users who require a space-saving solution without compromising performance. The AMD Ryzen 7 processor, featuring an 8-core design and capable of reaching clock speeds up to 5.1 GHz, ensures that tasks are handled with ease. The integrated AMD Radeon 780M graphics processor provides reliable graphics performance suitable for various applications. Additionally, the Shuttle XPC nano serves as a PC barebone, allowing customization through RAM and storage options. Equipped with multiple connectivity ports, including USB 3.2 Gen 2 and HDMI, it caters to modern connectivity needs while also supporting versatile audio output through its integrated Realtek ALC269 audio codec. Designed for a range of environmental conditions, this mini PC operates effectively in temperatures ranging from 0°C to 40°C, making it suitable for both home and office setups.
- Compact design ideal for space-constrained environments
- Powerful AMD Ryzen 7 processor with 8 cores
- Integrated AMD Radeon 780M graphics for dependable performance
- Versatile connectivity with multiple ports including USB 3.2 Gen 2
- Supports a wide range of operating temperatures and humidity levels
- Efficient performance
The AMD Ryzen 7 processor offers high performance with a clock speed of up to 5.1 GHz, enabling efficient multitasking and high-speed processing for various applications. - Compact form factor
Designed as an ultra small form factor mini PC, the Shuttle XPC nano optimizes space usage, making it suitable for environments where space is limited. - Flexible connectivity options
Equipped with multiple connectivity options, including HDMI, USB 3.2 Gen 2, and DisplayPort 1.4, this mini PC provides versatility for connecting to a wide range of devices. - Advanced cooling capabilities
Engineered to operate within a range of 0°C to 40°C, the Shuttle XPC nano maintains reliable performance in various environmental conditions. - Security features included
This mini PC is equipped with a Trusted Platform Module (TPM 2.0) security chip, enhancing the overall security of your data and applications.
What’s in the Box
- Shuttle XPC nano NA10H7
- VESA mounting kit
- Power adapter
Main Specifications
Product Description | Shuttle XPC nano NA10H7 – mini PC Ryzen 7 8845HS 3.8 GHz – 0 GB – no HDD |
Type | PC barebone – mini PC |
Processor | 1 x AMD Ryzen 7 8845HS / 3.8 GHz (up to 5.1 GHz, (8-core) |
Neural Processor Unit (NPU) | AMD Ryzen AI – up to 16 TOPS |
Cache Memory | 16 MB |
Cache Per Processor | 16 MB |
RAM | 0 GB (installed) / 64 GB (max) – DDR5 SDRAM |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Card Reader | Yes |
Graphics Controller | AMD Radeon 780M |
Audio Output | Stereo |
Networking | 1GbE |
Power | (50 – 60 Hz) |
OS Provided | No operating system |
Dimensions (WxDxH) | 13.2 cm x 14.3 cm x 5.5 cm |
Weight | 800 g |
Extended Specifications
General
Type | PC barebone |
|---|
Product Form Factor | Mini PC |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Processor / Chipset
CPU | AMD Ryzen 7 8845HS |
|---|
Clock Speed | 3.8 GHz |
|---|
Max Turbo Speed | 5.1 GHz |
|---|
Number of Cores | 8-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Neural Processor Unit (NPU)
Neural Processor Unit (NPU) | AMD Ryzen AI |
|---|
NPU Performance Up To (TOPS) | 16 TOPS |
|---|
Total Processor Performance Up To (TOPS) | 38 TOPS |
|---|
Cache Memory
Installed Size | 16 MB |
|---|
Cache Per Processor | 16 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 64 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) |
|---|
Hard Drive
Optical Storage
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | SD Memory Card |
|---|
Monitor
Graphics Controller
Graphics Processor | AMD Radeon 780M |
|---|
Audio Output
Networking
Ethernet Controller | Realtek RTL8125B |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Expansion / Connectivity
Slots | 1 (total) / 1 (free) x M.2 Card – 2280 (Key B-M)
1 (total) / 0 (free) x M.2 Card – 2230 |
|---|
Interfaces | 1 x headphones/microphone
5 x USB 3.2 Gen 2
2 x DisplayPort 1.4/USB4
2 x HDMI
2 x LAN (2.5Gigabit Ethernet)
1 x USB 2.0 |
|---|
Miscellaneous
Included Accessories | VESA mounting kit |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Compliant Standards | BSMI, FCC, RoHS |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
|---|
Power Provided | 120 watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Dimensions & Weight
Width | 13.2 cm |
|---|
Depth | 14.3 cm |
|---|
Height | 5.5 cm |
|---|
Weight | 800 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
