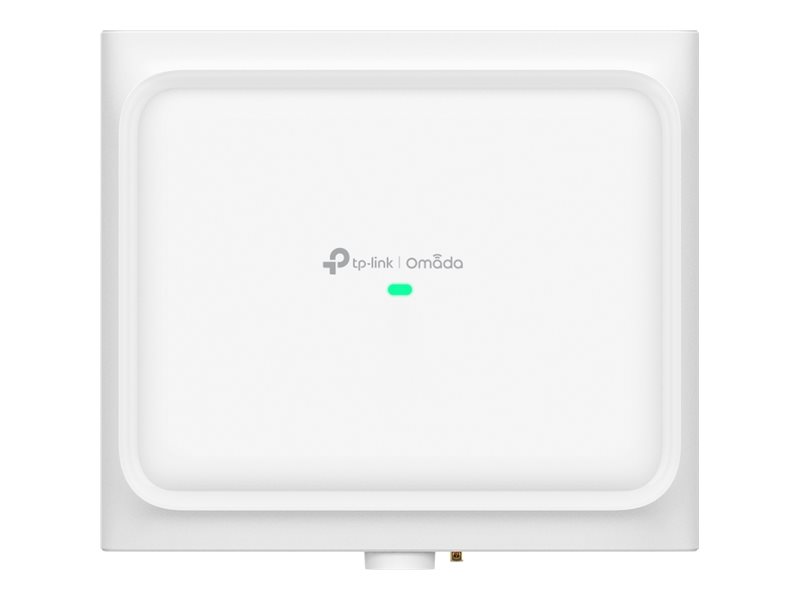

TP-Link Omada EAP650 D120-Outdoor V1, Radio access point, 1GbE, Wi-Fi 6, Bluetooth, 2.4 GHz, 5 GHz, cloud-managed, wall / pole mountable
$380.85 inc GST
✓ In Stock - 4 available
✓ Free NZ Delivery
4 in stock
Ships from: Auckland, Wellington, or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The TP-Link Omada EAP650 D120-Outdoor V1 is designed for wireless connectivity in outdoor environments. It features a ruggedized design with an IP68 rating, ensuring resilience against harsh weather conditions. With the capability to support up to 4000 concurrent clients and a data transfer rate of 3 Gbps, this access point is ideal for high-traffic areas such as parks, campus environments, and outdoor events. Equipped with security protocols including WPA3 and WPA2 encryption, the EAP650 ensures secure connections. Its dual-band functionality allows for operation on both 2.4 GHz and 5 GHz frequencies, optimizing performance across various devices. With convenient features like seamless roaming and beamforming technology, users experience uninterrupted connectivity whether they are moving around or stationary.
- Supports up to 4000 concurrent clients
- Weather-resistant IP68 rated design
- Data transfer rate of 3 Gbps for fast connectivity
- Security features with WPA3 encryption
- Equipped with seamless roaming for smooth user experience
- Robust outdoor design
The EAP650 is crafted with a ruggedized design that meets the IP68 standard, allowing it to withstand extreme weather conditions and ensuring reliability outdoors. - High client capacity
This access point can support up to 4000 concurrent clients, making it suitable for crowded environments like public parks or event venues. - Fast data transfer rates
With a maximum data rate of 3 Gbps, the EAP650 allows for high-speed Internet access, essential for meeting the demands of modern applications and streaming services. - Advanced security features
The EAP650 includes encryption options like WPA3-Enterprise and WPA2-Enterprise, providing enhanced security for users connected to the network. - Smooth user experience
Featuring seamless roaming, clients can move around a coverage area without losing connectivity, ensuring continuous access to the network.
What’s in the Box
- TP-Link Omada EAP650 D120-Outdoor V1
- Mounting kit, passive PoE adapter
Main Specifications
Product Description | TP-Link Omada EAP650 D120-Outdoor V1 – radio access point – Wi-Fi 6, Bluetooth – cloud-managed |
Device Type | Radio access point |
Form Factor | Wall / pole mountable – outdoor |
Data Link Protocol | Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 2402 Mbps |
Capacity | Maximum number of configured SSIDs: 16 SSIDs per wireless band: 8 Number of concurrent clients: 250+ Maximum MAC filters: 4000 |
Included Accessories | Passive PoE adapter, mounting kit |
OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
Power Over Ethernet (PoE) Supported | Passive PoE / PoE+ |
Dimensions (WxDxH) | 23 cm x 20.75 cm x 5.8 cm |
Weight | 1.4 kg |
Extended Specifications
General
Device Type | Radio access point |
|---|---|
Ruggedized Design | Outdoor |
Width | 23 cm |
Depth | 20.75 cm |
Height | 5.8 cm |
Weight | 1.4 kg |
Networking
Form Factor | Wall / pole mountable |
|---|---|
Connectivity Technology | Wireless |
Data Transfer Rate | 3 Gbps |
Line Coding Format | 1024 QAM, OFDMA |
Data Link Protocol | Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth |
Spread Spectrum Method | OFDMA |
Network / Transport Protocol | HTTP, NTP |
Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, SSH, NTP |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 2402 Mbps |
Capacity | Maximum number of configured SSIDs: 16 SSIDs per wireless band: 8 Number of concurrent clients: 250+ Maximum MAC filters: 4000 |
Wi-Fi Rating | AX3000 |
Status Indicators | Status |
Features | Omada Mesh technology, seamless roaming, VLAN support, reset button, wireless radio enable/disable, Transmit Power Control (TPC), Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, 2×2 MU-MIMO technology, Airtime Fairness, band steering, beamforming technology, load balance network mode, rate limit, schedule reboot, usage statistics, Wireless Scheduler, Access Control List (ACL) support, client isolation, MAC address filtering, portal page authentication, rogue AP detection, SSID to VLAN mapping, backup/restore, email alert notification, system log, layer 3 management, Zero-touch provisioning (ZTP), 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), 6KV lightning protection (common mode) |
Encryption Algorithm | WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
Authentication Method | Radio Service Set ID (SSID) |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at, IEEE 802.1x |
Aerial
Antenna | Internal |
|---|---|
Antenna Qty | 4 |
Directivity | Directional |
Expansion / Connectivity
Interfaces | 1 x 1000Base-T (PoE+) – RJ-45 |
|---|
Miscellaneous
Included Accessories | Passive PoE adapter, mounting kit |
|---|---|
Compliant Standards | FCC, RoHS, IP68 |
Power
Power Over Ethernet (PoE) Supported | Passive PoE / PoE+ |
|---|---|
Power Device | Power injector |
Power Consumption Operational | 12.5 Watt |
Software / System Requirements
OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
|---|
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|---|
Max Operating Temperature | 70 °C |
Humidity Range Operating | 10 – 90% RH (non-condensing) |
