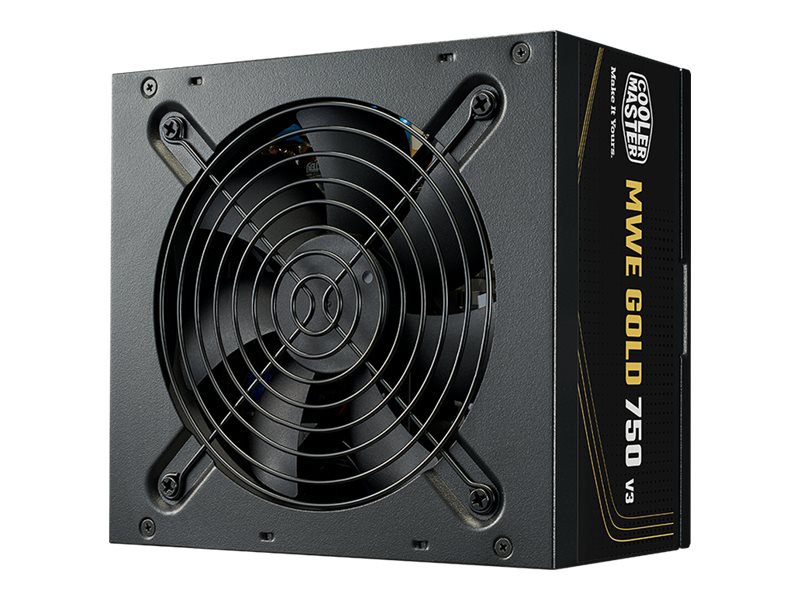

Cooler Master MWE Gold V3 750, Power supply (internal), ATX12V 3.1/ EPS12V, 80 PLUS Gold, AC 100-240 V, 750 Watt, active PFC, Australia
$128.62 inc GST
✓ In Stock - 50 available
✓ Free NZ Delivery
50 in stock
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Cooler Master MWE Gold V3 750 power supply is designed with efficiency and reliability in mind, providing 750 W of power with 90% efficiency. This power supply is compliant with a range of standards including TUV, FCC, and RoHS 2.0, ensuring safe and eco-friendly operation. With features such as overheat and overcurrent protection, as well as a hydrodynamic bearing cooling fan, it offers performance and longevity across its 100,000 hours MTBF lifespan. The ATX12V 3.1 and EPS12V compatibility makes it a versatile choice for various builds, whether for a gaming rig or a professional workstation.
- Efficiency with 80 PLUS Gold certification
- Comprehensive protection features for safety
- Cooling system equipped with a 120 mm fan
- Compatible with ATX12V 3.1 and EPS12V
- Lifespan of 100,000 hours MTBF
- Efficient power delivery
With a power output of 750 W and 90% efficiency, the Cooler Master MWE Gold V3 ensures reliable performance for demanding applications. - Advanced protection mechanisms
Features such as overheat, overcurrent, and short-circuit protection safeguard the power supply and connected devices from potential hazards. - Robust cooling system
The 120 mm hydrodynamic bearing fan efficiently dissipates heat, maintaining optimal operating temperatures for sustained performance. - Compliance with standards
This power supply meets various compliance standards, ensuring safety, efficiency, and environmental responsibility, including RoHS and ErP Lot 3 2014. - Versatile connectivity options
Includes multiple connector types and quantities to support a wide range of components, making it suitable for different types of builds.
Main Specifications
Product Description | Cooler Master MWE Gold V3 750 – power supply – 750 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V |
80 PLUS Certification | 80 PLUS Gold |
Weight | 1.8 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
Power Capacity | 750 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 62.5 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 12VHPWR |
Cooling System | 120 mm fan |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 12VHPWR |
Output Voltage | +3.3, +5, +12 V, +5Vsb V |
Power Capacity | 750 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 62.5 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 90% |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
MTBF | 100,000 hours |
|---|---|
Cooling System | 120 mm fan |
Features | Undervoltage correction, overpower protection, overheat protection, short-circuit protection, over voltage protection, over current protection, hydrodynamic bearing cooling fan, DC-DC technology |
Compliant Standards | ErP Lot 3 2014 Ready, TUV, CCC, FCC, BSMI, UKCA, RCM, RoHS 2.0, BIS, KC, cTUVus |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.8 kg |
Dimensions & Weight (Shipping)
Shipping Width | 19 cm |
|---|---|
Shipping Depth | 26 cm |
Shipping Height | 11 cm |
Shipping Weight | 2.21 kg |
