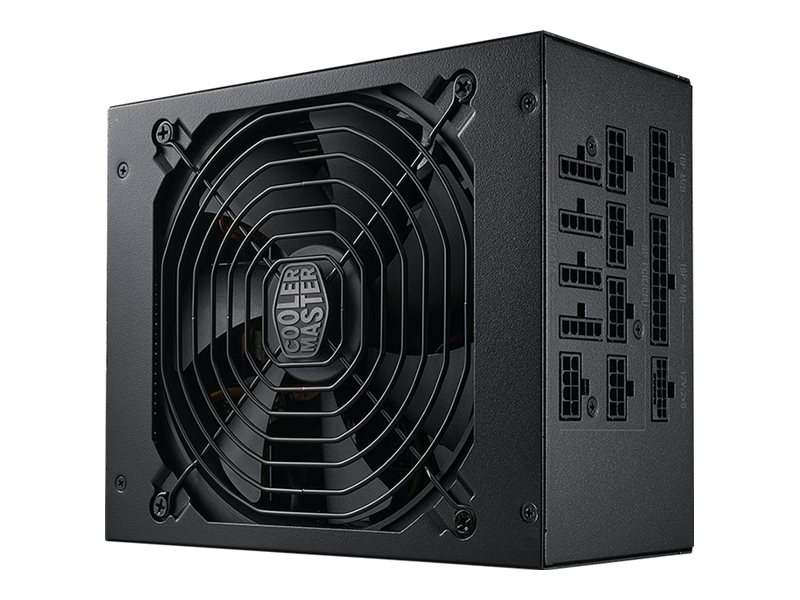

Cooler Master MWE Gold V2 1250, Power supply (internal), ATX12V 3.1/ EPS12V, 80 PLUS Gold, AC 100-240 V, 1250 Watt, active PFC, Australia
$376.02 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The Cooler Master MWE Gold V2 1250 White Edition power supply is designed to deliver efficiency and robust power output for demanding PC builds. With an 80 PLUS Gold certification, it ensures up to 90% efficiency, significantly reducing electricity usage and heat generation. The fully modular cable management system allows users to minimize clutter, improving airflow and aesthetic appeal of their system. Equipped with a 140 mm fan that utilizes dual ball bearing technology, it provides reliable cooling performance, keeping noise levels low and extending the lifespan of the power supply. Safety is a priority, featuring protections against overcurrent, overheat, overpower, overvoltage, and more, safeguarding your valuable components from electrical anomalies. Whether you’re building a gaming rig, a workstation, or a server, the Cooler Master MWE Gold V2 1250 offers the performance, reliability, and flexibility you need.
- 140 mm fan with dual ball bearing for efficient cooling
- Fully modular cable management for a clean build
- 80 PLUS Gold certified for high energy efficiency
- Comprehensive protection features for component safety
- Compatible with a wide range of PC/Server configurations
- Efficient cooling
Equipped with a 140 mm fan featuring dual ball bearing cooling technology, this power supply ensures optimal thermal performance, keeping your system cool under heavy loads. - Comprehensive protection
This power supply offers a suite of protection features including overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage protection, ensuring the safety and longevity of your components. - Highly modular
With fully modular cable management, users have the flexibility to use only the cables they need, leading to a cleaner build and improved airflow within the PC case. - Gold efficiency
Boasting an 80 PLUS Gold certification, this power supply operates at a minimum of 90% efficiency at 50% load, reducing electricity usage and operating cost. - Wide compatibility
Supporting a broad range of power output connectors and compliant with ATX12V 3.0/ EPS12V specifications, this power supply is compatible with a variety of PC/Server configurations.
Main Specifications
Product Description | Cooler Master MWE Gold V2 1250 – power supply – 1250 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V 3.1/ EPS12V |
80 PLUS Certification | 80 PLUS Gold |
Weight | 3.02 kg |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 1250 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 104 A -12V – 0.3 A +5VSB – 3 A |
Output connectors | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 3 x 8 pin PCI Express power with detachable 2 pin section 12 x 15 pin Serial ATA power 4 x 4 PIN internal power 1 x power 8 pin EPS12V 1 x 12VHPWR |
Modular Cable Management | Yes |
Cooling System | 140 mm fan |
Dimensions (WxDxH) | 15 cm x 18 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V 3.1/ EPS12V |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 50 – 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 3 x 8 pin PCI Express power with detachable 2 pin section 12 x 15 pin Serial ATA power 4 x 4 PIN internal power 1 x power 8 pin EPS12V 1 x 12VHPWR |
Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
Power Capacity | 1250 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 104 A -12V – 0.3 A +5VSB – 3 A |
Efficiency | 90% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Cables Included | AC power cable Power 24 pin ATX modular cable 65 cm Power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm 3 x 15 pin Serial ATA power modular cable 86 cm Power 8 pin EPS12V modular cable 65 cm 4 pin power modular cable 86 cm 16-pin 12VHPWR power modular cable 65 cm 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 55 cm |
|---|---|
MTBF | 100,000 hours |
Cooling System | 140 mm fan |
Features | Fully modular, overpower protection, over voltage protection, short-circuit protection, undervoltage protection, overheat protection, over current protection, inrush protection, dual ball bearing cooling fan |
Compliant Standards | ErP Lot 3 2014 Ready, CCC, RCM, EAC, cTUVus, FCC, BSMI, TUV, UKCA, BIS |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 50 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 18 cm |
Height | 8.6 cm |
Weight | 3.02 kg |
Dimensions & Weight (Shipping)
Shipping Width | 33.3 cm |
|---|---|
Shipping Depth | 19.7 cm |
Shipping Height | 12.2 cm |
Shipping Weight | 3.42 kg |
