Cooler Master MWE Gold V2 750, Power supply (internal), ATX12V 2.41/ EPS12V, 80 PLUS Gold, AC 100-240 V, 750 Watt, active PFC, Australia

$186.49 inc GST

✓  In Stock  -  50 available

✓  Free NZ Delivery

50 in stock

Ships from: Auckland or Christchurch
  • Allow 1–2 days for delivery
  • Add 1–2 days if you are rural
  • No collections
Manufacturer:Cooler Master
Part Number:MPE-7501-AFAAG-3EAU
Warranty:5 Years
PPID:AB49244

Description

The Cooler Master MWE Gold V2 750 power supply is designed to deliver reliable and efficient power while optimizing system performance. With a maximum output of 750 W, it is ideal for high-performance gaming rigs and workstations. The 80 PLUS Gold certification ensures up to 90% efficiency, reducing electricity costs and heat generation. Equipped with a hydrodynamic bearing cooling fan and a 120 mm fan, this power supply maintains optimal temperatures, even under heavy loads. With an MTBF of 100,000 hours, it ensures longevity and durability, making it a dependable choice for any setup.

  • 80 PLUS Gold efficiency
  • 2 EPS connectors
  • 120mm HDB fan
  • High temperature resilience
  • Flat black cables
  • 2 EPS connectors
    All MWE Gold – V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. You never have to worry if you’ll have enough connectors to use your ideal components.
  • Quiet cooling
    The MWE Gold – V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures has been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
  • High temperature resilience
    While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold – V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what’s possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system’s power supply can take the heat.
  • Flat black cables
    The MWE Gold – V2 comes with flat black cables. These cables are easily manipulated, folded, and maneuvered for the most efficient use of space possible, thereby reducing clutter. This more effective use of space within the chassis allows for reduced clutter and better airflow, thereby improving your system’s overall cooling and lowering temps. Flat black cables also carry the aesthetic benefit of standing out less and taking up less space when displaying your components within a transparent window case.

Main Specifications

80 PLUS Certification

80 PLUS Gold

Weight

2.17 kg

Input Voltage

AC 100-240 V

Output Voltage

+3.3, +5, +12 V, +5Vsb V

Power Capacity

750 Watt

Output Current

+3.3V – 20 A
+5V – 20 A
+12V – 62.5 A
-12V – 0.3 A
+5VSB – 3 A

Output connectors

1 x power 24 pin ATX
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
1 x power 8 pin EPS12V
12 x 15 pin Serial ATA power
4 x 4 PIN internal power
4 x 2 x 8 pin PCI Express power with detachable 2 pin section
1 x 12VHPWR

Modular Cable Management

Yes

Cooling System

120 mm fan

Included Accessories

Screws

Dimensions (WxDxH)

15 cm x 16 cm x 8.6 cm

Product Description

Cooler Master MWE Gold V2 750 – power supply – 750 Watt

Device Type

Power supply – active Power Factor Correction (PFC) – internal

Specification Compliance

ATX12V 2.41/ EPS12V

Extended Specifications

General

Device Type

Power supply – active Power Factor Correction (PFC) – internal

Specification Compliance

ATX12V 2.41/ EPS12V

PSU Form Factor

ATX

Power Device

Input Voltage

AC 100-240 V

Frequency Required

50 – 60 Hz

Power Output Connectors Details

1 x power 24 pin ATX
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
1 x power 8 pin EPS12V
12 x 15 pin Serial ATA power
4 x 4 PIN internal power
4 x 2 x 8 pin PCI Express power with detachable 2 pin section
1 x 12VHPWR

Output Voltage

+3.3, +5, +12 V, +5Vsb V

Power Capacity

750 Watt

Output Current

+3.3V – 20 A
+5V – 20 A
+12V – 62.5 A
-12V – 0.3 A
+5VSB – 3 A

Efficiency

90%

Modular Cable Management

Yes

80 PLUS Certification

80 PLUS Gold

Miscellaneous

Included Accessories

Screws

Cables Included

AC power cable
Power 24 pin ATX modular cable 61 cm
Power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 60 cm
2 x 2x 8 pin PCI Express power with detachable 2 pin section cable 67 cm
3 x power 15 pin SATA cable 86 cm
4 pin internal power cable 86 cm
Power 8 pin EPS12V modular cable 65 cm
16-pin 12VHPWR to 3×8 pin PCI Express power modular cable 65 cm

MTBF

100,000 hours

Cooling System

120 mm fan

Features

Fully modular, hydrodynamic bearing cooling fan, over voltage protection, overpower protection, overheat protection, short-circuit protection, over current protection, undervoltage correction, 90° angled 12VHPWR cable

Compliant Standards

ErP Lot 3 2014 Ready, TUV, CCC, EAC, RCM, cTUVus, FCC, BSMI, UKCA

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Dimensions & Weight

Width

15 cm

Depth

16 cm

Height

8.6 cm

Weight

2.17 kg

Dimensions & Weight (Shipping)

Shipping Width

31 cm

Shipping Depth

19.4 cm

Shipping Height

12 cm

Shipping Weight

2.57 kg

Additional information

Manufacturer

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

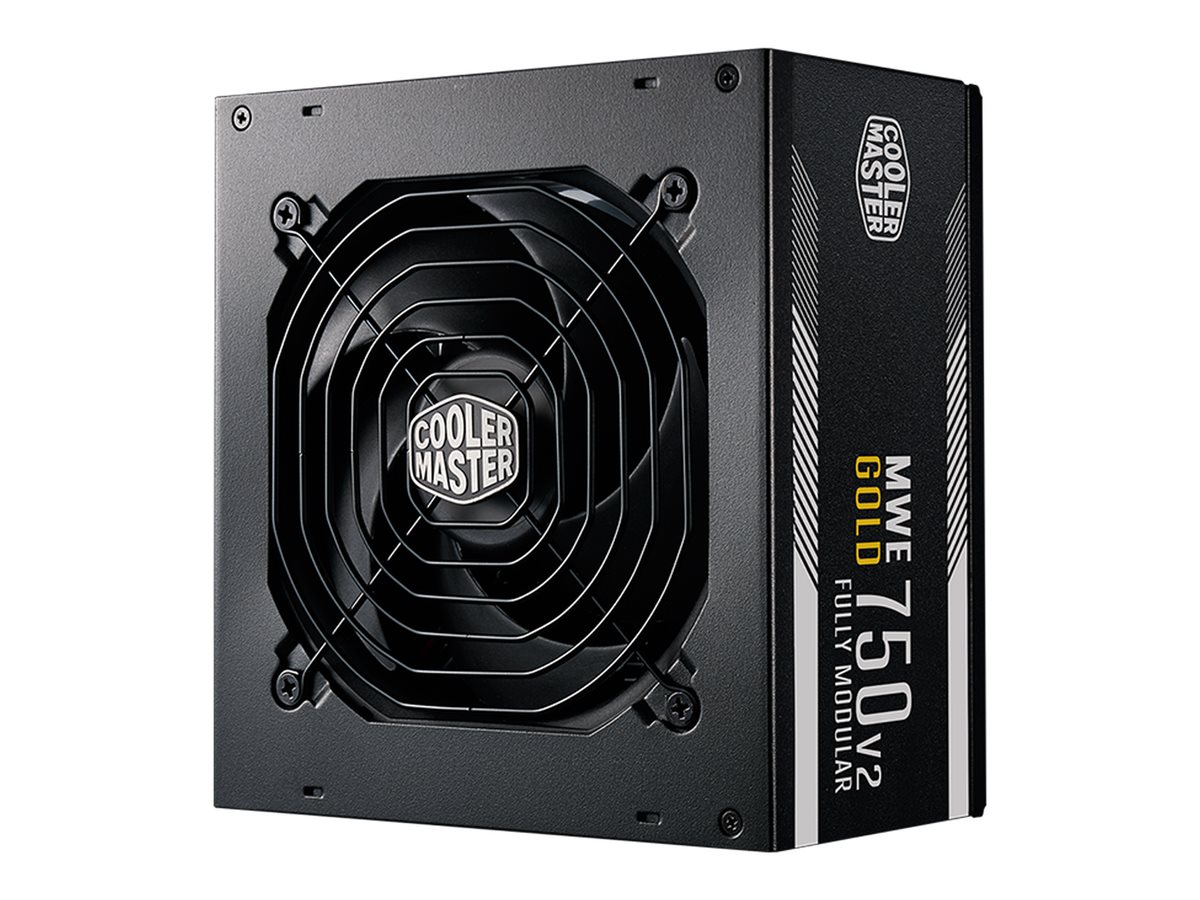

Cooler Master MWE Gold V2 750 power supply 750 Product shot Right-angle 79850
