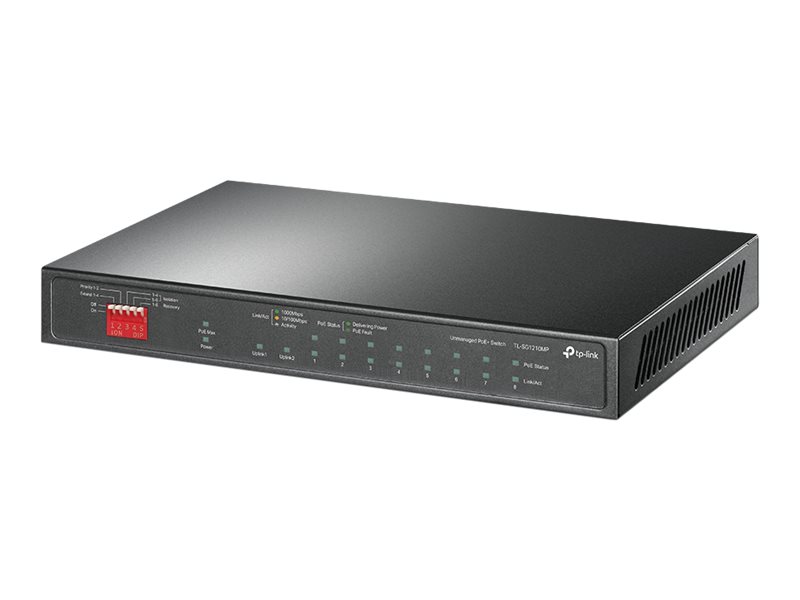

TP-Link TL-SG1210MP V2, Switch, unmanaged, 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink), desktop, wall-mountable, PoE+

Description

The TP-Link TL-SG1210MP V2 is a reliable Gigabit Ethernet switch designed to provide robust performance for both desktop and wall-mounted applications. With 8 PoE+ ports, this switch ensures efficient power distribution alongside data transfer. It operates effectively within a temperature range of 0°C to 40°C, making it suitable for various environments, while its fanless design promotes quiet operation. Several compliance standards, including FCC and RoHS, exhibit a commitment to quality and environmental safety.

• Nine gigabit RJ45 ports and one gigabit combo SFP/RJ45 port
• Eight PoE+ ports transfer data and power via a single cable with a total power budget of 123 W
• Compliance with IEEE 802.3af/at PoE+: the switch supports PoE power up to 30 W for each PoE port
• Up to 250 m data and power transmission range under Extend Mode
• Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required
• Fanless design reduces power consumption and works silently in its location

• Eight dedicated PoE+ ports (123W budget) for numerous applications
  Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123W PoE power budget for the eight PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
• System self-healing with PoE auto recovery
  The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
• Intelligent power management
  When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
• Durable metal casing
  The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

What’s in the Box

• TP-Link TL-SG1210MP V2
• External power adapter
