Description

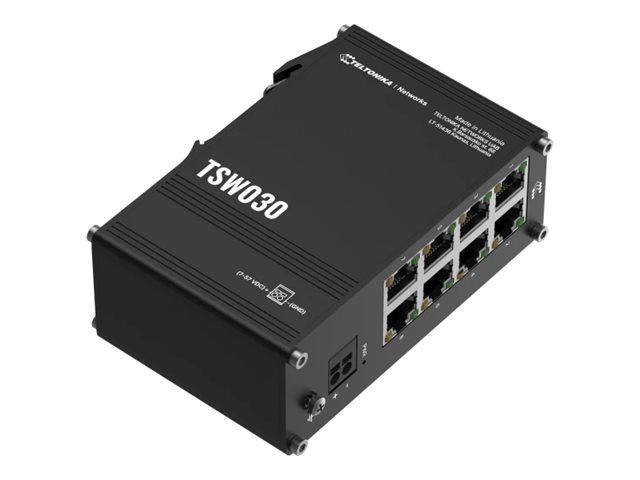

The Teltonika TSW030 is a reliable and efficient switch with a robust build that ensures optimal performance in various environmental conditions. With an operating temperature range of -40°C to 75°C and a humidity range of 5 – 95%, this product is suitable for both industrial and outdoor applications. The device features eight 10/100 Base-T ports and supports auto-uplink functionality, which simplifies connections and enhances network efficiency. Designed with user convenience in mind, the TSW030 boasts a packet buffer size of 128 KB and a non-blocking bandwidth of 20 Gbps, making it capable of handling high data loads without compromise. Its metal housing provides durability while maintaining compliance with various standards, such as IEEE 802.3u and IP30. The compact DIN rail mountable form factor ensures easy installation in diverse settings, making it a solid choice for any network setup.
- Operates across a wide temperature range from -40°C to 75°C
- Supports eight 10/100 Base-T ports with auto-uplink functionality
- Delivers a non-blocking bandwidth of 20 Gbps
- Features robust aluminum housing for durability
- Compliant with multiple networking standards including IEEE 802.3 series
- Reliable performance
The Teltonika TSW030 offers a non-blocking bandwidth of 20 Gbps, ensuring efficient handling of simultaneous connections and high data traffic. - Robust environmental resilience
This device operates effectively in extreme conditions, with a temperature range from -40°C to 75°C and humidity levels from 5% to 95%, allowing it to function reliably in diverse environments. - Versatile connectivity options
Equipped with eight 10/100 Base-T ports, the switch facilitates flexible networking solutions and supports automatic MDI/MDI-X for easy setup. - Durable construction
The aluminum housing offers protection against environmental stressors, promoting longevity and reliability in industrial applications. - Efficient space utilization
The DIN rail mountable form factor makes installation straightforward and space-efficient, catering to various setup requirements.
Main Specifications
Product Description | Teltonika TSW030 – switch – 8 ports – unmanaged |
Device Type | Switch – 8 ports – unmanaged |
Subtype | Fast Ethernet |
Ports | 8 x 10/100 |
Performance | Non-blocking bandwidth: 20 Gbps |
Capacity | Packet buffer size: 128 KB |
MAC Address Table Size | 2K entries |
Jumbo Frame Support | 9216 bytes |
Features | Auto-uplink (auto MDI/MDI-X), ground points, anodised aluminium housing |
Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
Dimensions (WxDxH) | 11.31 cm x 7.46 cm x 4.12 cm |
Weight | 256 g |
Extended Specifications
General
Device Type | Switch – 8 ports – unmanaged |
|---|
Enclosure Type | DIN rail mountable |
|---|
Subtype | Fast Ethernet |
|---|
Ports | 8 x 10/100 |
|---|
Performance | Non-blocking bandwidth: 20 Gbps |
|---|
Capacity | Packet buffer size: 128 KB |
|---|
MAC Address Table Size | 2K entries |
|---|
Jumbo Frame Support | 9216 bytes |
|---|
Features | Auto-uplink (auto MDI/MDI-X), ground points, anodised aluminium housing |
|---|
Compliant Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
|---|
Status Indicators | Power, Ethernet link/activity |
|---|
Expansion / Connectivity
Interfaces | 8 x 10/100 Base-T RJ-45 |
|---|
Power
Power Consumption Stand by | 0.5 Watt |
|---|
Miscellaneous
Dimensions & Weight
Width | 11.31 cm |
|---|
Depth | 7.46 cm |
|---|
Height | 4.12 cm |
|---|
Weight | 256 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 11.85 cm |
|---|
Shipping Depth | 7.95 cm |
|---|
Shipping Height | 4.57 cm |
|---|
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|
Max Operating Temperature | 75 °C |
|---|
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
