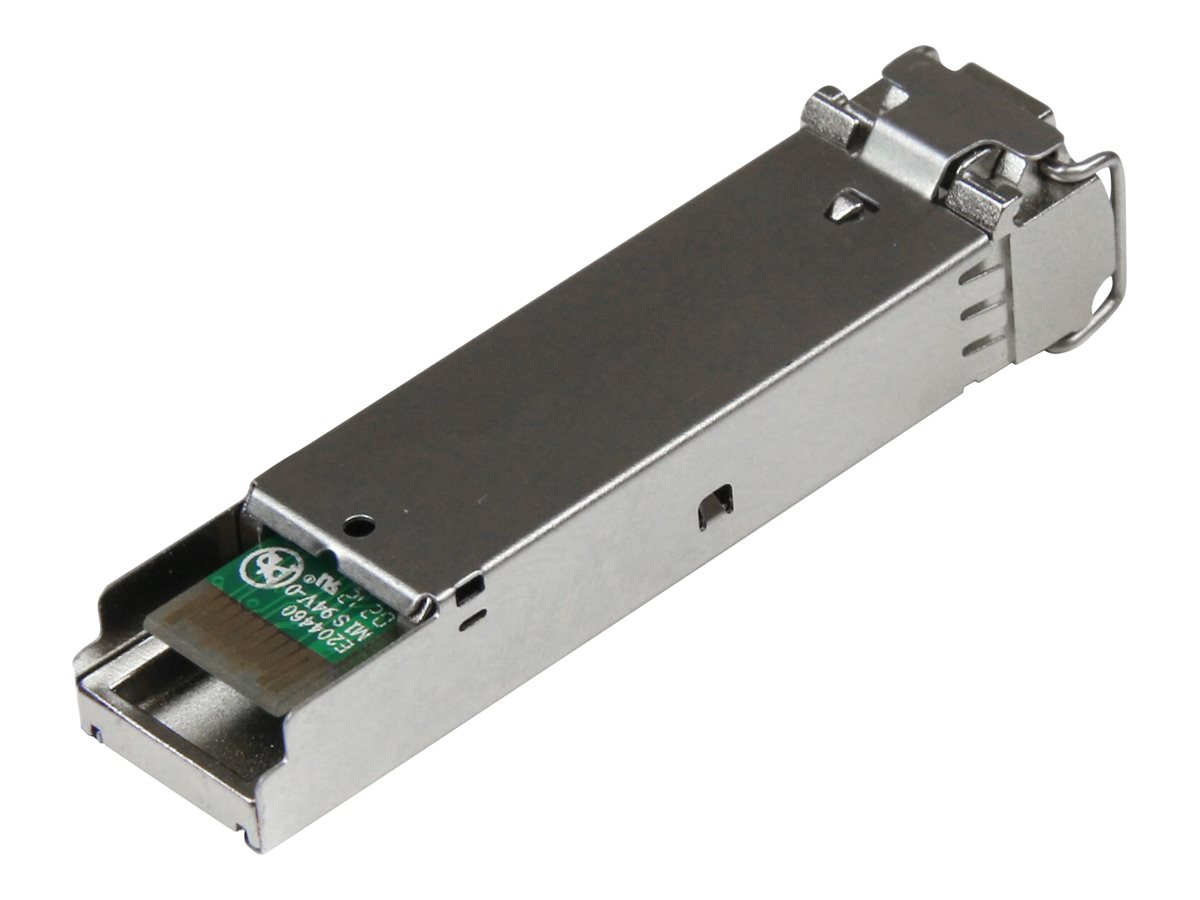

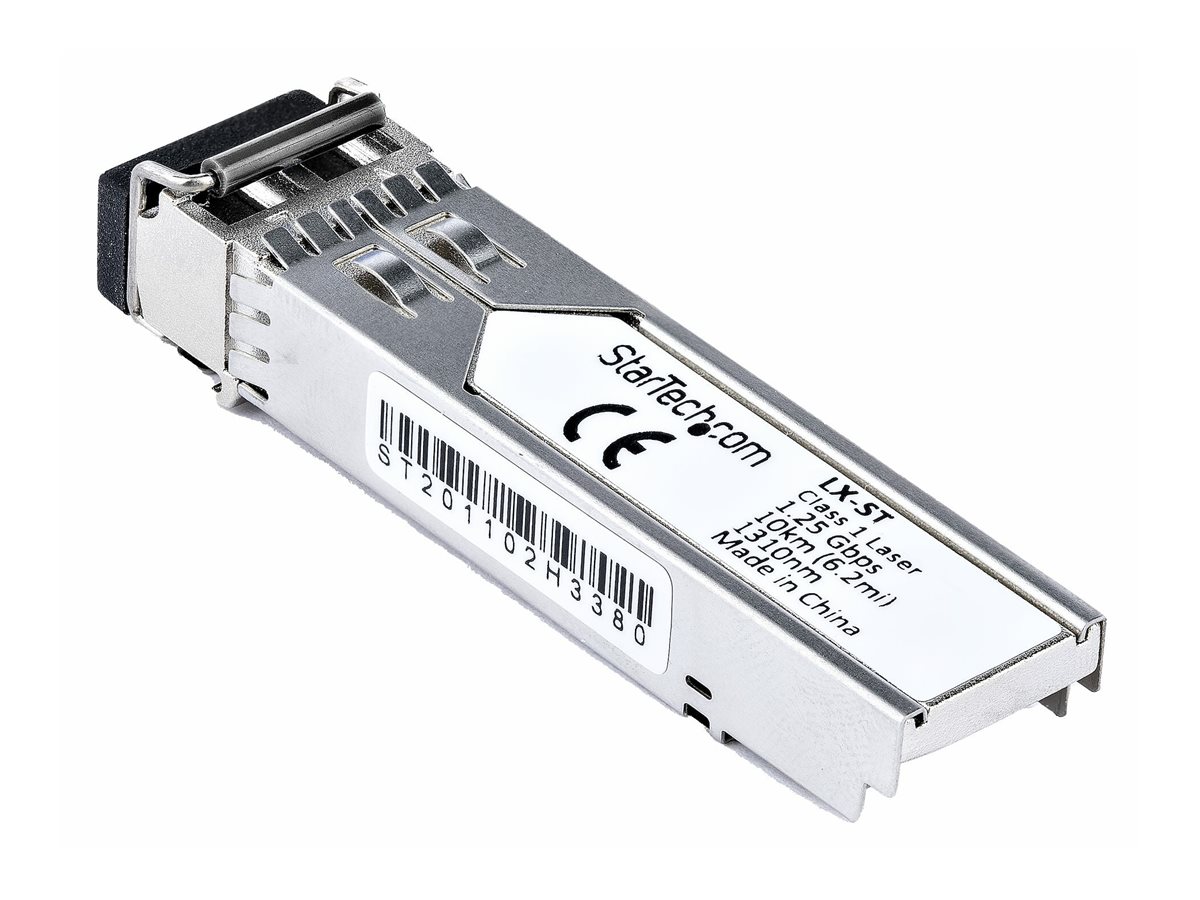

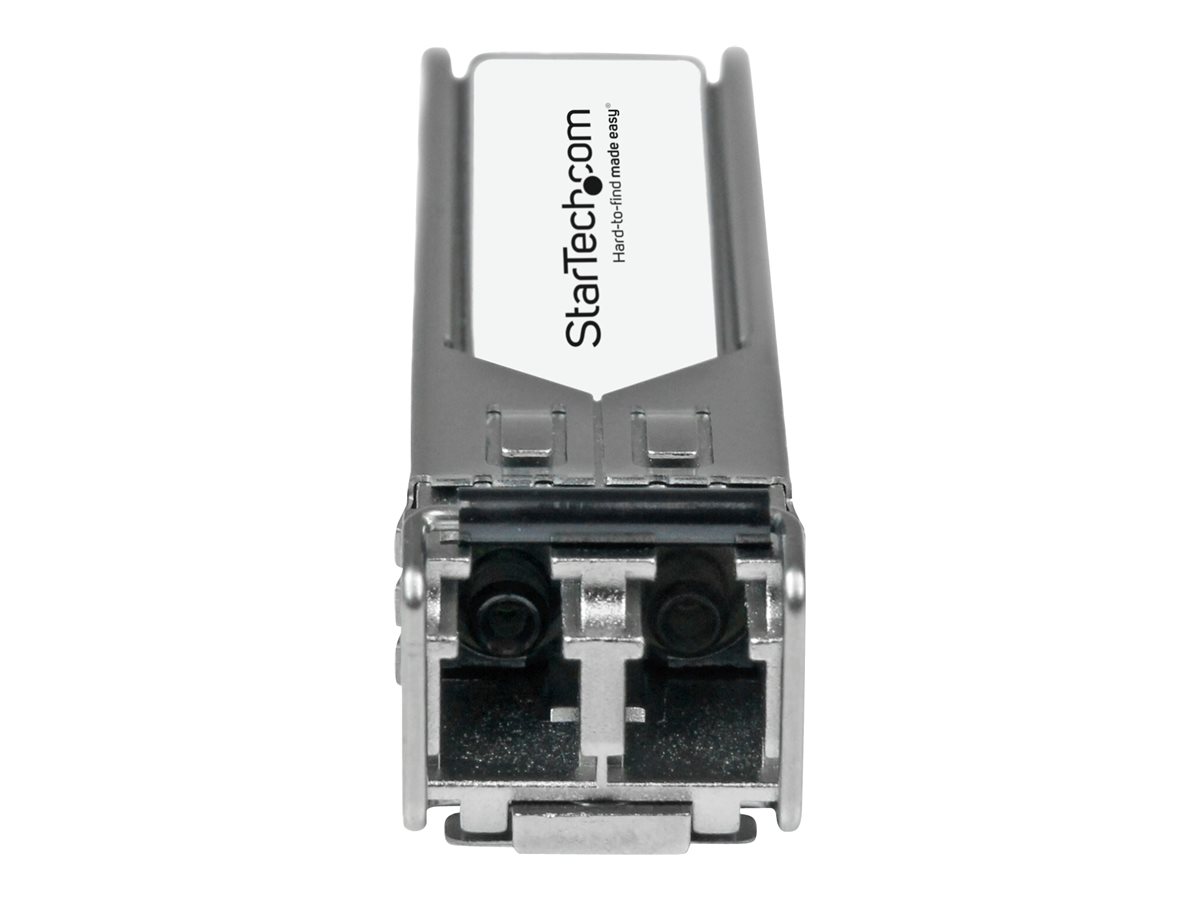

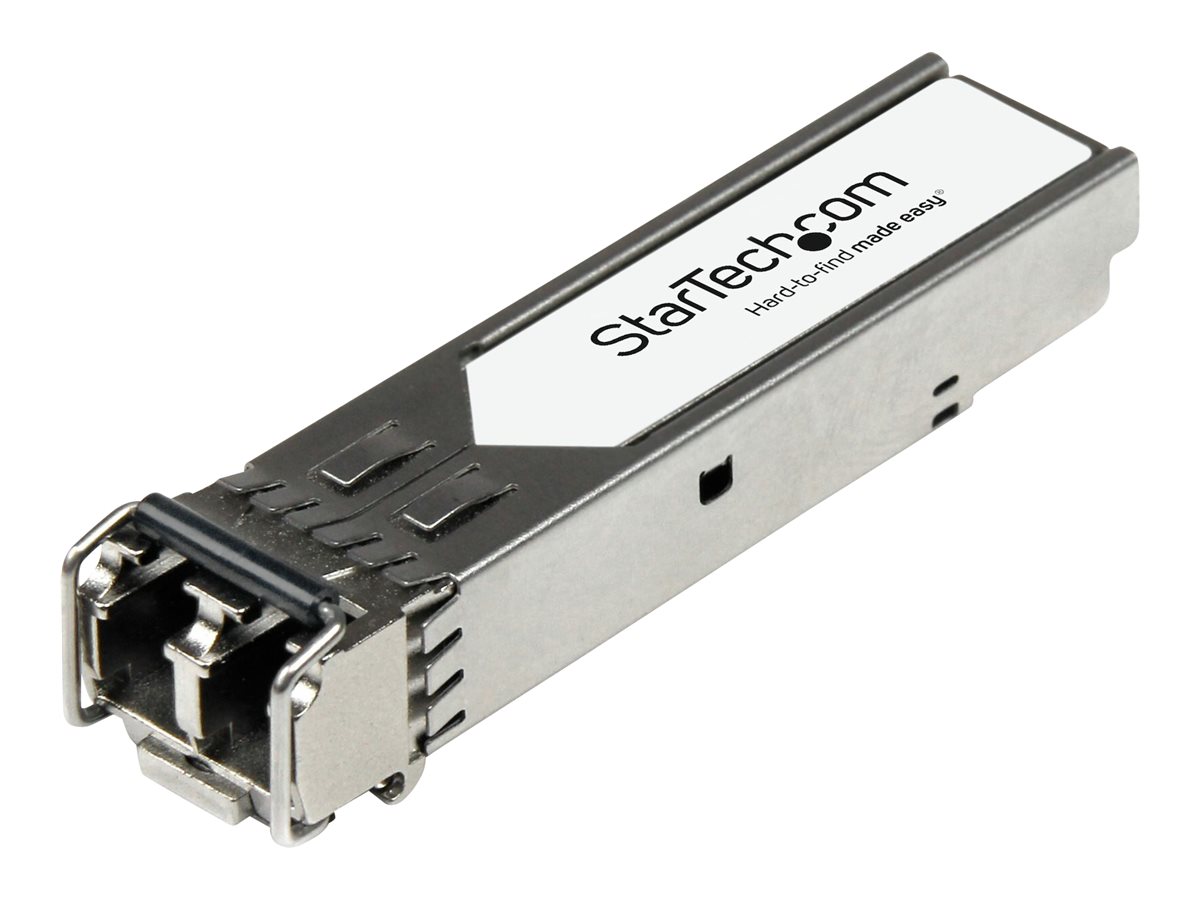

Startech Extreme Networks 10052 Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode Fiber SMF Optic Transceiver, 1 Gigabit Ethernet SFP, LC 10km, 1310nm, DDM, Mini GBIC, Lifetime Warranty (10052-ST), SFP (mini-GBIC) transceiver module (equivalent to: Extreme Networks 10052), 1GbE, 1000Base-LX, LC single-mode, up to 10 km, 1310 nm, for Summit 200, 24, 400; Alpine 38XX; Extreme Networks GM-16; BlackDiamond 10808; Summit 400
$75.33 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
The 10052-ST is an Extreme Networks 10052 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Main Specifications
Product Description | Startech Extreme Networks 10052 Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode Fiber SMF Optic Transceiver, 1 Gigabit Ethernet SFP, LC 10km, 1310nm, DDM, Mini GBIC – Lifetime Warranty (10052-ST) – SFP (mini-GBIC) transceiver module – 1GbE |
Device Type | SFP (mini-GBIC) transceiver module – LC single-mode |
Form Factor | Plug-in module |
Cabling Type | 1000Base-LX |
Data Transfer Rate | 1 Gbps |
Optical Wave Length | 1310 nm |
Data Link Protocol | 1GbE |
Max Transfer Distance | 10 km |
OEM Manufacturer Equivalent Part Number | Extreme Networks 10052 |
Dimensions (WxDxH) | 5.56 cm x 1.37 cm x 1.25 cm |
Weight | 18 g |
Designed For | Summit 200-24, 200-48, 24e3, 400-48t; Alpine 3802, 3804, 3808; Extreme Networks GM-16T3, GM-16X3; BlackDiamond 10808, 6800; Summit 400-48t |
Extended Specifications
General
Device Type | SFP (mini-GBIC) transceiver module |
|---|---|
Form Factor | Plug-in module |
Networking
Connectivity Technology | Wired |
|---|---|
Cabling Type | 1000Base-LX |
Data Link Protocol | 1GbE |
Data Transfer Rate | 1 Gbps |
Optical Wave Length | 1310 nm |
Max Transfer Distance | 10 km |
Features | Full duplex capability, Digital Diagnostics Monitoring (DDM) |
Expansion / Connectivity
Interfaces | 1 x Ethernet 1000Base-LX – LC single-mode female x 2 |
|---|
Miscellaneous
MTBF | 634,210,013 hours |
|---|---|
Compliant Standards | FCC, MSA |
OEM Manufacturer Equivalent Part Number | Extreme Networks 10052 |
Power
Power Consumption Operational | 1.3 Watt |
|---|
Dimensions & Weight
Width | 5.56 cm |
|---|---|
Depth | 1.37 cm |
Height | 1.25 cm |
Weight | 18 g |
Dimensions & Weight (Shipping)
Shipping Width | 9 cm |
|---|---|
Shipping Depth | 11.5 cm |
Shipping Height | 3.1 cm |
Shipping Weight | 50 g |
Compatibility Information
Designed For | Summit 200-24, 200-48, 24e3, 400-48t Alpine 3802, 3804, 3808 Extreme Networks GM-16T3, GM-16X3 Extreme Networks BlackDiamond 10808, 6800 Extreme Networks Summit 400-48t |
|---|
