Description
Experience new levels of performance for professional workflows. The HP Z2 Tower AI workstation is reengineered to support high-end graphics and seamlessly run both single and multi-threaded apps for fast modeling, simulation, and rendering. Enjoy easy expandability to upgrade, when needs evolve.
- Reengineered performance. Refined cooling. Unleash the power of up to 600W, triple-wide graphics and an Intel Core Ultra processor. Smart fan control tunes fan speeds in real-time. New lattice venting optimizes airflow intake.
- Built to expand. Power to grow. Need to upgrade graphics? Increase memory or storage? Add specialized PCIe cards? With room to expand and tool-less access, you can easily upgrade and add components as needs evolve. Well suited for rack environments, now fit 1 unit in a 4U rack.
- Power AI-accelerated workflows. Accelerate AI inferencing and development with the Z2 Tower AI workstation. Iterate and problem solve faster on your local device with a powerful discrete GPU delivering AI TOPS while a built-in NPU takes on productivity tasks.
- Help protect our shared future. At HP, we care about the impact our products have on our people, communities, and planet. That’s why this device is EPEAT Gold with Climate+ and the outer box packaging is 100% sustainably sourced.
- HP recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot. - Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location. - Independent Software Vendor Certifications
Work with confidence knowing your PC is certified by leading software vendors to ensure peak performance even on complex projects. - HP Anyware
Access the power of your Z from any device with HP Anyware-remote access software delivering fast responsiveness and image quality, even in film editing and data visualizations.
Main Specifications

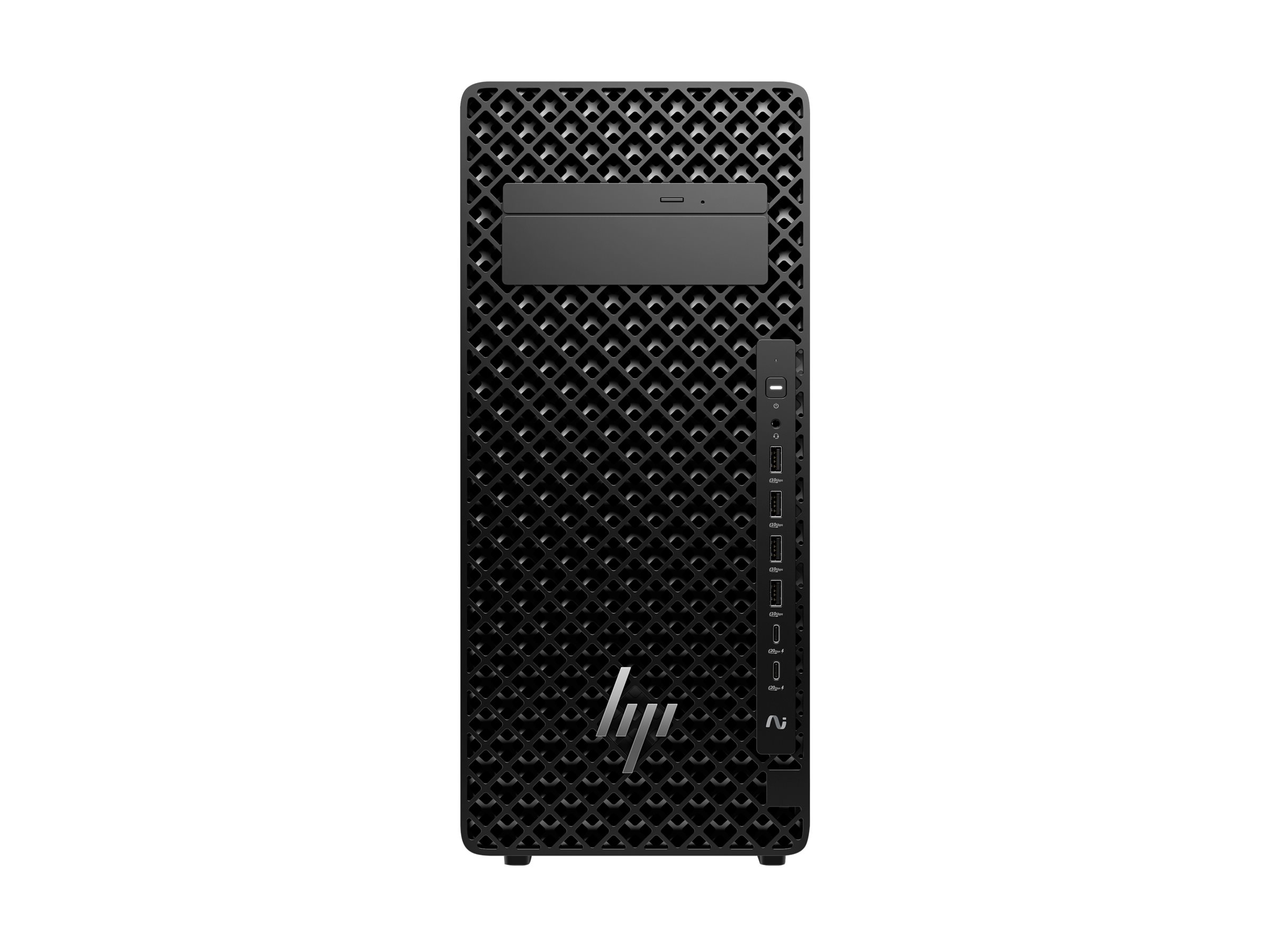

Product Description | HP Workstation Z2 G1i – tower – AI PC, AI Workstation – Core Ultra 7 265 2.4 GHz – 48 GB – SSD 1 TB – Australia/New Zealand |
Type | Workstation – tower – AI PC, AI Workstation |
Height (Rack Units) | 4U |
Processor | 1 x Intel Core Ultra 7 (Series 2) 265 / 2.4 GHz (up to 5.3 GHz, (20-core) |
Processor Socket | LGA1851 Socket |
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
Neural Processor Unit (NPU) | Intel AI Boost – up to 13 TOPS |
Cache Memory | 30 MB L3 Cache |
Cache Per Processor | 30 MB |
RAM | 48 GB (installed) / 256 GB (max) – DDR5 SDRAM – non-ECC |
Storage Controller | SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) |
Hard Drive | SSD 1 TB – PCI Express 4.0 – M.2 |
Optical Storage | No optical drive |
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
Graphics Controller | PCIe 4.0 x8 – NVIDIA RTX 2000 Ada / Intel Graphics – up to 8 TOPS |
Video Memory | 16 GB GDDR6 SDRAM |
Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
Keyboard | Australia/New Zealand |
Power | (50/60 Hz) |
OS Provided | Windows 11 Pro |
Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5 |
Colour | Black |
Dimensions (WxDxH) | 17.5 cm x 42.6 cm x 38.8 cm |
Weight | 8.6 kg |
Manufacturer Selling Program | HP Smart Buy |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Workstation |
|---|
AI Level | AI PC, AI Workstation |
|---|
Product Form Factor | Tower – 4U |
|---|
Built-in Devices | Speaker |
|---|
Sensors | HP Tamper Lock |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core Ultra 7 (Series 2) 265 |
|---|
Clock Speed | 2.4 GHz (P-core) / 1.8 GHz (E-core) |
|---|
Max Turbo Speed | 5.3 GHz (P-core) / 4.6 GHz (E-core) |
|---|
Number of Cores | 20-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
L2 cache | 36 MB |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
|---|
CPU Socket | LGA1851 Socket |
|---|
Chipset Type | Intel W880 |
|---|
Neural Processor Unit (NPU)
Neural Processor Unit (NPU) | Intel AI Boost |
|---|
NPU Performance Up To (TOPS) | 13 TOPS |
|---|
Total Processor Performance Up To (TOPS) | 33 TOPS |
|---|
AI Datatype Support on NPU | INT8 |
|---|
Sparsity Support | Yes |
|---|
AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
|---|
Windows Studio Effects Support | Yes |
|---|
Cache Memory
Installed Size | L3 Cache – 30 MB |
|---|
Cache Per Processor | 30 MB |
|---|
RAM
Installed Size | 48 GB (installed) / 256 GB (max) |
|---|
Technology | DDR5 SDRAM – non-ECC |
|---|
Effective Memory Speed | 2800 MHz |
|---|
Rated Memory Speed | 2800 MHz |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 4 (Total) / 3 (empty) |
|---|
Features | Unbuffered |
|---|
Configuration Features | 1 x 48 GB |
|---|
Hard Drive
Type | SSD – M.2 |
|---|
Capacity | 1 x 1 TB |
|---|
Interface Type | PCI Express 4.0 |
|---|
Storage Controller
Type | 1 x SATA/NVMe |
|---|
Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
|---|
Optical Storage
Monitor
Graphics Controller
Interface Type | PCIe 4.0 x8 |
|---|
Multi-GPU Configuration | 1 single GPU card / integrated GPU |
|---|
Graphics Processor | NVIDIA RTX 2000 Ada / Intel Graphics – up to 8 TOPS |
|---|
Video Memory | 16 GB GDDR6 SDRAM |
|---|
Bandwidth | 224 GBps |
|---|
Video Interfaces | DisplayPort |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Input Device
Keyboard
Keyboard Name | HP 320K |
|---|
Interface | USB |
|---|
Localization & Layout | Australia/New Zealand |
|---|
Mouse
Mouse Name | HP 320M |
|---|
Interface | USB |
|---|
Networking
Interface (Bus) Type | M.2 2230 |
|---|
Ethernet Controller | Intel I219-LM |
|---|
Wireless LAN Supported | Yes |
|---|
Wireless NIC | Intel Wi-Fi 6E AX 211 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
|---|
Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x external 3.5″
1 (total) / 1 (free) x external 5.25″ Slim Line
1 (total) / 1 (free) x internal 3.5″ |
|---|
Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 – full-length, full-height
1 (total) / 1 (free) x PCIe 4.0 x4 – full-length, full-height (x1 mode, open ended)
1 (total) / 1 (free) x PCIe 4.0 x4 – full-length, full-height (open ended)
1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height (x4 mode)
2 (total) / 1 (free) x M.2 Card – 2280 (PCIe 4.0 x4 mode (for internal storage))
1 (total) / 1 (free) x M.2 Card – 2280 (PCIe 5.0 x4 mode (for internal storage))
1 (total) / 0 (free) x M.2 Card – 2230 (PCIe 4.0 x1 mode and Intel CNVi wireless module) |
|---|
Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support)
6 x USB 3.2 Gen 2 (4 front, 2 rear)
1 x audio line-in (1 rear)
1 x audio line-out (1 rear)
2 x DisplayPort 1.4 (2 rear)
3 x USB 2.0 – Type A (3 rear)
2 x USB 3.2 Gen 2×2 (2 front) (charging)
1 x LAN (Gigabit Ethernet) – RJ-45 (1 rear)
4 x Mini DisplayPort 1.4a |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
Compliant Standards | UL, CB, CCC, FCC, RoHS, FIPS 140-2, WEEE, ICES, CEC, ERP, CECP, CEL, BIS, low halogen |
|---|
Manufacturer Selling Program | HP Smart Buy |
|---|
Power
Device Type | Power supply |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 500 watt |
|---|
Efficiency | 90% |
|---|
Power Factor Correction | Yes (active) |
|---|
Operating System / Software
OS Provided | Windows 11 Pro English |
|---|
Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5 |
|---|
Sustainability Information
Dimensions & Weight
Width | 17.5 cm |
|---|
Depth | 42.6 cm |
|---|
Height | 38.8 cm |
|---|
Weight | 8.6 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 59 cm |
|---|
Shipping Depth | 49 cm |
|---|
Shipping Height | 29.5 cm |
|---|
Shipping Weight | 12.5 kg |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 85% RH (non-condensing) |
|---|
