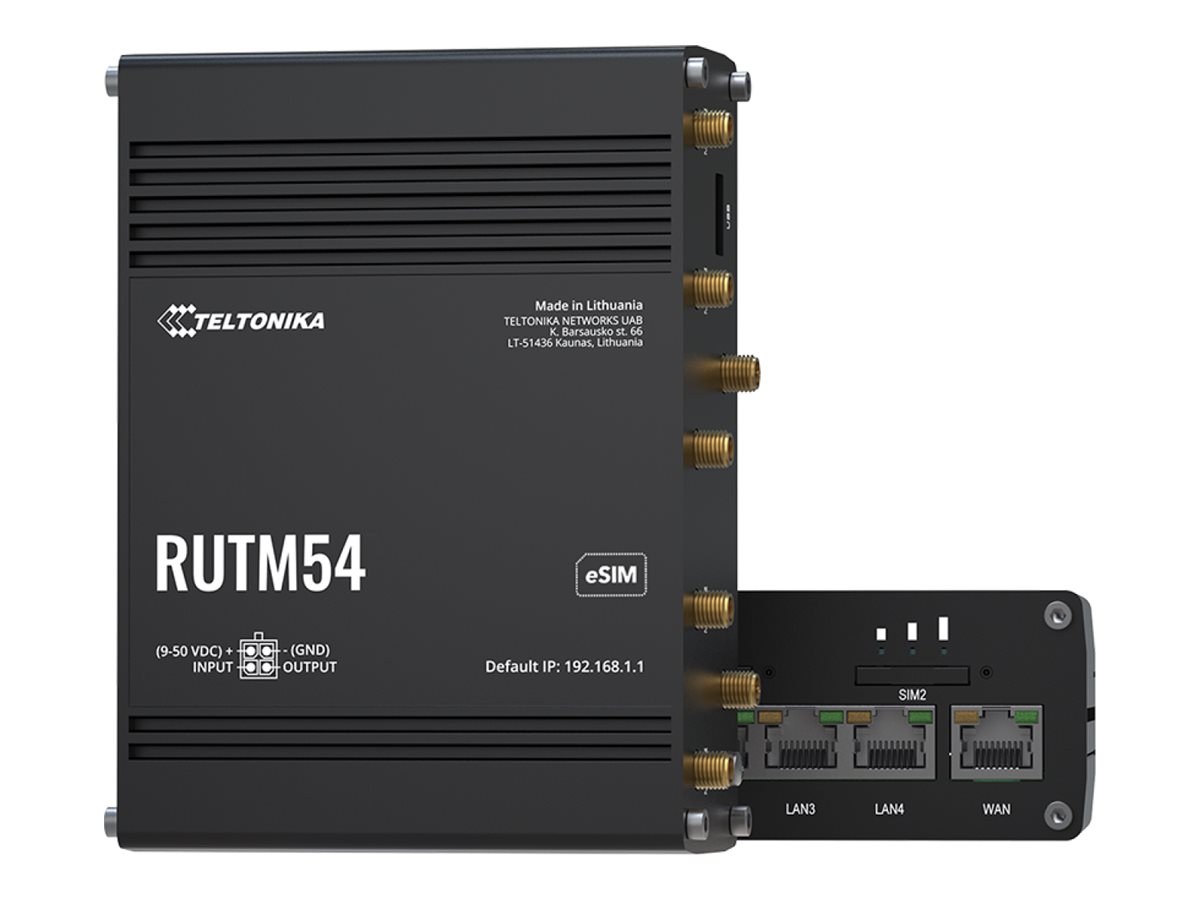

Teltonika RUTM54, Wireless router, WWAN 4-port switch, 1GbE, PPP, Wi-Fi 5, Dual Band, 5G, 4G, 3G, DIN rail mountable, surface-mountable, wall-mountable
$1,544.96 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUTM54 is a wireless cellular modem designed for reliable connectivity in demanding environments. With seven external detachable antennas, including four LTE, two Wi-Fi, and one GPS antenna, it ensures signal strength and coverage. This router supports multiple cellular protocols, including 5G and CAT19 LTE, offering data transfer rates of up to 3.4 Gbps, suitable for various applications ranging from IoT devices to remote management systems.
Equipped with an IP30-rated aluminum housing, the RUTM54 operates efficiently in temperatures from -40°C to 75°C. Its set of features includes load balancing, DDoS attack prevention, and support for a variety of virtual private network (VPN) protocols. With a maximum Wi-Fi user capacity of 150, this device meets the needs of both residential and enterprise-level networks, ensuring smooth and secure Internet access for multiple users.
- Supports 5G and LTE CAT19 for high-speed connectivity
- Seven external detachable antennas for optimal signal strength
- Wide operating temperature range from -40°C to 75°C
- Built-in GPS and multiple IoT capabilities
- Robust security features including DDoS attack prevention
- Robust connectivity options
The RUTM54 supports both wired and wireless connectivity, with compatibility for various cellular protocols, ensuring seamless Internet access for diverse applications. - Enhanced signal with multiple antennas
With four LTE, two Wi-Fi, and one GPS antenna, this modem maximizes reception and signal clarity, essential for reliable communication in challenging environments. - High performance
Offering a maximum data transfer rate of 3.4 Gbps, the RUTM54 is designed to handle intensive data demands, suitable for both residential and commercial use. - Durable design for extreme conditions
The aluminum housing and wide temperature range capabilities make this device suitable for installation in various environmental conditions, ensuring longevity and reliability. - Comprehensive security features
Equipped with DDoS attack prevention and support for various VPN protocols, the RUTM54 ensures secure data transmission and protects network integrity.
What’s in the Box
- Teltonika RUTM54
- Network cable – 1.5 m
- Antenna cable – 3 m
- 2 x antenna cable – 1.5 m
- External power adapter, 2 x WiFi aerials, 4 x aerials, GNSS aerial, SIM card adapter kit
Main Specifications
Product Description | Teltonika RUTM54 – wireless router – WWAN – Wi-Fi 5 – 5G, 4G, 3G – DIN rail mountable, surface-mountable, wall-mountable |
Device Type | Wireless router – wireless cellular modem – 4-port switch (integrated) |
Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
Mobile Communication Protocol | 4G LTE, LTE CAT19, 5G Sub-6 Ghz, 5G NR, FDD LTE |
Generation | 5G, 4G, 3G |
Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n25, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B25, LTE B3, LTE B4, LTE B66, LTE B5, LTE B7, LTE B8, LTE B12, LTE B17, LTE B13, LTE B14, LTE B18, LTE B19, LTE B20, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B71, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19 |
WAN Ports Qty | 1 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | PPPoE, TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, DHCP |
Routing Protocol | PPPoE, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN, VRF |
Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
Remote Management Protocol | SSH, Telnet, SMPP, MQTT, HTTP, HTTPS, CLI, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus |
VoIP Protocols | SIP, H.323 |
Features | NTRIP, firmware upgradable, web-based UI, Teltonika RMS, MQTT support, email alert notification, SMS alert, DLMS support, DNP3 outstation, DNP3 station, aluminium housing, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, IPsec and tunnelling, OpenVPN encryption, PPTP client, PPTP server, OpenVPN client, 802.1x authentication, Web Filtering, port-based VLAN, VLAN Tagging, DDos attack prevention, digital certificates, PSK, random password generator, SYN Flooding, load balancing, network backup, QoS, reporting and visualisation tools, SQM, traffic management, VRF, dynamic routing, port forwarding, static routing, UPnP, Access Point operational mode, allow/block list, Auto Cipher modes, BSS transition management, client separation, ESSID stealth mode, Fast Roaming, MU-MIMO technology, protected management frames, station operational mode, Wireless Mesh support, wireless QR code generator, TravelMate, framed routing, auto APN, band management, multiple PDN, SIM idle protection service, SIM PIN management, USSD support, 3GPP Release 16, SIM switching |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, UPnP |
Power | DC 9 – 50 V |
Dimensions (WxDxH) | 13.2 cm x 9.5 cm x 4.42 cm |
Weight | 530 g |
Documents
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | DIN rail mountable, surface-mountable, wall-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | PPPoE, TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, DHCP |
Routing Protocol | PPPoE, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, VXLAN, VRF |
Remote Management Protocol | SSH, Telnet, SMPP, MQTT, HTTP, HTTPS, CLI, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus |
Encryption Algorithm | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, AES-CCMP, TKIP, WPA-EAP, WPA-PSK, OWE, EAP-TLS, PKCS#12, SSL, TLS, IKE, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, MODBUS |
Authentication Method | X.509 certificates, TACACS+, RADIUS, Extended Service Set ID (ESSID) |
Features | NTRIP, firmware upgradable, web-based UI, Teltonika RMS, MQTT support, email alert notification, SMS alert, DLMS support, DNP3 outstation, DNP3 station, aluminium housing, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, IPsec and tunnelling, OpenVPN encryption, PPTP client, PPTP server, OpenVPN client, 802.1x authentication, Web Filtering, port-based VLAN, VLAN Tagging, DDos attack prevention, digital certificates, PSK, random password generator, SYN Flooding, load balancing, network backup, QoS, reporting and visualisation tools, SQM, traffic management, VRF, dynamic routing, port forwarding, static routing, UPnP, Access Point operational mode, allow/block list, Auto Cipher modes, BSS transition management, client separation, ESSID stealth mode, Fast Roaming, MU-MIMO technology, protected management frames, station operational mode, Wireless Mesh support, wireless QR code generator, TravelMate, framed routing, auto APN, band management, multiple PDN, SIM idle protection service, SIM PIN management, USSD support, 3GPP Release 16, SIM switching |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, UPnP, IP30, FCC, IC, WEEE, RoHS, REACH, FCC 47 CFR Part 15 Subpart B, ICES-003:2020 Issue 7, NMEA, UKCA, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, EN IEC 62311:2020, EN 300 328 V2.2.2, EN 303 413 V1.2.1, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1 |
Processor | 1 x MediaTek MIPS 1004Kc 880 MHz |
RAM | 256 MB DDR3 SDRAM |
Flash Memory | 16 MB |
Built-in Devices | Beidou, GPS, Galileo, QZSS, GLONASS |
Status Indicators | WAN, LAN, signal strength, connection status, power, Wi-Fi |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | 4G LTE, LTE CAT19, 5G Sub-6 Ghz, 5G NR, FDD LTE |
Generation | 5G, 4G, 3G |
Cellular Band | 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n20, 5G n25, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B25, LTE B3, LTE B4, LTE B66, LTE B5, LTE B7, LTE B8, LTE B12, LTE B17, LTE B13, LTE B14, LTE B18, LTE B19, LTE B20, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B71, WCDMA B1, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19 |
Max Transfer Rate | 3.4 Gbps |
IP Telephony
VoIP Protocols | SIP, H.323 |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
Expansion / Connectivity
Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Antenna: 4 x SMA – mobile Antenna: 2 x RP-SMA – Wi-Fi Antenna: 1 x SMA – GNSS aerial USB 2.0: 1 x Type A 1 x DO – 4 pin power 1 x DI – 4 pin power |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 7 |
Configuration Details | 4 detachable external LTE antennas, 2 external Wi-Fi antennas, 1 external GPS antenna |
Power
Power Device | External power adapter – 18 Watt |
|---|---|
Voltage Required | DC 9 – 50 V |
Miscellaneous
Included Accessories | 4 x aerials, 2 x WiFi aerials, GNSS aerial, SIM card adapter kit |
|---|---|
Cables Included | 1 x network cable – 1.5 m 1 x antenna cable – 3 m 2 x antenna cable – 1.5 m |
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 13.2 cm |
|---|---|
Depth | 9.5 cm |
Height | 4.42 cm |
Weight | 530 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
