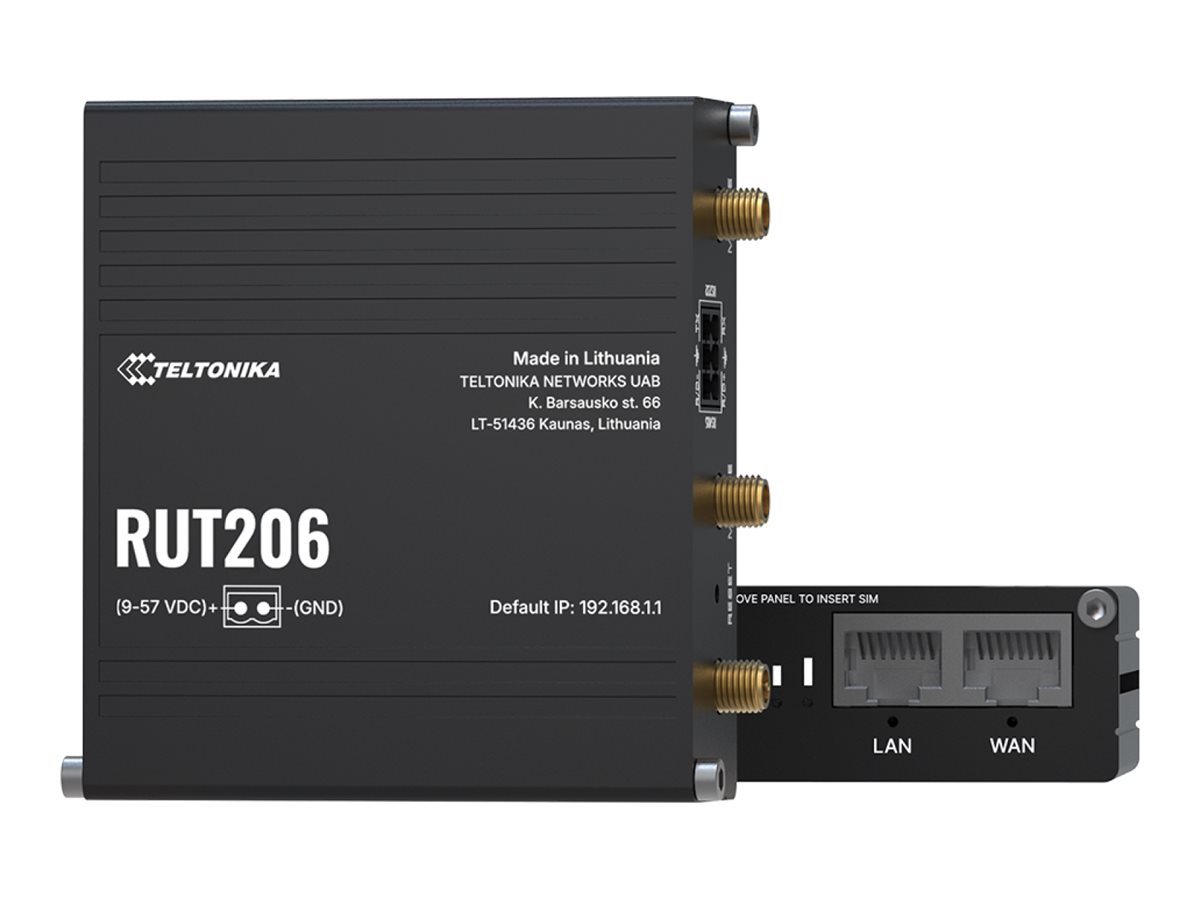

Teltonika RUT206, Wireless router, WWAN, 3G, 4G, 2G, DIN rail mountable, wall-mountable, surface-mountable
$366.94 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUT206 is designed to provide reliable Internet connectivity in a variety of environments, featuring three external detachable antennas for enhanced wireless performance. This wireless router is compatible with LTE Cat 4 technology, allowing for a maximum transfer rate of 150 Mbps, ensuring efficient browsing and streaming for up to 50 WiFi users simultaneously. Built to withstand harsh conditions, the RUT206 operates under extreme temperatures ranging from -40°C to 75°C and supports a humidity range of 10 – 90%, making it suitable for both indoor and outdoor applications.
Equipped with multiple expansion slots including two microSD and one SIM slot, it offers flexibility for added storage and connectivity options. The integrated security features include various encryption algorithms like AES-CCMP and WPA3, ensuring data protection and secure connections. With features such as DHCP server, port forwarding, and the ability to manage devices remotely, the RUT206 meets diverse networking needs while providing robust performance.
- Three external detachable antennas for improved wireless performance
- Supports up to 50 WiFi users simultaneously
- Operates in temperatures from -40°C to 75°C
- Flexible expansion with microSD and SIM slots
- Advanced security features to protect network connections
- Robust environmental resilience
The Teltonika RUT206 is engineered to operate in extreme conditions with a minimum operating temperature of -40°C and a maximum of 75°C, alongside a humidity range of 10 – 90%, making it suitable for various indoor and outdoor settings. - High user capacity
This wireless router can support a maximum of 50 WiFi users at the same time, ideal for busy environments or when multiple devices require Internet access. - Multiple connectivity options
With two microSD and one SIM slot, the RUT206 provides versatile connectivity, allowing for added storage and mobile broadband options depending on user needs. - Advanced security protocols
The device supports a range of encryption algorithms including WPA3-SAE and AES-CCMP, ensuring that data transmitted over the network is secure and protected from unauthorized access. - Flexible management features
Equipped with features like DHCP server, port forwarding, and remote management capabilities, the RUT206 enables easy configuration and monitoring of network performance.
What’s in the Box
- Teltonika RUT206
- Hex key, SIM card adapter kit, 2-pin terminal block, 2 x 3-pin Phoenix connector
Main Specifications
Product Description | Teltonika RUT206 – wireless router – WWAN – Wi-Fi – 3G, 4G, 2G – DIN rail mountable, wall-mountable, surface-mountable |
Device Type | Wireless router – wireless cellular modem |
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Mobile Communication Protocol | FDD LTE, TDD LTE, GSM, WCDMA |
Generation | 3G, 4G, 2G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41, WCDMA B1, WCDMA B5, WCDMA B8 |
WAN Ports Qty | 1 |
Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet |
Performance | LTE uplink bandwidth: 50 Mbps LTE downlink bandwidth: 150 Mbps |
Capacity | Simultaneous connections: 50 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, L2TPv3, WireGuard, OpenVPN, PPTP, IPSec, ICMP/IP |
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN, GRE |
Platform | ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core |
Remote Management Protocol | ICMP, SSH, Telnet, HTTP, HTTPS, SMTP, SMPP, MQTT, DDNS, CLI, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus, BACnet |
VoIP Protocols | H.323, SIP |
Features | 3GPP Release 9, SMS remote control, USSD support, Access Point operational mode, allow/block list, auto APN, band management, bridge mode, station operational mode, protected management frames, ESSID stealth mode, MAC address filtering, TravelMate, wireless QR code generator, WOL, NAT support, port forwarding, DHCP relay, DHCP server, QoS, SQM, WMM support, VRRP support, PPP, RADIUS Server, HotSpot 2.0, SSHFS support, traffic management, PSK, digital certificates, DMZ support, IPSec NAT-T, NAT64 support, DDos attack prevention, port scan prevention, VLAN support, Web Filtering, L2TP over IPSec, DMVPN, SSTP client instance support, ZeroTier VPN client support, Tinc encryption, Teltonika RMS, FOTA, passive PoE supported, reverse polarity protection, surge protection, anodised aluminium housing, reset button, random password generator, port-based VLAN, VLAN Tagging, OpenVPN client, PPTP client, PPTP server, OpenVPN encryption, email alert notification, SMS alert, web-based UI, network backup, dynamic routing, BSS transition management, SIM idle protection service, SIM PIN management, SIM switching, automated failover, DNP3 outstation, RSSI support, Auto Cipher modes, client separation, Captive Portal, static routing, auto-uplink (auto MDI/MDI-X) |
Compliant Standards | IEEE 802.11w, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e |
Dimensions (WxDxH) | 8.3 cm x 8.3 cm x 2.5 cm |
Weight | 132 g |
Documents
Extended Specifications
General
Device Type | Wireless router |
|---|---|
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet |
Performance | LTE uplink bandwidth: 50 Mbps LTE downlink bandwidth: 150 Mbps |
Capacity | Simultaneous connections: 50 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, L2TPv3, WireGuard, OpenVPN, PPTP, IPSec, ICMP/IP |
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN, GRE |
Remote Management Protocol | ICMP, SSH, Telnet, HTTP, HTTPS, SMTP, SMPP, MQTT, DDNS, CLI, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus, BACnet |
Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, SSL 3.0, TLS, DES, RC2, DESX, Blowfish, CAST5, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2 |
Authentication Method | Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2) |
Features | 3GPP Release 9, SMS remote control, USSD support, Access Point operational mode, allow/block list, auto APN, band management, bridge mode, station operational mode, protected management frames, ESSID stealth mode, MAC address filtering, TravelMate, wireless QR code generator, WOL, NAT support, port forwarding, DHCP relay, DHCP server, QoS, SQM, WMM support, VRRP support, PPP, RADIUS Server, HotSpot 2.0, SSHFS support, traffic management, PSK, digital certificates, DMZ support, IPSec NAT-T, NAT64 support, DDos attack prevention, port scan prevention, VLAN support, Web Filtering, L2TP over IPSec, DMVPN, SSTP client instance support, ZeroTier VPN client support, Tinc encryption, Teltonika RMS, FOTA, passive PoE supported, reverse polarity protection, surge protection, anodised aluminium housing, reset button, random password generator, port-based VLAN, VLAN Tagging, OpenVPN client, PPTP client, PPTP server, OpenVPN encryption, email alert notification, SMS alert, web-based UI, network backup, dynamic routing, BSS transition management, SIM idle protection service, SIM PIN management, SIM switching, automated failover, DNP3 outstation, RSSI support, Auto Cipher modes, client separation, Captive Portal, static routing, auto-uplink (auto MDI/MDI-X) |
Compliant Standards | IEEE 802.11w, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e, IP30, UKCA, RCM, CB, UCRF, EAC |
Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
RAM | 128 MB DDR2 SDRAM |
Flash Memory | 32 MB |
Status Indicators | Connection status, signal strength, LAN, power |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | FDD LTE, TDD LTE, GSM, WCDMA |
Generation | 3G, 4G, 2G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41, WCDMA B1, WCDMA B5, WCDMA B8 |
Max Transfer Rate | 150 Mbps |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | ThingWorx, Clouds of Things, Azure IoT Hub, AWS IoT Core |
Expansion / Connectivity
Interfaces | WAN: 1 x 10Base-T/100Base-TX – RJ-45 LAN: 1 x 10Base-T/100Base-TX – RJ-45 Serial: 1 x RS-485 Serial: 1 x RS-232 Antenna: 1 x RP-SMA – Wi-Fi Antenna: 2 x SMA – LTE |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM 1 (total) / 1 (free) x microSD |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 3 |
Miscellaneous
Included Accessories | 2-pin terminal block, 2 x 3-pin Phoenix connector, hex key, SIM card adapter kit |
|---|
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 8.3 cm |
|---|---|
Depth | 8.3 cm |
Height | 2.5 cm |
Weight | 132 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
