Description

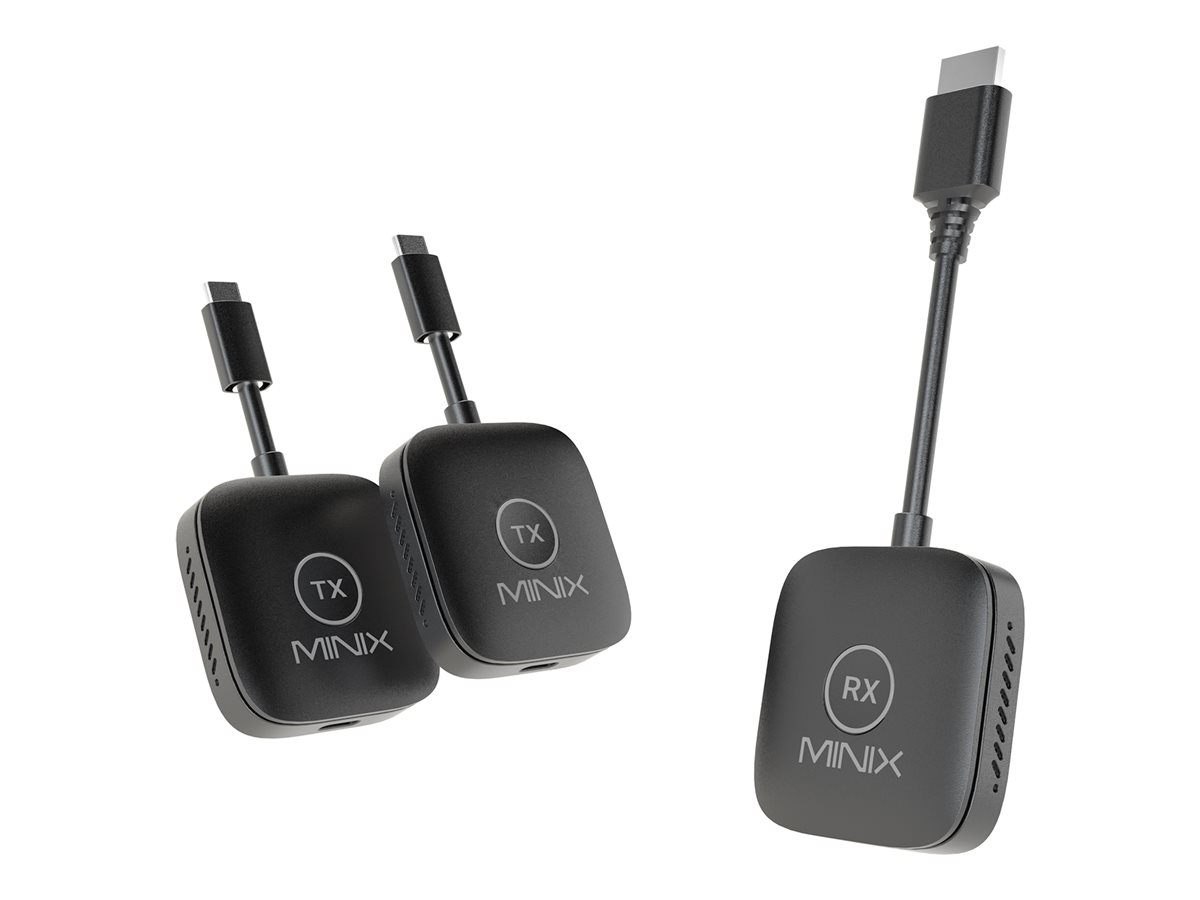

The Minix B21 is a versatile wireless video/audio extender designed to enhance connectivity. It comes equipped with two transmitters and one receiver, allowing seamless wireless transmission of audio and video up to a maximum resolution of 1080p. Its screen mirroring and extended display mode features provide a flexible setup for various applications, whether for presentations or home entertainment. Operating within a wide temperature range of 0°C to 50°C and a humidity range of 10% to 80%, the B21 performs reliably in different environments. With a maximum transfer distance of 50 m, this device enables users to connect from a comfortable distance. The Minix B21 supports Plug-and-Play functionality for straightforward setup.
- Supports video resolution up to 1080p
- Includes two transmitters and one receiver for versatile connectivity
- Features screen mirroring and extended display mode
- Reliable performance within a temperature range of 0°C to 50°C
- Easy setup with Plug-and-Play functionality
- Video transmission quality
The Minix B21 ensures video transmission with support for a maximum resolution of 1080p, providing clear and vibrant visuals. - Connectivity options
This device features a USB-C to USB-A cable for flexible connectivity, allowing it to fit into existing setups with various devices. - Long-range capability
With a maximum transfer distance of 50 m, the B21 offers long-range functionality for comfortable audio and video transmission. - Environmental resilience
Designed to operate reliably in temperatures ranging from 0°C to 50°C and humidity levels from 10% to 80%, this device is suitable for diverse environments. - Standards compliance
The Minix B21 complies with standards such as Plug-and-Play, FCC, RoHS, PSE Mark, and UKCA, ensuring safety and reliability.
Main Specifications
Product Description | Minix B21 – 2 Transmitters + 1 Receiver – wireless video/audio extender – HDMI, USB-C |
Device Type | Wireless video/audio extender |
Form Factor | External |
Data Link Protocol | HDMI, USB-C |
Max Transfer Distance | 50 m |
Power | 5 V |
Extended Specifications
General
Device Type | Wireless video/audio extender |
|---|
Form Factor | External |
|---|
Colour | Black |
|---|
Networking
Connectivity Technology | Wireless |
|---|
Data Link Protocol | HDMI, USB-C |
|---|
Max Resolution | 1080p @ 60 Hz |
|---|
Max Transfer Distance | 50 m |
|---|
Features | PC/ABS housing, screen mirroring, extended display mode |
|---|
Expansion / Connectivity
Interfaces | 2 x USB-C (transmitter)
1 x audio / video (receiver) – 19 pin HDMI Type A male |
|---|
Miscellaneous
Cables Included | 1 x USB-C to USB-A cable |
|---|
Compliant Standards | FCC, RoHS, UKCA, PSE Mark, Plug and Play |
|---|
Power
Power Device | External power adapter (not included) |
|---|
Voltage Required | 5 V |
|---|
Dimensions & Weight
Dimensions (WxDxH) / Weight Details | Transmitter: 4.86 cm x 15.03 cm x 1.53 cm
Receiver: 4.86 cm x 10.1 cm x 1.53 cm |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 14.6 cm |
|---|
Shipping Depth | 27.7 cm |
|---|
Shipping Height | 4.9 cm |
|---|
Shipping Weight | 210 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 10 – 80% (non-condensing) |
|---|
