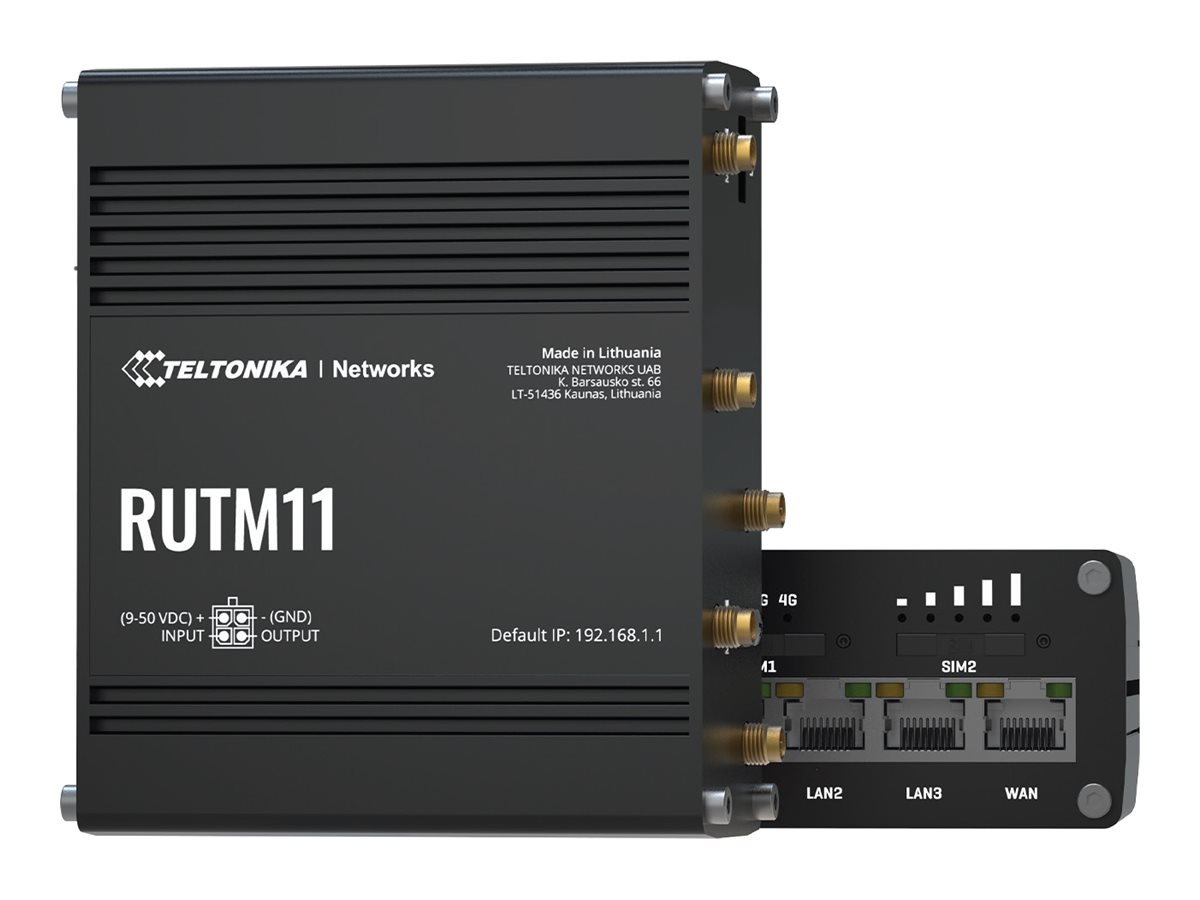

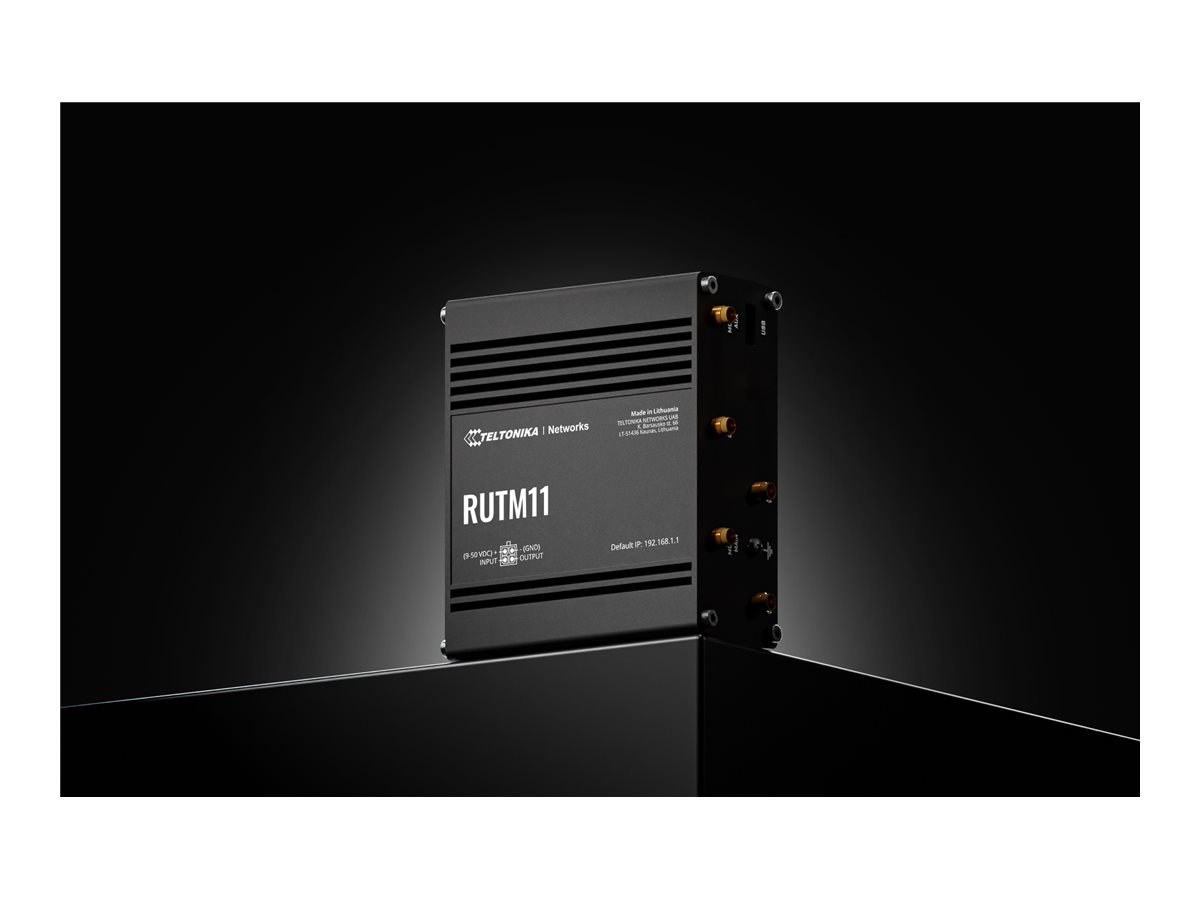

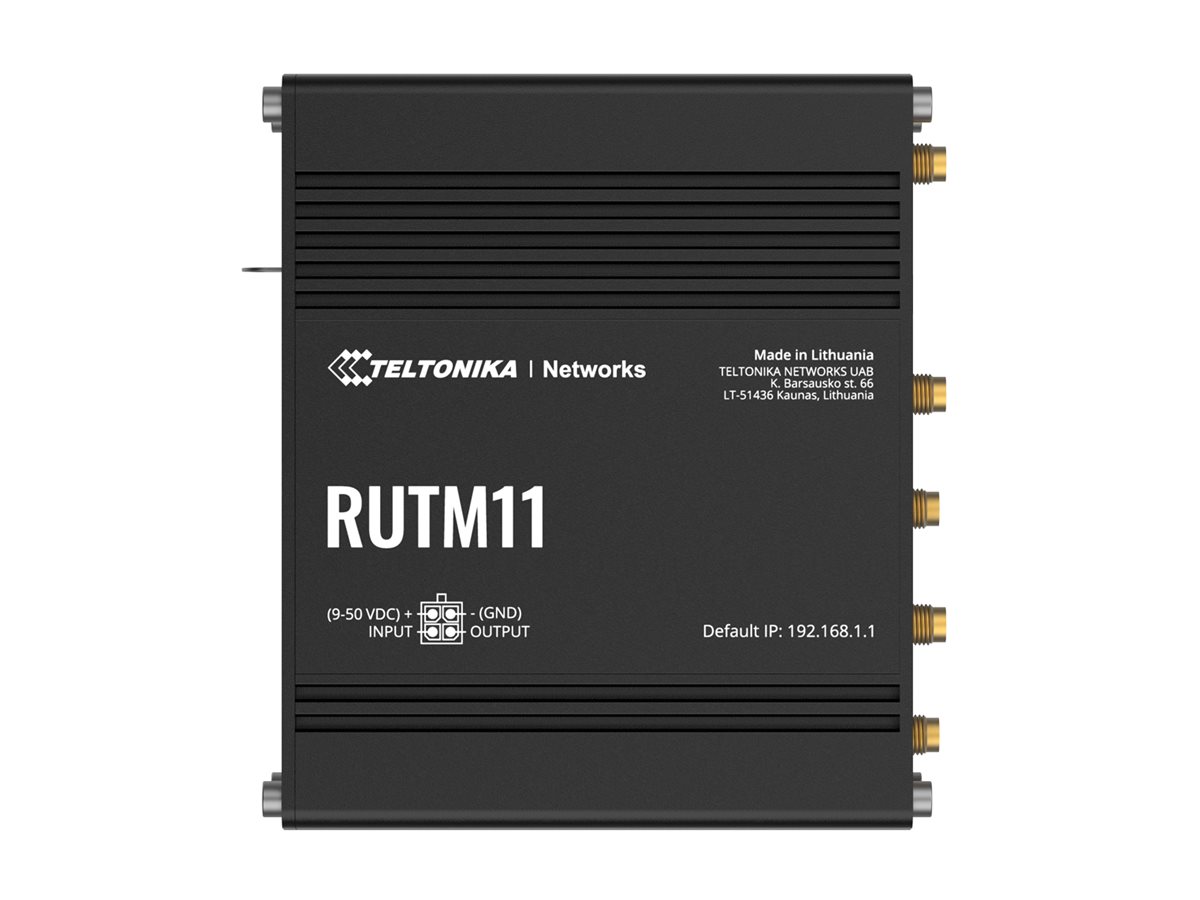

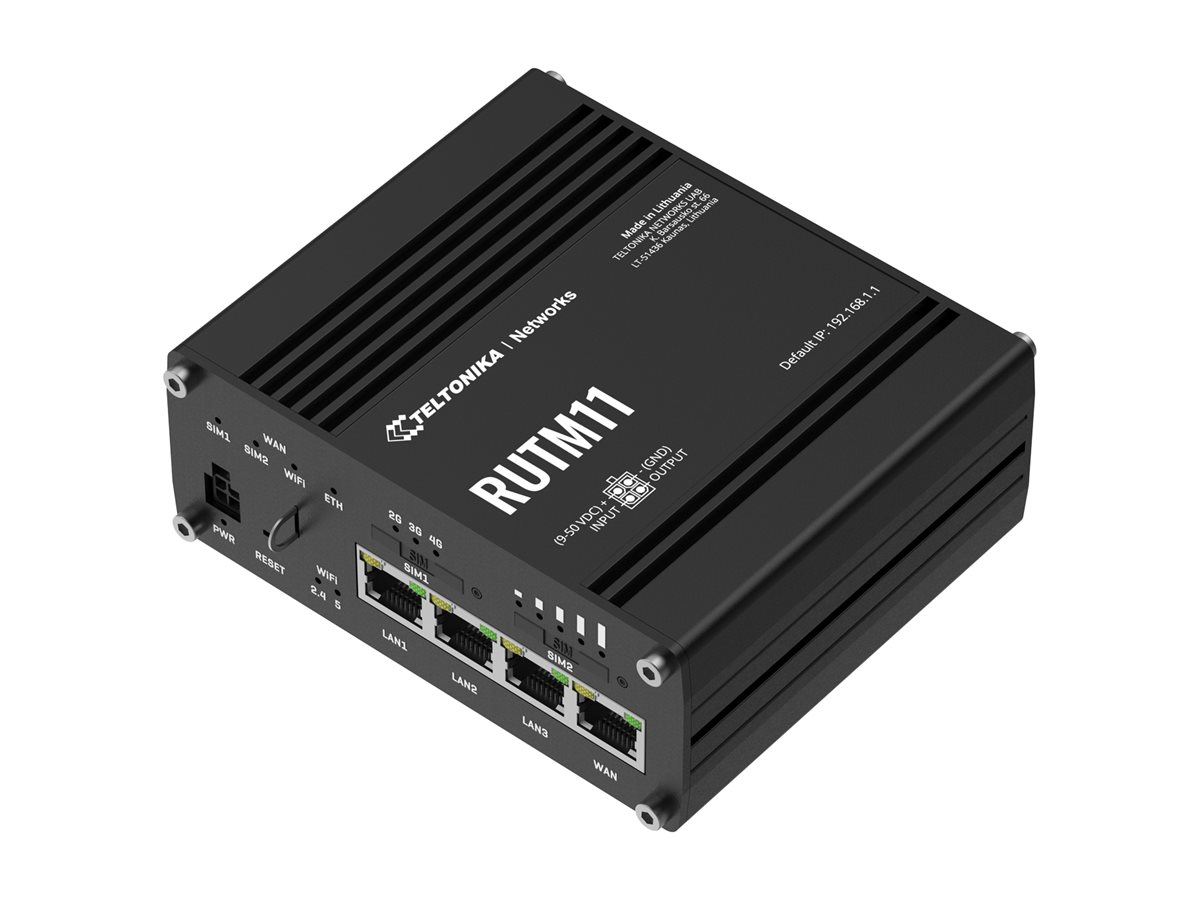

Teltonika RUTM11, Wireless router, WWAN 4-port switch, 1GbE, PPP, Wi-Fi 5, Dual Band, 3G, 4G, DIN rail mountable, wall-mountable, surface-mountable
$712.27 inc GST
✓ In Stock - 30 available
✓ Free NZ Delivery
30 in stock
Ships from: Christchurch
- Allow 2–3 days for delivery to the North Island
- Allow 1–2 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Teltonika RUTM11 is designed for reliable connectivity, featuring five external detachable antennas to enhance signal strength and coverage. With a 10-liter capacity to support up to 150 Wi-Fi users, this wireless cellular modem suits various network environments. It operates efficiently across a wide temperature range from -40°C to 75°C, suitable for demanding conditions. Additionally, the RUTM11 supports a maximum transfer rate of 300 Mbps, ensuring swift and effective data transmission for both personal and professional needs.
Equipped with multiple expansion slots, the device allows for flexible network configuration and supports diverse Internet of Things (IoT) applications. Security is prioritized with extensive encryption algorithms and robust authentication methods, enabling secure communications over the network. Accompanied by a robust set of features, the Teltonika RUTM11 ensures a seamless experience, from advanced routing protocols to remote management capabilities, suitable for various deployment scenarios.
- Supports up to 150 Wi-Fi users
- Maximum transfer rate of 300 Mbps
- Wide operating temperature range from -40°C to 75°C
- Multiple expansion slots for enhanced connectivity
- Comprehensive security features with various encryption algorithms
- Versatile connectivity options
The RUTM11 is a wireless cellular modem that supports both wired and wireless connectivity technologies, including LTE and Wi-Fi 5, allowing for diverse network configurations. - Robust security protocols
Equipped with a variety of encryption algorithms and authentication methods, including WPA3 and RADIUS, the device ensures secure data transmission and protects against unauthorized access. - Resilient operating conditions
Designed to withstand extreme temperatures and humidity levels, the RUTM11 operates effectively in harsh environments, making it ideal for outdoor and industrial use. - Advanced network management
Remote management capabilities through protocols like SNMP and CLI enable users to monitor and configure their network devices with ease from different locations. - Flexible deployment options
The Teltonika RUTM11 can be mounted on a DIN rail, wall, or surface, providing versatility in installation to meet various spatial requirements.
What’s in the Box
- Teltonika RUTM11
- Network cable – 1.5 m
- Antenna cable – 3 m
- External power adapter, 2 x WiFi aerials, GNSS aerial, 2 x LTE aerials, SIM card adapter kit
Main Specifications
Product Description | Teltonika RUTM11 – wireless router – WWAN – Wi-Fi 5, LTE – 3G, 4G – DIN rail mountable, wall-mountable, surface-mountable |
Device Type | Wireless router – wireless cellular modem – 4-port switch (integrated) |
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41 |
WAN Ports Qty | 1 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, FTP, SMTP, ARP, PPPoE, DHCP, Telnet |
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR) |
Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
Remote Management Protocol | SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus |
VoIP Protocols | H.323, SIP |
Features | USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, 2×2 MIMO technology, MAC address filtering, auto-uplink (auto MDI/MDI-X), WOL, H.323 Pass-Through, SIP ALG, DHCP relay, SQM, port forwarding, load balancing, SSHFS support, PSK, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, DNP3 outstation, DNP3 station, DLMS support, Teltonika RMS, aluminium housing, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support |
Compliant Standards | UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1r, IEEE 802.1s, IEEE 802.11e |
Power | DC 9 – 50 V |
Dimensions (WxDxH) | 11.5 cm x 9.51 cm x 4.42 cm |
Weight | 460 g |
Extended Specifications
General
Device Type | Wireless router – 4-port switch (integrated) |
|---|---|
Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
Connectivity Technology | Wired, wireless |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Data transfer rate (Wi-Fi): 867 Mbps |
Capacity | Maximum WiFi user capacity: 150 |
Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, FTP, SMTP, ARP, PPPoE, DHCP, Telnet |
Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR) |
Remote Management Protocol | SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus |
Encryption Algorithm | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, 192-bit AES-GCM, 256-bit AES-GCM, 128-bit AES-GCM, DES, CBC, RC2, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC |
Authentication Method | X.509 certificates, TACACS+, RADIUS |
Features | USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, 2×2 MIMO technology, MAC address filtering, auto-uplink (auto MDI/MDI-X), WOL, H.323 Pass-Through, SIP ALG, DHCP relay, SQM, port forwarding, load balancing, SSHFS support, PSK, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, DNP3 outstation, DNP3 station, DLMS support, Teltonika RMS, aluminium housing, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support |
Compliant Standards | UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1r, IEEE 802.1s, IEEE 802.11e, IP30, WEEE, ESD, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-4-11:2020, EN IEC 61000-4-3:2020, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, RCM, AS/NZS 62368.1:2022 |
Processor | 1 x MediaTek MIPS 1004Kc 880 MHz |
RAM | 256 MB DDR3 SDRAM |
Flash Memory | 16 MB |
Built-in Devices | Beidou, GPS, Galileo, QZSS, GLONASS |
Status Indicators | WAN, LAN, signal strength, connection status, power, Wi-Fi |
Communications
Type | Wireless cellular modem |
|---|---|
Mobile Communication Protocol | FDD LTE, TDD LTE |
Generation | 3G, 4G |
Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41 |
Max Transfer Rate | 300 Mbps |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|---|
Platform | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub |
Expansion / Connectivity

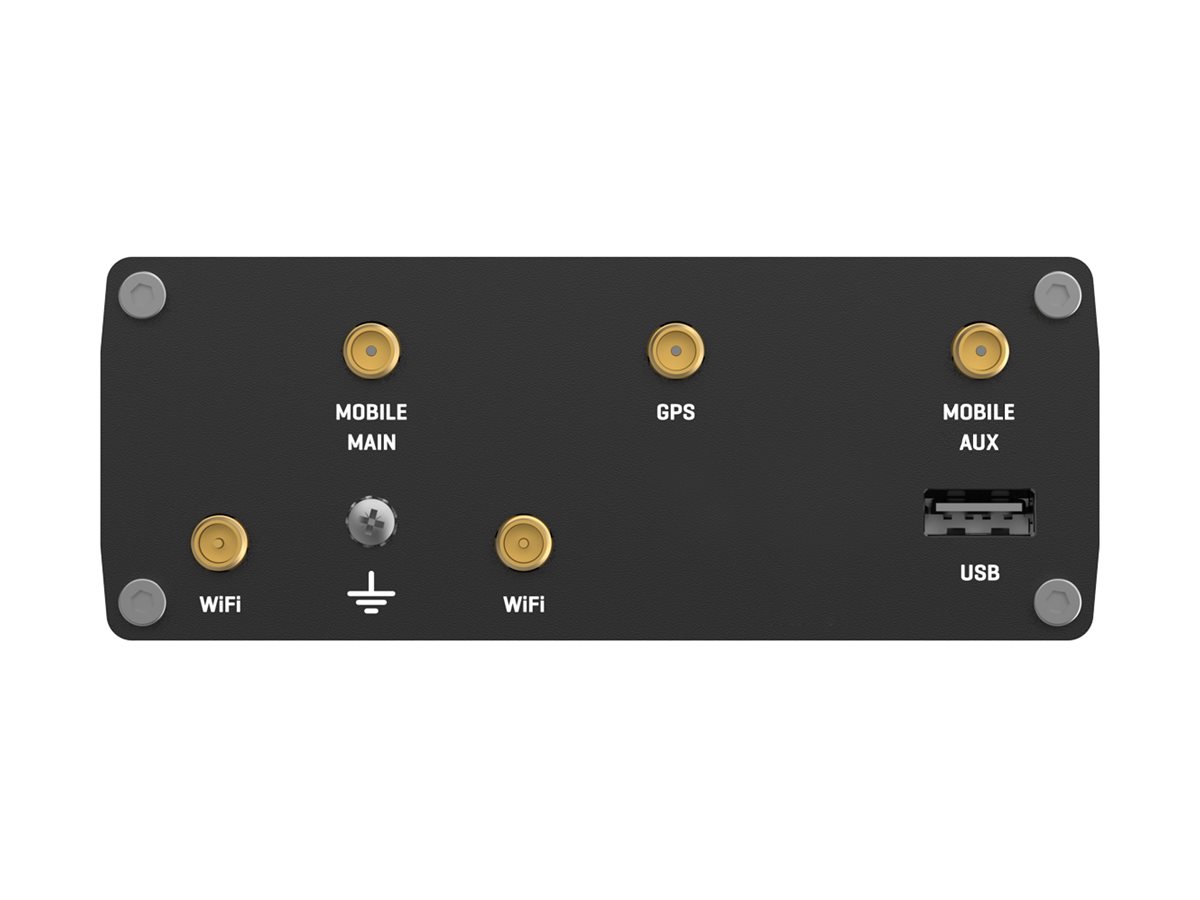

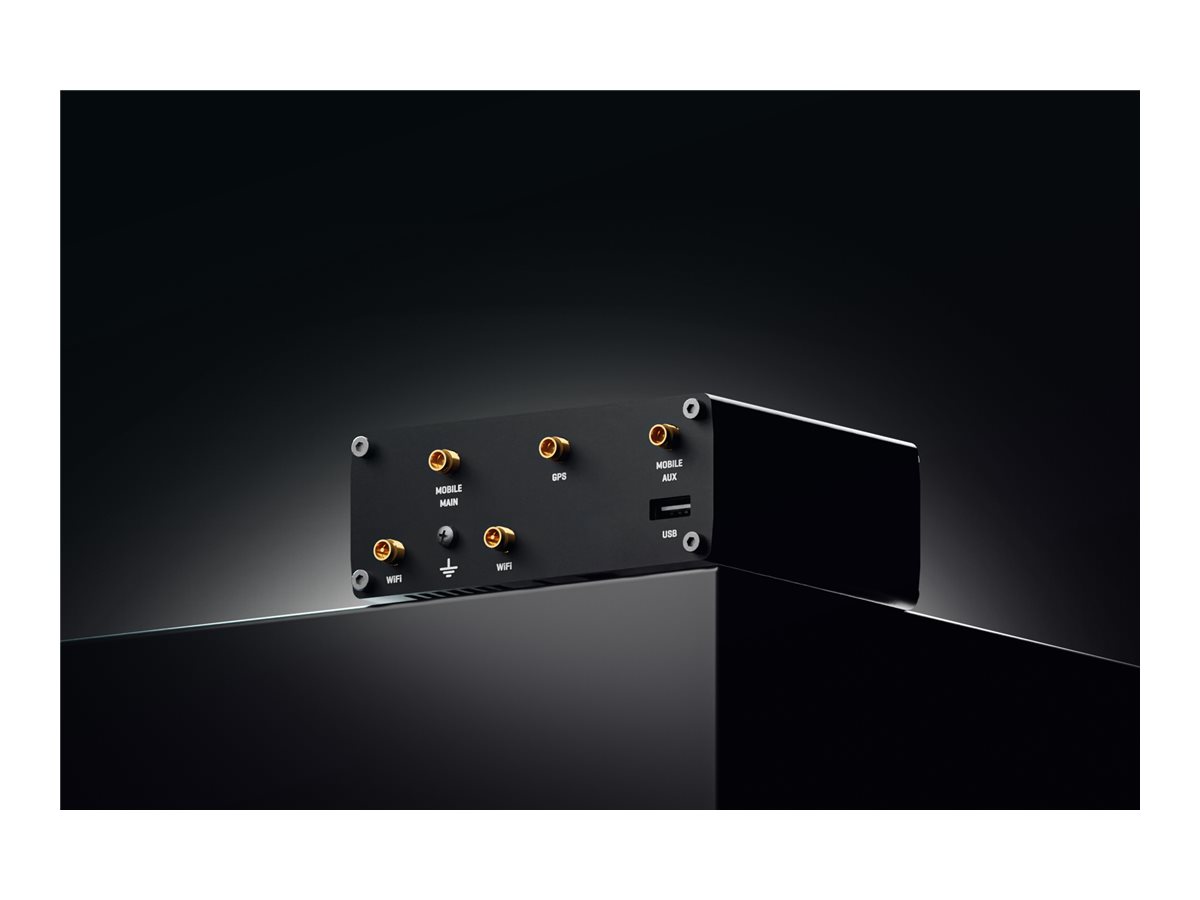

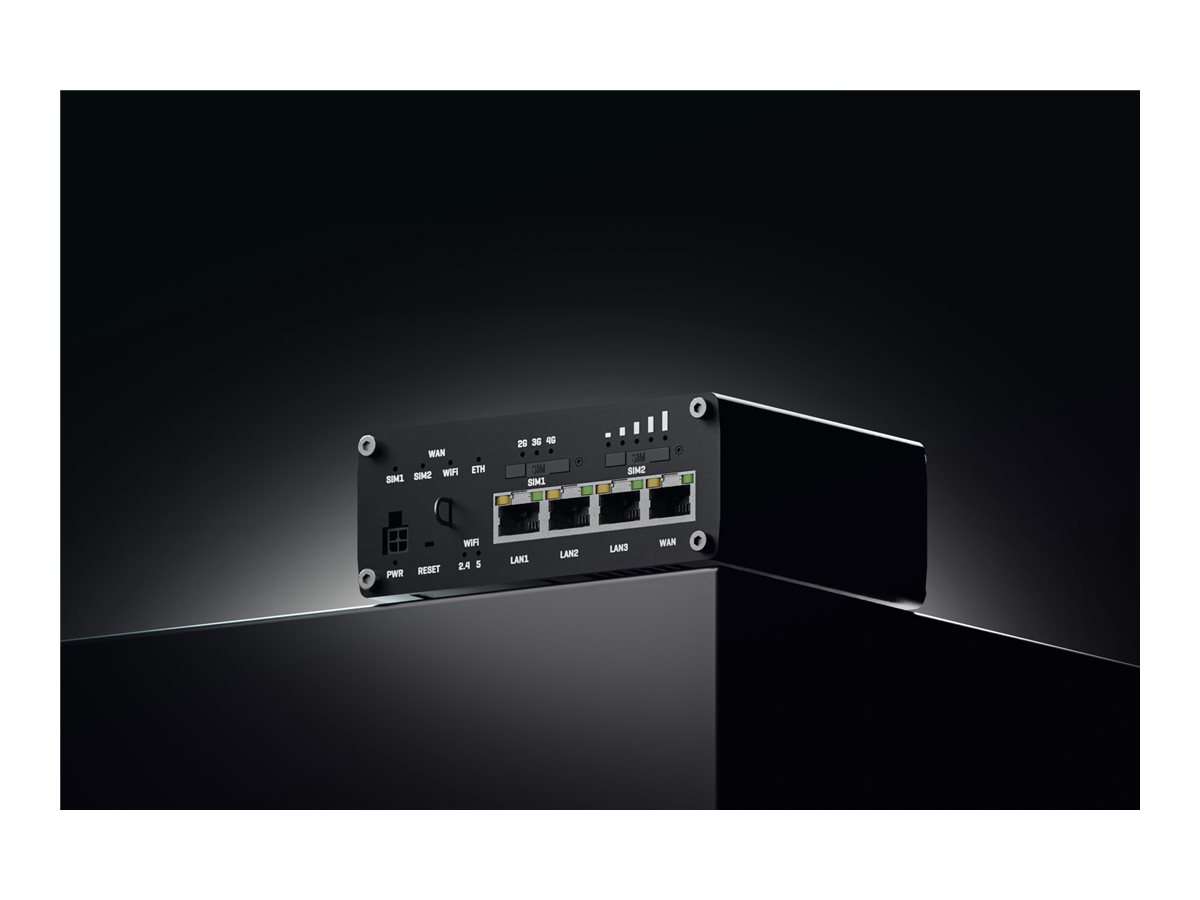

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Antenna: 2 x SMA – mobile Antenna: 2 x RP-SMA – Wi-Fi Antenna: 1 x SMA – GNSS aerial USB 2.0: 1 x Type A 1 x DO – 4 pin power 1 x DI – 4 pin power |
|---|---|
Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
Aerial
Aerial | External detachable |
|---|---|
Antenna Qty | 5 |
Configuration Details | 2 detachable external LTE antennas, 2 external Wi-Fi antennas, 1 external GPS antenna |
Power
Power Device | External power adapter – 18 Watt |
|---|---|
Voltage Required | DC 9 – 50 V |
Miscellaneous
Included Accessories | 2 x WiFi aerials, GNSS aerial, 2 x LTE aerials, SIM card adapter kit |
|---|---|
Cables Included | 1 x network cable – 1.5 m 1 x antenna cable – 3 m |
Software / System Requirements
OS Provided | RutOS |
|---|
Dimensions & Weight
Width | 11.5 cm |
|---|---|
Depth | 9.51 cm |
Height | 4.42 cm |
Weight | 460 g |
Environmental Parameters
Min Operating Temperature | -40 °C |
|---|---|
Max Operating Temperature | 75 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
