Description
The Samsung 9100 PRO MZ-VAP2T0 delivers performance with a storage capacity of 2 TB. Utilizing Samsung V-NAND TLC Technology and Intelligent TurboWrite 2.0 Technology, this internal solid-state drive ensures high-speed data transfers with internal data rates of up to 14,700 MBps for read and 13,400 MBps for write operations. The M.2 2280 form factor makes it a compact choice for various devices, enhancing overall system responsiveness. Designed for reliability, the drive features a robust integrated heatsink and supports TRIM along with Auto Garbage Collection Algorithms, which help maintain optimal performance over time. With compliance to NVMe 2.0 and a PCI Express 5.0 x4 interface, this SSD is suitable for heavy-duty tasks. The device tolerance against shock and vibration ensures durability, while the hardware encryption offers data security for sensitive information.
- 2 TB storage capacity for extensive data storage needs
- Internal data rates reaching up to 14,700 MBps for performance
- Integrated heatsink for thermal management and consistent operation
- Supports hardware encryption for secure data
- Reliable with a lifespan of 1.5 million hours MTBF
- High storage capacity
With 2 TB of storage, this SSD accommodates large files and applications, making it ideal for gamers, content creators, and professionals who require ample space. - Fast data transfer rates
Achieving internal data rates of 14,700 MBps for read operations and 13,400 MBps for write operations, this SSD accelerates file transfer and loading times. - Advanced thermal management
The integrated heatsink effectively dissipates heat, ensuring stable performance during intensive tasks and extending the lifetime of the drive. - Enhanced data security
This SSD is equipped with 256-bit AES hardware encryption, providing security for sensitive files and complying with TCG Opal Encryption 2.0. - Durable design
Built to withstand shocks of up to 1500 g, this SSD features a reliability rating of 1.5 million hours MTBF, ensuring longevity and dependability in various environments.
What’s in the Box

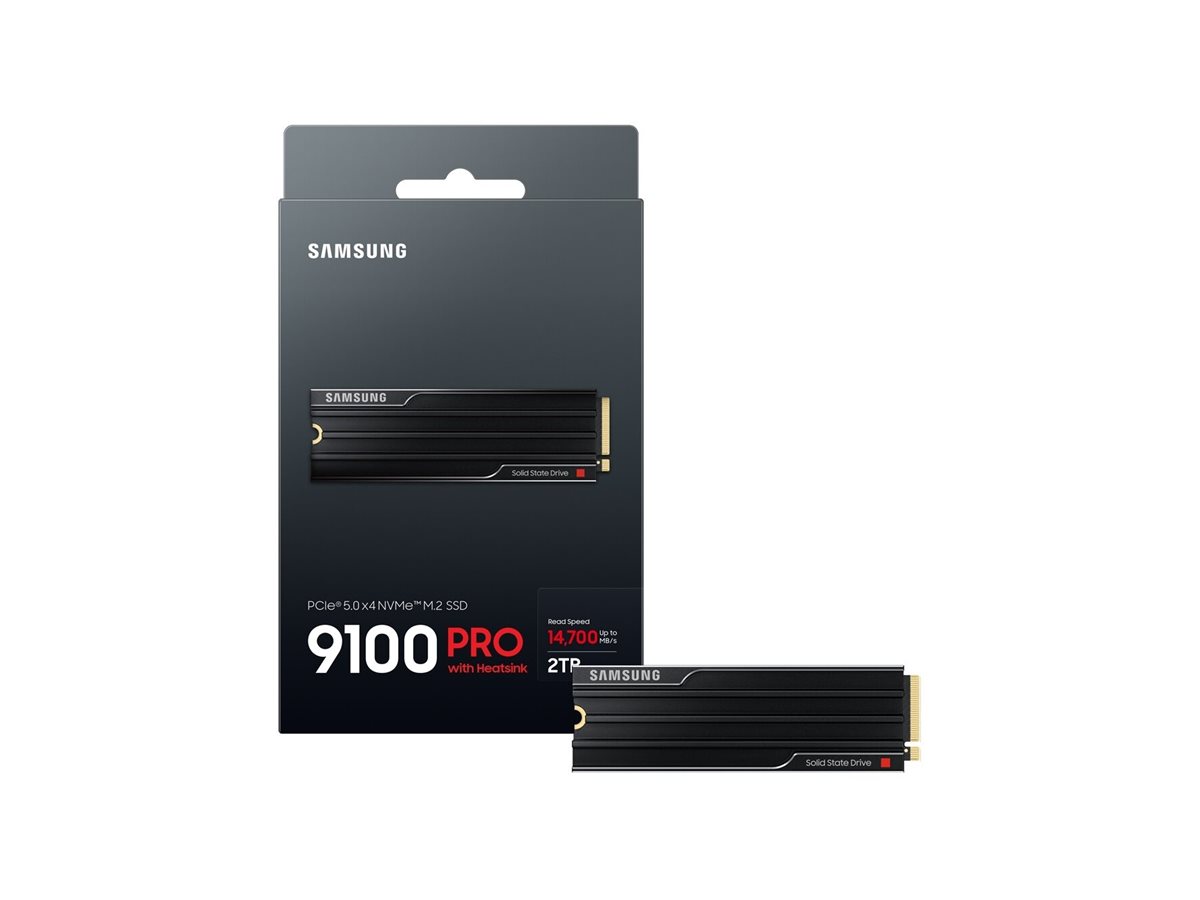

- Samsung 9100 PRO MZ-VAP2T0 – solid state drive
- Software
Main Specifications
Product Description | Samsung 9100 PRO MZ-VAP2T0 – SSD – 2 TB – PCI Express 5.0 x4 (NVMe) |
Type | Solid state drive – internal |
Capacity | 2 TB |
Integrated Heatsink | Yes |
Hardware Encryption | Yes |
Encryption Algorithm | 256-bit AES |
NAND Flash Memory Type | Triple-level cell (TLC) |
Form Factor | M.2 2280 |
Interface | PCI Express 5.0 x4 (NVMe) |
Features | TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Samsung V-NAND TLC Technology, integrated heatsink, Intelligent TurboWrite 2.0 Technology, NVMe 2.0, S.M.A.R.T. |
Enclosure Colour | Black |
Dimensions (WxDxH) | 22.9 mm x 81.3 mm x 8.89 mm |
Weight | 31.8 g |
Extended Specifications
General
Device Type | Solid state drive – internal |
|---|
Capacity | 2 TB |
|---|
Hardware Encryption | Yes |
|---|
Encryption Algorithm | 256-bit AES |
|---|
NAND Flash Memory Type | Triple-level cell (TLC) |
|---|
Integrated Heatsink | Yes |
|---|
Form Factor | M.2 2280 |
|---|
Interface | PCI Express 5.0 x4 (NVMe) |
|---|
Features | TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Samsung V-NAND TLC Technology, integrated heatsink, Intelligent TurboWrite 2.0 Technology, NVMe 2.0, S.M.A.R.T. |
|---|
Width | 22.9 mm |
|---|
Depth | 81.3 mm |
|---|
Height | 8.89 mm |
|---|
Weight | 31.8 g |
|---|
Performance
SSD Endurance | 1200 TB |
|---|
Internal Data Rate | 14700 MBps (read) / 13400 MBps (write) |
|---|
Maximum 4KB Random Write | 2600000 IOPS |
|---|
Maximum 4KB Random Read | 1850000 IOPS |
|---|
Reliability
Expansion & Connectivity
Power
Power Consumption | 8.1 watt (read) 7.9 watt (write) 4.8 watt (idle) 4 mW (sleep) |
|---|
Software & System Requirements
Software Included | Samsung Magician Software |
|---|
Miscellaneous
Compliant Standards | IEEE 1667 |
|---|
Enclosure Colour | Black |
|---|
Package Details | Hanging box |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 9.9 cm |
|---|
Shipping Depth | 2.29 cm |
|---|
Shipping Height | 16.3 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 70 °C |
|---|
Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
|---|
