Description

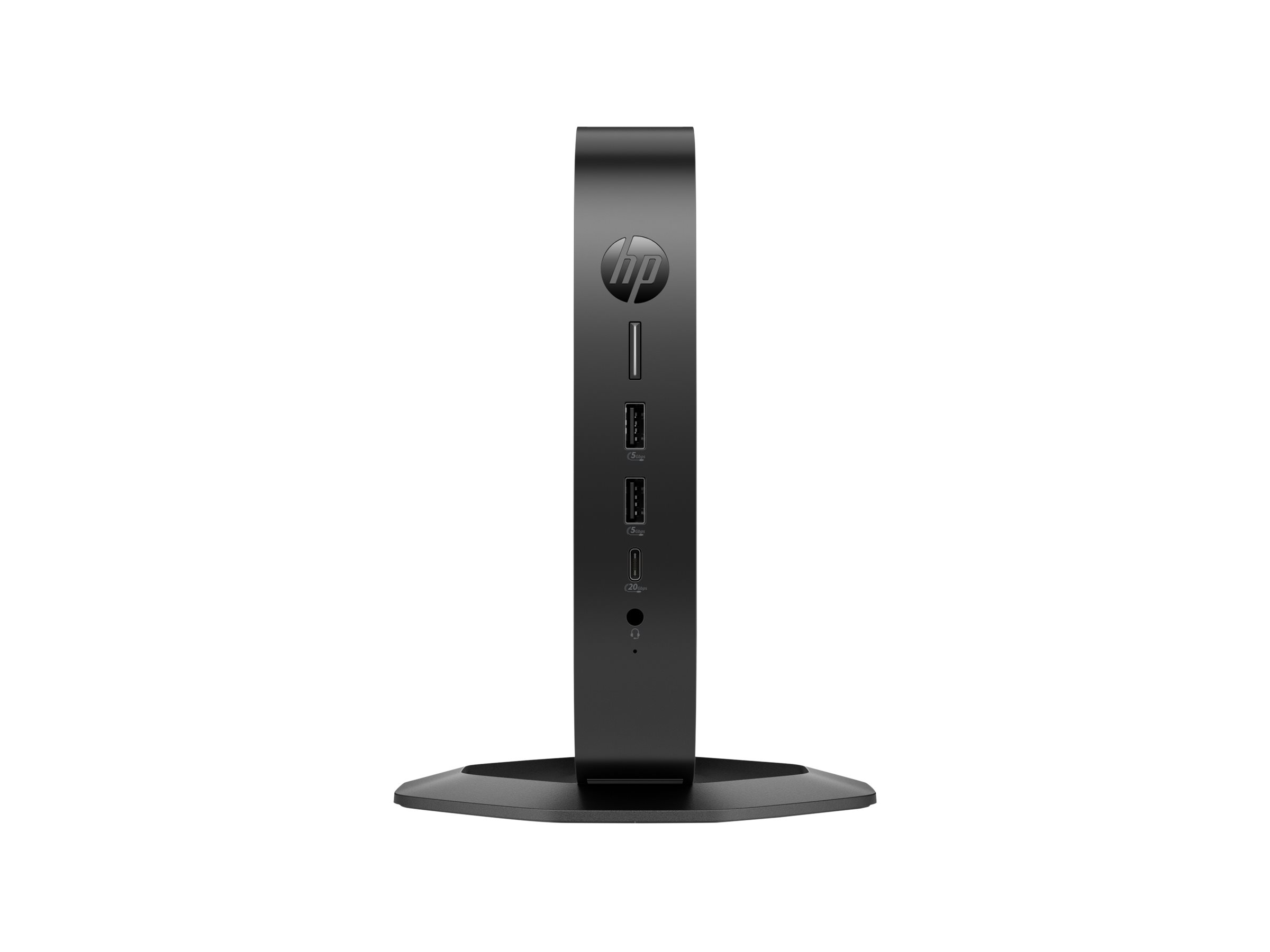

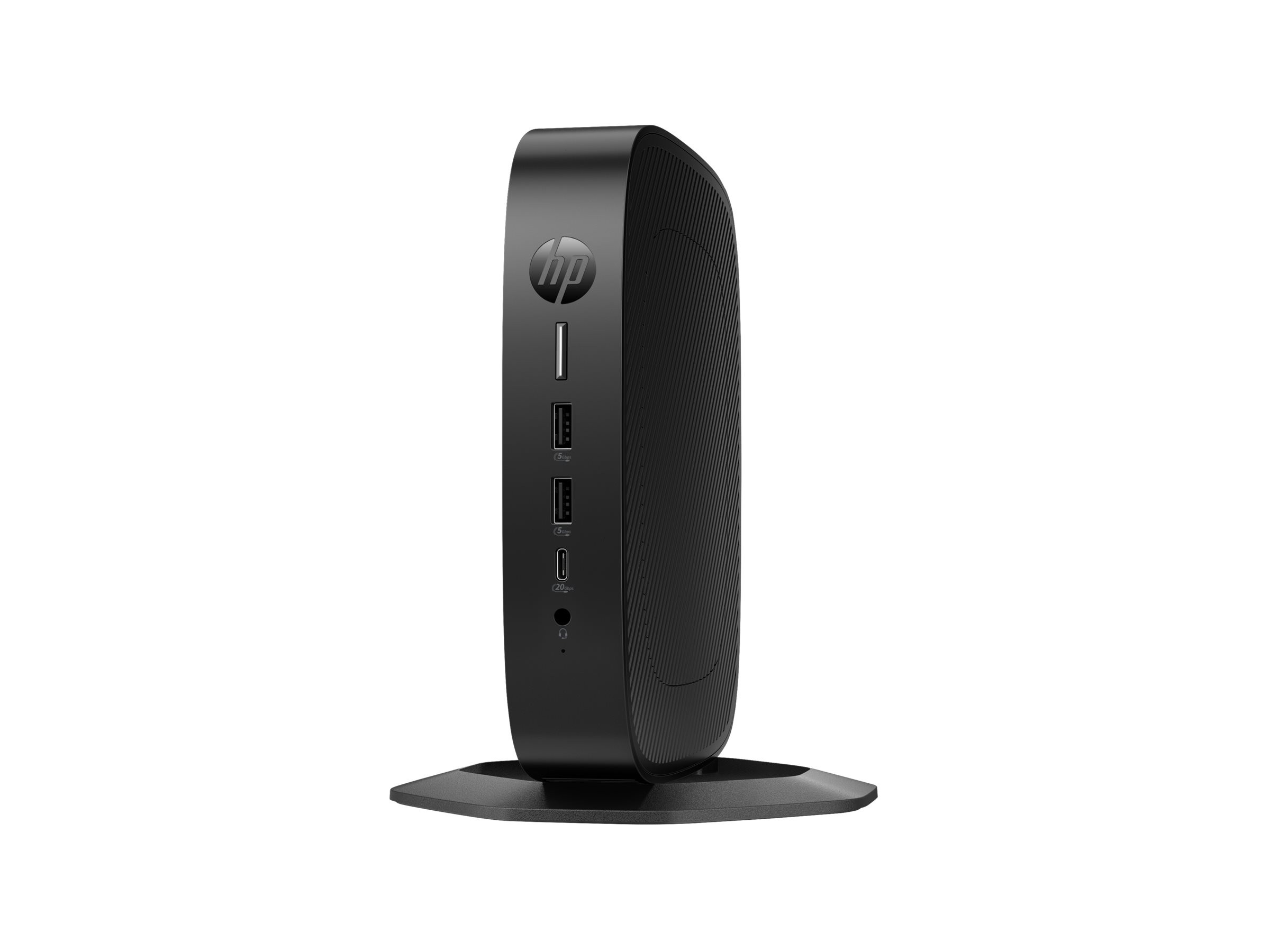

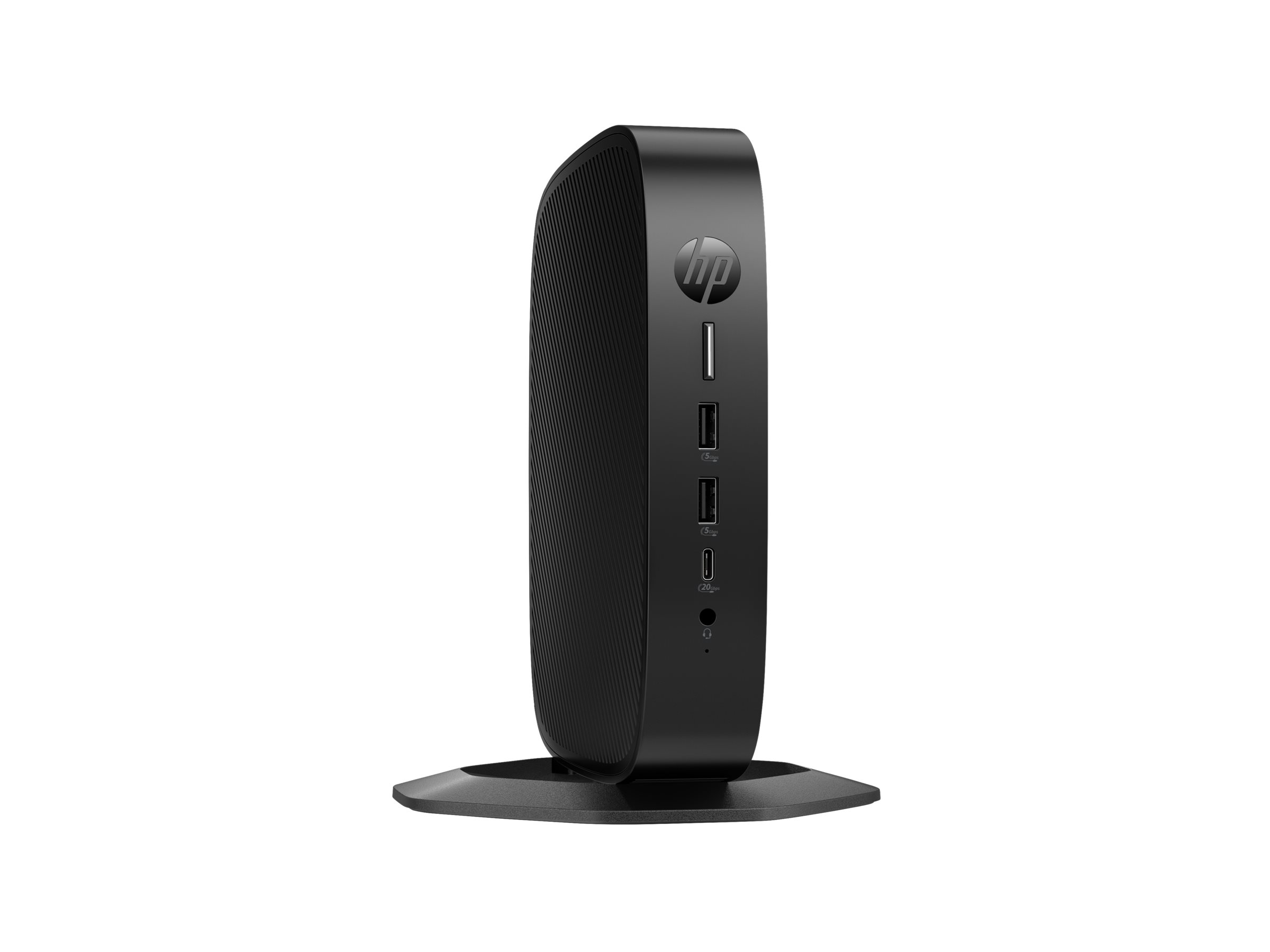

This high-performance, reliable HP Elite t660 Thin Client workhorse enables productivity, while HP Wolf Security features provide IT peace of mind. Built to support demanding workloads, whether in the office or working remote, this cloud device helps end users tackle daily tasks, while versatile configurations help optimize workspaces.

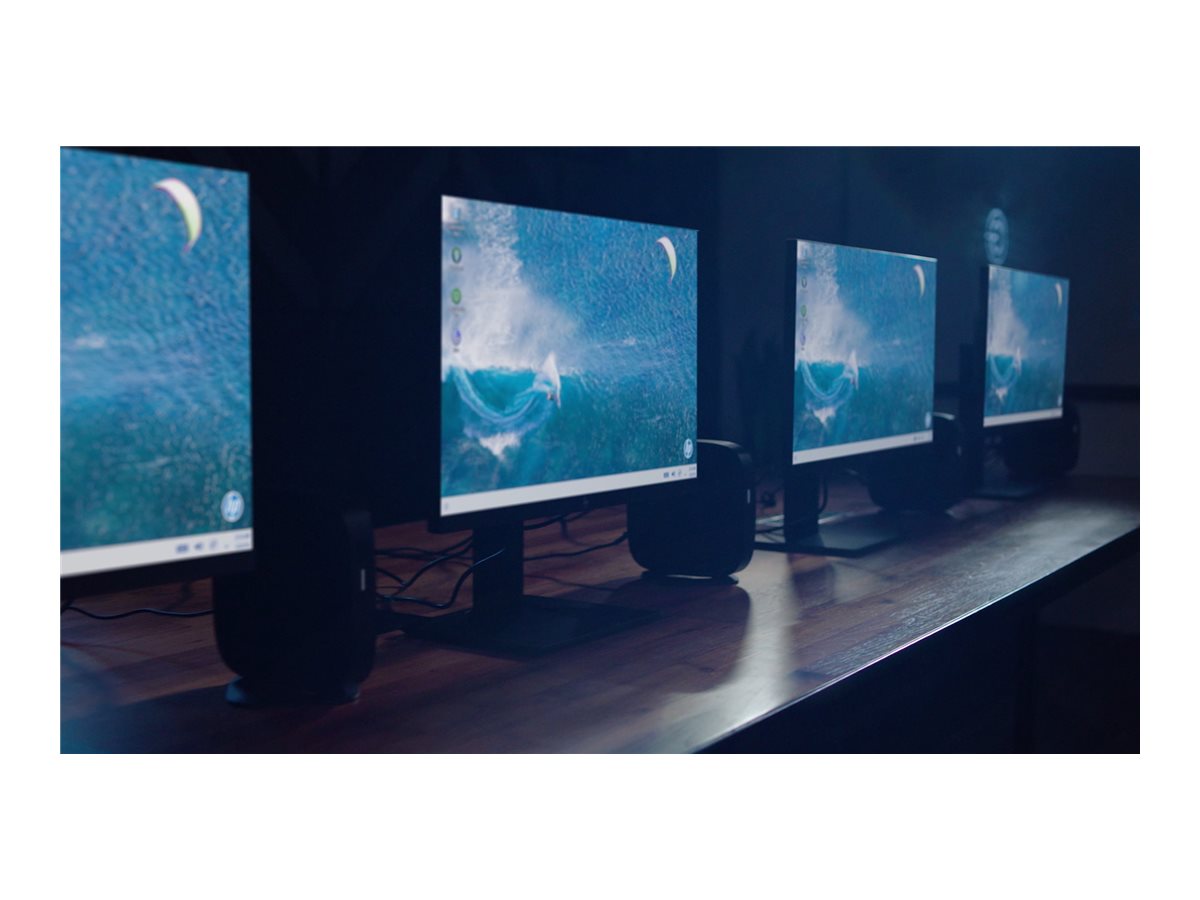

- Experience peak productivity with a 5-core Intel processor and support for up to four stunning 4K displays.
- Fortify security with the inherently secure HP thin client, enhanced by HP BIOS and Wolf Security.
- Efficiently manage projects with optimized UC solutions for Microsoft Teams, Zoom, Citrix WebEx, and more.
- The EPEAT registered thin client uses 100% sustainably sourced and recyclable outer box packaging.
- Efficient processing power
The HP Elite t660 is powered by an Intel U300E processor, featuring 5 cores and a clock speed of 1.1 GHz, enabling performance for various tasks. - High-capacity RAM
Equipped with 8 GB of DDR5 SDRAM, the thin client delivers high-speed performance with a rated memory speed of 2800 MHz for seamless multitasking. - Flexible connectivity options
Offers a wide array of ports including USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, DisplayPort 1.4, and Thunderbolt 4, ensuring compatibility with various devices and easy connectivity. - Space-saving design
The small form factor design allows for fitting on desks or workspaces, making it ideal for environments with limited space. - Robust security features
Built-in Trusted Platform Module (TPM 2.0) provides advanced security features, ensuring data protection and privacy for sensitive information.
What’s in the Box
- HP Elite t660
- Power adapter
Main Specifications
Product Description | HP Elite t660 – SFF U-Series U300E 1.1 GHz – 8 GB – flash 64 GB |
Type | Thin client – SFF |
Processor | 1 x Intel U-Series U300E / 1.1 GHz (up to 4.3 GHz, (5-core) |
Processor Main Features | Intel Turbo Boost Technology |
Cache Memory | 8 MB L3 Cache |
Cache Per Processor | 8 MB |
RAM | 8 GB (installed) / 32 GB (max) – DDR5 SDRAM |
Hard Drive | Flash 64 GB – M.2 – eMMC |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics |
Networking | 1GbE |
Power | (50 – 60 Hz) |
OS Provided | IGEL OS 12 |
Software Included | HP Easy Tools, HP Device Manager, HP Secure Erase, HP ThinUpdate, HP True Graphics, HP Easy Shell, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP Sure Admin, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP User State Tool, HP Sure Start, Microsoft AVD |
Dimensions (WxDxH) | 3.5 cm x 20 cm x 20 cm |
Weight | 1.2 kg |
Environmental Standards | TCO Certified Desktops 9 |
Documents
Extended Specifications
General
Type | Thin client |
|---|
Product Form Factor | SFF |
|---|
Built-in Devices | Speaker |
|---|
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Processor / Chipset
CPU | Intel U-Series U300E |
|---|
Clock Speed | 1.1 GHz |
|---|
Max Turbo Speed | 4.3 GHz (P-core) / 3.2 GHz (E-core) |
|---|
Number of Cores | 5-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
CPU Upgradability | Not upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology |
|---|
Cache Memory
Installed Size | L3 Cache – 8 MB |
|---|
Cache Per Processor | 8 MB |
|---|
RAM
Installed Size | 8 GB (installed) / 32 GB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 2600 MHz |
|---|
Rated Memory Speed | 2800 MHz |
|---|
Form Factor | SO-DIMM 262-pin |
|---|
Slots | 2 (Total) / 1 (empty) |
|---|
Configuration Features | 1 x 8 GB |
|---|
Hard Drive
Type | Flash – M.2 |
|---|
Capacity | 1 x 64 GB |
|---|
Features | eMMC |
|---|
Optical Storage
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics |
|---|
Video Interfaces | DisplayPort |
|---|
Max Monitors Supported | 4 |
|---|
Input Device
Keyboard
Keyboard Name | HP 320K |
|---|
Interface | USB |
|---|
Mouse
Networking
Ethernet Controller | Realtek RTL8111HSH-CG |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Features | Wake on LAN (WoL) |
|---|
Expansion / Connectivity
Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
|---|
Interfaces | 3 x USB 3.2 Gen 1 (2 front, 1 rear)
1 x USB 3.2 Gen 2 (1 rear)
1 x Thunderbolt 4/USB4/DisplayPort 1.4 (1 front) (Power Delivery, HP Sleep and Charge)
1 x audio line-out/line-in (1 rear)
1 x LAN (Gigabit Ethernet) – RJ-45 (1 rear)
2 x USB 2.0 (2 rear)
1 x audio line-in/headphones – mini-jack (1 front)
3 x DisplayPort 1.4 (3 rear) |
|---|
Miscellaneous
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, VESA |
|---|
Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE, EN60601-1-2, CNS Class B |
|---|
Power
Device Type | Power adapter |
|---|
Power Device Name | HP Smart AC Adapter |
|---|
Voltage Required | AC 100-240 V (50 – 60 Hz) |
|---|
Power Provided | 45 watt |
|---|
Efficiency | 87% |
|---|
Operating System / Software
OS Provided | IGEL OS 12 |
|---|
Software | HP Easy Tools, HP Device Manager, HP Secure Erase, HP ThinUpdate, HP True Graphics, HP Easy Shell, HP USB Port Manager, HP Smart Zero Client Services, HP Write Manager, HP Sure Admin, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP User State Tool, HP Sure Start, Microsoft AVD |
|---|
Sustainability Information
TCO Certified | TCO Certified Desktops 9 |
|---|
Dimensions & Weight
Dimensions & Weight Details | 3.5 cm – 20 cm – 20 cm – 1.2 kg – with stand
– 1.15 kg – without stand |
|---|
Width | 3.5 cm |
|---|
Depth | 20 cm |
|---|
Height | 20 cm |
|---|
Weight | 1.2 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 49.5 cm |
|---|
Shipping Depth | 13.2 cm |
|---|
Shipping Height | 26 cm |
|---|
Shipping Weight | 2.98 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
