Description
Do your servers need increased performance in storage, compute, or expansion?

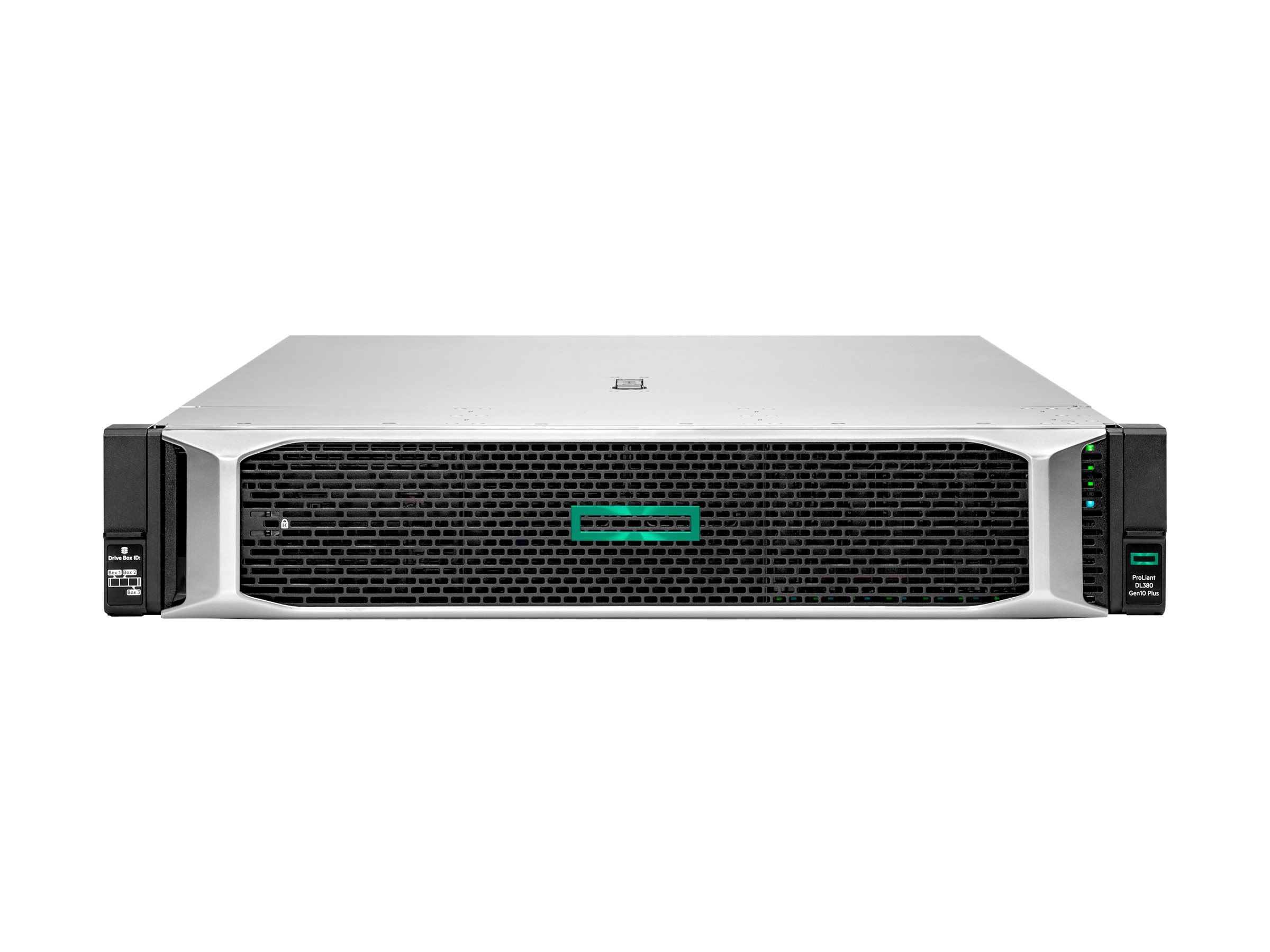

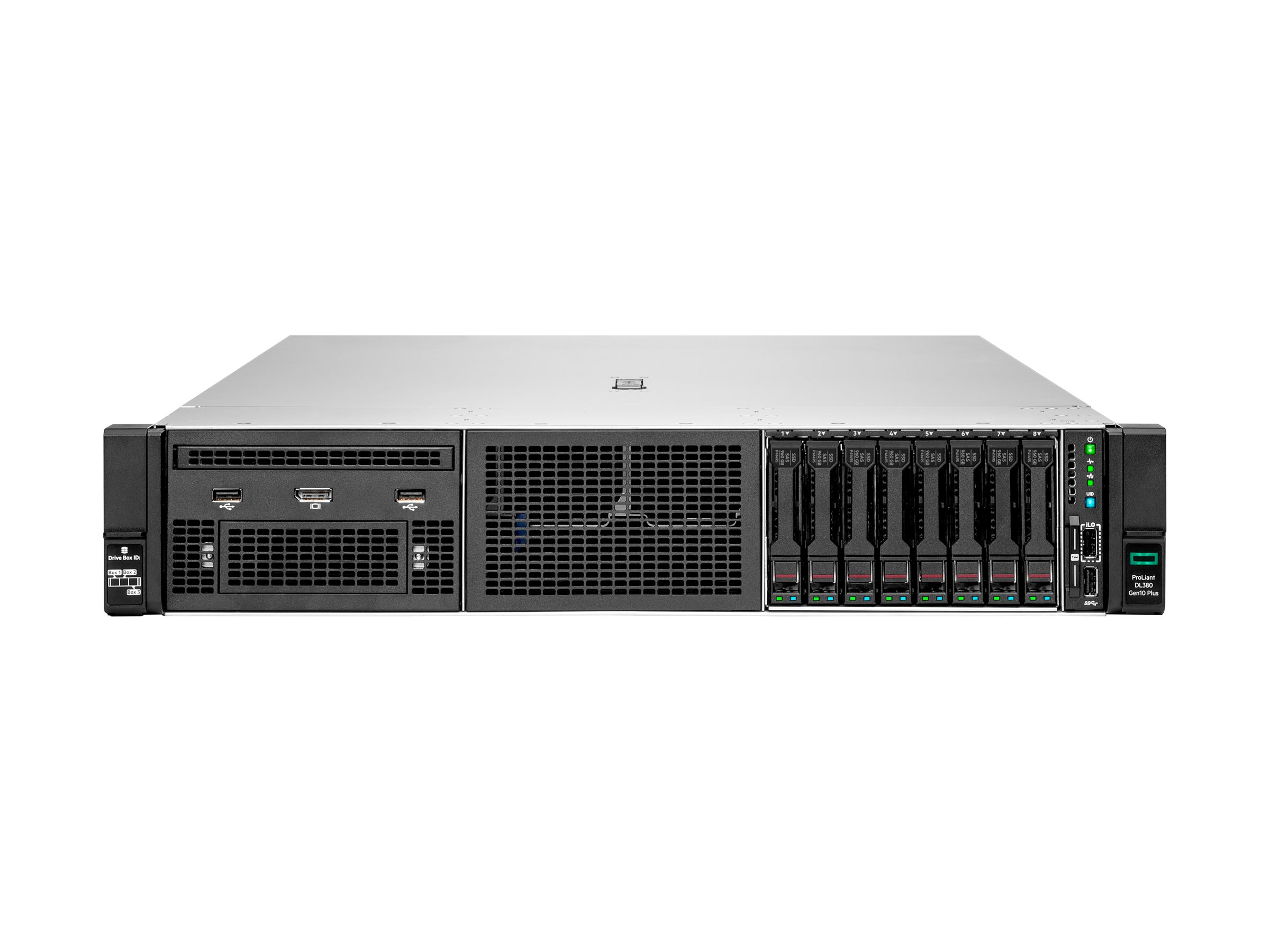

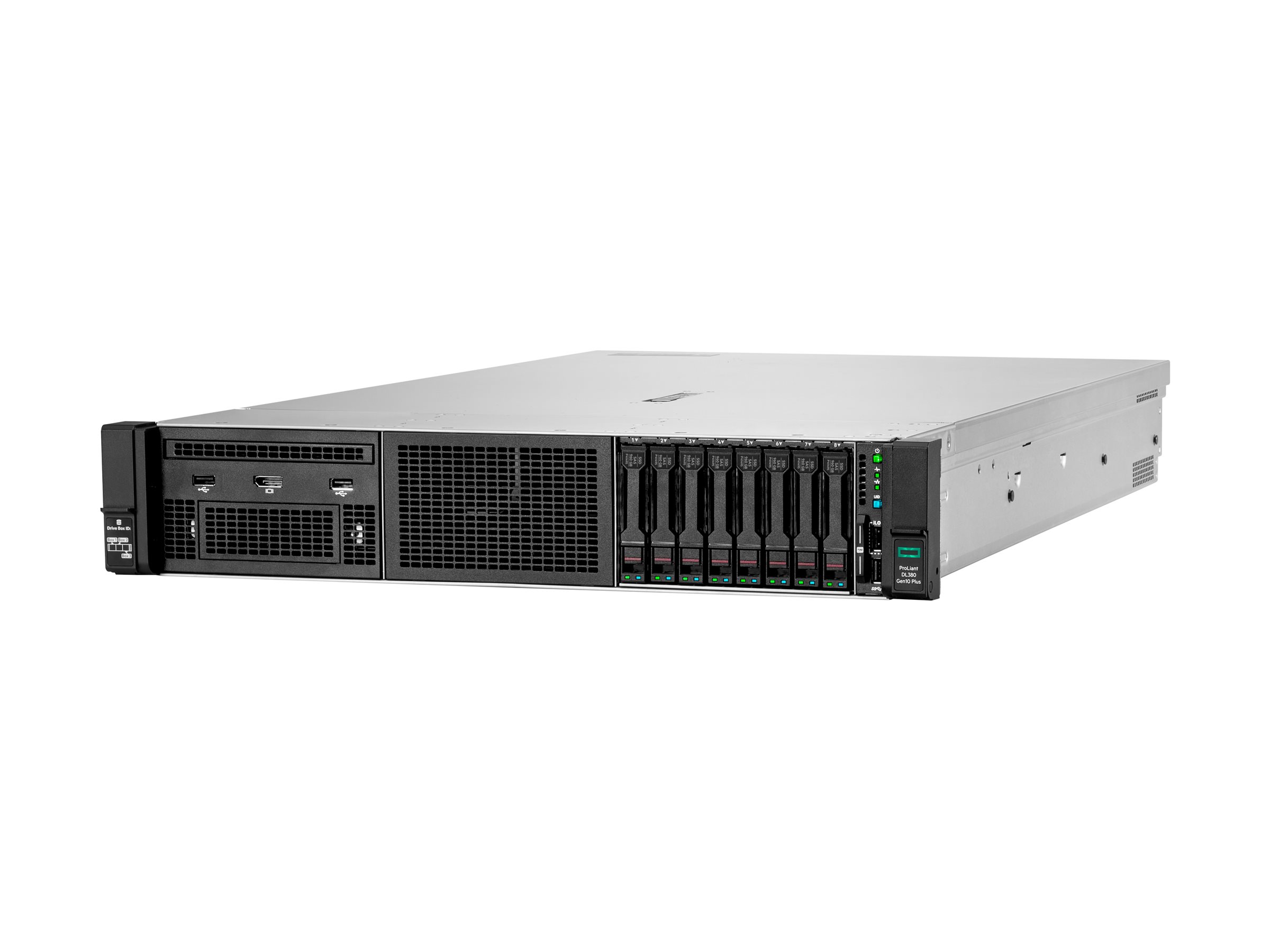

The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built with a quality processor. Equipped with PCIe capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
- Built for some of the most demanding workloads
- 360-degree holistic security
- Intelligent management automation
- Built for some of the most demanding workloads
The HPE ProLiant DL380 Gen10 Plus server is built with foundational intelligence to enhance workload performance, placement, and efficiency, delivering better outcomes faster. It provides real-time operational feedback on server performance and recommendations for fine-tuning BIOS settings to customize for your business needs. - 360-degree holistic security
The HPE ProLiant DL380 Gen10 Plus server provides an enhanced, holistic, 360-degree view to security that begins in the manufacturing supply chain and concludes with a safeguarded, end-of-life decommissioning. HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle uncompromised through the supply chain. HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, verify containment of malicious code, and protect healthy servers. HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations. When it’s time to retire or repurpose an HPE ProLiant server, one-button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information. - Intelligent management automation
The HPE ProLiant DL380 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability. Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues. Automation and software defined control reduces time spent on provisioning and maintenance, as well as reduces deployment times from weeks to mere days. HPE InfoSight for Servers continually analyzes server infrastructure and applies real-world examples of hundreds of thousands of servers to predict and prevent problems before they can adversely affect business operations.
What’s in the Box
- HPE ProLiant DL380 Gen10 Plus Network Choice
- CPU standard heatsink, 6 maximum performance fans, SFF Easy Install Rail Kit
Main Specifications
Product Description | HPE ProLiant DL380 Gen10 Plus Network Choice – rack-mountable Xeon Silver 4314 2.4 GHz – 64 GB – SSD 2 x 480 GB |
Type | Server – rack-mountable |
Height (Rack Units) | 2U |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Silver 4314 / 2.4 GHz (up to 3.4 GHz, (16-core) |
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
Cache Memory | 24 MB |
Cache Per Processor | 24 MB |
RAM | 64 GB (installed) / 2 TB (max) – DDR4 SDRAM |
Storage Controller | RAID (SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)) (HPE SR416i-a Gen10 Plus) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | 2 x SSD 480 GB – SATA 6Gb/s |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE, 10GbE |
Power Redundancy | Yes |
OS Provided | No operating system |
Dimensions (WxDxH) | 44.54 cm x 71 cm x 8.75 cm |
Weight | 16.12 kg |
Manufacturer Selling Program | HPE Smart Choice |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 2U |
|---|
Built-in Devices | Led panel |
|---|
Embedded Security | Trusted Platform Module (TPM) Security Chip |
|---|
Server Scalability | 2-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | Intel Xeon Silver 4314 |
|---|
Clock Speed | 2.4 GHz |
|---|
Max Turbo Speed | 3.4 GHz |
|---|
Number of Cores | 16-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 2 |
|---|
CPU Upgradability | Upgradable |
|---|
Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
|---|
Chipset Type | Intel C621A |
|---|
Cache Memory
Installed Size | 24 MB |
|---|
Cache Per Processor | 24 MB |
|---|
RAM
Installed Size | 64 GB (installed) / 2 TB (max) |
|---|
Technology | DDR4 SDRAM |
|---|
Rated Memory Speed | 1600 MHz |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 32 (Total) / 30 (empty) |
|---|
Features | HPE SmartMemory, registered, slots 17 – 32 are available in two-processor configuration only |
|---|
Configuration Features | 2 x 32 GB |
|---|
RAM Supported | 8 TB Load-Reduced
2 TB registered
8 TB – HPE Persistent Memory – Optane DC Persistent |
|---|
Hard Drive
Type | SSD |
|---|
Capacity | 2 x 480 GB |
|---|
Interface Type | SATA 6Gb/s |
|---|
Features | Read Intensive, HPE Multi Vendor |
|---|
Storage Controller
Type | 1 x RAID |
|---|
Controller Interface Type | SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE SR416i-a Gen10 Plus |
|---|
Channel Qty | 16 |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
|---|
Ethernet Ports | 2 x 10 Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM57412 |
|---|
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
|---|
Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
|---|
Remote Management Controller | Integrated Lights-Out 5 |
|---|
Features | Wake on LAN (WoL), PXE support |
|---|
Compliant Standards | OCP 3.0 |
|---|
Expansion / Connectivity
Bays | 8 (total) / 6 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height
1 (total) / 1 (free) x PCIe 4.0 x16 – half-length, full-height (x8 mode)
1 (total) / 1 (free) x PCIe 4.0 x16 – full-length, full-height (x8 mode)
1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) (for NIC adapter) |
|---|

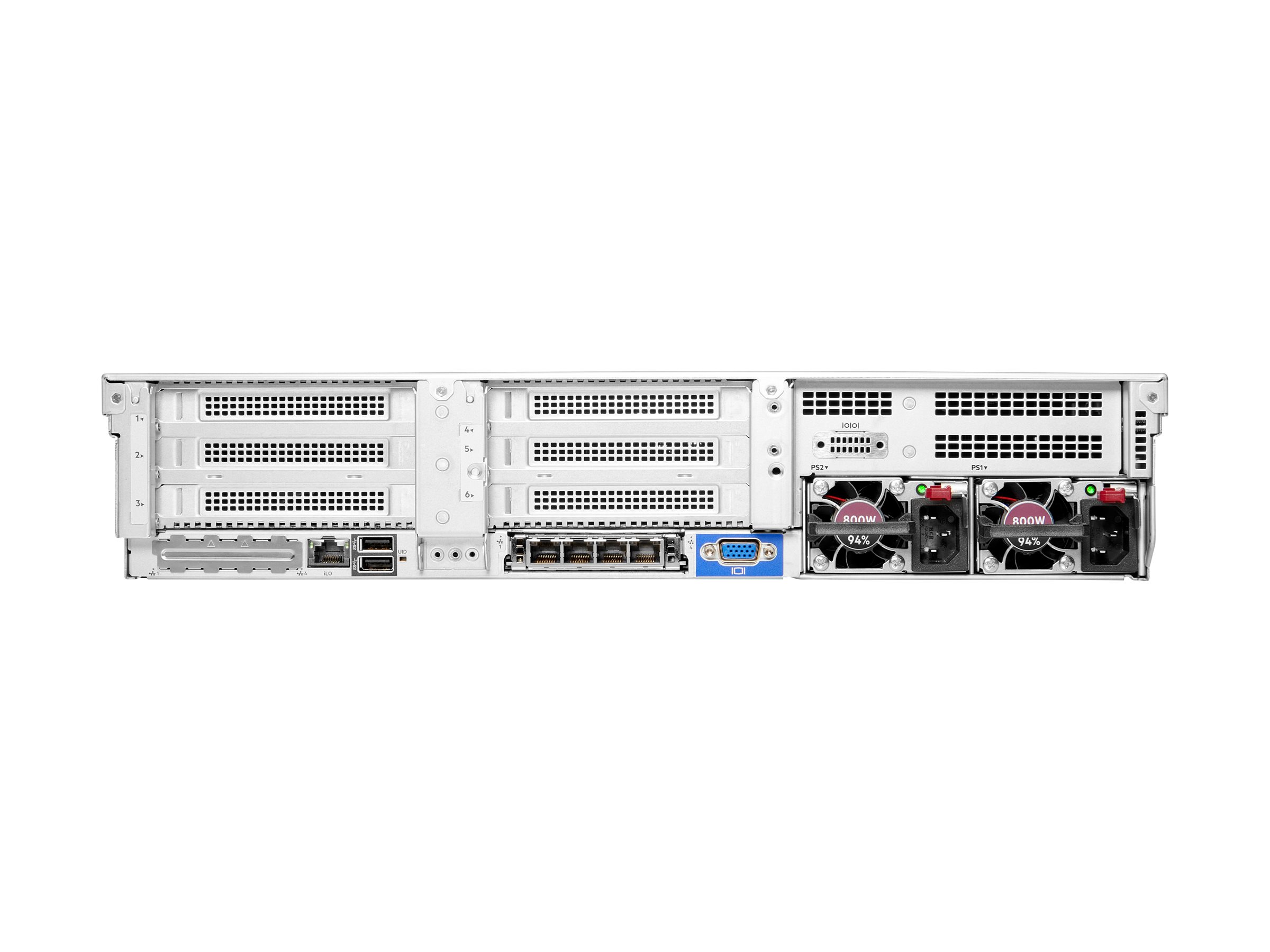

Interfaces | 1 x HPE iLO – RJ-45 (1 rear) (management port)
1 x USB 3.0
1 x HPE iLO – Type A (1 front) (service port)
2 x LAN (1/10 Gigabit Ethernet) – SFP+ (2 rear)
1 x VGA (1 rear) |
|---|
Miscellaneous
Included Accessories | CPU standard heatsink, SFF Easy Install Rail Kit, 6 maximum performance fans |
|---|
Compliant Standards | AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2, Active Directory v1.0 |
|---|
Manufacturer Selling Program | HPE Smart Choice |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-240 V |
|---|
Power Provided | 800 watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 44.54 cm |
|---|
Depth | 71 cm |
|---|
Height | 8.75 cm |
|---|
Weight | 16.12 kg |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
