Description

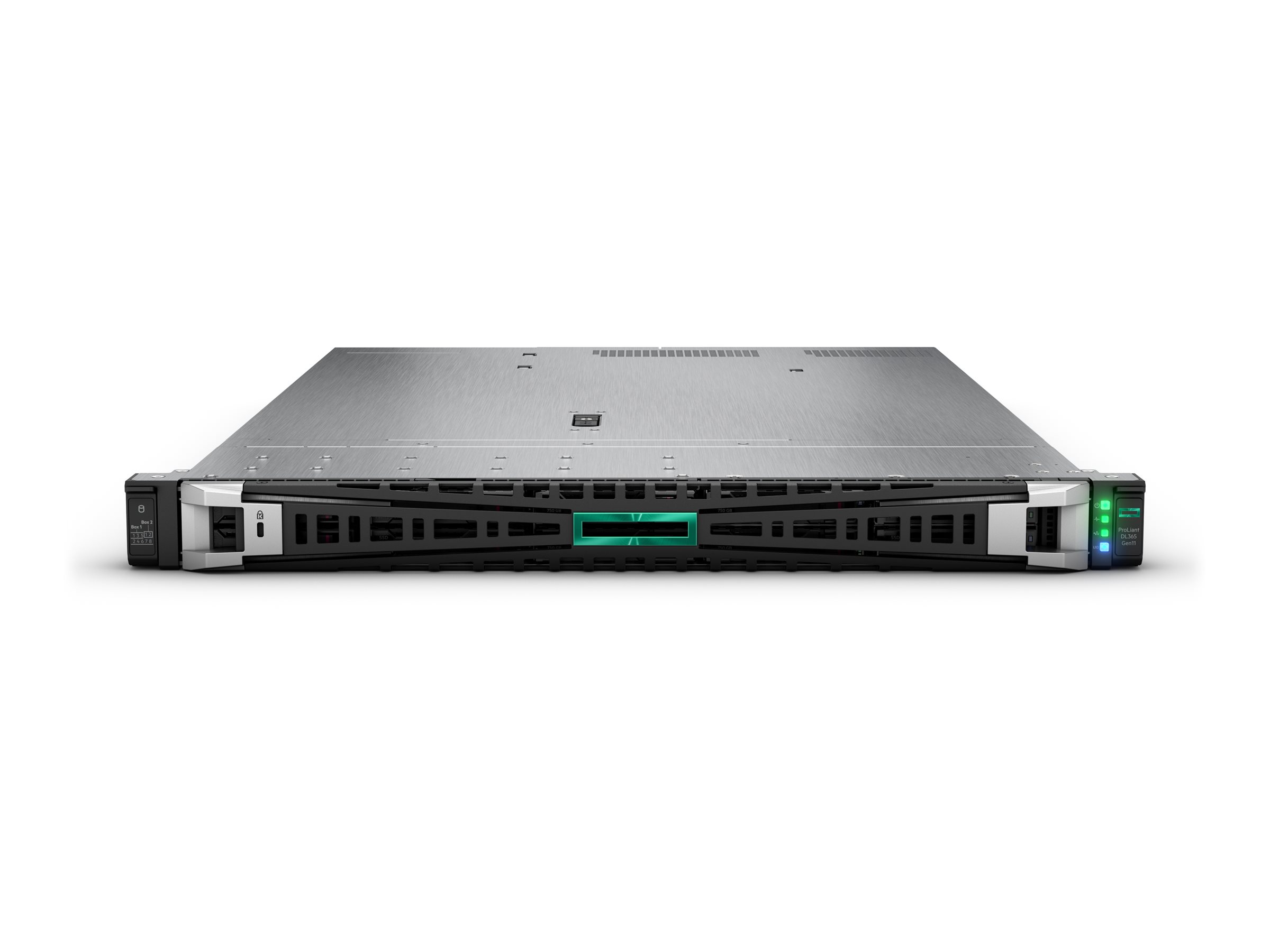

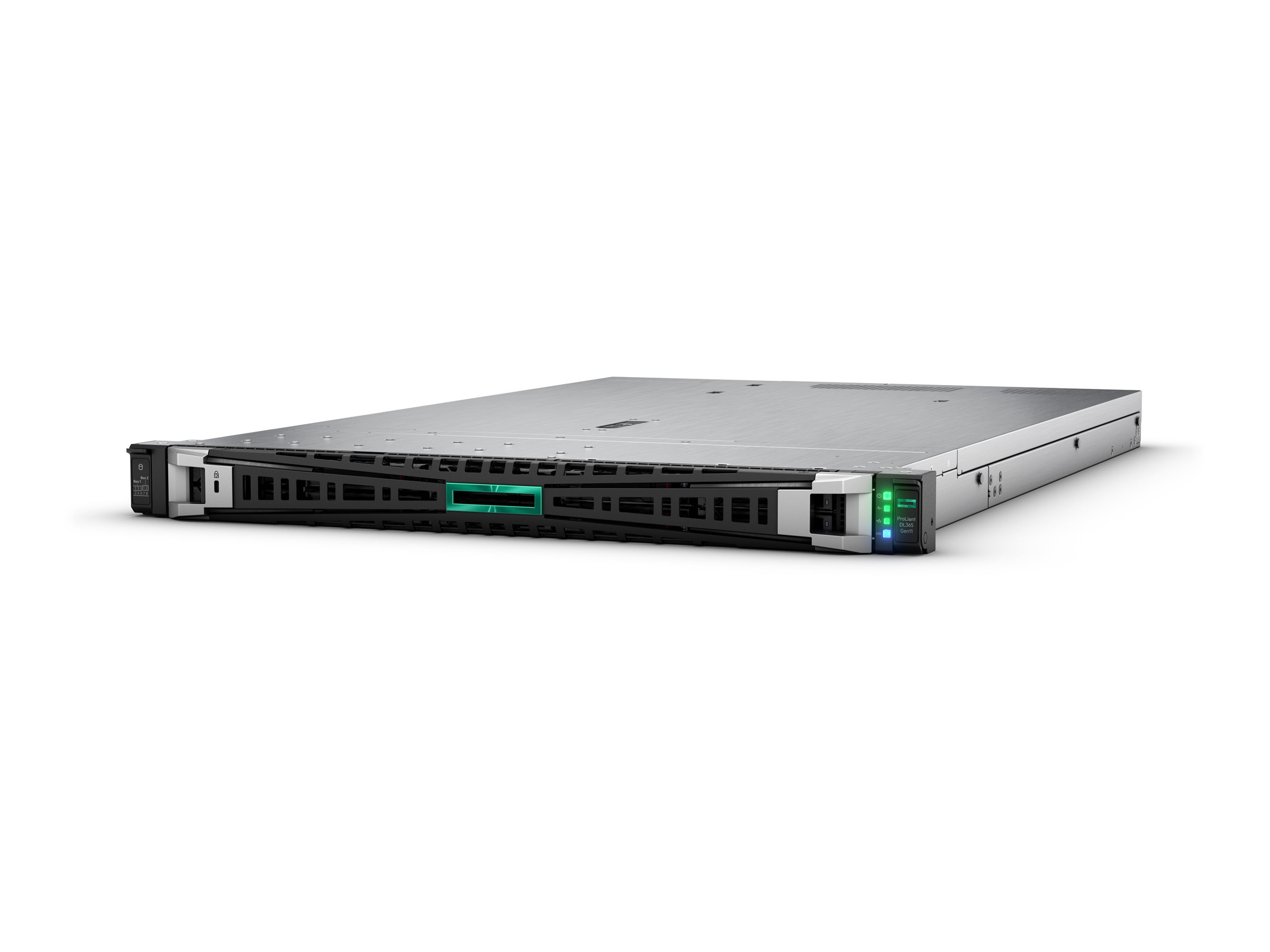

The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC Processors with up to 96 cores, increased memory bandwidth, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution. The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server boots. The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility.
What’s in the Box
- HPE ProLiant DL365 Gen11
- 7 x standard fans
Main Specifications
Product Description | HPE ProLiant DL365 Gen11 – rack-mountable EPYC 9224 2.5 GHz – 64 GB – SSD 2 x 480 GB |
Type | Server – rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 2-way |
Processor | 1 x AMD EPYC 9224 / 2.5 GHz (up to 3.7 GHz, (24-core) |
Cache Memory | 64 MB L3 Cache |
Cache Per Processor | 64 MB |
RAM | 64 GB (installed) / 6 TB (max) – DDR5 SDRAM |
Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) (HPE MR408i-o Gen11 SPDM) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | 2 x SSD 480 GB – SATA 6Gb/s |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | 1GbE, 10GbE |
Power Redundancy | Yes |
Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
Dimensions (WxDxH) | 44.89 cm x 64.94 cm x 4.29 cm |
Weight | 12.7 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | Server |
|---|
Product Form Factor | Rack-mountable – 1U |
|---|
Built-in Devices | Led panel |
|---|
Server Scalability | 2-way |
|---|
Hot-Swap Bays Qty | 8 |
|---|
Processor / Chipset
CPU | AMD EPYC 9224 |
|---|
Clock Speed | 2.5 GHz |
|---|
Max Turbo Speed | 3.7 GHz |
|---|
Number of Cores | 24-core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 2 |
|---|
CPU Upgradability | Upgradable |
|---|
Cache Memory
Installed Size | L3 Cache – 64 MB |
|---|
Cache Per Processor | 64 MB |
|---|
RAM
Installed Size | 64 GB (installed) / 6 TB (max) |
|---|
Technology | DDR5 SDRAM |
|---|
Effective Memory Speed | 2400 MHz |
|---|
Rated Memory Speed | 2400 MHz |
|---|
Form Factor | DIMM 288-pin |
|---|
Slots | 24 (Total) / 22 (empty) |
|---|
Features | HPE SmartMemory, registered, slots 13 – 24 are available in two-processor configuration only |
|---|
Configuration Features | 2 x 32 GB |
|---|
Hard Drive
Type | SSD |
|---|
Capacity | 2 x 480 GB |
|---|
Interface Type | SATA 6Gb/s |
|---|
Features | HPE Multi Vendor, Read Intensive |
|---|
Storage Controller
Type | 1 x RAID |
|---|
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
|---|
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
|---|
Channel Qty | 8 |
|---|
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
|---|
Buffer Size | 4 GB |
|---|
Optical Storage
Monitor
Graphics Controller
Video Memory | 16 MB |
|---|
Video Interfaces | VGA |
|---|
Networking
Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
|---|
Ethernet Ports | 2 x 10 Gigabit Ethernet |
|---|
Ethernet Controller | Broadcom BCM57416 |
|---|
Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
|---|
Remote Management Protocol | IPMI 2.0, SNMP 3 |
|---|
Remote Management Controller | Integrated Lights-Out 6 |
|---|
Features | Wake on LAN (WoL), PXE support |
|---|
Expansion / Connectivity
Bays | 8 (total) / 6 (free) x hot-swap 2.5″ SFF |
|---|
Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (x16 mode)
2 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0 |
|---|

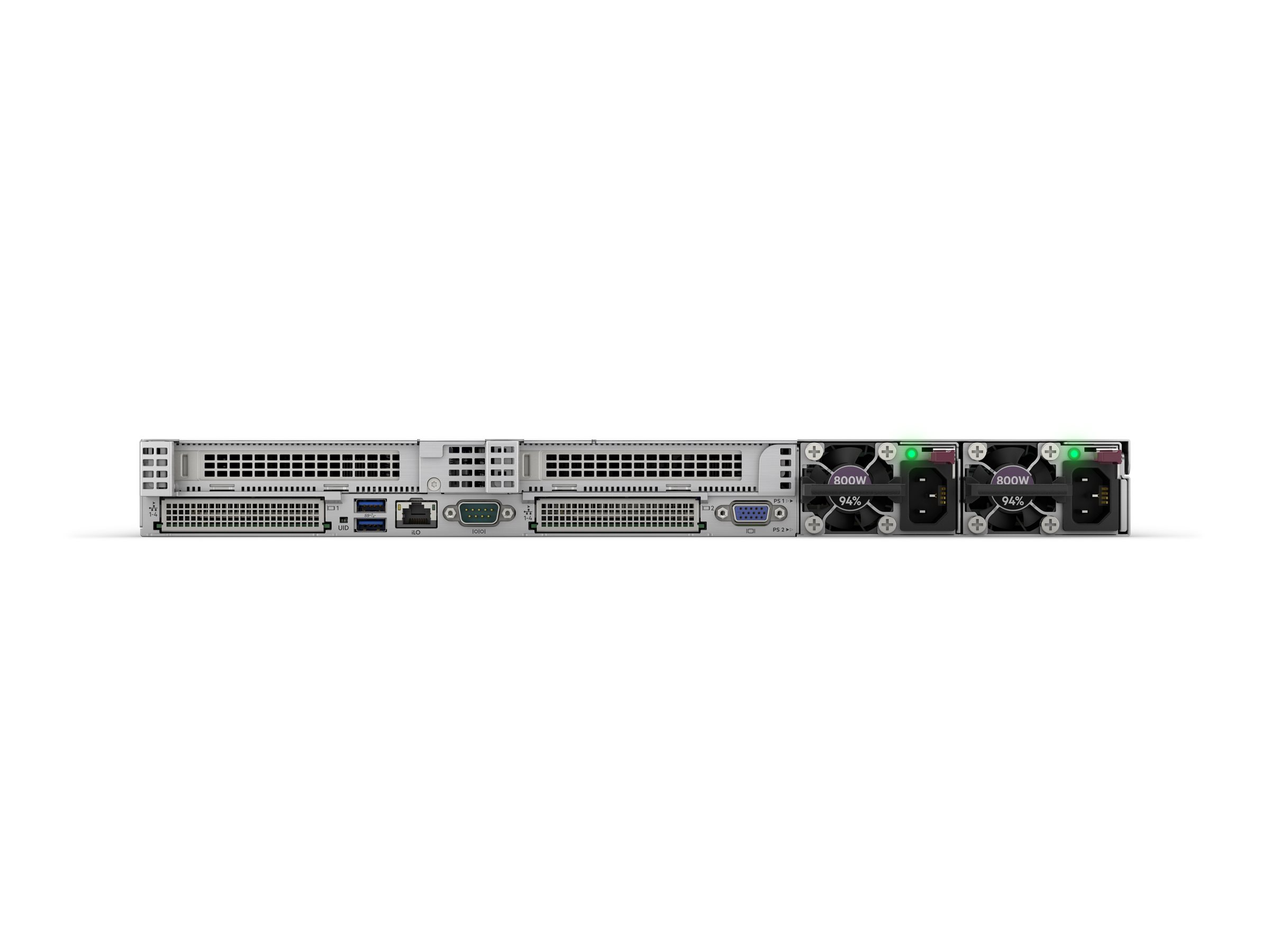

Interfaces | 1 x HPE iLO (1 in front) (service port)
5 x USB 3.1 Gen 1 (1 front, 2 rear, 2 internal)
1 x VGA
2 x LAN (1/10 Gigabit Ethernet) |
|---|
Miscellaneous
Included Accessories | 7 x standard fans |
|---|
Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, ACPI 6.1, WEEE, TLS v1.2, UEFI 2.7, SMBIOS 3.1, Redfish API, AES, Triple DES, Active Directory v1.0 |
|---|
Power
Device Type | Power supply – hot-plug |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Installed Qty | 2 |
|---|
Max Supported Qty | 2 |
|---|
Voltage Required | AC 100-120/200-240 V |
|---|
Power Provided | 800 Watt |
|---|
80 PLUS Certification | 80 PLUS Platinum |
|---|
Operating System / Software
Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
|---|
Sustainability Information
ENERGY STAR Certified | Yes |
|---|
ENERGY STAR Version | 4.0 |
|---|
Dimensions & Weight
Width | 44.89 cm |
|---|
Depth | 64.94 cm |
|---|
Height | 4.29 cm |
|---|
Weight | 12.7 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 60 cm |
|---|
Shipping Depth | 24.2 cm |
|---|
Shipping Height | 91.6 cm |
|---|
Environmental Parameters
Min Operating Temperature | 10 °C |
|---|
Max Operating Temperature | 35 °C |
|---|
Humidity Range Operating | 8 – 90% RH (non-condensing) |
|---|
