Description

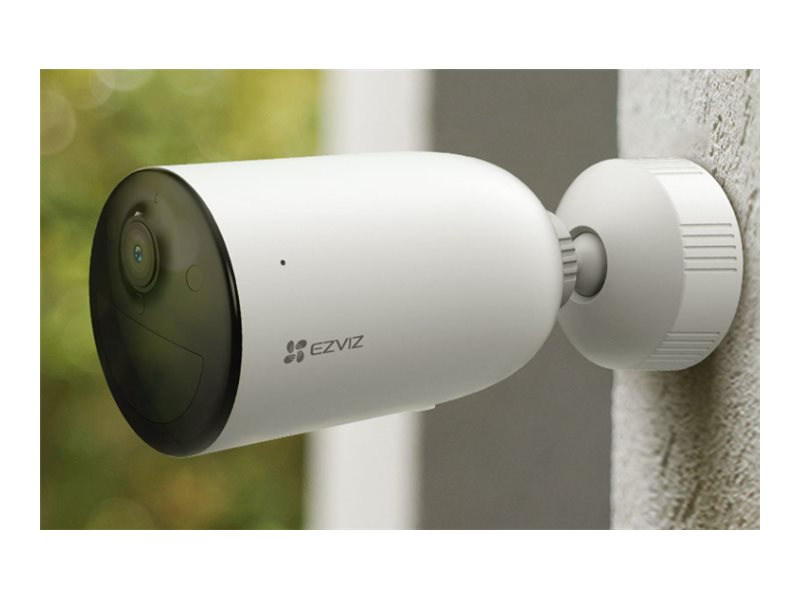

The EZVIZ CB3 AOV Version is a versatile surveillance camera designed for various environments, offering reliable performance with its robust features. With a powerful 5200 mAh battery, it ensures continuous operation, even in challenging temperatures ranging from -20°C to 50°C. Its weatherproof design withstands diverse conditions, making it suitable for outdoor use. The camera captures video at a resolution of 2304 x 1296, which provides clear images, coupled with features like Color Night Vision and infrared capabilities for monitoring in low light situations. Equipped with advanced motion detection technology and a wide 130-degree angular field of view, the camera excels at monitoring large areas. It supports connectivity via Wi-Fi and Bluetooth, allowing easy integration with smart home ecosystems through Google Assistant and Alexa. The EZVIZ app offers a user-friendly interface for real-time monitoring and cloud recording, ensuring that security is just a tap away. With numerous security standards and encryption algorithms, this camera prioritizes user safety and data protection.
- 5200 mAh battery for extended operation
- Supports 2K video resolution for clear images
- Weatherproof design ensures durability
- Integrates with Google Assistant and Alexa
- Features Color Night Vision for low light performance
- High-resolution imaging
The EZVIZ CB3 AOV Version features a digital video capture resolution of 2304 x 1296, delivering detailed and sharp images suitable for surveillance purposes. - Wide viewing angles
With an angular field of view of 130 degrees, the camera effectively covers a large area, reducing blind spots for enhanced security. - Advanced night vision
This camera incorporates Color Night Vision along with infrared LEDs, enabling effective monitoring even in complete darkness up to 15 meters. - Secure connectivity options
Equipped with multiple encryption algorithms such as AES and WPA3, the camera ensures that data transmissions remain secure and protected from unauthorized access. - Flexible monitoring capabilities
The two-way audio functionality and integration with the EZVIZ app allow users to interact with visitors remotely, enhancing the functionality of the surveillance system.
What’s in the Box
- EZVIZ CB3 AOV Version
- Screw kit, drill hole template, screw base, power cable, pin
Main Specifications
Product Description | EZVIZ CB3 AOV Version – network surveillance camera – bullet |
Device Type | Network surveillance camera – fixed – bullet – weatherproof |
Packaged Quantity | 2 (specifications are for single item) |
Audio | Yes: two-way audio capability |
Dimensions (WxDxH) | 6.295 cm x 15.33 cm x 6.28 cm |
Weight | 222.7 g |
Connectivity Technology | Wireless |
Camera | Colour – Day&Night |
Max Resolution | 2304 x 1296 |
Frame Rate (max) | 15 frames per second |
Motion Detection | Yes |
Video Modes | 2K |
Optical Sensor Type | Progressive Scan CMOS – 1/2.8″ – 3 MP |
Minimum Illumination | 0.01 lux – colour – F1.6 – AGC on 0 lux – IR |
Focal Length | 2.8 mm |
Lens Iris | F/1.6 |
Interfaces | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth |
Intelligent Assistant | Google Assistant, Alexa |
Voltage | DC 5 V |
Features | Self-adaptive shutter, infrared cut filter, auto-switching, 3D digital noise reduction (DNR), Colour Night Vision, anti-flicker, human shape detection, vehicle shape detection, AP paring, heart beat, password protection, watermark, cloud recording, always-on protection mode (AOV), built-in strobe light, built-in siren |
Environmental Parameters (operating) | -20 °C – 50 °C; 95% or Less (Non-Condensing) relative humidity |
Documents
Extended Specifications
General
Packaged Quantity | 2 (specifications are for single item) |
|---|
Device Type | Network surveillance camera |
|---|
Audio Support | Yes: two-way audio capability |
|---|
Form Factor | Bullet |
|---|
Connectivity Technology | Wireless |
|---|
Width | 6.295 cm |
|---|
Depth | 15.33 cm |
|---|
Height | 6.28 cm |
|---|
Weight | 222.7 g |
|---|
Camera
Type | Colour – Day&Night – fixed – weatherproof |
|---|
Digital Video Format | H.265, H.264 |
|---|
Max Digital Video Resolution | 2304 x 1296 |
|---|
Motion Detection | Yes |
|---|
Video Modes | 2K |
|---|
Minimum Illumination | 0.01 lux – colour – F1.6 – AGC on 0 lux – IR |
|---|
Infrared LEDs | Yes |
|---|
Infrared Distance | 15 m |
|---|
Digital Video Capture Resolution | 2304 x 1296 |
|---|
Frame Rate (max) | 15 frames per second |
|---|
Features | Self-adaptive shutter, infrared cut filter, auto-switching, 3D digital noise reduction (DNR), Colour Night Vision, anti-flicker, human shape detection, vehicle shape detection, AP paring, heart beat, password protection, watermark, cloud recording, always-on protection mode (AOV), built-in strobe light, built-in siren |
|---|
Image Sensor
Type | 3 MP Progressive Scan CMOS 1/2.8″ |
|---|
Lens Construction
Focal Length | 2.8 mm |
|---|
Lens Iris | F/1.6 |
|---|
Horizontal Field of View (degree) | 108 |
|---|
Vertical Field of View (degree) | 56 |
|---|
Diagonal Field of View (degree) | 130 |
|---|
Interfaces
Network Interface | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth |
|---|
Expansion / Connectivity
Supported Memory Cards | microSD Card |
|---|
Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA3-Personal, TLS, AES |
|---|
Miscellaneous
Included Accessories | Screw base, pin, power cable, drill hole template, screw kit |
|---|
Compliant Standards | IP65, REACH, WEEE, RoHS |
|---|
Power
Power Requirements | DC 5 V – 2 A |
|---|
Power Device | Power supply – internal |
|---|
Battery | 5200 mAh (up to 120 days) |
|---|
Internet of Things (IoT)
Internet of Things (IoT) Compatible | Yes |
|---|
Compatible Application | EZVIZ app |
|---|
Intelligent Assistant | Google Assistant, Alexa |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 10.3 cm |
|---|
Shipping Depth | 18.6 cm |
|---|
Shipping Height | 10.3 cm |
|---|
Shipping Weight | 569 g |
|---|
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Relative Humidity (operating) | 95% or Less (Non-Condensing) |
|---|
