Description

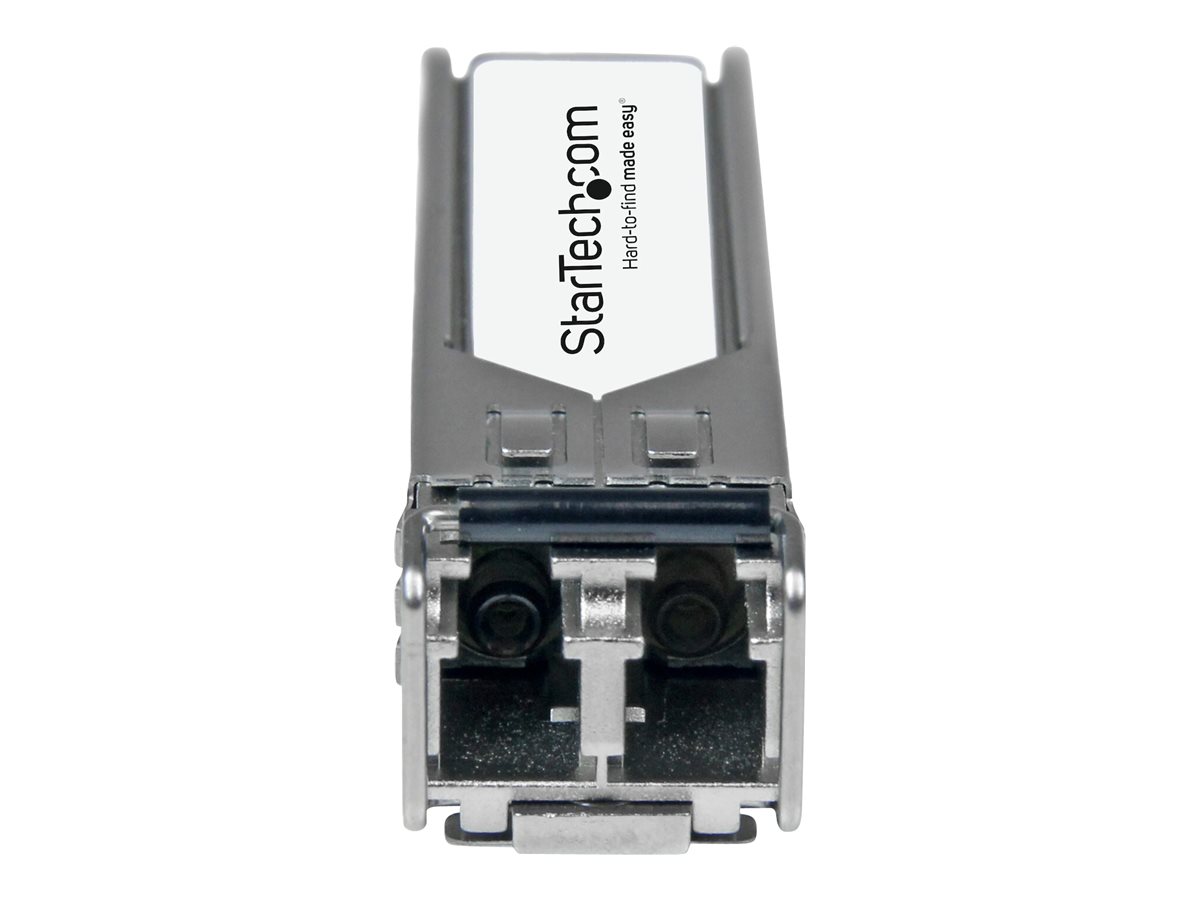

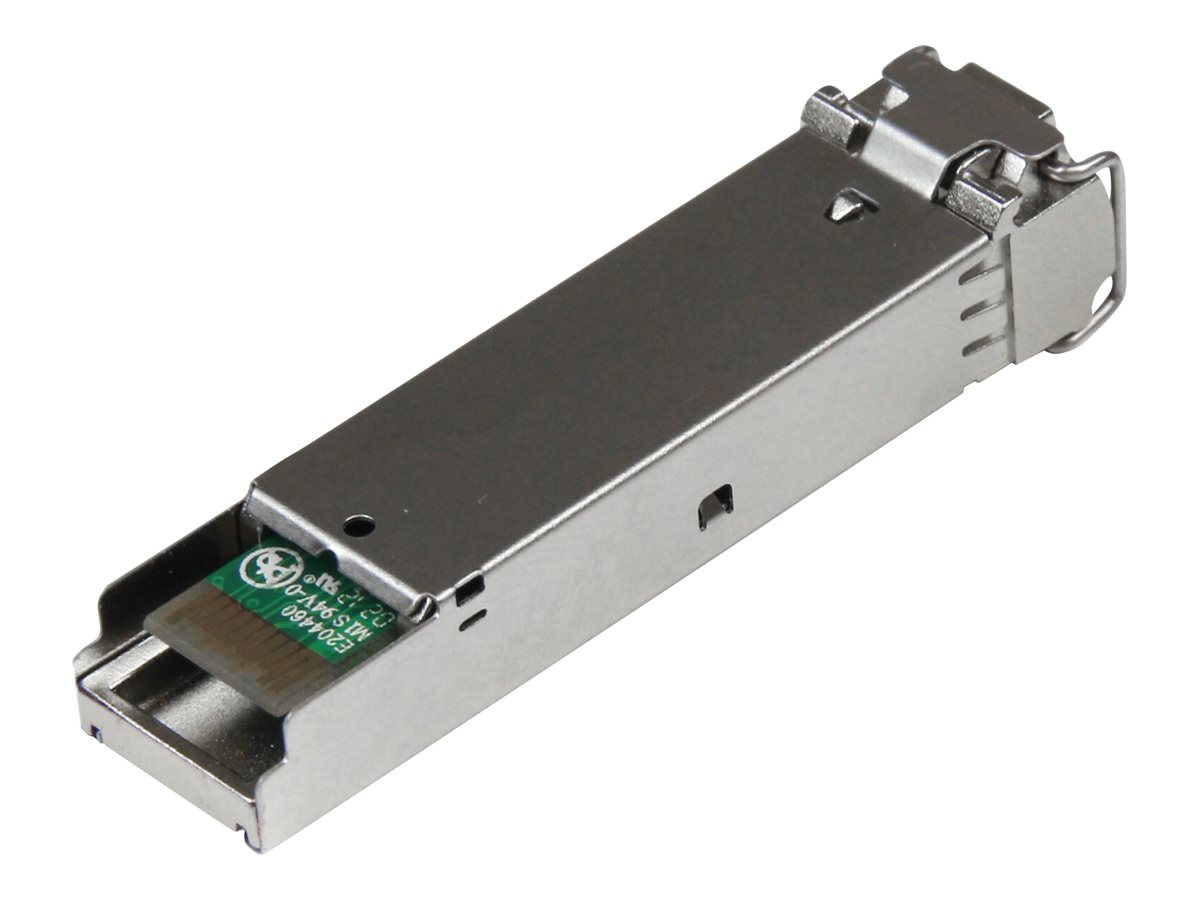

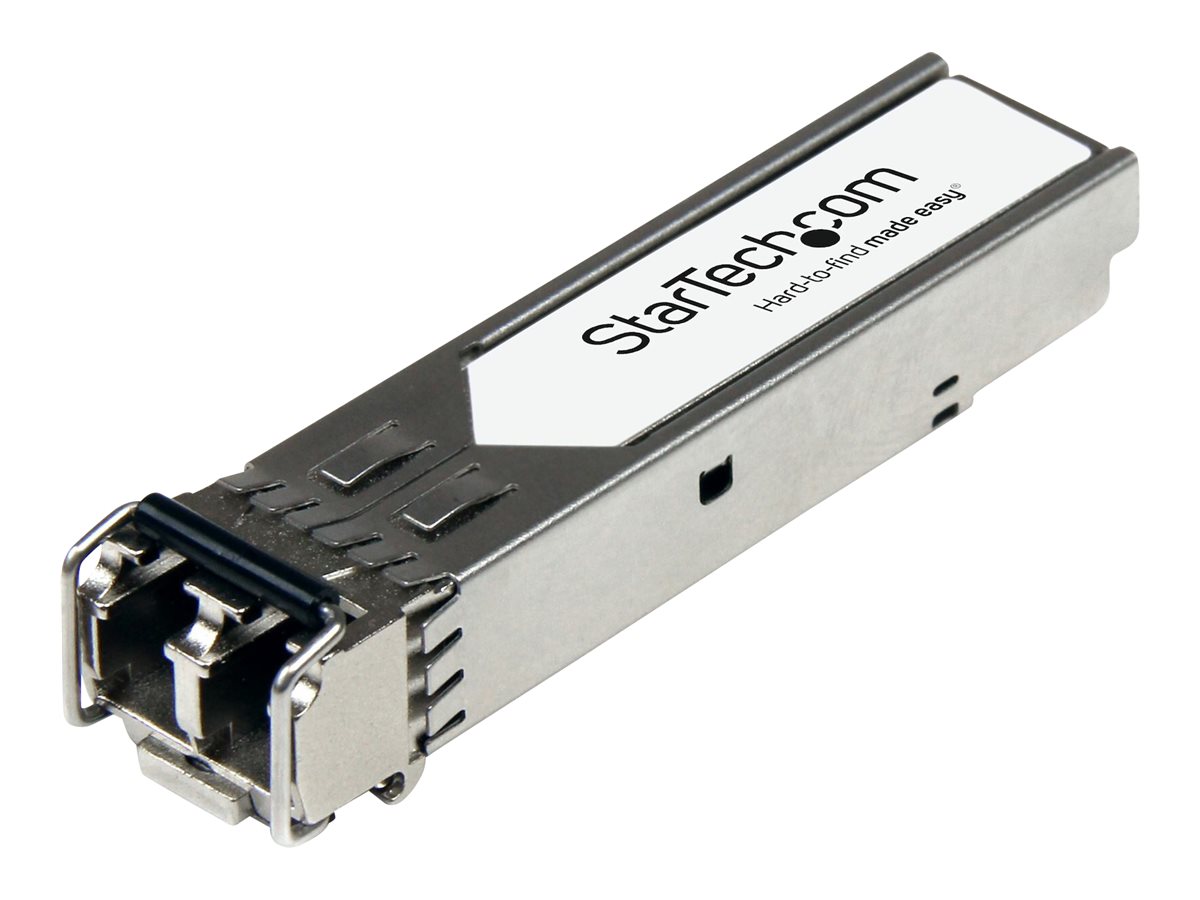

The 455886-B21-ST is a HP 455886-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
- Supports data transfer rate of 10 Gbps
- Maximum transfer distance of 10 km
- Equipped with Digital Diagnostics Monitoring
- MTBF for reliable long-term use
- Low power consumption of 1.3 watts
- Efficient connectivity
This SFP+ transceiver module supports Ethernet 10GBase-LR, providing high-speed connectivity for performance-driven networks. - Robust design
With a form factor of a plug-in module and LC single-mode connectors, this device offers seamless integration into existing network systems. - Long-distance capability
Capable of transmitting data over a maximum distance of 10 km, ensuring effective communication in larger infrastructures. - Advanced monitoring features
Incorporating Digital Diagnostics Monitoring (DDM), this module allows continuous performance monitoring for better network management. - Reliable performance
With an MTBF of 1,386,624,697 hours, this module is designed for durability and longevity in demanding applications.
Main Specifications
Product Description | Startech HPE 455886-B21 Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode (SMF) Fiber Optic Transceiver, LC 10km, 1310nm DDM, HPE BladeSystem 562SFP+ 560SFP+, Mini GBIC Transceiver – Lifetime Warranty (455886-B21-ST) – SFP+ transceiver module – 10GbE |
Device Type | SFP+ transceiver module – LC single-mode |
Form Factor | Plug-in module |
Cabling Type | 10GBase-LR |
Data Transfer Rate | 10 Gbps |
Optical Wave Length | 1310 nm |
Data Link Protocol | 10GbE |
Max Transfer Distance | 10 km |
OEM Manufacturer Equivalent Part Number | HP 455886-B21 |
Dimensions (WxDxH) | 5.84 cm x 1.39 cm x 1.37 cm |
Weight | 21 g |
Designed For | HPE SimpliVity 380 Gen10 Node, 380 Gen9 Node; Virtual Connect Flex-10 |
Extended Specifications
General
Device Type | SFP+ transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 10GBase-LR |
|---|
Data Link Protocol | 10GbE |
|---|
Data Transfer Rate | 10 Gbps |
|---|
Optical Wave Length | 1310 nm |
|---|
Max Transfer Distance | 10 km |
|---|
Features | Digital Diagnostics Monitoring (DDM) |
|---|
Expansion / Connectivity
Interfaces | 1 x Ethernet 10GBase-LR – LC single-mode female x 2 |
|---|
Miscellaneous
MTBF | 1,386,624,697 hours |
|---|
Compliant Standards | MSA |
|---|
OEM Manufacturer Equivalent Part Number | HP 455886-B21 |
|---|
Power
Power Consumption Operational | 1.3 Watt |
|---|
Dimensions & Weight
Width | 5.84 cm |
|---|
Depth | 1.39 cm |
|---|
Height | 1.37 cm |
|---|
Weight | 21 g |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 9 cm |
|---|
Shipping Depth | 11.5 cm |
|---|
Shipping Height | 3.1 cm |
|---|
Shipping Weight | 50 g |
|---|
Compatibility Information
Designed For | HPE SimpliVity 380 Gen10 Node, 380 Gen9 Node
HPE Virtual Connect Flex-10 |
|---|
