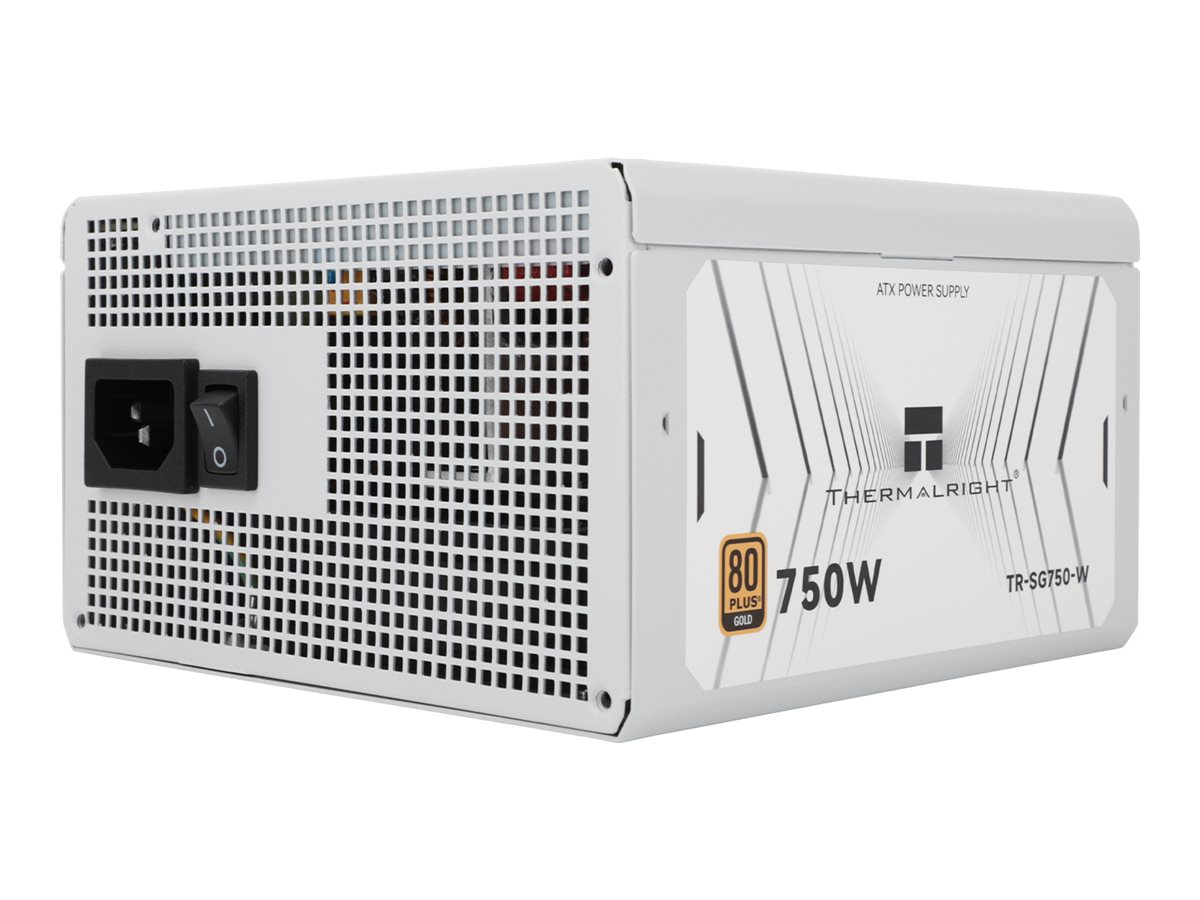

Thermalright SG-750-W, Power supply (internal), ATX 3.1, 80 PLUS Gold, AC 100-240 V, 750 Watt
$175.57 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Thermalright SG-750-W power supply offers 750 watts of power, ensuring reliable performance for any system. Its modular design includes various cables such as a 15 pin Serial ATA power modular cable, an AC power cable, and an 8 pin PCI Express power cable with detachable sections, enhancing flexibility and organization within your build. With features like overcurrent, overload, and short circuit protection, the SG-750-W ensures safety and durability during use.
Operating with a voltage range of AC 100-240 V and complying with ATX 3.1 specifications, this power supply operates efficiently within a temperature range of 0°C to 40°C. Additionally, Smart air cooling and LLC resonant converter technology contribute to quiet operation and efficient thermal management. With an MTBF of 100,000 hours and 80 PLUS Gold Certification, this power supply provides a mix of performance and energy efficiency for gamers and professionals.
- 750 watts of reliable power supply
- Modular design simplifies cable management
- Enhanced safety with multiple protection features
- Efficient operation with 80 PLUS Gold Certification
- Long lifespan with 100,000 hours MTBF
- Reliable performance
The Thermalright SG-750-W provides a power output of 750 watts, ensuring sufficient energy for high-performance components. - Modular cable design
Features a modular design that includes various detachable cables, allowing users to customize their setup and reduce cable clutter. - Advanced safety features
Equipped with overcurrent, overload, overvoltage, undervoltage, and short circuit protection, this power supply enhances the safety of connected components. - Efficient cooling technology
Incorporates Smart air cooling and LLC resonant converter technology to maintain optimal temperatures and conserve energy during operation. - Compliance and longevity
Meets ATX 3.1 specifications and boasts a mean time between failures (MTBF) of 100,000 hours, ensuring reliability over extended use.
Main Specifications
Product Description | Thermalright SG-750-W – power supply – 750 Watt |
Device Type | Power supply – internal |
Specification Compliance | ATX 3.1 |
80 PLUS Certification | 80 PLUS Gold |
Input Voltage | AC 100-240 V |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Power Capacity | 750 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 62.5 A -12V – 0.3 A +5VSB – 2.5 A |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – internal |
|---|---|
Specification Compliance | ATX 3.1 |
PSU Form Factor | ATX |
Power Device
Input Voltage | AC 100-240 V |
|---|---|
Frequency Required | 47 – 63 Hz |
Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
Max Electric Current | 62.5 A |
Power Capacity | 750 Watt |
Output Current | +3.3V – 20 A +5V – 20 A +12V – 62.5 A -12V – 0.3 A +5VSB – 2.5 A |
80 PLUS Certification | 80 PLUS Gold |
Miscellaneous
Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section cable 2 x power 8 pin CPU with 4 detachable 4 pin 2 x 8 pin PCI Express power with detachable 2 pin section 16-pin 12VHPWR power modular cable 2 x 3 x Serial ATA / 1 x Parallel ATA 15 pin Serial ATA power modular cable |
|---|---|
MTBF | 100,000 hours |
Features | Modular design, overload protection, overvoltage protection, password security, overcurrent protection, short circuit protection, undervoltage protection, LLC resonant converter technology, Smart air cooling |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
